Parts for G1017 - 12" Planer

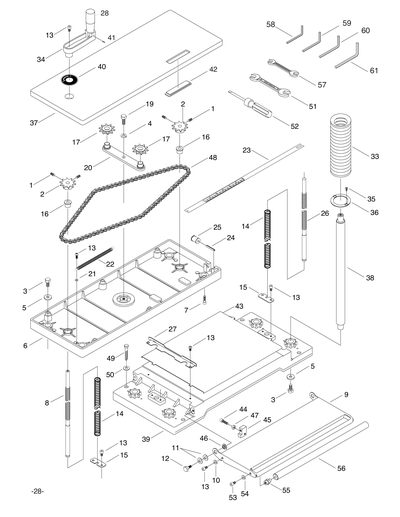

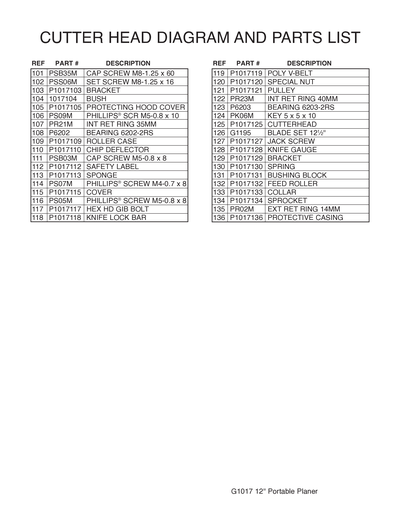

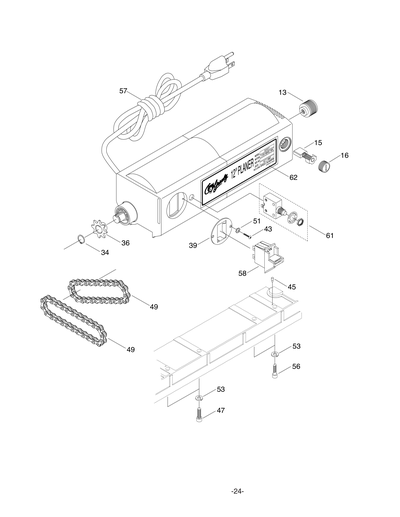

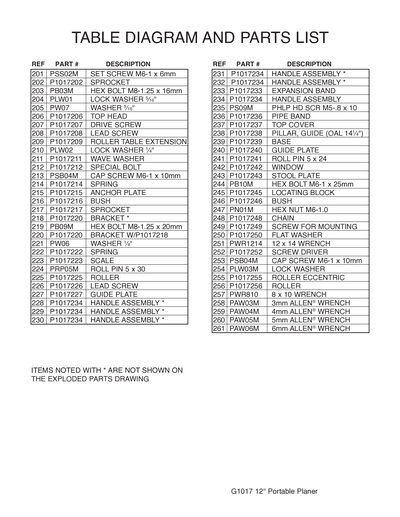

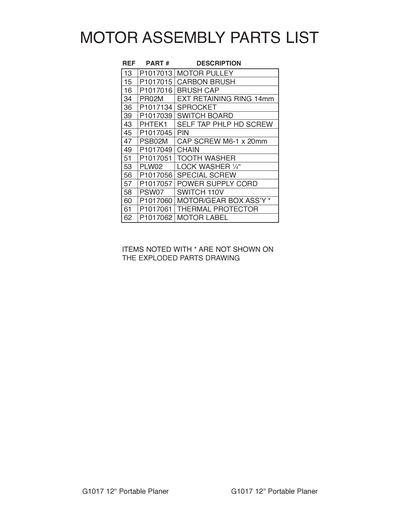

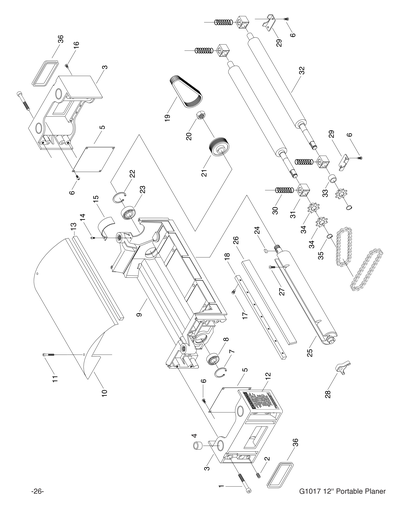

Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017
Part Diagram for G1017

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR HOUSING
Price
$21.75
2
STATOR
Price
$81.25
3
STATOR
Price
N/A
4
FAN CASING
Price
$1.85
5
FAN CASING SCREW M4.85-1.59 X 70
Price
$1.85
6
BEARING HOUSING
Price
$6.05
7
BALL BEARING 6201-2RS
Price
N/A
8
ARMATURE ASSEMBLY
Price
$181.80
9
ARMATURE ASSEMBLY
Price
N/A
10
ARMATURE ASSEMBLY
Price
N/A
11
ARMATURE ASSEMBLY
Price
N/A
12
BALL BEARING 6200-2RS
Price
N/A
13
MOTOR PULLEY
Price
$10.30
14
BRUSH HOLDER
Price
$7.90
15
CARBON BRUSH (SINGLE)
Price
$5.15
16
BRUSH CAP
Price
N/A
17
SET SCREW M5-.8 X 10
Price
N/A
18
GEAR BOX COVER
Price
$7.80
19
GEAR BOX
Price
$27.55
20
PINION
Price
$7.60
21
GEAR
Price
$7.90
22
KEY 3 X 3 X 8
Price
N/A
23
BUSH 6MM X 10MM X 9MM
Price
$1.85
24
P1017024
Now: PW06
FLAT WASHER 1/4
Price
N/A
25
PINION
Price
$7.60
26
GEAR
Price
$10.00
27
KEY 4 X 4 X 8
Price
N/A
28
BUSH 8MM X 11MM X 10MM
Price
$1.85
29
P1017029
Now: PW07
FLAT WASHER 5/16
Price
N/A
30
GEAR
Price
$8.20
31
SHAFT
Price
$6.70
32
BALL BEARING 6202Z
Price
N/A
33
KEY 4 X 4 X 10
Price
N/A
34
EXT RETAINING RING 14MM
Price
N/A
35
BALL BEARING 6002Z
Price
N/A
36
KEY SPROCKET
Price
N/A
37
SWITCH COVER
Price
$1.75
38
SWITCH BOX
Price
$13.95
39
SWITCH BOARD
Price
$1.85
40
SPONGE
Price
$1.85
41
RELIEF BUSH
Item is no longer available
Price
N/A
42
WIRE CLAMP
Item is no longer available
Price
N/A
43
TAP SCREW #6 X 1/2
Price
N/A
44
GEAR BOX SCREW M4.85-1.59 X 50
Price
$1.85
45
PIN
Price
$1.85
46
P1017046
Now: PW03
FLAT WASHER #10
Price
N/A
47
CAP SCREW M6-1 X 20
Price
N/A
48
PHLP HD SCR M4-.7 X 12
Price
N/A
49
CHAIN 13 LINK
Price
$3.05
50
SWITCH PLATE
Item is no longer available
Price
N/A
50A
WIRE CLIP
Price
$1.75
51
TOOTH WASHER 5.3 X 10
Price
$1.85
52
GEAR BOX SCREW M4.85-1.59 X 60
Price
$1.85
53
LOCK WASHER 1/4
Price
N/A
54
HOLLOW PIN
Item is no longer available
Price
N/A
55
SNAP PIN
Item is no longer available
Price
N/A
56
MOTOR SCREW M6-1.59 X 20
Price
$1.85
57
POWER SUPPLY CORD
Price
$11.20
58
Toggle Safety Switch
Price
N/A
58A
SWITCH NO PRONG V1.12.95
Price
$25.05
59
SAFETY PLATE
Price
$1.75
60
MOTOR 2HP 110V 1-PH W/GEAR BOX
Price
$310.10
61
THERMAL PROTECTOR 18AMP
Price
$5.80
62
*DISCD*MOTOR LABEL
Item is no longer available
Price
N/A
101
CAP SCREW M8-1.25 X 60
Price
N/A
102
SET SCREW M8-1.25 X 16
Price
N/A
103
BRACKET
Price
$41.70
104
*DISCD*BUSH
Item is no longer available
Price
N/A
105
PROTECTING HOOD COVER
Price
$2.75
106
PHLP HD SCR M5-.8 X 10
Price
N/A
107
INT RETAINING RING 35MM
Price
N/A
108
BALL BEARING 6202-2RS
Price
N/A
109
*DISCD*ROLLER CASE
Item is no longer available
Price
N/A
110
*DISCD*CHIP DEFLECTOR
Item is no longer available
Price
N/A
111
CAP SCREW M5-.8 X 8
Price
N/A
112
SAFETY PLATE
Price
$1.75
113
SPONGE
Price
$1.85
114
PHLP HD SCR M4-.7 X 8
Price
N/A
115
COVER
Price
$1.85
116
PHLP HD SCR M5-.8 X 8
Price
N/A
117
HEX HD GIB BOLT 1/4-28 X 7
Price
$1.85
118
KNIFE LOCK BAR
Price
$7.90
119
POLY RIBBED BELT
Price
$14.50
120
*DISCD*PULLEY NUT M16-1.5
Price
$1.85
121
MACHINE PULLEY
Price
$9.10
122
INT RETAINING RING 40MM
Price
N/A
123
BALL BEARING 6203-2RS
Price
N/A
124
KEY 5 X 5 X 10
Price
N/A
125
CUTTERHEAD
Price
$91.20
126
12-1/2" x 3/4" x 1/8" HSS Planer Knives - Set of 2 for G1017
Price
N/A
127
JACK SCREW M5-.8 X 12
Price
$1.85
128
KNIFE GAUGE 1 OF 2
Price
$2.20
129
BRACKET
Price
$1.85
130
SPRING 2 X 28
Price
$1.85
131
BUSHING BLOCK
Price
$5.15
132
*DISCD*FEED ROLLER
Price
$22.45
133
COLLAR
Price
$1.85
134
KEY SPROCKET
Price
$5.15
135
EXT RETAINING RING 14MM
Price
N/A
136
PROTECTIVE CASING
Price
$1.85
137
*DISCD*COMPLETE KNIFE GAUGE ASSY
Price
$13.80
137-1
KNIFE GAUGE 1 OF 2
Price
N/A
137-2
ROD FOR KNIFE GAUGE
Item is no longer available
Price
N/A
137-3
E-CLIP FOR KNIFE GAUGE
Item is no longer available
Price
N/A
201
SET SCREW M6-1 X 6
Price
N/A
202
SPROCKET
Price
$2.20
203
HEX BOLT M8-1.25 X 16
Price
N/A
204
LOCK WASHER 5/16
Price
N/A
205
P1017205
Now: PW07
FLAT WASHER 5/16
Price
N/A
206
TOP HEAD
Price
$111.85
207
DRIVE SCREW M6-1.59 X 20
Price
$1.75
208
LEADSCREW M14-2 X 200
Price
$7.20
208A
LEADSCREW M14-2 X 200 14-15/16 IN
Price
$7.20
208B
LEADSCREW M14-2 X 200 14-11/16 IN
Price
$7.20
208C
LEADSCREW M14-2 X 200 14-3/8 IN
Item is no longer available
Price
N/A
208D
LEADSCREW M14-2 X 200 14-1/16 IN
Price
$7.20
209
*DISCD*ROLLER TABLE EXTENSION
Item is no longer available
Price
N/A
209A
TABLE EXTENSION
Price
$13.95
210
LOCK WASHER 1/4
Price
N/A
211
WAVY WASHER 8MM
Price
$1.85
212
ROLLER TABLE EXTENSION BOLT M6-1 X 10
Price
$2.75
213
CAP SCREW M6-1 X 10
Price
N/A
214
HELICAL SPRING 1.8 X 1.8 X 372
Price
$2.75
215
ANCHOR PLATE
Price
$1.85
216
BUSH
Price
$2.75
217
SPROCKET
Price
$2.60
218
BRACKET WITH P1017218
Price
N/A
219
HEX BOLT M8-1.25 X 20
Price
N/A
220
BRACKET WITH P1017218
Price
$6.35
221
P1017221
Now: PW06
FLAT WASHER 1/4
Price
N/A
222
HELICAL SPRING 0.8 X 130
Price
$1.85
223
*DISCD*SCALE
Item is no longer available
Price
N/A
224
ROLL PIN 5 X 30
Price
N/A
225
ROLLER
Price
$1.85
226
LEADSCREW M14-2 X 214
Price
$4.90
226A
LEADSCREW M14-2 X 214 14-15/16 IN
Price
$4.90
226B
LEADSCREW M14-2 X 214 14-11/16 IN
Price
$4.90
226C
LEADSCREW M14-2 X 214 14-1/16 IN
Item is no longer available
Price
N/A
227
GUIDE PLATE
Price
$1.85
228
HANDLE ASSEMBLY
Price
N/A
229
HANDLE ASSEMBLY
Price
N/A
230
HANDLE ASSEMBLY
Price
N/A
231
HANDLE ASSEMBLY
Price
N/A
232
HANDLE ASSEMBLY
Price
N/A
233
EXPANSION BAND
Price
$1.85
234
HANDLE ASSEMBLY
Price
$10.30
235
PHLP HD SCR M5-.8 X 10
Price
N/A
236
PIPE BAND
Price
$1.85
237
TOP COVER
Price
$10.95
238
PILLAR GUIDE OAL 14-1/4"
Price
$12.65
238A
PILLAR GUIDE
Price
$18.70
239
BASE
Price
$115.00
240
GUIDE PLATE
Price
$1.85
241
ROLL PIN 5 X 24
Price
N/A
242
*DISCD*WINDOW
Item is no longer available
Price
N/A
243
*DISCD*STOOL PLATE
Item is no longer available
Price
N/A
244
HEX BOLT M6-1 X 25
Price
N/A
245
LOCATING BLOCK
Price
$4.85
246
*DISCD*BUSHING
Item is no longer available
Price
N/A
247
HEX NUT M6-1
Price
N/A
248
CHAIN
Price
$7.90
249
WOOD SCREW 1/2"
Price
$1.75
250
P1017250
Now: PW02
FLAT WASHER 3/8
Price
N/A
251
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
252
SCREWDRIVER
Price
$3.20
253
CAP SCREW M6-1 X 10
Price
N/A
254
LOCK WASHER 6MM
Price
N/A
255
ROLLER ECCENTRIC
Price
$1.85
256
*DISCD*ROLLER
Item is no longer available
Price
N/A
257
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
258
HEX WRENCH 3MM
Price
N/A
259
HEX WRENCH 4MM
Price
N/A
260
HEX WRENCH 5MM
Price
N/A
261
HEX WRENCH 6MM
Price
N/A
MANUAL
MANUAL FOR G1017 04/99
Price
$14.65
PART
MISC PART FOR G1017
Item is no longer available
Price
N/A
