Parts for G1019Z - 14" Bandsaw

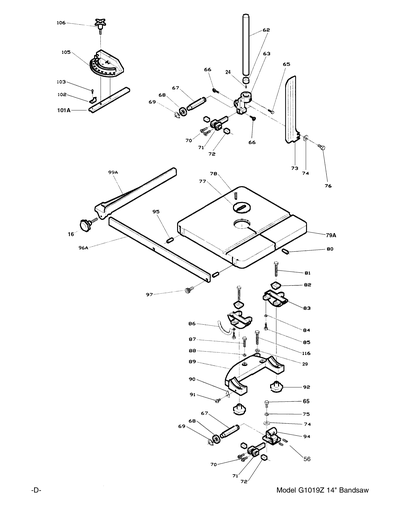

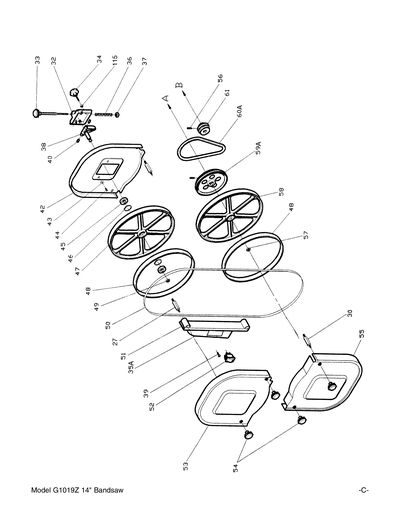

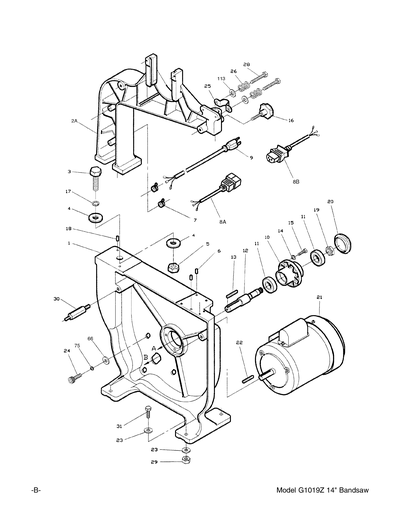

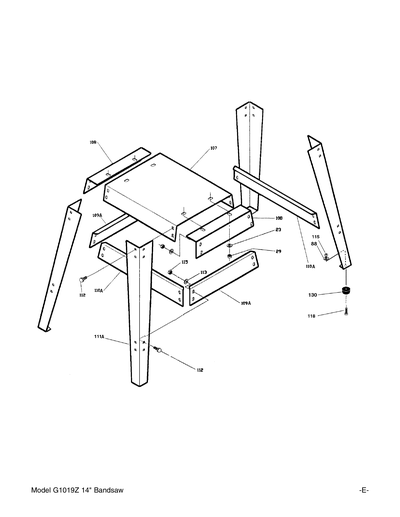

Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z
Part Diagram for G1019Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

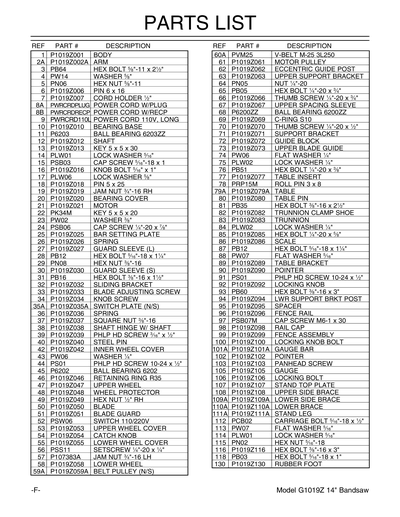

Ref #
Part #
Description
1
Price
$180.00
2
ARM
Item is no longer available
Price
N/A
3
HEX BOLT 5/8-11 X 2-1/2
Price
N/A
4
FLAT WASHER 5/8
Price
N/A
5
HEX NUT 1/2-12
Price
N/A
6
ROLL PIN 6 X 16
Price
N/A
7
Price
$2.45
8
Price
$8.80
8A
*DISCD*POWER CORD IEC MALE
Price
N/A
8B
*DISCD*POWER CORD IEC FEMALE
Price
N/A
9
POWER CORD W/SHIELDED MALE REC
Price
$19.35
10
*DISCD*BEARING BASE
Item is no longer available
Price
N/A
11
BALL BEARING 6203ZZ
Price
N/A
12
*DISCD*SHAFT 5/8-18 V2.06.01
Price
N/A
12A
*DISCD*SHAFT 5/8-18 V2.06.01
Item is no longer available
Price
N/A
13
KEY 5 X 5 X 30
Price
N/A
14
LOCK WASHER 5/16
Price
N/A
15
CAP SCREW 5/16-18 X 1
Price
N/A
16
Price
$6.75
17
LOCK WASHER 5/8
Price
N/A
18
ROLL PIN 5 X 25
Price
N/A
19
HEX NUT 5/8-18
Price
N/A
20
BEARING COVER
Item is no longer available
Price
N/A
21
*DISCD*MOTOR V1.06.98
Item is no longer available
Price
N/A
21A
*DISCD*Motor 1hp 110v/220v 1-ph V2.11.98
Item is no longer available
Price
N/A
21A-1
MOTOR FAN
Item is no longer available
Price
N/A
21A-2
MOTOR FAN COVER
Item is no longer available
Price
N/A
21A-3
CAPACITOR COVER
Item is no longer available
Price
N/A
21A-4
JUNCTION BOX
Item is no longer available
Price
N/A
22
KEY 5 X 5 X 20
Price
N/A
23
FLAT WASHER 3/8
Price
N/A
24
CAP SCREW 1/4-20 X 1
Price
N/A
25
Price
$8.50
26
Price
$3.05
27
Price
$2.75
28
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
29
HEX NUT 3/8-16
Price
N/A
30
Price
$2.75
31
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
32
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
33
*DISCD*BLADE ADJUSTING SCREW 5/8-18 X 2
Item is no longer available
Price
N/A
33A
BLADE ADJUSTING SCREW LONG W/KNOB
Price
$16.20
33A-1
*DISCD*BLADE ADJUSTING SCREW LONG
Price
$11.50
34
Price
$7.25
35
Price
$4.30
36
SPRING 4.2 X 76 V2.01.14
Price
N/A
36V2
SPRING 4.2 X 76 V2.01.14
Price
$11.80
37
SQUARE NUT 3/8-16
Price
N/A
38
*DISCD*UPPER WHEEL SHAFT HINGE
Price
N/A
38A
Price
$33.75
39
PHLP HD SCR 10-24 X 3/8
Price
N/A
40
Price
$5.15
41
UPPER HINGE ASSY
Price
N/A
42
Price
$36.25
43
FLAT WASHER 1/4
Price
N/A
44
PHLP HD SCR 10-24 X 1/2
Price
N/A
45
BALL BEARING 6202ZZ
Price
N/A
46
INT RETAINING RING 35MM
Price
N/A
47
*DISCD*TOP WHEEL
Price
N/A
48
Price
$24.35
49
HEX NUT 1/2-20
Price
N/A
50
Price
$35.85
51
Price
$21.20
52
Safety Paddle Switch
Price
N/A
53
Price
$47.10
54
Price
$7.25
55
*DISCD*LOWER WHEEL COVER
Item is no longer available
Price
N/A
56
SET SCREW 1/4-20 X 1/4
Price
N/A
57
NUT 3/4-16 LH
Price
N/A
58
*DISCD*LOWER WHEEL
Price
N/A
59
*DISCD*BELT PULLEY V1.06.98
Price
$33.10
59A
Price
$61.05
60
V-BELT M26 3L260
Price
N/A
60A
V-BELT M25 3L250
Price
N/A
61
Price
$29.00
61A
Price
$29.00
62
Price
$41.35
63
SUPPORT BRACKET CAST IRON 7/8"ID V2.12.1
Price
N/A
64
HEX NUT 1/4-20
Price
N/A
65
HEX BOLT 1/4-20 X 3/4
Price
N/A
66
THUMBSCREW 1/4-20 X 3/4
Price
N/A
67
HEX SHAFT V2.10.09
Price
N/A
68
BALL BEARING 6200ZZ
Price
N/A
69
EXT RETAINING RING 10MM
Price
N/A
70
THUMBSCREW 1/4-20 X 5/8
Price
N/A
71
GUIDE BLOCK HOLDER ROUND
Price
$20.85
72
BLADE GUIDE BLOCK ROUND
Price
N/A
73
*DISCD*UPPER BLADE GUARD
Item is no longer available
Price
N/A
74
FLAT WASHER 1/4
Price
N/A
75
LOCK WASHER 1/4
Price
N/A
76
HEX BOLT 1/4-20 X 3/8
Price
N/A
77
Price
$12.05
78
ROLL PIN 3 X 8
Price
N/A
79
*DISCD*TABLE 17MM MITER V1.04.98
Item is no longer available
Price
N/A
79A
TABLE 19MM MITER V2.09.01
Price
$177.55
80
TAPERED PIN
Price
N/A
81
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
82
TRUNNION CLAMPSHOE
Price
N/A
83
Price
$30.85
84
LOCK WASHER 1/4
Price
N/A
85
HEX BOLT 1/4-20 X 5/8
Price
N/A
86
Price
$5.15
87
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
88
FLAT WASHER 5/16
Price
N/A
89
Price
$146.65
90
Price
$2.45
91
PHLP HD SCR 10-24 X 1/2
Price
N/A
92
LOCK KNOB FOR TABLE
Price
N/A
93
HEX BOLT 3/8-16 X 3
Price
N/A
94
SUPPORT BRACKET LOWER
Price
N/A
95
Price
$2.45
96
Price
$15.85
97
CAP SCREW M6-1 X 30
Price
N/A
99
*DISCD*FENCE ASSEMBLY
Item is no longer available
Price
N/A
99A
Price
$30.85
100
LOCK KNOB BOLT 5/16-18 X 1
Price
$2.45
101
*DISCD*GAUGE BAR 18MM
Item is no longer available
Price
N/A
102
Price
$2.30
103
PHLP HD SCR 10-24 X 1/4
Price
N/A
104
ROLL PIN 6 X 12
Price
N/A
105
*DISCD*COMPLETE MITER GAUGE ASSY 19MM
Price
N/A
105A
*DISCD*COMPLETE MITER GAUGE ASSY-17MM
Item is no longer available
Price
N/A
105B
*DISCD*COMPLETE MITER GAUGE ASSY 19MM
Item is no longer available
Price
N/A
106
Price
$2.75
107
Price
$27.60
108
Price
$8.05
109
Price
$9.80
110
Price
$7.80
111
Price
$18.15
111A
Price
$23.90
112
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
113
FLAT WASHER 5/16
Price
N/A
114
LOCK WASHER 5/16
Price
N/A
115
HEX NUT 5/16-18
Price
N/A
116
HEX BOLT 3/8-16 X 3
Price
N/A
117
RUBBER FOOT V5.09.05
Price
N/A
118
HEX BOLT 5/16-18 X 1
Price
N/A
119
RUBBER FOOT V5.09.05
Price
N/A
130
Price
$2.75
130A
Price
$2.75
132
Price
$34.25
MANUAL
*DISCD*MANUAL FOR THE G1019Z 07/01
Item is no longer available
Price
N/A
PART
MISC PART FOR G1019Z
Item is no longer available
Price
N/A
