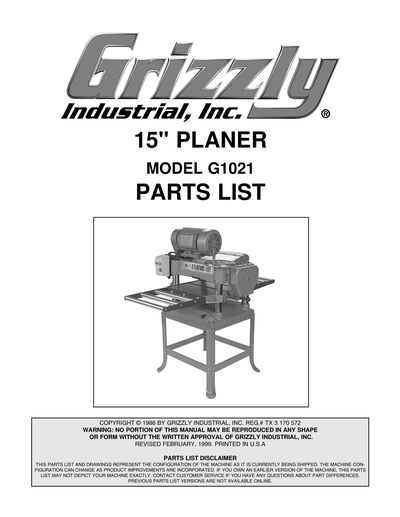

Parts for G1021 15" Planer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
PULLEY COVER
2
FLANGE BOLT M6-1 X 12
Price
N/A
3
V-BELT PVM28 QTY 3
3A
V-BELT PVM28 QTY 3
Price
N/A
4
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
5
FLAT WASHER 8MM
6
Now: PB13M
HEX BOLT M10-1.5 X 80
Price
N/A
7
CUTTERHEAD PULLEY
8
MOTOR PULLEY 23MM BORE
9
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
10
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
11
Now: PW04
FLAT WASHER 7/16
Price
N/A
12
SPACER
13
*DISCD*BELT HOUSING
Item is no longer available
Price
N/A
14
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
15
Now: PW04M
FLAT WASHER 10MM
Price
N/A
16
*DISCD*MOTOR 2HP 220V 1-PH V2.04.96
Item is no longer available
Price
N/A
16-1
FAN COVER V1.04.96
16-2
MOTOR FAN
16-3
CAPACITOR COVER
16-4
CONNECTION BOX
16-5
CONNECTION BLOCK
16A
*DISCD*MOTOR 2HP V1.10.95
Item is no longer available
Price
N/A
16B
FAN COVER V1.04.96
Price
N/A
16C
MOTOR FAN
Price
N/A
16D
CAPACITOR COVER
Price
N/A
17
MOTOR PLATE
18
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
19
Now: PW01M
FLAT WASHER 8MM
Price
N/A
20
Now: PN03M
HEX NUT M8-1.25
Price
N/A
21
COLUMN CAP
22
HEAD CASTING
23
CHIP DEFLECTOR
24
FLANGE BOLT M6-1 X 12
Price
N/A
25
TENSIONING SET SCREW M22-1.5 X 20
26
CAP SCREW M8-1.25 X 50
Price
N/A
27
SET SCREW M6-1 X 16
Price
N/A
28
FLAT SPRING 84 X 46 X 0.6MM
29
FLANGE BOLT M6-1 X 12
Price
N/A
30
Now: PN08M
HEX NUT M10-1.25
Price
N/A
31
Now: PW04M
FLAT WASHER 10MM
Price
N/A
31A
DIRECTION SCALE
32
REVOLVING HANDLE 1X3-9/16, 3/8-16X1/2
33
ADJUSTING WHEEL
34
Now: PR22M
INT RETAINING RING 38MM
Price
N/A
35
SPACER
Price
N/A
36
SET SCREW M10-1.5 X 12
Price
N/A
37
Now: PW06
FLAT WASHER 1/4
Price
N/A
38
CAP SCREW M6-1 X 12
Price
N/A
39
SET SCREW M8-1.25 X 12
Price
N/A
40
Now: G4572
Magnetic Switch, Single-Phase, 220V Only, 2 HP
Price
N/A
41
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
42
SWITCH MOUNT
43
COLUMN 14-1/2
43A
COLUMN 14-3/8 IN V1.10.95
43B
COLUMN 14-3/4 IN V1.10.95
Item is no longer available
Price
N/A
43C
*DISCD*COLUMN - 15 3/8"
44
SPINDLE NUT 16-4
45
ELEVATION LEADSCREW SHORT 14-4
46
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
47
*DISCD*LIMITER RING
Item is no longer available
Price
N/A
48
COLUMN 14-3/8 IN W/SLOT
Price
N/A
48A
COLUMN 14-3/8 IN W/SLOT
48B
*DISCD*COLUMN - 14 3/4" W/SLOT
48C
*DISCD*COLUMN - 15 3/8" W/SLOT
49
SCALE
50
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
50A
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
51
*DISCD*ELEVATION LEADSCREW LONG 16-4
Item is no longer available
Price
N/A
52
POINTER
53
TABLE
54
Now: PW06
FLAT WASHER 1/4
Price
N/A
55
BALL BEARING 6202-2RS
Price
N/A
56
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
57
SPROCKET 10T
58
Now: PW04
FLAT WASHER 7/16
Price
N/A
59
Now: PN02M
HEX NUT M10-1.5
Price
N/A
60
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
61
Now: PW07
FLAT WASHER 5/16
Price
N/A
62
E-CLIP 15MM
Price
N/A
63
LIFTING HANDLE
64
BASE
65
IDLER BRACKET
66
SHAFT
67
SPROCKET
68
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
68-1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
68-2
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
69
*DISCD*TABLE ROLLER V1.10.95
Item is no longer available
Price
N/A
69A
*DISCD*TABLE ROLLER V2.10.95
Item is no longer available
Price
N/A
69B
TABLE ROLLER V3.05.99
70
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
71
Now: PW14
FLAT WASHER 5/8
Price
N/A
72
BALL BEARING 6202-2RS
Price
N/A
73
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
74
SPROCKET 10T
Price
N/A
75
Now: PW04M
FLAT WASHER 10MM
Price
N/A
76
Now: PN02M
HEX NUT M10-1.5
Price
N/A
77
CHAIN 65 LINK
78
SET SCREW M6-1 X 12
Price
N/A
79
CAP SCREW M6-1 X 20
Price
N/A
80
TABLE ROLLER SHAFT
81
Now: PW01M
FLAT WASHER 8MM
Price
N/A
82
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
82A
SET SCREW M8-1.25 X 12
Price
N/A
83
ROLLER FRAME V1.10.95
83A
COMPLETE ROLLER ASSY V1.10.95
83B
COMPLETE ROLLER ASSY V2.11.97
84
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
85
ROLLER
86
ROLLER ROD V2.10.02
Price
N/A
86A
*DISCD*ROLLER ROD V1.12.95
Price
N/A
87
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
88
Now: PW03M
FLAT WASHER 6MM
Price
N/A
88A
ROLLER BUSH PLASTIC
89
ROLLER ROD V2.10.02
89A
*DISCD*ROLLER ROD V1.12.95
Item is no longer available
Price
N/A
90
SET SCREW M6-1 X 16
Price
N/A
90-1
Now: PN01M
HEX NUT M6-1
Price
N/A
91
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
92
PLATE
93
Now: PW02
FLAT WASHER 3/8
Price
N/A
94
SET SCREW M8-1.25 X 12
Price
N/A
97
UPPER COVER
98
SET SCREW M6-1 X 16
Price
N/A
99
ROLL PIN 6 X 20
Price
N/A
100
BALL BEARING 6205-2RS
Price
N/A
101
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
102
CUTTERHEAD
103
COMPRESSION SPRING 0.6 X 5.9 X 16
104
GIB BOLT M8-1.25 X 10
Price
N/A
105
GIB
106
CHAIN TENSIONER
Price
N/A
107
OIL PLUG
108
OIL SEAL 28 X 40 X 8
109
GEAR BOX V2.04.05
109A
COMPLETE GEAR BOX
109B
*DISCD*GEAR BOX V1.10.95
Item is no longer available
Price
N/A
110
GASKET
111
BALL BEARING 6204-2RS
Price
N/A
112
GEAR 16T V2.12.97
112A
*DISCD*GEAR 14T V1.12.95
Item is no longer available
Price
N/A
113
CAP SCREW M6-1 X 20
Price
N/A
114
BALL BEARING 6201-2RS
Price
N/A
115
GEAR 47T V2.04.99
115A
*DISCD*SINGLE SPEED GEAR V1.12.95
Item is no longer available
Price
N/A
116
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
116A
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
116B
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
117
GEARED SHAFT 18T V2.10.97
117A
GEAR & SHAFT V1.12.95
118
BALL BEARING 6201-2RS
Price
N/A
119
GEARED SHAFT 22T/18T
119A
*DISCD*SINGLE SPEED GEAR
120
GEAR 71T
121
COMBO GEAR 92T/96T
121A
*DISCD*SINGLE SPEED GEAR
122
SHAFT
123
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
124
Now: PK21M
KEY 5 X 5 X 23
Price
N/A
125
OIL SEAL 25 X 47 X 6
126
BALL BEARING 6204-2RS
Price
N/A
127
HELICAL SPRING .6 X 16
128
BALL 6MM
129
SHIFTING FORK
130A
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
130B
Now: PW03M
FLAT WASHER 6MM
Price
N/A
131
SHIFTING SHAFT
132
O-RING 12 X 2.4
Price
N/A
133
GEAR CASE
134
KNOB 3/8-16, D1-1/4, BALL
135
CAP SCREW M6-1 X 25
Price
N/A
136
LOCATING PIN 8 X 7.55 X 7.95
137
SPROCKET 12T W/KEY V2.02.98
137A
SPROCKET 12T W/KEY V2.02.98
Price
N/A
138
SPROCKET WASHER 6.2 X 22 X 3
139
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
140
CHAIN 23 LINKS
141
CHAIN COVER
142
CAP SCREW M8-1.25 X 50
Price
N/A
143
THREADED GIB
144
LOCK ROD
145
KNOB 6-LOBE M12-1.75, D53
146
GIB
147
CAP SCREW M6-1 X 16
Price
N/A
148
Now: PW03M
FLAT WASHER 6MM
Price
N/A
149
SPROCKET 31T
150
Now: PK21M
KEY 5 X 5 X 23
Price
N/A
151
OUTFEED ROLLER
152
COMPRESSION SPRING 3.5 X 19.7 X 70
153
BUSHING BLOCK
154
CHIPBREAKER W/BRUSHING
155
Now: PN01M
HEX NUT M6-1
Price
N/A
156
SET SCREW M6-1 X 16
Price
N/A
157
CHIPBREAKER ADJ ROD
158
BUSHING
159
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
160
SPACER
161
ANTI-KICK FINGER
162
ANTI-KICK SHAFT
163
INFEED ROLLER
164
SPROCKET 31T
165
CHAIN 31 LINKS V3.01.98
Price
N/A
165A
CHAIN 31 LINKS V3.01.98
165B
CHAIN 29 LINKS V2.12.95
166
COMPLETE KNIFE GAUGE ASSY FOR G1021
166A
KNIFE GAUGE W/O BAR
166B
*DISCD*KNIFE GAUGE BAR 15IN LONG
167
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
167A
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
168
CHIP CHUTE
170
Now: G6701
15" x 1" x 1/8" HSS Planer Knives, Set of 3
Price
N/A
172
Now: PHL01
HALF LINK
Price
N/A
173
Now: PML01
MASTER LINK
Price
N/A
174
DEPTH LIMITER
175
FLAT HD SCR M5-.8 X 12
Price
N/A
176
Now: PW07
FLAT WASHER 5/16
Price
N/A
177
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
178
PIVOT ROD
179
Now: PN09M
HEX NUT M12-1.75
Price
N/A
180
STRAIN RELIEF M22 TYPE-6 ST V1.02.00
Price
N/A
181
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
182
LOCK WASHER 6MM
Price
N/A
183
POWER CORD
Item is no longer available
Price
N/A
184
MOTOR CORD
185
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
186
HEX WRENCH 3MM
Price
N/A
187
HEX WRENCH 4MM
Price
N/A
188
HEX WRENCH 5MM
Price
N/A
189
HEX WRENCH 6MM
Price
N/A
190
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
191
CAP SCREW M6-1 X 10
Price
N/A
192
*DISCD*LABEL
Item is no longer available
Price
N/A
193
SPACER 8.2 X 22 X 3MM
Price
N/A
194
HELICAL SPRING 1 X 33
Price
N/A
195
SHAFT
Price
N/A
196
HANGER
Price
N/A
300
WARNING LABEL
301
BELT GUARD LABEL
302
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
HDWBAG
HARDWARE BAG
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G1021 02/99
PART
MISC PART FOR G1021
Item is no longer available
Price
N/A
