Parts for G1021Z - 15" 3 HP Planer with Cabinet Stand

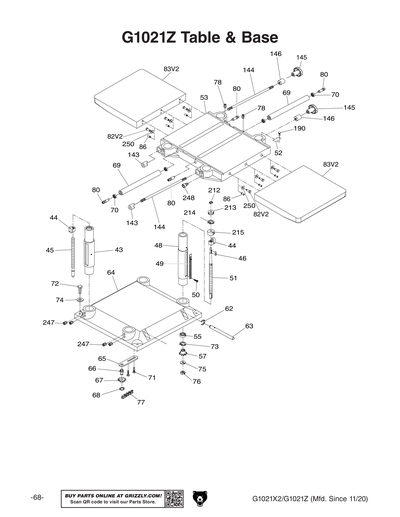

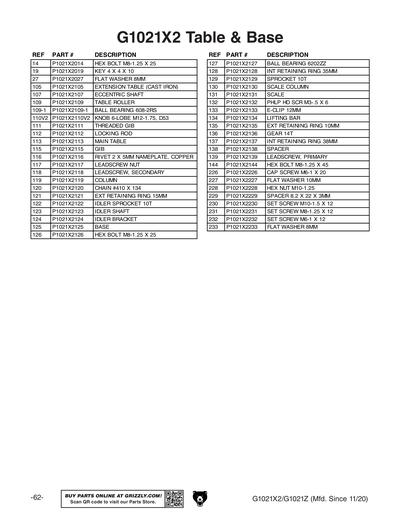

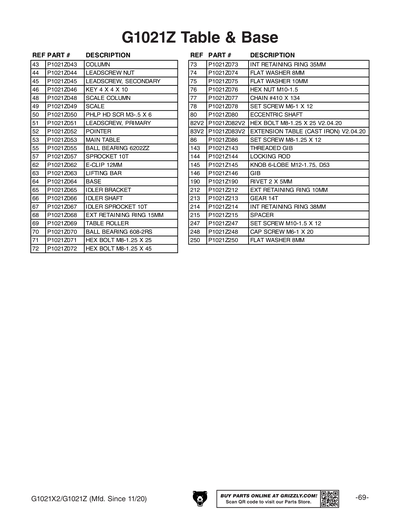

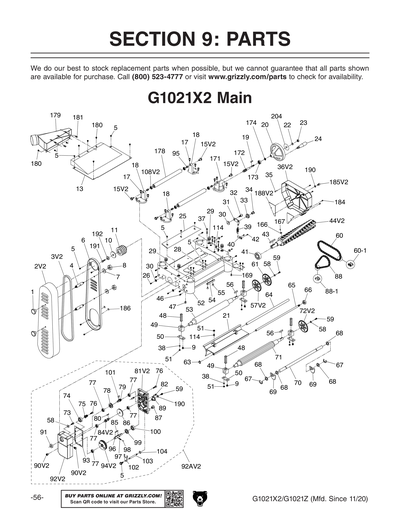

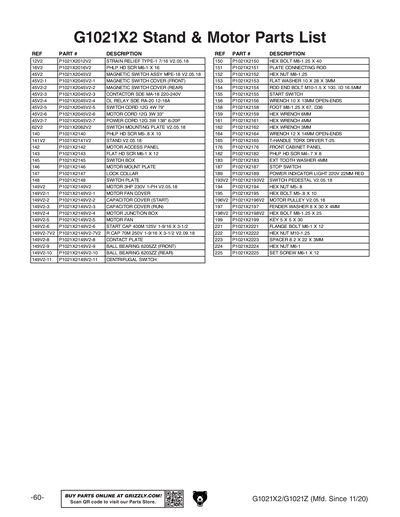

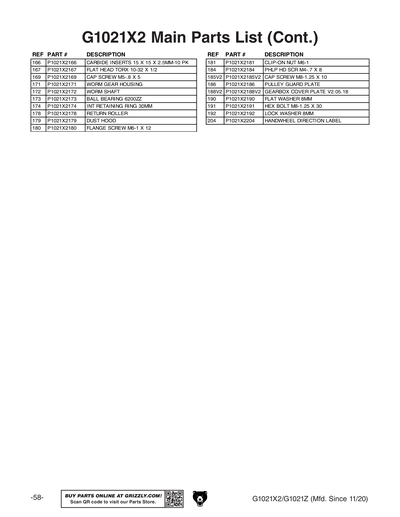

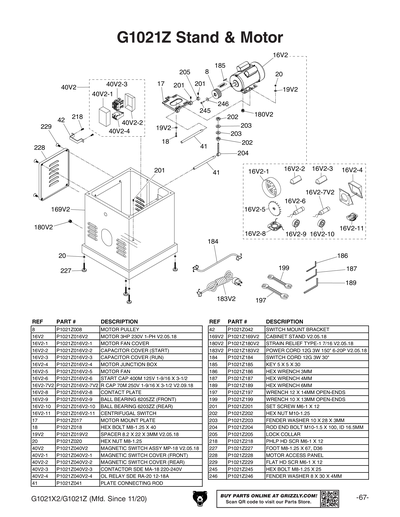

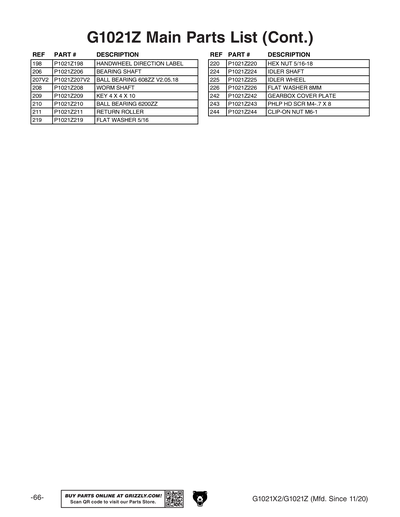

Part Diagram for G1021Z

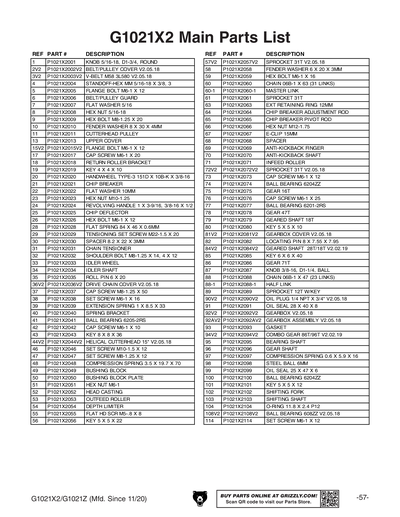

Part Diagram for G1021Z

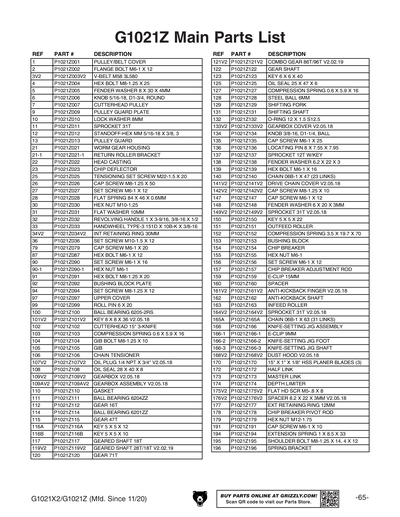

Part Diagram for G1021Z

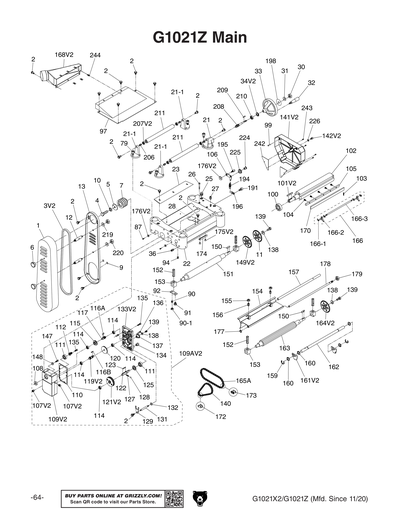

Part Diagram for G1021Z
Part Diagram for G1021Z

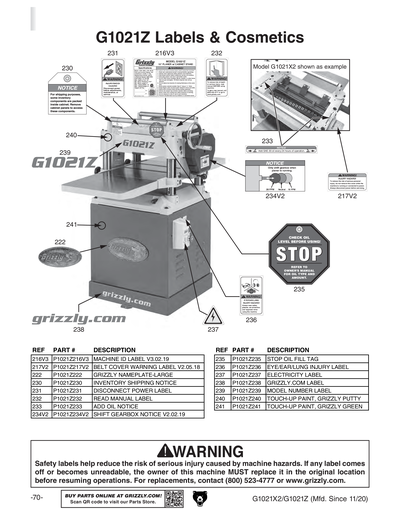

Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z
Part Diagram for G1021Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
PULLEY/BELT COVER
Price
$42.90
1A
PULLEY COVER
Price
N/A
2
FLANGE BOLT M6-1 X 12
Price
N/A
3
V-BELT M59 3L590
Price
N/A
3V2
V-BELT M58 3L580
Price
N/A
4
HEX BOLT M8-1.25 X 25
Price
N/A
5
FLAT WASHER 8MM
Price
N/A
6
KNOB 5/16-18, D1-3/4, ROUND
Price
N/A
7
CUTTERHEAD PULLEY
Price
N/A
8
MOTOR PULLEY 23MM BORE
Price
N/A
9
PULLEY GUARD PLATE
Price
$1.60
10
LOCK WASHER 8MM
Price
N/A
11
SPROCKET 31T
Price
$9.10
12
STANDOFF-HEX DE
Price
N/A
13
PULLEY GUARD
Price
$48.95
13A
PULLEY GUARD
Price
N/A
14
HEX BOLT M8-1.25 X 16
Price
N/A
15
FLAT WASHER 6MM
Price
N/A
16
MOTOR 3HP 220V 1-PH V1
Price
$576.00
16-1
FAN COVER
Price
$10.00
16-2
MOTOR FAN
Price
$4.60
16A
FAN COVER
Price
N/A
16B
MOTOR FAN
Price
N/A
16V2
MOTOR 3HP 230V 1-PH V2.05.18
Price
$469.90
16V2-1
MOTOR FAN COVER
Price
N/A
16V2-10
BALL BEARING 6203ZZ
Price
N/A
16V2-11
CENTRIFUGAL SWITCH
Price
$9.40
16V2-2
CAPACITOR COVER (RUN)
Price
N/A
16V2-3
CAPACITOR COVER (RUN)
Price
$5.80
16V2-4
JUNCTION BOX
Price
N/A
16V2-5
MOTOR FAN
Price
N/A
16V2-6
S CAPACITOR 400M 125V 1-9/16 X 3-1/2
Price
N/A
16V2-7
R CAP 70M 250V 1-9/16 X 3-1/2 V2.09.18
Price
N/A
16V2-7V2
R CAP 70M 250V 1-9/16 X 3-1/2 V2.09.18
Price
$38.40
16V2-8
CONTACT PLATE
Price
$7.60
16V2-9
BALL BEARING 6205ZZ
Price
N/A
17
MOTOR MOUNT PLATE
Price
$15.70
18
HEX BOLT M8-1.25 X 40
Price
N/A
19
FLAT WASHER 8MM
Price
N/A
19V2
SPACER 8 X 22 X 3MM V2.05.18
Price
N/A
20
HEX NUT M8-1.25
Price
N/A
21
WORM GEAR HOUSING
Price
$22.05
21-1
RETURN ROLLER BRACKET
Price
$6.40
22
HEAD CASTING
Price
$431.40
23
CHIP DEFLECTOR
Price
N/A
25
TENSIONING SET SCREW M22-1.5 X 20
Price
N/A
26
CAP SCREW M8-1.25 X 50
Price
N/A
27
SET SCREW M6-1 X 12
Price
N/A
28
FLAT SPRING 84 X 46 X 0.6MM
Price
N/A
30
HEX NUT M10-1.25
Price
N/A
31
FLAT WASHER 10MM
Price
N/A
31A
DIRECTION SCALE
Price
N/A
32
REVOLVING HANDLE 1X3-9/16, 3/8-16X1/2
Price
N/A
33
HANDWHEEL TYPE-3 151D X 10B-K X 3/8-16
Price
$26.35
34
INT RETAINING RING 38MM
Price
N/A
34V2
INT RETAINING RING 30MM
Price
N/A
35
*DISCD*BUSHING
Item is no longer available
Price
N/A
36
SET SCREW M10-1.5 X 12
Price
N/A
38
CAP SCREW M6-1 X 12
Price
N/A
40
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
40-1
*DISCD*MAGNETIC SWITCH COVER-FRONT
Item is no longer available
Price
N/A
40V2
MAGNETIC SWITCH ASSY MP-18 V2.05.18
Price
$127.15
40V2-1
MAGNETIC SWITCH COVER (FRONT)
Price
$19.35
40V2-2
MAG SWITCH BACK COVER
Price
N/A
40V2-3
CONTACTOR SDE MA-18 220V
Price
N/A
40V2-4
OL RELAY SDE RA-20 12-18A
Price
$38.40
41
PLATE CONNECTING ROD
Price
$5.90
42
SWITCH MOUNT BRACKET
Price
$12.40
43
COLUMN 14-3/8 IN V1.10.95
Price
N/A
44
SPINDLE NUT 16-4
Price
N/A
45
ELEVATION LEADSCREW SHORT 14-4
Price
N/A
46
KEY 4 X 4 X 10
Price
N/A
48
SCALE COLUMN
Price
$30.20
49
SCALE
Price
N/A
50
PHLP HD SCR M3-.5 X 6
Price
N/A
51
LEADSCREW, PRIMARY
Price
$10.30
52
POINTER
Price
N/A
53
TABLE
Price
N/A
55
BALL BEARING 6202ZZ
Price
N/A
57
SPROCKET 10T
Price
N/A
62
E-CLIP 12MM
Price
N/A
63
LIFTING HANDLE
Price
N/A
64
BASE
Price
N/A
65
IDLER BRACKET
Price
N/A
66
SHAFT
Price
N/A
67
SPROCKET
Price
N/A
68
EXT RETAINING RING 15MM
Price
N/A
68-1
FLAT WASHER 8MM
Price
N/A
68-2
HEX BOLT M8-1.25 X 25
Price
N/A
69
TABLE ROLLER V3.05.99
Price
N/A
70
BALL BEARING 608-2RS
Price
N/A
71
HEX BOLT M8-1.25 X 25
Price
N/A
72
HEX BOLT M8-1.25 X 45
Price
N/A
73
INT RETAINING RING 35MM
Price
N/A
74
FLAT WASHER 8MM
Price
N/A
75
FLAT WASHER 10MM
Price
N/A
76
HEX NUT M10-1.5
Price
N/A
77
CHAIN 65 LINK
Price
N/A
78
SET SCREW M6-1 X 12
Price
N/A
79
CAP SCREW M6-1 X 20
Price
N/A
80
TABLE ROLLER SHAFT
Price
N/A
81
FLAT WASHER 8MM
Price
N/A
81V2
SPACER 8 X 22 X 3MM V2.05.18
Price
$1.60
82
HEX BOLT M8-1.25 X 20
Price
N/A
82A
SET SCREW M8-1.25 X 12
Price
N/A
82V2
HEX BOLT M8-1.25 X 25
Price
N/A
83
ROLLER EXTENSION TABLE FRAME V1
Price
$163.75
83V2
Cast-Iron Extension Wings for G1021Z
Price
N/A
85
ROLLER
Price
N/A
85V2
EXTENSION TABLE ROLLER V2.05.18
Price
$9.70
86
SET SCREW M8-1.25 X 12
Price
N/A
87
HEX BOLT M6-1 X 12
Price
N/A
88
FLAT WASHER 6MM
Price
N/A
88A
ROLLER BUSH PLASTIC
Price
N/A
89
ROLLER ROD V2.10.02
Price
N/A
90
SET SCREW M6-1 X 16
Price
N/A
90-1
HEX NUT M6-1
Price
N/A
91
HEX BOLT M8-1.25 X 20
Price
N/A
92
PLATE
Price
N/A
93
FLAT WASHER 10 X 25 X 3MM
Price
$1.60
94
SET SCREW M8-1.25 X 12
Price
N/A
97
UPPER COVER
Price
$39.60
99
ROLL PIN 6 X 20
Price
N/A
100
BALL BEARING 6205-2RS
Price
N/A
101
KEY 8 X 8 X 40
Price
N/A
101V2
KEY 8 X 8 X 36
Price
N/A
102
CUTTERHEAD
Price
N/A
103
COMPRESSION SPRING 0.6 X 5.9 X 16
Price
N/A
104
GIB BOLT M8-1.25 X 10
Price
N/A
105
GIB
Price
N/A
106
CHAIN TENSIONER
Price
N/A
107
OIL PLUG
Price
N/A
107V2
OIL PLUG 1/4 NPT X 3/4" V2.05.18
Price
$1.60
108
OIL SEAL 28 X 40 X 8
Price
N/A
109
GEAR BOX V2.04.05
Price
N/A
109A
GEARBOX ASSEMBLY V2.05.18
Price
N/A
109AV2
GEARBOX ASSEMBLY V2.05.18
Price
$253.90
109V2
GEAR BOX
Price
N/A
110
GASKET
Price
N/A
111
BALL BEARING 6204ZZ
Price
N/A
112
GEAR 16T V2.12.97
Price
N/A
113
CAP SCREW M6-1 X 20
Price
N/A
114
BALL BEARING 6201ZZ
Price
N/A
115
GEAR 47T V2.04.99
Price
N/A
116A
KEY 5 X 5 X 12
Price
N/A
116B
KEY 5 X 5 X 10
Price
N/A
117
GEARED SHAFT 18T V2.10.97
Price
N/A
119
GEARED SHAFT 22T/18T
Price
N/A
119V2
GEARED SHAFT 28T/18T V2.02.19
Price
$16.95
120
GEAR 71T
Price
N/A
121
COMBO GEAR 92T/96T
Price
N/A
121V2
COMBO GEAR 86T/96T V2.02.19
Price
$39.60
122
SHAFT
Price
N/A
123
KEY 6 X 6 X 40
Price
N/A
125
OIL SEAL 25 X 47 X 6
Price
N/A
127
COMPRESSION SPRING 0.6 X 5.9 X 16
Price
N/A
128
STEEL BALL 6MM
Price
N/A
129
SHIFTING FORK
Price
N/A
131
SHIFTING SHAFT
Price
N/A
132
O-RING 12 X 1.5 S12.5
Price
N/A
133
GEAR CASE
Price
N/A
133V2
GEARBOX COVER V2.05.18
Price
$24.15
134
*DISCD*KNOB 3/8-16, D1-1/4, BALL
Item is no longer available
Price
N/A
135
CAP SCREW M6-1 X 25
Price
N/A
136
LOCATING PIN 8 X 7.55 X 7.95
Price
N/A
137
SPROCKET 12T W/KEY V2.02.98
Price
N/A
138
SPROCKET WASHER 6.2 X 22 X 3
Price
N/A
139
HEX BOLT M6-1 X 16
Price
N/A
140
CHAIN 23 LINKS
Price
N/A
141
CHAIN COVER
Price
N/A
141V2
DRIVE CHAIN COVER V2.05.18
Price
$8.80
142
CAP SCREW M8-1.25 X 50
Price
N/A
142V2
CAP SCREW M8-1.25 X 10
Price
N/A
143
THREADED GIB
Price
N/A
144
LOCK ROD
Price
N/A
145
KNOB 6-LOBE M12-1.75, D53
Price
N/A
146
GIB
Price
N/A
147
CAP SCREW M6-1 X 12
Price
N/A
148
FLAT WASHER 6MM
Price
N/A
149
SPROCKET 31T
Price
N/A
149V2
SPROCKET 31T V2.05.18
Price
$8.20
150
KEY 5 X 5 X 22
Price
N/A
151
OUTFEED ROLLER
Price
N/A
152
COMPRESSION SPRING 3.5 X 19.7 X 70
Price
N/A
153
BUSHING BLOCK
Price
N/A
154
CHIPBREAKER W/BRUSHING
Price
N/A
155
HEX NUT M6-1
Price
N/A
156
SET SCREW M6-1 X 12
Price
N/A
157
CHIPBREAKER ADJ ROD
Price
N/A
159
E-CLIP 15MM
Price
N/A
160
SPACER
Price
N/A
161
ANTI-KICK FINGER
Price
N/A
161V2
ANTI-KICKBACK FINGER
Price
N/A
162
ANTI-KICK SHAFT
Price
N/A
163
INFEED ROLLER
Price
N/A
164
SPROCKET 31T
Price
N/A
164V2
SPROCKET 31T V2.05.18
Price
$8.80
165A
CHAIN 31 LINKS V3.01.98
Price
N/A
166
COMPLETE KNIFE GAUGE ASSY FOR G1021
Price
N/A
166-1
E-CLIP 9MM
Price
N/A
166-2
KNIFE-SETTING JIG FOOT
Price
$2.20
166-3
KNIFE GAUGE ROD
Price
N/A
167
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
167-1
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
168
CHIP CHUTE
Price
N/A
168A
DUST CHUTE WHITE
Price
$91.20
168V2
DUST HOOD V2.05.18
Price
$12.10
169
STAND V1
Price
$375.00
169-1
STAND DOOR
Price
$18.45
169V2
CABINET STAND V2.05.18
Price
$435.05
170
15" x 1" x 1/8" HSS Planer Knives, Set of 3
Price
N/A
172
HALF LINK
Price
N/A
173
MASTER LINK
Price
N/A
174
DEPTH LIMITER
Price
N/A
175
FLAT HD SCR M5-.8 X 12
Price
N/A
175V2
FLAT HD SCR M5-.8 X 8
Price
N/A
176
FLAT WASHER 5/16
Price
N/A
176V2
SPACER 8 X 22 X 3MM V2.05.18
Price
N/A
177
EXT RETAINING RING 12MM
Price
N/A
178
PIVOT ROD
Price
N/A
179
HEX NUT M12-1.75
Price
N/A
180
STRAIN RELIEF M22 TYPE-6 ST V1.02.00
Price
N/A
180V2
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
181
STRAIN RELIEF M22 TYPE-6 ST V1.02.00
Price
$1.85
181A
STRAIN RELIEF M20 TYPE-6 ST
Price
$1.85
182
LOCK WASHER 6MM
Price
N/A
183
POWER CORD 12G X 3W 86"L
Price
N/A
183V2
POWER CORD 12G 3W 150" 6-20P V2.05.18
Price
$41.70
184
POWER CORD 12G X 3W 36"L
Price
N/A
185
KEY 5 X 5 X 30
Price
N/A
186
HEX WRENCH 3MM
Price
N/A
187
HEX WRENCH 4MM
Price
N/A
188
HEX WRENCH 5MM
Price
N/A
189
HEX WRENCH 6MM
Price
N/A
190
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
191
CAP SCREW M6-1 X 10
Price
N/A
192
LABEL
Price
$16.40
193
SPACER 8.2 X 22 X 3MM
Price
N/A
194
HELICAL SPRING 1 X 33
Price
N/A
195
SHAFT
Price
N/A
196
HANGER
Price
N/A
197
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
198
HANDWHEEL DIRECTION LABEL
Price
$1.60
199
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
201
SET SCREW M6-1 X 12
Price
N/A
202
HEX NUT M10-1.25
Price
N/A
203
FLAT WASHER 10MM
Price
N/A
204
ROD END BOLT M10-1.5 X 100, ID 16.5MM
Price
$3.40
205
LOCK COLLAR
Price
$1.85
206
BEARING SHAFT
Price
$1.85
207
BALL BEARING 608-2RS
Price
N/A
207V2
Bearing - 22mm x 8mm
Price
N/A
208
WORM SHAFT
Price
$8.80
209
KEY 4 X 4 X 10
Price
N/A
210
BALL BEARING 6200ZZ
Price
N/A
211
RETURN ROLLER
Price
$14.50
212
EXT RETAINING RING 10MM
Price
N/A
213
GEAR 14T
Price
$9.40
214
INT RETAINING RING 38MM
Price
N/A
215
SPACER
Price
$2.75
216
SAFETY LABEL V1
Price
$4.25
216V2
MACHINE ID LABEL V2.05.18
Price
$16.40
216V3
MACHINE ID LABEL V3.02.19
Price
$16.40
217
BELT COVER WARNING LABEL V1
Price
$2.00
217V2
BELT COVER WARNING LABEL V2.05.18
Price
$1.25
218
PHLP HD SCR M6-1 X 12
Price
N/A
219
FLAT WASHER 5/16
Price
N/A
220
HEX NUT 5/16-18
Price
N/A
222
Nameplate - Large
Price
N/A
223
BLACK TAPE
Price
$3.40
224
IDLER SHAFT
Price
$1.85
225
IDLER WHEEL
Price
$2.05
226
FLAT WASHER 8MM
Price
N/A
227
FOOT
Price
N/A
228
MOTOR ACCESS PANEL
Price
$19.10
229
FLAT HD SCR M6-1 X 12
Price
N/A
230
INVENTORY SHIPPING NOTICE
Price
$1.60
231
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
232
READ MANUAL 1.5W X 2.5H
Price
N/A
233
ADD OIL NOTICE
Price
$1.60
234
SHIFT GEARBOX NOTICE
Price
$1.60
234V2
SHIFT GEARBOX NOTICE V2.02.19
Price
$1.60
235
STOP OIL FILL TAG 4W X 4H
Price
N/A
236
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
237
ELECTRICITY 1.4W X 1.2H
Price
N/A
238
GRIZZLY.COM LABEL
Price
$2.65
239
MODEL NUMBER LABEL
Price
$2.40
240
GREY PUTTY REF G0504
Price
N/A
241
N/S GRIZZLY GREEN G1023S
Price
N/A
242
GEARBOX COVER PLATE
Price
$2.30
243
PHLP HD SCR M4-.7 X 8
Price
N/A
244
CLAMP
Price
N/A
245
HEX BOLT M8-1.25 X 25
Price
N/A
246
FLAT WASHER 8MM
Price
N/A
250
FLAT WASHER 8MM
Price
N/A
MANUAL
MANUAL G1021Z MFD-01.00-07.16 V1.01.00
Price
$14.65
MANUALV2
MANUAL G1021Z MFD-08.16-01.19 V2.09.18
Price
$14.00
MANV3
MANUAL G1021Z MFD-02.19-07.19 V3.02.19
Price
$20.75
MANV4
MANUAL G1021Z MFD-08.19-03.20 V4.08.19
Price
$14.65
MANV5
MANUAL G1021Z MFD-04.20+ V5.04.20
Price
$14.65
