Parts for G1022 - TABLE SAW 10" HEAVY DUTY

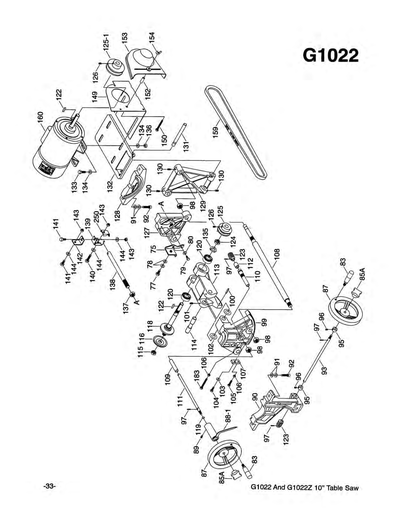

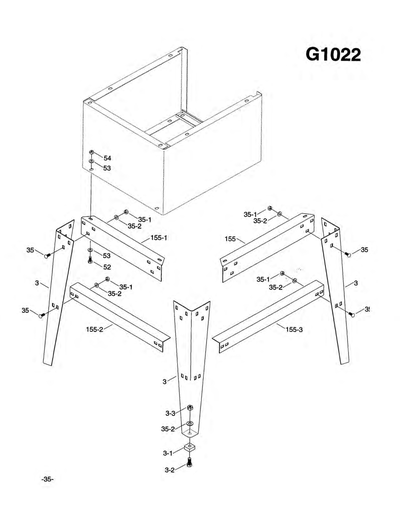

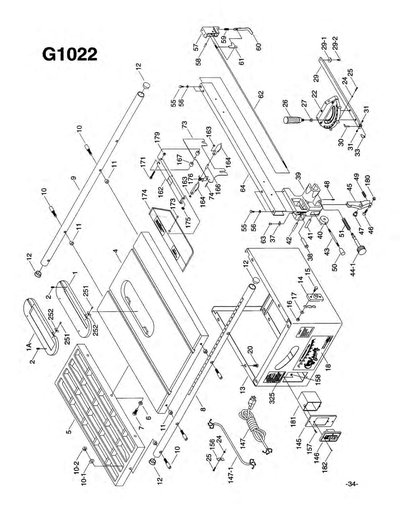

Part Diagram for G1022
Part Diagram for G1022
Part Diagram for G1022
Part Diagram for G1022
Part Diagram for G1022
Part Diagram for G1022
Part Diagram for G1022
Part Diagram for G1022
Part Diagram for G1022
Part Diagram for G1022

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Zero Clearance Table Saw Insert for G1022 Series
Price
N/A
1A
*DISCD*DADO INSERT
Item is no longer available
Price
N/A
2
SET SCREW M6-1 X 12
Price
N/A
3
*DISCD*BASE GUARD PLATE
Price
$11.25
3-1
*DISCD*RUBBER FOOT
Price
$1.49
3-2
HEX BOLT M10-1.5 X 25
Price
N/A
3-3
HEX NUT M10-1.5
Price
N/A
4
*DISCD*TABLE
Price
$261.35
5
*DISCD*EXTENSION WING
Item is no longer available
Price
N/A
6
*DISCD*SPACER 11 X 19 X 5MM
Item is no longer available
Price
N/A
7
HEX BOLT M10-1.5 X 30
Price
N/A
8
*DISCD*FRONT GUIDE RAIL
Price
$47.45
9
*DISCD*REAR GUIDE RAIL
Price
$29.05
10
*DISCD*SPECIAL RAIL BOLT M10-1.5 X 57
Item is no longer available
Price
N/A
10-1
FLAT WASHER 10MM
Price
N/A
10-2
HEX NUT M6-1
Price
N/A
11
*DISCD*RAIL SPACER
Item is no longer available
Price
N/A
12
*DISCD*GUIDE RAIL PLUG
Item is no longer available
Price
N/A
13
*DISCD*CABINET ASSEMBLY
Price
$44.85
13-1
*DISCD*CABINET ASSEMBLY
Price
N/A
14
*DISCD*GEAR BRACKET
Item is no longer available
Price
N/A
15
HEX BOLT M8-1.25 X 16
Price
N/A
16
HEX NUT M10-1.5
Price
N/A
17
FLAT WASHER 8MM
Price
N/A
18
*DISCD*TILTING SCALE
Item is no longer available
Price
N/A
20
HEX BOLT M8-1.25 X 16
Price
N/A
21
FLAT WASHER 8MM
Price
N/A
22
Deluxe Cast-Iron Miter Gauge
Price
N/A
22A
Deluxe Cast-Iron Miter Gauge
Price
N/A
23
SET SCREW M6-1 X 8
Price
N/A
24
HEX NUT M4-.7
Price
N/A
25
PHLP HD SCR M4-.7 X 18
Price
N/A
26
*DISCD*HAND KNOB
Item is no longer available
Price
N/A
27
P1022027
Now: PW07
FLAT WASHER 5/16
Price
N/A
29
*DISCD*MITER BAR
Item is no longer available
Price
N/A
29-1
*DISCD*T-SLOT WASHER 8MM BLACK
Price
$1.49
29-2
FLAT HD SCR M6-1 X 8
Price
N/A
30
*DISCD*ANGLE POINTER
Item is no longer available
Price
N/A
31
SET SCREW M6-1 X 6
Price
N/A
32
SET SCREW M6-1 X 6
Price
N/A
33
*DISCD*STOP LINK
Price
$1.49
34
*DISCD*PIN 6 X 20
Price
$4.60
35
CARRIAGE BOLT M8-1.25 X 20
Price
N/A
35-1
HEX NUT M8-1.25
Price
N/A
35-2
FLAT WASHER 8MM
Price
N/A
37
*DISCD*WIDTH POINTER PLASTIC V2.03.99
Item is no longer available
Price
N/A
37A
*DISCD*METAL POINTER V1.12.95
Price
$4.90
38
*DISCD*FENCE ADJUSTER
Item is no longer available
Price
N/A
39
*DISCD*FRONT CLAMP
Item is no longer available
Price
N/A
39A
*DISCD*COMPLETE FRONT CLAMP ASSY
Item is no longer available
Price
N/A
40
*DISCD*ECCENTRIC
Price
$4.35
41
*DISCD*SHAFT FOR ECCENTRIC
Price
$1.49
42
*DISCD*SHAFT FOR CLAMP
Price
$1.49
43
*DISCD*LOCK LEVER
Item is no longer available
Price
N/A
43A
*DISCD*SHOULDER STUD 3/8 X 16
Price
$3.75
44
*DISCD*PINION W/KNOB
Price
N/A
44-1
*DISCD*PINION W/KNOB
Item is no longer available
Price
N/A
45
*DISCD*CLAMP SHOE
Item is no longer available
Price
N/A
46
*DISCD*ADJUSTING BOLT M10-1.5 X 25
Price
$1.49
46A
HEX NUT M10-1.5
Price
N/A
47
*DISCD*SHAFT BUSHING
Item is no longer available
Price
N/A
48
SET SCREW M6-1 X 6
Price
N/A
49
*DISCD*SPRING 11 X 40 X 8
Item is no longer available
Price
N/A
50
*DISCD*HANDLE KNOB
Price
$1.49
51
*DISCD*SPRING 16 X 65 X 9
Item is no longer available
Price
N/A
52
HEX BOLT M8-1.25 X 16
Price
N/A
53
FLAT WASHER 8MM
Price
N/A
54
HEX NUT M8-1.25
Price
N/A
55
HEX BOLT M8-1.25 X 12
Price
N/A
56
FLAT WASHER 8MM
Price
N/A
57
*DISCD*BLOCK
Item is no longer available
Price
N/A
58
*DISCD*PIN 6.35 X 20
Price
$4.60
59
*DISCD*SPRING 10 X 25 X 8
Item is no longer available
Price
N/A
60
*DISCD*CLAMP HOOK
Item is no longer available
Price
N/A
61
*DISCD*LEVER
Item is no longer available
Price
N/A
62
*DISCD*LOCK LINK
Item is no longer available
Price
N/A
63
PHLP HD SCR M5-.8 X 8
Price
N/A
64
*DISCD*FENCE
Item is no longer available
Price
N/A
64A
*DISCD*COMPLETE FENCE
Item is no longer available
Price
N/A
66
*DISCD*PIN 4.7 X 50
Item is no longer available
Price
N/A
68
*DISCD*SPRING
Item is no longer available
Price
N/A
69
*DISCD*KICK BACK FINGERS
Price
$1.49
72
*DISCD*COVER PLATE
Price
$1.49
73
COMPLETE BLADE GUARD ASSY
Price
N/A
73A
COMPLETE BLADE GUARD ASSY
Price
N/A
73B
*DISCD*SPLITTER ASSY GRN V2.10.96
Item is no longer available
Price
N/A
73C
*DISCD*SPLITTER BLK V3
Item is no longer available
Price
N/A
73D
*DISCD*SPLITTER GREEN V4.05.01
Item is no longer available
Price
N/A
73E
*DISCD*CAMP BLDE GUARD ASSY BLK V1.01.9
Item is no longer available
Price
N/A
74
ROLL PIN 4 X 22
Price
N/A
75
*DISCD*LINKING BRACKET
Item is no longer available
Price
N/A
77
HEX BOLT M8-1.25 X 16
Price
N/A
78
FLAT WASHER 8MM
Price
N/A
79
HEX BOLT M6-1 X 12
Price
N/A
80
FLAT WASHER 6MM
Price
N/A
83
*DISCD*HANDLE W/SCREW
Item is no longer available
Price
N/A
84
*DISCD*HANDLE W/SCREW
Price
N/A
85
*DISCD*KNOB M8-1.25 50 X 24MM V1
Item is no longer available
Price
N/A
85V2
*DISCD*KNOB M8-1.25 47 X 25MM V2.08.12
Item is no longer available
Price
N/A
87
*DISCD*HAND WHEEL
Item is no longer available
Price
N/A
88
*DISCD*POINTER ASSEMBLY
Price
N/A
88-1
*DISCD*POINTER ASSEMBLY
Item is no longer available
Price
N/A
89
SET SCREW M6-1 X 8
Price
N/A
90
*DISCD*FRONT BRACKET
Item is no longer available
Price
N/A
91
FLAT WASHER 8MM
Price
N/A
92
CAP SCREW M8-1.25 X 30
Price
N/A
93
*DISCD*ANGLE WORM SHAFT
Item is no longer available
Price
N/A
95
*DISCD*COLLAR
Price
$1.49
96
SET SCREW M6-1 X 6
Price
N/A
97
ROLL PIN 3 X 16
Price
N/A
98
HEX NUT M16-1.5
Price
N/A
99
*DISCD*FRONT TRUNNION
Item is no longer available
Price
N/A
100
ROLL PIN 3 X 16
Price
N/A
101
SET SCREW M6-1 X 12
Price
N/A
102
*DISCD*WAVY WASHER 18MM
Item is no longer available
Price
N/A
103
FLAT WASHER 6MM
Price
N/A
104
HEX BOLT M6-1 X 20
Price
N/A
105
HEX BOLT M6-1 X 25
Price
N/A
106
HEX NUT M6-1
Price
N/A
107
*DISCD*SET PLATE
Item is no longer available
Price
N/A
108
*DISCD*LINKING BAR
Price
$17.55
109
*DISCD*SPACER
Item is no longer available
Price
N/A
110
*DISCD*ECCENTRIC SLEEVE
Item is no longer available
Price
N/A
111
*DISCD*WORM SHAFT
Item is no longer available
Price
N/A
112
*DISCD*SPACER
Price
$1.49
113
*DISCD*ARBOR BRACKET
Item is no longer available
Price
N/A
113A
*DISCD*ARBOR ASSY
Item is no longer available
Price
N/A
114
*DISCD*ARBOR BRACKET PIN
Item is no longer available
Price
N/A
115
*DISCD*ARBOR NUT MT15.875-P2.0
Item is no longer available
Price
N/A
116
*DISCD*ARBOR FLANGE
Price
$1.75
118
*DISCD*BLADE ARBOR W/SHAFT
Item is no longer available
Price
N/A
119
EXT RETAINING RING 10MM
Price
N/A
120
BALL BEARING 6203-2RS
Price
N/A
121
*DISCD*BLADE SHAFT SLEEVE
Item is no longer available
Price
N/A
122
KEY 5 X 5 X 22
Price
N/A
123
*DISCD*WORM
Item is no longer available
Price
N/A
124
*DISCD*HEX NUT M17
Item is no longer available
Price
N/A
125
Single V-Groove Pulley - 2" Pitch Dia., 5/8" Bore
Price
N/A
125-1
*DISCD*MOTOR PULLEY
Price
$10.10
126
SET SCREW M6-1 X 8
Price
N/A
127
*DISCD*REAR TRUNNION
Item is no longer available
Price
N/A
128
*DISCD*REAR BRACKET
Price
$8.95
129
*DISCD*MOTOR BRACKET
Item is no longer available
Price
N/A
130
SET SCREW M6-1 X 12
Price
N/A
131
*DISCD*MOTOR PLATE ROD
Item is no longer available
Price
N/A
132
*DISCD*MOTOR PLATE
Item is no longer available
Price
N/A
133
HEX BOLT M8-1.25 X 25
Price
N/A
134
FLAT WASHER 8MM
Price
N/A
135
LOCK WASHER 5/8
Price
N/A
136
HEX NUT M8-1.25
Price
N/A
137
HEX NUT M16-1.5
Price
N/A
138
*DISCD*SHAFT
Item is no longer available
Price
N/A
139
*DISCD*BRACKET
Item is no longer available
Price
N/A
140
HEX BOLT M8-1.25 X 30
Price
N/A
141
HEX BOLT M8-1.25 X 16
Price
N/A
142
*DISCD*CONNECTING PLATE
Item is no longer available
Price
N/A
143
HEX NUT M8-1.25
Price
N/A
144
FLAT WASHER 8MM
Price
N/A
145
SWITCH MOUNT FOR PSW06
Price
N/A
145A
SWITCH MOUNT FOR PSW06
Price
N/A
145B
*DISCD*SWITCH BRACKET
Item is no longer available
Price
N/A
146
PUSH BUTTON SWITCH 110/440V 2.2KW
Price
N/A
147
POWER CORD 16G X 3W 73"L
Price
N/A
147-1
POWER CORD 16G X 3W 24"L
Price
N/A
148
*DISCD*HEX SPANNER WRENCH
Item is no longer available
Price
N/A
149
*DISCD*PULLEY GUARD BRACKET
Item is no longer available
Price
N/A
149A
*DISCD*BRACKET F/LG PULLEY COVER
Price
$10.95
150
P1022150
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
150A
PHLP HD SCR 10-24 X 3/8
Price
N/A
152
FENCE RAIL SPACER
Price
N/A
152A
LOCK NUT 10-24
Price
N/A
153
*DISCD*PULLEY COVER
Item is no longer available
Price
N/A
153A
*DISCD*PULLEY COVER LARGE
Item is no longer available
Price
N/A
154
WING NUT 1/4-20
Price
N/A
155
*DISCD*SUPPORT BRACKET LONG
Item is no longer available
Price
N/A
155-1
*DISCD*SUPPORT BRACKET SHORT
Item is no longer available
Price
N/A
155A
*DISCD*SUPPORT BRACKET SHORT
Price
N/A
156
*DISCD*WIRE SEAT
Price
$1.49
157
PHLP HD SCR M5-.8 X 10
Price
N/A
158
HEX NUT M5-.8
Price
N/A
159
V-BELT A43
Price
N/A
160
*DISCD*MOTOR 1-1/2HP 1PH 110/220V
Item is no longer available
Price
N/A
160-1
*DISCD*CAPACITOR COVER
Price
$1.49
160-2
*DISCD*MOTOR FAN V2.02.02
Item is no longer available
Price
N/A
160-3
*DISCD*CONNECTION BOX
Item is no longer available
Price
N/A
160-4
*DISCD*FAN COVER
Price
$8.65
160A
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
161
STRAIN RELIEF TYPE-3 M16
Price
N/A
162
*DISCD*SUPPORTING ARM
Item is no longer available
Price
N/A
163
*DISCD*RETAINER
Price
N/A
164
*DISCD*PAWL
Item is no longer available
Price
N/A
165
*DISCD*BLADE GUARD LEFT
Price
$1.49
166
*DISCD*HEADLESS CLEVIS PIN GROOVED
Price
$4.60
166A
*DISCD*KNIFE GAUGE W/O BAR
Item is no longer available
Price
N/A
167
*DISCD*SPACER
Price
$8.05
168
FLAT WASHER 5MM
Price
N/A
169
*DISCD*GUARD SUPPORT ARM
Price
$1.49
170
FLAT HD SCR M5-.8 X 12
Price
N/A
171
HEX BOLT M6-1 X 40
Price
N/A
172
*DISCD*BLADE GUARD RIGHT
Price
$11.80
173
*DISCD*PIVOT PIN
Price
$1.49
174
*DISCD*BLADE GUARD
Price
N/A
175
*DISCD*RETAINER
Item is no longer available
Price
N/A
176
*DISCD*SPRING 14 X 6
Item is no longer available
Price
N/A
177
*DISCD*SEE THRU PLATE
Price
$1.49
178
LOCK WASHER 6MM
Price
N/A
179
LOCK NUT M6-1
Price
N/A
180
*DISCD*SPECIAL HEX NUT M10-1.5 X 8
Price
$4.05
181
*DISCD*SWITCH GUARD
Item is no longer available
Price
N/A
251
PHLP HD SCR M5-.8 X 8
Price
N/A
252
*DISCD*SPRING .4MM
Price
$1.49
252A
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
252B
*DISCD*BLACK GUARD
Item is no longer available
Price
N/A
618
*DISCD*FENCE ADJUSTER
Price
N/A
ARBORASSY
*DISCD*ARBOR ASSY
Price
N/A
MANUAL
MANUAL FOR G1022 05/97
Price
$14.65
