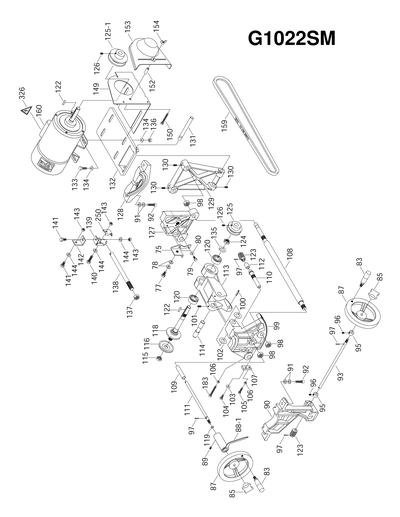

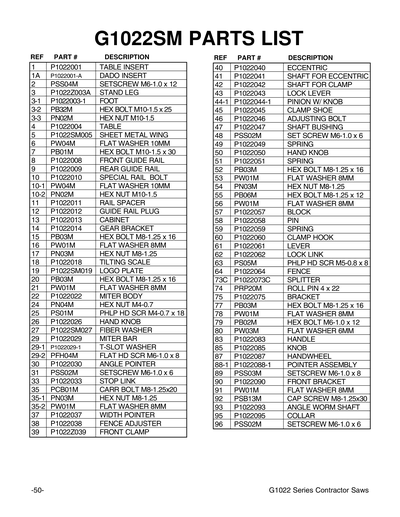

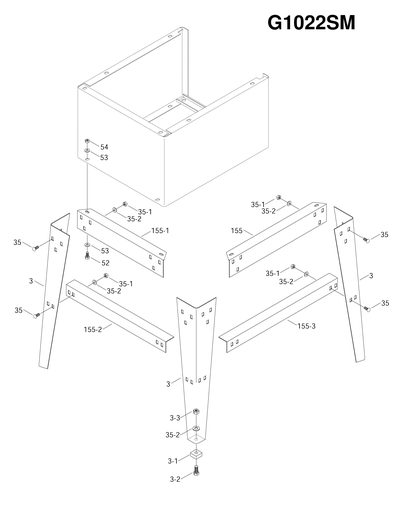

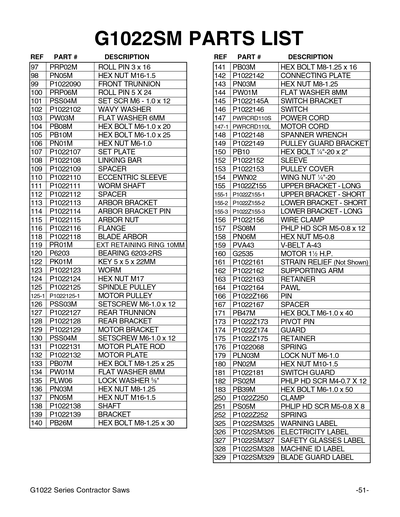

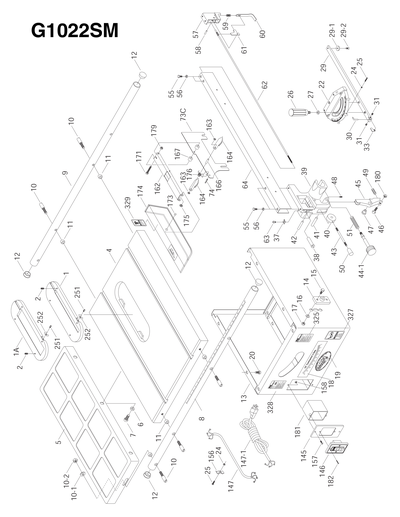

Parts for G1022SM 10" Table Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: H0627
Zero Clearance Table Saw Insert for G1022 Series
Price
N/A
1A
*DISCD*DADO INSERT
Price
N/A
2
SET SCREW M6-1 X 12
Price
N/A
3
*DISCD*LEG V2.03.00
Price
N/A
3-1
*DISCD*RUBBER FOOT
Price
N/A
3-2
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
3-3
Now: PN02M
HEX NUT M10-1.5
Price
N/A
4
*DISCD*TABLE
Price
N/A
5
*DISCD*SHEET METAL EXT WING
Item is no longer available
Price
N/A
6
Now: PW04M
FLAT WASHER 10MM
Price
N/A
7
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
8
*DISCD*FRONT GUIDE RAIL
Price
N/A
9
*DISCD*REAR GUIDE RAIL
Price
N/A
10
*DISCD*SPECIAL RAIL BOLT M10-1.5 X 57
Price
N/A
10-1
Now: PW04M
FLAT WASHER 10MM
Price
N/A
10-2
Now: PN02M
HEX NUT M10-1.5
Price
N/A
11
*DISCD*RAIL SPACER
Price
N/A
12
*DISCD*GUIDE RAIL PLUG
Price
N/A
13
*DISCD*CABINET ASSEMBLY
Price
N/A
14
*DISCD*GEAR BRACKET
Price
N/A
15
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
16
Now: PW01M
FLAT WASHER 8MM
Price
N/A
17
Now: PN03M
HEX NUT M8-1.25
Price
N/A
18
*DISCD*TILTING SCALE
Price
N/A
19
Now: G9987
Nameplate - Mini
Price
N/A
20
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
21
Now: PW01M
FLAT WASHER 8MM
Price
N/A
22
Now: H5774
Deluxe Cast-Iron Miter Gauge
Price
N/A
24
Now: PN04M
HEX NUT M4-.7
Price
N/A
25
Now: PS01M
PHLP HD SCR M4-.7 X 18
Price
N/A
26
*DISCD*HAND KNOB
Price
N/A
27
FIBER WASHER 16 X 3.5
29
*DISCD*MITER BAR
Price
N/A
29-1
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
29-2
FLAT HD SCR M6-1 X 8
Price
N/A
30
*DISCD*ANGLE POINTER
Price
N/A
31
SET SCREW M6-1 X 6
Price
N/A
33
*DISCD*STOP LINK
Price
N/A
35
CARRIAGE BOLT M8-1.25 X 20
Price
N/A
35-1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
35-2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
37
*DISCD*WIDTH POINTER PLASTIC V2.03.99
Price
N/A
38
*DISCD*FENCE ADJUSTER
Price
N/A
39
*DISCD*FRONT CLAMP
Price
N/A
40
*DISCD*ECCENTRIC
Price
N/A
41
*DISCD*SHAFT FOR ECCENTRIC
Price
N/A
42
*DISCD*SHAFT FOR CLAMP
Price
N/A
43
*DISCD*LOCK LEVER
Price
N/A
44-1
*DISCD*PINION W/KNOB
Price
N/A
45
*DISCD*CLAMP SHOE
Price
N/A
46
*DISCD*ADJUSTING BOLT M10-1.5 X 25
Price
N/A
47
*DISCD*SHAFT BUSHING
Price
N/A
48
SET SCREW M6-1 X 6
Price
N/A
49
*DISCD*SPRING 11 X 40 X 8
Price
N/A
50
*DISCD*HANDLE KNOB
Price
N/A
51
*DISCD*SPRING 16 X 65 X 9
Price
N/A
52
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
53
Now: PW01M
FLAT WASHER 8MM
Price
N/A
54
Now: PN03M
HEX NUT M8-1.25
Price
N/A
55
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
56
Now: PW01M
FLAT WASHER 8MM
Price
N/A
57
*DISCD*BLOCK
Price
N/A
58
*DISCD*PIN 6.35 X 20
Price
N/A
59
*DISCD*SPRING 10 X 25 X 8
Price
N/A
60
*DISCD*CLAMP HOOK
Price
N/A
61
*DISCD*LEVER
Price
N/A
62
*DISCD*LOCK LINK
Price
N/A
63
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
64
*DISCD*FENCE
Price
N/A
73C
COMPLETE BLADE GUARD ASSY
Price
N/A
74
ROLL PIN 4 X 22
Price
N/A
75
*DISCD*LINKING BRACKET
Price
N/A
77
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
78
Now: PW01M
FLAT WASHER 8MM
Price
N/A
79
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
80
Now: PW03M
FLAT WASHER 6MM
Price
N/A
83
*DISCD*HANDLE W/SCREW
Price
N/A
85
*DISCD*KNOB M8-1.25 50 X 24MM V1
Price
N/A
87
*DISCD*HAND WHEEL
Price
N/A
88-1
*DISCD*POINTER ASSEMBLY
Price
N/A
89
SET SCREW M6-1 X 8
Price
N/A
90
*DISCD*FRONT BRACKET
Price
N/A
91
Now: PW01M
FLAT WASHER 8MM
Price
N/A
92
CAP SCREW M8-1.25 X 30
Price
N/A
93
*DISCD*ANGLE WORM SHAFT
Price
N/A
95
*DISCD*COLLAR
Price
N/A
96
SET SCREW M6-1 X 6
Price
N/A
97
ROLL PIN 3 X 16
Price
N/A
98
Now: PN05M
HEX NUT M16-1.5
Price
N/A
99
*DISCD*FRONT TRUNNION
Price
N/A
100
ROLL PIN 5 X 24
Price
N/A
101
SET SCREW M6-1 X 12
Price
N/A
102
*DISCD*WAVY WASHER 18MM
Price
N/A
103
Now: PW03M
FLAT WASHER 6MM
Price
N/A
104
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
105
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
106
Now: PN01M
HEX NUT M6-1
Price
N/A
107
*DISCD*SET PLATE
Price
N/A
108
*DISCD*LINKING BAR
Price
N/A
109
*DISCD*SPACER
Price
N/A
110
*DISCD*ECCENTRIC SLEEVE
Price
N/A
111
*DISCD*WORM SHAFT
Price
N/A
112
*DISCD*SPACER
Price
N/A
113
*DISCD*ARBOR BRACKET
Price
N/A
114
*DISCD*ARBOR BRACKET PIN
Price
N/A
115
*DISCD*ARBOR NUT MT15.875-P2.0
Price
N/A
116
ARBOR FLANGE
Price
N/A
118
*DISCD*BLADE ARBOR W/SHAFT
Price
N/A
119
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
120
BALL BEARING 6203-2RS
Price
N/A
122
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
123
*DISCD*WORM
Price
N/A
124
*DISCD*HEX NUT M17
Price
N/A
125
Now: G5422
Single V-Groove Pulley - 2" Pitch Dia., 5/8" Bore
Price
N/A
125-1
*DISCD*MOTOR PULLEY
Price
N/A
126
SET SCREW M6-1 X 8
Price
N/A
127
*DISCD*REAR TRUNNION
Price
N/A
128
*DISCD*REAR BRACKET
Price
N/A
129
*DISCD*MOTOR BRACKET
Price
N/A
130
SET SCREW M6-1 X 12
Price
N/A
131
*DISCD*MOTOR PLATE ROD
Price
N/A
132
*DISCD*MOTOR PLATE
Price
N/A
133
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
134
Now: PW01M
FLAT WASHER 8MM
Price
N/A
135
Now: PLW06
LOCK WASHER 5/8
Price
N/A
136
Now: PN03M
HEX NUT M8-1.25
Price
N/A
137
Now: PN05M
HEX NUT M16-1.5
Price
N/A
138
*DISCD*SHAFT
Price
N/A
139
*DISCD*BRACKET
Price
N/A
140
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
141
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
142
*DISCD*CONNECTING PLATE
Price
N/A
143
Now: PN03M
HEX NUT M8-1.25
Price
N/A
144
Now: PW01M
FLAT WASHER 8MM
Price
N/A
145
SWITCH MOUNT FOR PSW06
Price
N/A
146
PUSH BUTTON SWITCH 110/440V 2.2KW
Price
N/A
147
POWER CORD 16G X 3W 24"L
Price
N/A
147-1
POWER CORD 16G X 3W 73"L
Price
N/A
148
*DISCD*HEX SPANNER WRENCH
Price
N/A
149
*DISCD*PULLEY GUARD BRACKET
Price
N/A
150
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
152
FENCE RAIL SPACER
Price
N/A
153
*DISCD*PULLEY COVER
Price
N/A
154
Now: PWN02
WING NUT 1/4-20
Price
N/A
155
*DISCD*UPPER BRACKET LONG-3 HOLE V3.05
Price
N/A
155-1
*DISCD*UPPER BRCKT SHORT-3 HOLE V3.05.01
Price
N/A
155-2
*DISCD*BRCKET LWER SHORT 2 HOLE V3.05.01
Price
N/A
155-3
*DISCD*BRCKET LOWER LONG 2 HOLE V3.05.01
Price
N/A
156
*DISCD*WIRE SEAT
Price
N/A
157
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
158
Now: PN06M
HEX NUT M5-.8
Price
N/A
159
Now: PVA43
V-BELT A43
Price
N/A
160
Now: G2535
Heavy-Duty Motor 1-1/2 HP Single-Phase 3450 RPM TEFC 110V/220V
Price
N/A
161
STRAIN RELIEF TYPE-3 M16
Price
N/A
162
*DISCD*SUPPORTING ARM
Price
N/A
163
*DISCD*RETAINER
Price
N/A
164
*DISCD*PAWL
Price
N/A
166
*DISCD*HEADLESS CLEVIS PIN GROOVED
Price
N/A
167
*DISCD*SPACER
Price
N/A
171
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
173
PIVOT PIN
Price
N/A
174
*DISCD*BLADE GUARD ONLY
Price
N/A
175
*DISCD*RETAINER
Price
N/A
176
*DISCD*SPRING
Price
N/A
179
LOCK NUT M6-1
Price
N/A
180
Now: PN02M
HEX NUT M10-1.5
Price
N/A
181
*DISCD*SWITCH GUARD
Price
N/A
182
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
183
Now: PB39M
HEX BOLT M6-1 X 50
Price
N/A
250
*DISCD*CLAMP
Price
N/A
251
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
252
*DISCD*STEEL SPRING CLIP .4MM
Price
N/A
325
WARNING LABEL
326
ELECTRICITY 1.4W X 1.2H
Price
N/A
327
SAFETY GLASSES LABEL
328
MACHINE ID LABEL
Item is no longer available
Price
N/A
329
*DISCD*BLADE GUARD LABEL
Item is no longer available
Price
N/A
MAN
MANUAL FOR G1022SM 11/02
