Parts for G1022Z - 10" Table Saw 1-1/2 HP

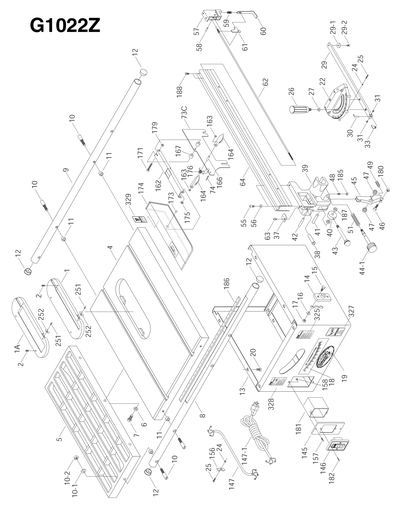

Part Diagram for G1022Z

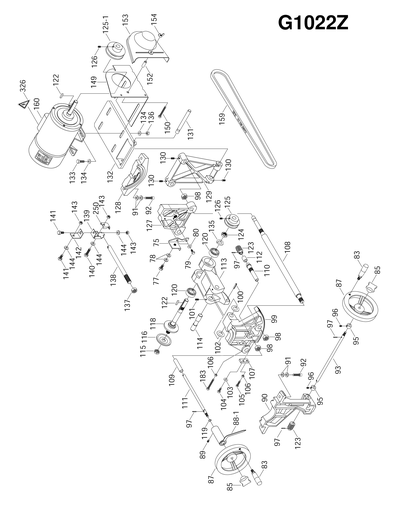

Part Diagram for G1022Z

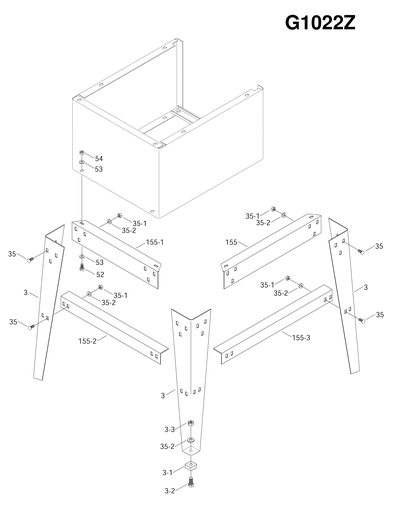

Part Diagram for G1022Z
Part Diagram for G1022Z
Part Diagram for G1022Z
Part Diagram for G1022Z
Part Diagram for G1022Z
Part Diagram for G1022Z
Part Diagram for G1022Z
Part Diagram for G1022Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

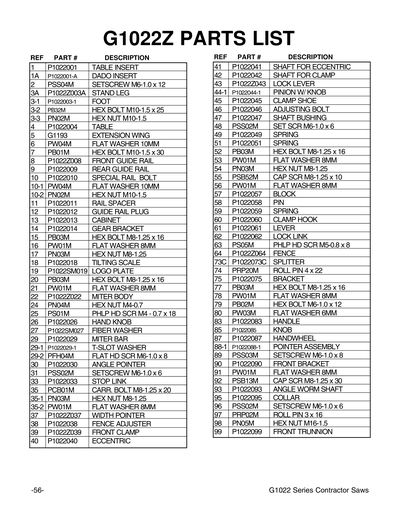

Ref #
Part #
Description
1
Zero Clearance Table Saw Insert for G1022 Series
Price
N/A
1A
*DISCD*DADO INSERT
Price
N/A
2
SET SCREW M6-1 X 12
Price
N/A
3
*DISCD*LEG V1.07.97
Price
$11.25
3-1
*DISCD*RUBBER FOOT
Price
N/A
3-2
HEX BOLT M10-1.5 X 25
Price
N/A
3-3
HEX NUT M10-1.5
Price
N/A
3A
*DISCD*LEG V2.03.00
Item is no longer available
Price
N/A
3C
*DISCD*LEG V1.07.97
Price
N/A
4
*DISCD*TABLE
Price
N/A
5
Cast-Iron Extension Wing for G1022
Price
N/A
6
FLAT WASHER 10MM
Price
N/A
7
HEX BOLT M10-1.5 X 30
Price
N/A
8
*DISCD*FRONT GUIDE RAIL
Price
$47.45
9
*DISCD*REAR GUIDE RAIL
Price
$29.65
10
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
10-1
FLAT WASHER 10MM
Price
N/A
10-2
HEX NUT M10-1.5
Price
N/A
11
*DISCD*RAIL SPACER
Price
N/A
12
*DISCD*GUIDE RAIL PLUG
Price
N/A
13
*DISCD*CABINET ASSEMBLY
Price
N/A
14
*DISCD*GEAR BRACKET
Price
N/A
15
HEX BOLT M8-1.25 X 16
Price
N/A
16
FLAT WASHER 8MM
Price
N/A
17
HEX NUT M8-1.25
Price
N/A
18
*DISCD*TILTING SCALE
Price
N/A
19
Nameplate - Mini
Price
N/A
20
HEX BOLT M8-1.25 X 16
Price
N/A
21
FLAT WASHER 8MM
Price
N/A
22
Deluxe Cast-Iron Miter Gauge
Price
N/A
24
HEX NUT M4-.7
Price
N/A
25
PHLP HD SCR M4-.7 X 18
Price
N/A
26
*DISCD*HAND KNOB
Price
N/A
27
FIBER WASHER 16 X 3.5
Price
N/A
29
*DISCD*MITER BAR
Price
N/A
29-1
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
29-2
FLAT HD SCR M6-1 X 8
Price
N/A
30
*DISCD*ANGLE POINTER
Price
N/A
31
SET SCREW M6-1 X 6
Price
N/A
33
*DISCD*STOP LINK
Price
N/A
35
CARRIAGE BOLT M8-1.25 X 20
Price
N/A
35-1
HEX NUT M8-1.25
Price
N/A
35-2
FLAT WASHER 8MM
Price
N/A
37
*DISCD*WIDTH POINTER
Item is no longer available
Price
N/A
38
*DISCD*FENCE ADJUSTER
Price
N/A
39
*DISCD*FRONT CLAMP
Price
$45.45
39A
*DISCD*FRONT CLAMP ASSY
Price
$45.15
40
*DISCD*ECCENTRIC
Price
N/A
41
*DISCD*SHAFT FOR ECCENTRIC
Price
N/A
42
*DISCD*SHAFT FOR CLAMP
Price
N/A
43
*DISCD*SHOULDER STUD
Item is no longer available
Price
N/A
43A
*DISCD*KNOB
Price
$4.35
44-1
*DISCD*PINION W/KNOB
Price
N/A
45
*DISCD*CLAMP SHOE
Price
N/A
46
*DISCD*ADJUSTING BOLT M10-1.5 X 25
Price
N/A
47
*DISCD*SHAFT BUSHING
Price
N/A
48
SET SCREW M6-1 X 6
Price
N/A
49
*DISCD*SPRING 11 X 40 X 8
Price
N/A
51
*DISCD*SPRING 16 X 65 X 9
Price
N/A
52
HEX BOLT M8-1.25 X 16
Price
N/A
53
FLAT WASHER 8MM
Price
N/A
54
HEX NUT M8-1.25
Price
N/A
55
CAP SCREW M8-1.25 X 10
Price
N/A
56
FLAT WASHER 8MM
Price
N/A
57
*DISCD*BLOCK
Price
N/A
58
*DISCD*PIN 6.35 X 20
Price
N/A
59
*DISCD*SPRING 10 X 25 X 8
Price
N/A
60
*DISCD*CLAMP HOOK
Price
N/A
61
*DISCD*LEVER
Price
N/A
62
*DISCD*LOCK LINK
Price
N/A
63
PHLP HD SCR M5-.8 X 8
Price
N/A
64
*DISCD*FENCE
Price
$64.40
64A
*DISCD*COMPLETE FENCE
Price
N/A
73A
*DISCD*COMPLETE CLR BLADE GUARD ASSY
Item is no longer available
Price
N/A
73B
*DISCD*COMPLETE CLEAR BLADE GUARD ASSY-N
Item is no longer available
Price
N/A
73C
COMPLETE BLADE GUARD ASSY
Price
N/A
74
ROLL PIN 4 X 22
Price
N/A
75
*DISCD*LINKING BRACKET
Price
N/A
77
HEX BOLT M8-1.25 X 16
Price
N/A
78
FLAT WASHER 8MM
Price
N/A
79
HEX BOLT M6-1 X 12
Price
N/A
80
FLAT WASHER 6MM
Price
N/A
83
*DISCD*HANDLE W/SCREW
Price
N/A
85
*DISCD*KNOB M8-1.25 50 X 24MM V1
Price
N/A
87
*DISCD*HAND WHEEL
Price
N/A
88-1
*DISCD*POINTER ASSEMBLY
Price
N/A
89
SET SCREW M6-1 X 8
Price
N/A
90
*DISCD*FRONT BRACKET
Price
N/A
91
FLAT WASHER 8MM
Price
N/A
92
CAP SCREW M8-1.25 X 30
Price
N/A
93
*DISCD*ANGLE WORM SHAFT
Price
N/A
95
*DISCD*COLLAR
Price
N/A
96
SET SCREW M6-1 X 6
Price
N/A
97
ROLL PIN 3 X 16
Price
N/A
98
HEX NUT M16-1.5
Price
N/A
99
*DISCD*FRONT TRUNNION
Price
N/A

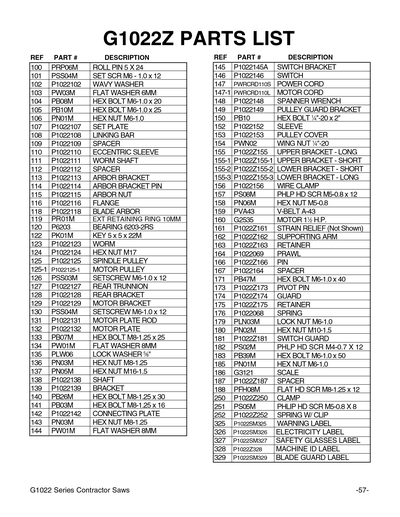

100
ROLL PIN 5 X 24
Price
N/A
101
SET SCREW M6-1 X 12
Price
N/A
102
*DISCD*WAVY WASHER 18MM
Price
N/A
103
FLAT WASHER 6MM
Price
N/A
104
HEX BOLT M6-1 X 20
Price
N/A
105
HEX BOLT M6-1 X 25
Price
N/A
106
HEX NUT M6-1
Price
N/A
107
*DISCD*SET PLATE
Price
N/A
108
*DISCD*LINKING BAR
Price
N/A
109
*DISCD*SPACER
Price
N/A
110
*DISCD*ECCENTRIC SLEEVE
Price
N/A
111
*DISCD*WORM SHAFT
Price
N/A
112
*DISCD*SPACER
Price
N/A
113
*DISCD*ARBOR BRACKET
Price
N/A
114
*DISCD*ARBOR BRACKET PIN
Price
N/A
115
*DISCD*ARBOR NUT MT15.875-P2.0
Price
N/A
116
ARBOR FLANGE
Price
N/A
118
*DISCD*BLADE ARBOR W/SHAFT
Price
N/A
119
EXT RETAINING RING 10MM
Price
N/A
120
BALL BEARING 6203-2RS
Price
N/A
122
KEY 5 X 5 X 22
Price
N/A
123
*DISCD*WORM
Price
N/A
124
*DISCD*HEX NUT M17
Price
N/A
125
Single V-Groove Pulley - 2" Pitch Dia., 5/8" Bore
Price
N/A
125-1
*DISCD*MOTOR PULLEY
Price
N/A
126
SET SCREW M6-1 X 8
Price
N/A
127
*DISCD*REAR TRUNNION
Price
N/A
128
*DISCD*REAR BRACKET
Price
N/A
129
*DISCD*MOTOR BRACKET
Price
N/A
130
SET SCREW M6-1 X 12
Price
N/A
131
*DISCD*MOTOR PLATE ROD
Price
N/A
132
*DISCD*MOTOR PLATE
Price
N/A
133
HEX BOLT M8-1.25 X 25
Price
N/A
134
FLAT WASHER 8MM
Price
N/A
135
LOCK WASHER 5/8
Price
N/A
136
HEX NUT M8-1.25
Price
N/A
137
HEX NUT M16-1.5
Price
N/A
138
*DISCD*SHAFT
Price
N/A
139
*DISCD*BRACKET
Price
N/A
140
HEX BOLT M8-1.25 X 30
Price
N/A
141
HEX BOLT M8-1.25 X 16
Price
N/A
142
*DISCD*CONNECTING PLATE
Price
N/A
143
HEX NUT M8-1.25
Price
N/A
144
FLAT WASHER 8MM
Price
N/A
145
SWITCH MOUNT FOR PSW06
Price
N/A
146
PUSH BUTTON SWITCH 110/440V 2.2KW
Price
N/A
146V2
Safety Paddle Switch
Price
N/A
147
POWER CORD 16G X 3W 24"L
Price
N/A
147-1
POWER CORD 16G X 3W 73"L
Price
N/A
148
*DISCD*HEX SPANNER WRENCH
Price
N/A
149
*DISCD*PULLEY GUARD BRACKET
Price
N/A
150
HEX BOLT 1/4-20 X 2
Price
N/A
152
FENCE RAIL SPACER
Price
N/A
153
*DISCD*PULLEY COVER
Price
N/A
154
WING NUT 1/4-20
Price
N/A
155
*DISCD*UPPER BRACKET LONG-3 HOLE V3.05
Item is no longer available
Price
N/A
155-1
*DISCD*UPPER BRCKT SHORT-3 HOLE V3.05.01
Price
$5.75
155-1A
UPPER BRACKET SHORT-1 HOLE V1.06.96
Price
$5.75
155-1C
UPPER BRACKET SHORT-1 HOLE V1.06.96
Price
N/A
155-2
*DISCD*BRCKET LWER SHORT 2 HOLE V3.05.01
Item is no longer available
Price
N/A
155-2A
BRACKET LOWER SHORT 1 HOLE V1.06.96
Item is no longer available
Price
N/A
155-2C
BRACKET LOWER SHORT 1 HOLE V1.06.96
Price
N/A
155-3
*DISCD*BRCKET LOWER LONG 2 HOLE V3.05.01
Price
$11.80
155-3A
BRACKET LOWER LONG 1 HOLE V1.06.96
Price
$10.10
155-3C
BRACKET LOWER LONG 1 HOLE V1.06.96
Price
N/A
155A
UPPER BRACKET LONG-1 HOLE V1.06.96
Price
$10.10
155C
UPPER BRACKET LONG-1 HOLE V1.06.96
Price
N/A
156
*DISCD*WIRE SEAT
Price
N/A
157
PHLP HD SCR M5-.8 X 12
Price
N/A
158
HEX NUT M5-.8
Price
N/A
159
V-BELT A43
Price
N/A
160
Heavy-Duty Motor 1-1/2 HP Single-Phase 3450 RPM TEFC 110V/220V
Price
N/A
161
STRAIN RELIEF TYPE-3 M16
Price
N/A
162
*DISCD*SUPPORT ARM
Item is no longer available
Price
N/A
163
*DISCD*RETAINER
Item is no longer available
Price
N/A
164
*DISCD*KICK BACK FINGERS
Price
N/A
166
*DISCD*HEADLESS CLEVIS PIN GROOVED
Price
N/A
167
*DISCD*PAWL
Price
N/A
171
HEX BOLT M6-1 X 40
Price
N/A
173
PIVOT PIN
Price
$2.60
174
*DISCD*BLADE GUARD ONLY
Item is no longer available
Price
N/A
175
*DISCD*RETAINER
Price
N/A
176
*DISCD*SPRING
Price
N/A
179
LOCK NUT M6-1
Price
N/A
180
HEX NUT M10-1.5
Price
N/A
181
*DISCD*SWITCH HOUSING
Item is no longer available
Price
N/A
182
PHLP HD SCR M5-.8 X 10
Price
N/A
183
HEX BOLT M6-1 X 50
Price
N/A
185
HEX NUT M6-1
Price
N/A
186
Self-Stick Measuring Tape - 6' Left to Right Reading
Price
N/A
187
*DISCD*SPACER
Item is no longer available
Price
N/A
188
FLAT HD SCR M8-1.25 X 12
Price
N/A
250
*DISCD*CLAMP
Item is no longer available
Price
N/A
251
PHLP HD SCR M5-.8 X 8
Price
N/A
252
*DISCD*STEEL SPRING CLIP .4MM
Price
$1.49
325
WARNING LABEL
Price
N/A
326
ELECTRICITY 1.4W X 1.2H
Price
N/A
327
SAFETY GLASSES LABEL
Price
N/A
328
MACHINE ID LABEL
Item is no longer available
Price
N/A
329
*DISCD*COMPLETE STAND ASSY V1
Price
$100.05
329A
COMPLETE STAND ASSY V2.03.00
Item is no longer available
Price
N/A
330
COMPLETE HARDWARE BAG
Price
$116.45
CLAMP
*DISCD*FRONT CLAMP ASSEMBLY
Item is no longer available
Price
N/A
GUARD
*DISCD*COMPLETE BLADE GUARD ASSY
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G1022Z 11/02
Price
$14.65
PRO005
*DISCD*EXTENSION WING
Item is no longer available
Price
N/A
