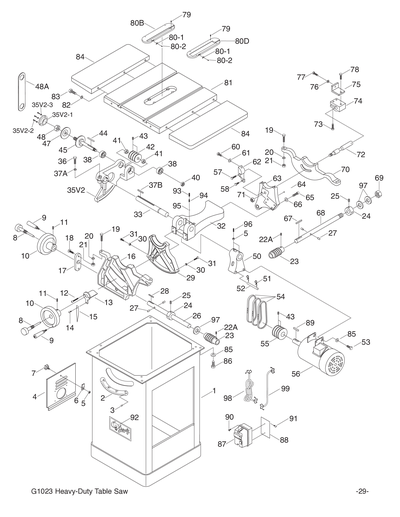

Parts for G1023 TABLE SAW 10" SUPER HEAVY DUTY

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*CABINET
Item is no longer available
Price
N/A
2
SCALE
3
TAP SCREW #6 X 1/2
Price
N/A
4
*DISCD*TRAP DOOR
Item is no longer available
Price
N/A
5
Now: PN02
HEX NUT 5/16-18
Price
N/A
6
*DISCD*LATCH
Price
N/A
7
KNOB
Price
N/A
8
HANDWHEEL LOCK V2.01.06
Price
N/A
8A
HANDWHEEL LOCK V2.01.06
9
HANDLE V1.12.95
9A
HANDLE V3.06.06
9B
HANDLE V3.06.06
Price
N/A
10
HANDWHEEL V2.01.06
Price
N/A
10A
HANDWHEEL V2.01.06
11
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
12
PHLP HD SCR 10-24 X 2
13
POINTER BRACKET
14
Now: PS27
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
15
*DISCD*POINTER
Item is no longer available
Price
N/A
16
FRONT TRUNNION
16A
TRUNNION GUIDE
17
PLATE
18
Now: PS05
PHLP HD SCR 5/16-18 X 1
Price
N/A
19
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
20
Now: PLW04
LOCK WASHER 3/8
Price
N/A
21
Now: PN08
HEX NUT 3/8-16
Price
N/A
22
ROLL PIN 5 X 28
Price
N/A
22A
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
23
WORM 1.410" OD
23A
*DISCD*WORM GEAR OVERSIZE 1.620"OD
Item is no longer available
Price
N/A
24
COLLAR
25
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
26
*DISCD*SHAFT V2.07.98
Item is no longer available
Price
N/A
26A
SHAFT V1.12.95
Item is no longer available
Price
N/A
27
DOWEL PIN
28
Now: PK01
KEY 3/16 X 3/16 X 1-1/2
Price
N/A
29
*DISCD*GEARED TRUNNION V2.01.98
Item is no longer available
Price
N/A
29A
GEARED TRUNNION V1.12.95
Item is no longer available
Price
N/A
30
Now: PN02
HEX NUT 5/16-18
Price
N/A
31
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
32
FLANGE
33
SHAFT
33A
*DISCD*WAVE WASHER
34
Now: PK02
KEY 1/4 X 1/4 X 3
Price
N/A
35
*DISCD*GEARED BEARING HOUSING
Item is no longer available
Price
N/A
35-1
BEARING HOUSING CAP
Price
N/A
35A
*DISCD*COMPLETE ARBOR ASSY
Item is no longer available
Price
N/A
35V2-1
PLATE
Item is no longer available
Price
N/A
36
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
37
Now: PLW04
LOCK WASHER 3/8
Price
N/A
37A
Now: PLW04
LOCK WASHER 3/8
Price
N/A
37B
Now: PK03
KEY 1/4 X 1/4 X 2
Price
N/A
38
BALL BEARING 6203-2RS
Price
N/A
39
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
40
JAM NUT 5/8-18
40A
JAM NUT 5/8-18
Price
N/A
41
COLLAR
42
ARBOR PULLEY
43
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
44
Now: PK33M
KEY 5 X 5 X 45
Price
N/A
45
BLADE ARBOR W/SHAFT
46
BLADE ARBOR W/SHAFT
Price
N/A
47
ARBOR FLANGE
48
ARBOR NUT 5/8-12 LH
48A
ARBOR WRENCH 7/8 X 7/8" COMBO
48B
ARBOR WRENCH 7/8 X 1" CLOSED-END
49
Now: PRP01
ROLL PIN 1/4 X 1
Price
N/A
49A
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
50
*DISCD*MOTOR FRAME SUPPORT V2.12.95
50B
MOTOR FRAME SUPPORT V1.12.95
51
CLIP
52
*DISCD*PIVOT PIN
Item is no longer available
Price
N/A
53
Now: PB14
HEX BOLT 7/16-20 X 3/4
Price
N/A
54
*DISCD*V-BELT 3L270 FM25 (3PC)
Item is no longer available
Price
N/A
54A
V-BELT 3L250 FM25 QTY 3
54B
Now: PVM23
V-BELT M23 3L230
Price
N/A
54C
Now: PVM26
V-BELT M26 3L260
Price
N/A
54D
V-BELT 3L270 QTY 3
55
MOTOR PULLEY
56-1
ELECTRIC BOX V1.03.05
Item is no longer available
Price
N/A
56-2
CENT SWITCH V1.01.93
56A
*DISCD*MOTOR 3HP 220V 1-PH V4.10.01(G1023 ONLY)
Item is no longer available
Price
N/A
56A-1
MOTOR FAN V2.02.02
56A-2
MOTOR FAN COVER V2.02.02
56A-3
CAPACITOR COVER V2.02.02
56A-4
MOTOR DUST SHIELD V2.02.02
56A-5
ELECTRIC BOX V1.03.05
Item is no longer available
Price
N/A
56B
***MOTOR-MUST READ EXT DESC***
Item is no longer available
Price
N/A
56B-1
MOTOR FAN V2.02.02
Item is no longer available
Price
N/A
56B-2
MOTOR FAN COVER V2.02.02
Item is no longer available
Price
N/A
56B-3
CAPACITOR COVER V2.02.02
Item is no longer available
Price
N/A
56B-4
MOTOR DUST SHIELD V2.02.02
56C
Now: H5389
Motor 5 HP Single-Phase 3450 RPM 220V For G1023ZX
Price
N/A
56C-1
MOTOR FAN COVER
Price
N/A
56D
CAPACITOR COVER V2.02.02
Price
N/A
56E
*DISCD*MOTOR 3HP 220V 1-PH V4.10.01(G1023 ONLY)
Price
N/A
56F
MOTOR DUST SHIELD V2.02.02
Price
N/A
56G
Now: H5389
Motor 5 HP Single-Phase 3450 RPM 220V For G1023ZX
Price
N/A
57
Now: PB28
HEX BOLT 5/16-18 X 2-1/4
Price
N/A
58
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
59
Now: PRP02
ROLL PIN 1/8 X 3/4
Price
N/A
60
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
Now: PW07
FLAT WASHER 5/16
Price
N/A
62
SUPPORT BRACKET
63
FLANGE CASTING V1.12.95
63V2
FLANGE CASTING V2.09.08
64
Now: PRP03
ROLL PIN 5/16 X 5/8
Price
N/A
65
CAP SCREW 3/8-16 X 1
Price
N/A
66
Now: PW02
FLAT WASHER 3/8
Price
N/A
67
Now: PK06
KEY 3/16 X 3/16 X 1-9/16
Price
N/A
68
*DISCD*SHAFT
Item is no longer available
Price
N/A
69
Now: PLN05
LOCK NUT 3/4-16
Price
N/A
70
*DISCD*REAR TRUNNION V3.02.96
Price
N/A
70A
*DISCD*REAR TRUNNION V3.02.96
Item is no longer available
Price
N/A
70B
*DISCD*REAR TRUNNION V2.12.95
Item is no longer available
Price
N/A
71
JAM NUT 5/8-18
Price
N/A
72
BLADE GUARD SUPPORT
73
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
74
*DISCD*BLOCK CAST IRON V1.12.95
Item is no longer available
Price
N/A
74A
BLOCK 2 PCS V2.08.98
75
*DISCD*BLOCK ANGLE V1.12.95
Item is no longer available
Price
N/A
75A
ANGLE BLOCK ASSY V2.08.97
75B
L-BRACKET
76
Now: PW07
FLAT WASHER 5/16
Price
N/A
77
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
78
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
79
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
80
STD TABLE INSERT 8.5
Price
N/A
80-1
*DISCD*SPRING CLIP 10 X 30.7 X 7.5
Item is no longer available
Price
N/A
80-2
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
80A
*DISCD*DADO TABLE INSERT 8.5 IN
Item is no longer available
Price
N/A
80B
STD TABLE INSERT 8.5
80C
STD TABLE INSERT 7.25 MFD-1/94 - 5/95
80D
*DISCD*DADO TABLE INSERT 8.5 IN
Price
N/A
80E
DADO TABLE INSERT 7.25 MFD-1/94 - 5/95
81
*DISCD*TABLE
82
Now: PLW05
LOCK WASHER 7/16
Price
N/A
83
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
84
*DISCD*EXT WING V1.12.95
Item is no longer available
Price
N/A
84A
EXT WING GREEN V2.03.02
84R
EXTENSION WING RIGHT
Price
N/A
85
Now: PW04
FLAT WASHER 7/16
Price
N/A
87
MAGNETIC SWITCH 3HP 1PH
Price
N/A
88
SWITCH MOUNT BRACKET
89
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
90
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
91
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
92
*DISCD*LABEL
Item is no longer available
Price
N/A
93
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
94
SPRING 5.5 X 12 X 7
95
*DISCD*BALL
Item is no longer available
Price
N/A
96
SET SCREW 5/16-18 X 1-1/4
Item is no longer available
Price
N/A
97
WAVY WASHER 18MM
98
POWER CORD 12G X 3W 86"L
Price
N/A
99
POWER CORD 12G X 3W 36"L
Price
N/A
100
*DISCD*SPRING CLIP
Item is no longer available
Price
N/A
101
*DISCD*FENCE BAR
Item is no longer available
Price
N/A
102
*DISCD*TEFLON PAD
103
*DISCD*WOOD FACING
Item is no longer available
Price
N/A
104
*DISCD*SCREW
105
*DISCD*FORMICA FACING
Item is no longer available
Price
N/A
106
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
107
*DISCD*DUST HOOD
Item is no longer available
Price
N/A
108
*DISCD*REAR ANGLE IRON SUPPORT
109
*DISCD*FRONT SQUARE RAIL
109A
*DISCD*FRONT SQUARE RAIL SUPPORT
Item is no longer available
Price
N/A
110
*DISCD*FRONT ANGLE IRON SUPPORT
111
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
112
Now: PLW04
LOCK WASHER 3/8
Price
N/A
113
CAP SCREW 1/4-20 X 5/8
Price
N/A
114
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
115
*DISCD*PLATE
116
*DISCD*MAIN FENCE CASTING
117A
*DISCD*LOCKING PLUNGER W/118 1.594
Item is no longer available
Price
N/A
117B
*DISCD*LOCKING PLUNGER W/118 1.635
Item is no longer available
Price
N/A
117C
*DISCD*ADJUSTABLE PLUNGER
Item is no longer available
Price
N/A
119
Now: PFH08
FLAT HD SCR 10-24 X 1/2
Price
N/A
120
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
121
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
122
*DISCD*GIB PLATE
Item is no longer available
Price
N/A
123
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
124
Now: PW03
FLAT WASHER #10
Price
N/A
125
*DISCD*PLEXIGLASS POINTER
126
*DISCD*PIN
Item is no longer available
Price
N/A
127
*DISCD*SPRING
Item is no longer available
Price
N/A
128
E-CLIP 10MM
Price
N/A
129
*DISCD*HANDLE
Item is no longer available
Price
N/A
130
Now: PRP04
ROLL PIN 3/16 X 3/4
Price
N/A
131
*DISCD*PLASTIC KNOB
Item is no longer available
Price
N/A
132
SCALE
133
*DISCD*PLASTIC STRIP
134
*DISCD*FENCE RAIL PLUG
135
*DISCD*MOUNTING PLATE
136
Now: PW06
FLAT WASHER 1/4
Price
N/A
137
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
138
Now: PN08
HEX NUT 3/8-16
Price
N/A
139
*DISCD*GUIDE SHAFT
Item is no longer available
Price
N/A
139A
*DISCD*GUIDE SHAFT ASSY
Item is no longer available
Price
N/A
140
*DISCD*GUIDE ROLLER
Item is no longer available
Price
N/A
141
E-CLIP 10MM
Price
N/A
142
*DISCD*COMPLETE REAR FENCE GUIDE
143
*DISCD*COMPLETE FENCE-OLD STYLE
Item is no longer available
Price
N/A
144
CAP SCREW 3/8-16 X 3/4
Price
N/A
145
*DISCD*TRUNNION GUIDE BLOCK
Item is no longer available
Price
N/A
146
CAP SCREW 1/4-20 X 1
Price
N/A
147
*DISCD*BLACK BASE STRIPE 3-3/4 X 72 IN
201
MITER GAUGE BODY V1.12.95
201A
MITER GAUGE BODY V2.06.97
202
MITER HINGE PIN V1.12.95
202A
*DISCD*STUD V2.10.97
Item is no longer available
Price
N/A
203
Now: PN07
HEX NUT 10-24
Price
N/A
204
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
205
LOCK KNOB
Item is no longer available
Price
N/A
205A
LOCK KNOB FOR OLD MITER
Item is no longer available
Price
N/A
206
Now: PW06
FLAT WASHER 1/4
Price
N/A
207
*DISCD*FIBER WASHER
208
*DISCD*STUD
Item is no longer available
Price
N/A
209
PUSH HANDLE
210
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
211
Now: PW03
FLAT WASHER #10
Price
N/A
212
MITER BAR
213
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
214
Now: PFH09
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
215
SCALE
216
STOP BLOCK
217
STOP PIN
218
Now: PFH01
FLAT HD SCR 10-24 X 3/8
Price
N/A
220
Clamping Miter Gauge
Price
N/A
220A
COMPLETE MITER GAUGE ASSY V1.07.96
Price
N/A
220B
COMPLETE MITER GAUGE ASSY V1.07.96
Price
N/A
220C
MITER GAUGE BODY V2.01.98
301
*DISCD*LEFT BLADE GUARD
302
*DISCD*SEE THRU PLATE
303
ROLL PIN 5 X 29
Price
N/A
304
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
305
*DISCD*SEE THRU TOP PLATE
306
*DISCD*ROLL PIN 10 X 35
307
Now: PFH05
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
308
*DISCD*RIGHT BLADE GUARD
309
*DISCD*SPACER
310
*DISCD*SUPPORT ARM
311
Now: PN05
HEX NUT 1/4-20
Price
N/A
312
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
313
*DISCD*ANTI KICKBACK PAWL
314
Now: PW06
FLAT WASHER 1/4
Price
N/A
315
Now: PFH04
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
316
*DISCD*GUARD SUPPORT ARM
318
*DISCD*SPLITTER
Item is no longer available
Price
N/A
319
*DISCD*COMPLETE BLADE GUARD V1.11.96
Item is no longer available
Price
N/A
319A
*DISCD*COMPLETE CLR BLADE GUARD ASSY
Price
N/A
320
*DISCD*HARDWARE BAG
Item is no longer available
Price
N/A

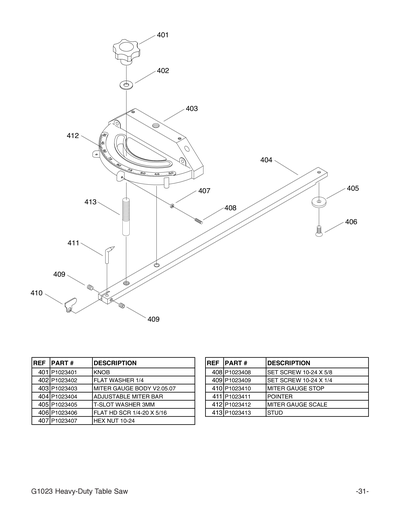

400
*DISCD*COMPLETE MITER GAUGE
401
*DISCD*KNOB V1.11.96
Item is no longer available
Price
N/A
401A
MITER GAUGE HANDLE V2.10.01
402
Now: PW06
FLAT WASHER 1/4
Price
N/A
403
MITER GAUGE BODY V2.05.07
Price
N/A
403A
MITER GAUGE BODY V1.11.96
404
*DISCD*ADJUSTABLE MITER BAR
Price
N/A
404A
MITER BAR ASSY V2.04.03
Price
N/A
405
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
406
Now: PFH09
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
407
Now: PN07
HEX NUT 10-24
Price
N/A
408
Now: PSS31
SET SCREW 10-24 X 5/8
Price
N/A
409
Now: PSS29
SET SCREW 10-24 X 1/4
Price
N/A
409A
ROLL PIN 3 X 6
Price
N/A
410
MITER GAUGE STOP
Price
N/A
411
*DISCD*POINTER
Item is no longer available
Price
N/A
412
MITER GAUGE SCALE
Price
N/A
412A
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
413
*DISCD*ADJUSTABLE MITER BAR
Price
N/A

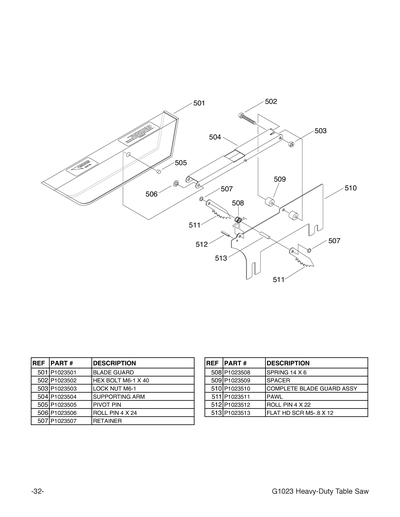

501
*DISCD*BLADE GUARD
Item is no longer available
Price
N/A
502
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
503
LOCK NUT M6-1
Price
N/A
504
*DISCD*SUPPORTING ARM
Price
N/A
505
*DISCD*PIVOT PIN
Price
N/A
506
ROLL PIN 4 X 24
Price
N/A
507
*DISCD*RETAINER
Price
N/A
508
*DISCD*SPRING 14 X 6
Price
N/A
509
*DISCD*SPACER
Price
N/A
510
COMPLETE BLADE GUARD ASSY
Price
N/A
511
*DISCD*PAWL
Price
N/A
512
ROLL PIN 4 X 22
Price
N/A
513
FLAT HD SCR M5-.8 X 12
Price
N/A
535
U-CLAMP
536
L-BRACKET
601
*DISCD*FENCE
Price
N/A
601A
*DISCD*COMPLETE FENCE ASSY ROUND V2.02.0
602
FLAT HD SCR M8-1.25 X 12
Price
N/A
603
Now: PW01M
FLAT WASHER 8MM
Price
N/A
604
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
605
*DISCD*WIDTH POINTER
Price
N/A
606
*DISCD*SHAFT FOR CLAMP
Price
N/A
607
*DISCD*FRONT CLAMP
Item is no longer available
Price
N/A
608
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
609
*DISCD*CLAMP SHOE
Price
N/A
610
*DISCD*SPRING 11 X 40 X 8
Price
N/A
611
Now: PN02
HEX NUT 5/16-18
Price
N/A
612
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
613
*DISCD*SHAFT BUSHING
Price
N/A
614
*DISCD*SPRING 16 X 65 X 9
Price
N/A
615
*DISCD*PINION W/KNOB
Price
N/A
616
*DISCD*KNOB
617
*DISCD*LOCK LEVER
618
*DISCD*FENCE ADJUSTER
Price
N/A
619
*DISCD*ECCENTRIC
Price
N/A
620
*DISCD*SHAFT FOR ECCENTRIC
621
Now: PN08
HEX NUT 3/8-16
Price
N/A
622
Now: PW02
FLAT WASHER 3/8
Price
N/A
623
*DISCD*PLUG
624
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
625
*DISCD*FENCE RAIL SPACER
626
*DISCD*RETAINER
Price
N/A
627
*DISCD*FRONT RAIL
Item is no longer available
Price
N/A
627A
*discd*front & Rear Rail Set
Item is no longer available
Price
N/A
628
*DISCD*REAR RAIL
629
*DISCD*LOCK LINK
Price
N/A
630
*DISCD*CLAMP HOOK
Price
N/A
631
*DISCD*LEVER
Price
N/A
632
*DISCD*SPRING 10 X 25 X 8
Price
N/A
633
*DISCD*PIN 6.35 X 20
Price
N/A
634
*DISCD*BLOCK
Price
N/A
635
*DISCD*FACE BOARD 2 13/16" X 33 5/16"
Item is no longer available
Price
N/A
635A
*DISCD*FENCE W/WOOD & FORMICA FACING
636
*DISCD*FORMICA FACE 2 13/16" X 33 5/16"
Item is no longer available
Price
N/A
637
Now: W1206
Self-Stick Measuring Tape - 6' Left to Right Reading
Price
N/A
638
FLAT HD SCR M8-1.25 X 12
Price
N/A
639
*DISCD*SPACER
Item is no longer available
Price
N/A
640
CAP SCREW 5/16-18 X 1/2
Price
N/A
700
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
701
*DISCD*FOAM TOP
Item is no longer available
Price
N/A
702
CARTON FOR G1023
Price
N/A
703
PLANS
Item is no longer available
Price
N/A
900
CARTON FOR G1023
Item is no longer available
Price
N/A
901
STYROFOAM 2PC
Item is no longer available
Price
N/A
CLAMP
*DISCD*FRONT CLAMP ASSY
Price
N/A
COVER
*DISCD*MOTOR COVER W/O HINGE
Price
N/A
FENCE
*DISCD*COMPLETE FENCE ASSY ROUND V2.02.0
Price
N/A
MANUAL
MANUAL FOR G1023 04/97
