Parts for G1023 - TABLE SAW 10" SUPER HEAVY DUTY

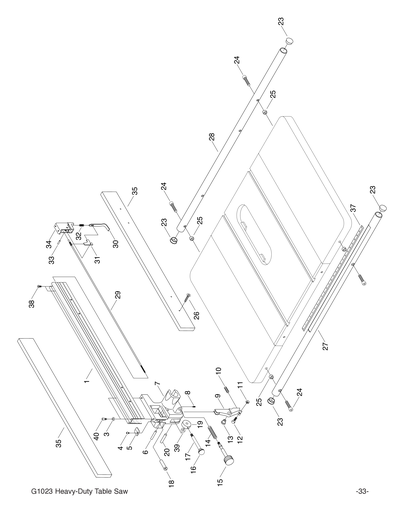

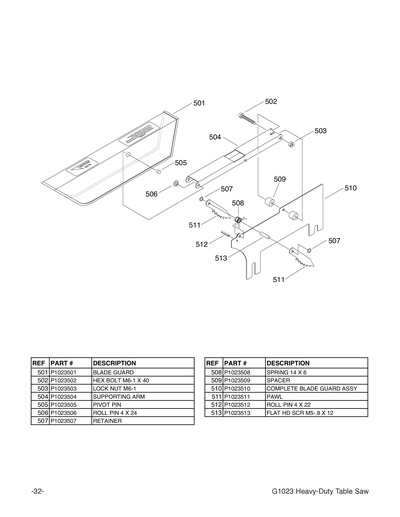

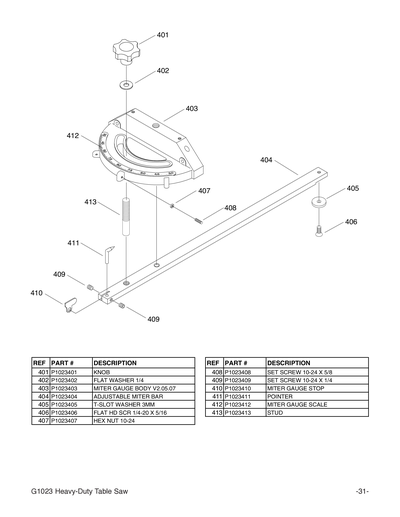

Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023
Part Diagram for G1023

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

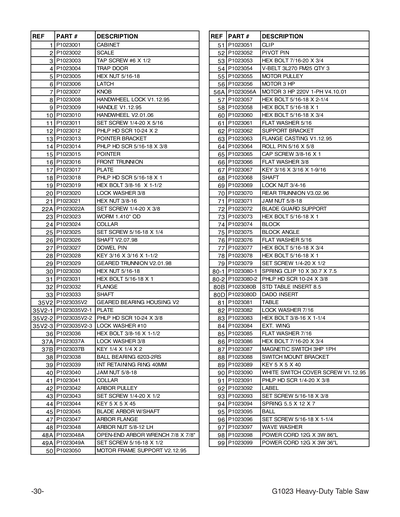

Ref #
Part #
Description
1
*DISCD*CABINET
Item is no longer available
Price
N/A
2
SCALE
Price
$5.50
3
TAP SCREW #6 X 1/2
Price
N/A
4
*DISCD*TRAP DOOR
Item is no longer available
Price
N/A
5
P1023005
Now: PN02
HEX NUT 5/16-18
Price
N/A
6
*DISCD*LATCH
Price
N/A
7
KNOB
Price
N/A
8
HANDWHEEL LOCK V2.01.06
Price
N/A
8A
HANDWHEEL LOCK V2.01.06
Price
$18.15
9
HANDLE V1.12.95
Price
$19.95
9A
HANDLE V3.06.06
Price
$19.80
9B
HANDLE V3.06.06
Price
N/A
10
HANDWHEEL V2.01.06
Price
N/A
10A
HANDWHEEL V2.01.06
Price
$61.60
11
SET SCREW 1/4-20 X 5/16
Price
N/A
12
PHLP HD SCR 10-24 X 2
Price
$2.20
13
POINTER BRACKET
Price
$18.85
14
P1023014
Now: PS27
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
15
*DISCD*POINTER
Item is no longer available
Price
N/A
16
FRONT TRUNNION
Price
$126.80
16A
TRUNNION GUIDE
Price
$7.00
17
PLATE
Price
$3.95
18
P1023018
Now: PS05
PHLP HD SCR 5/16-18 X 1
Price
N/A
19
P1023019
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
20
LOCK WASHER 3/8
Price
N/A
21
P1023021
Now: PN08
HEX NUT 3/8-16
Price
N/A
22
ROLL PIN 5 X 28
Price
N/A
22A
SET SCREW 1/4-20 X 3/8
Price
N/A
23
WORM 1.410" OD
Price
$22.20
23A
*DISCD*WORM GEAR OVERSIZE 1.620"OD
Item is no longer available
Price
N/A
24
COLLAR
Price
$3.65
25
SET SCREW 5/16-18 X 1/4
Price
N/A
26
*DISCD*SHAFT V2.07.98
Item is no longer available
Price
N/A
26A
SHAFT V1.12.95
Item is no longer available
Price
N/A
27
DOWEL PIN
Price
$1.80
28
P1023028
Now: PK01
KEY 3/16 X 3/16 X 1-1/2
Price
N/A
29
*DISCD*GEARED TRUNNION V2.01.98
Item is no longer available
Price
N/A
29A
GEARED TRUNNION V1.12.95
Item is no longer available
Price
N/A
30
P1023030
Now: PN02
HEX NUT 5/16-18
Price
N/A
31
P1023031
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
32
FLANGE
Price
$27.80
33
SHAFT
Price
$17.85
33A
*DISCD*WAVE WASHER
Price
$1.49
34
P1023034
Now: PK02
KEY 1/4 X 1/4 X 3
Price
N/A
35
*DISCD*GEARED BEARING HOUSING
Item is no longer available
Price
N/A
35-1
BEARING HOUSING CAP
Price
N/A
35A
*DISCD*COMPLETE ARBOR ASSY
Item is no longer available
Price
N/A
35V2-1
PLATE
Price
$5.75
35V2-2
PHLP HD SCR 10-24 X 3/8
Price
N/A
35V2-3
LOCK WASHER #10
Price
N/A
36
P1023036
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
37
LOCK WASHER 3/8
Price
N/A
37A
LOCK WASHER 3/8
Price
N/A
37B
KEY 1/4 X 1/4 X 2
Price
N/A
38
BALL BEARING 6203-2RS
Price
N/A
39
INT RETAINING RING 40MM
Price
N/A
40
JAM NUT 5/8-18
Price
$2.40
40A
JAM NUT 5/8-18
Price
N/A
41
COLLAR
Price
$3.80
42
ARBOR PULLEY
Price
$29.00
43
SET SCREW 1/4-20 X 1/2
Price
N/A
44
KEY 5 X 5 X 45
Price
N/A
45
BLADE ARBOR W/SHAFT
Price
$39.85
46
BLADE ARBOR W/SHAFT
Price
N/A
47
ARBOR FLANGE
Price
$4.95
48
ARBOR NUT 5/8-12 LH
Price
$5.15
48A
ARBOR WRENCH 7/8 X 7/8" COMBO
Price
$7.00
48B
ARBOR WRENCH 7/8 X 1" CLOSED-END
Price
$7.05
49
ROLL PIN 1/4 X 1
Price
N/A
49A
SET SCREW 5/16-18 X 1/2
Price
N/A
50
*DISCD*MOTOR FRAME SUPPORT V2.12.95
Price
$70.05
50B
MOTOR FRAME SUPPORT V1.12.95
Price
$34.80
51
CLIP
Price
$1.85
52
*DISCD*PIVOT PIN
Item is no longer available
Price
N/A
53
P1023053
Now: PB14
HEX BOLT 7/16-20 X 3/4
Price
N/A
54
*DISCD*V-BELT 3L270 FM25 (3PC)
Item is no longer available
Price
N/A
54A
V-BELT 3L250 FM25 QTY 3
Price
$35.95
54B
V-BELT M23 3L230
Price
N/A
54C
V-BELT M26 3L260
Price
N/A
54D
V-BELT 3L270 QTY 3
Price
$33.00
55
MOTOR PULLEY
Price
$41.35
56
***MOTOR-MUST READ EXT DESC***
Item is no longer available
Price
N/A
56-1
ELECTRIC BOX V1.03.05
Item is no longer available
Price
N/A
56-2
CENT SWITCH V1.01.93
Price
$11.85
56A
*DISCD*MOTOR 3HP 220V 1-PH V4.10.01(G1023 ONLY)
Item is no longer available
Price
N/A
56A-1
MOTOR FAN V2.02.02
Price
$8.50
56A-2
MOTOR FAN COVER V2.02.02
Price
$10.30
56A-3
CAPACITOR COVER V2.02.02
Price
$6.70
56A-4
MOTOR DUST SHIELD V2.02.02
Price
$1.60
56A-5
ELECTRIC BOX V1.03.05
Item is no longer available
Price
N/A
56B
***MOTOR-MUST READ EXT DESC***
Item is no longer available
Price
N/A
56B-1
MOTOR FAN V2.02.02
Item is no longer available
Price
N/A
56B-2
MOTOR FAN COVER V2.02.02
Item is no longer available
Price
N/A
56B-3
CAPACITOR COVER V2.02.02
Item is no longer available
Price
N/A
56B-4
MOTOR DUST SHIELD V2.02.02
Price
$17.95
56C
Motor 5 HP Single-Phase 3450 RPM 220V For G1023ZX
Price
N/A
56C-1
MOTOR FAN COVER
Price
N/A
56D
CAPACITOR COVER V2.02.02
Price
N/A
56E
*DISCD*MOTOR 3HP 220V 1-PH V4.10.01(G1023 ONLY)
Price
N/A
56F
MOTOR DUST SHIELD V2.02.02
Price
N/A
56G
Motor 5 HP Single-Phase 3450 RPM 220V For G1023ZX
Price
N/A
57
P1023057
Now: PB28
HEX BOLT 5/16-18 X 2-1/4
Price
N/A
58
P1023058
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
59
ROLL PIN 1/8 X 3/4
Price
N/A
60
P1023060
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
P1023061
Now: PW07
FLAT WASHER 5/16
Price
N/A
62
SUPPORT BRACKET
Price
$20.85
63
FLANGE CASTING V1.12.95
Price
$101.75
63V2
FLANGE CASTING V2.09.08
Price
$56.20
64
ROLL PIN 5/16 X 5/8
Price
N/A
65
CAP SCREW 3/8-16 X 1
Price
N/A
66
P1023066
Now: PW02
FLAT WASHER 3/8
Price
N/A
67
P1023067
Now: PK06
KEY 3/16 X 3/16 X 1-9/16
Price
N/A
68
*DISCD*SHAFT
Item is no longer available
Price
N/A
69
LOCK NUT 3/4-16
Price
N/A
70
*DISCD*REAR TRUNNION V3.02.96
Price
N/A
70A
*DISCD*REAR TRUNNION V3.02.96
Item is no longer available
Price
N/A
70B
*DISCD*REAR TRUNNION V2.12.95
Item is no longer available
Price
N/A
71
JAM NUT 5/8-18
Price
N/A
72
BLADE GUARD SUPPORT
Price
$11.85
73
P1023073
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
74
*DISCD*BLOCK CAST IRON V1.12.95
Item is no longer available
Price
N/A
74A
BLOCK 2 PCS V2.08.98
Price
$14.50
75
*DISCD*BLOCK ANGLE V1.12.95
Item is no longer available
Price
N/A
75A
ANGLE BLOCK ASSY V2.08.97
Price
$27.20
75B
L-BRACKET
Price
$3.65
76
P1023076
Now: PW07
FLAT WASHER 5/16
Price
N/A
77
P1023077
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
78
P1023078
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
79
SET SCREW 1/4-20 X 1/2
Price
N/A
80
STD TABLE INSERT 8.5
Price
N/A
80-1
*DISCD*SPRING CLIP 10 X 30.7 X 7.5
Item is no longer available
Price
N/A
80-2
PHLP HD SCR 10-24 X 3/8
Price
N/A
80A
*DISCD*DADO TABLE INSERT 8.5 IN
Item is no longer available
Price
N/A
80B
STD TABLE INSERT 8.5
Price
$32.05
80C
STD TABLE INSERT 7.25 MFD-1/94 - 5/95
Price
$34.15
80D
*DISCD*DADO TABLE INSERT 8.5 IN
Price
N/A
80E
DADO TABLE INSERT 7.25 MFD-1/94 - 5/95
Price
$34.15
81
*DISCD*TABLE
Price
$327.50
82
LOCK WASHER 7/16
Price
N/A
83
P1023083
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
84
*DISCD*EXT WING V1.12.95
Item is no longer available
Price
N/A
84A
EXT WING GREEN V2.03.02
Price
$326.05
84R
EXTENSION WING RIGHT
Price
N/A
85
P1023085
Now: PW04
FLAT WASHER 7/16
Price
N/A
86
P1023086
Now: PB14
HEX BOLT 7/16-20 X 3/4
Price
N/A
87
MAGNETIC SWITCH 3HP 1PH
Price
N/A
88
SWITCH MOUNT BRACKET
Price
$11.00
89
KEY 5 X 5 X 40
Price
N/A
90
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
91
P1023091
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
92
*DISCD*LABEL
Item is no longer available
Price
N/A
93
SET SCREW 5/16-18 X 3/8
Price
N/A
94
SPRING 5.5 X 12 X 7
Price
$1.60
95
*DISCD*BALL
Item is no longer available
Price
N/A
96
SET SCREW 5/16-18 X 1-1/4
Item is no longer available
Price
N/A
97
WAVY WASHER 18MM
Price
$3.80
98
POWER CORD 12G X 3W 86"L
Price
N/A
99
POWER CORD 12G X 3W 36"L
Price
N/A
100
*DISCD*SPRING CLIP
Item is no longer available
Price
N/A
101
*DISCD*FENCE BAR
Item is no longer available
Price
N/A
102
*DISCD*TEFLON PAD
Price
$8.35
103
*DISCD*WOOD FACING
Item is no longer available
Price
N/A
104
*DISCD*SCREW
Price
$1.49
105
*DISCD*FORMICA FACING
Item is no longer available
Price
N/A
106
P1023106
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
107
*DISCD*DUST HOOD
Item is no longer available
Price
N/A
108
*DISCD*REAR ANGLE IRON SUPPORT
Price
$49.75
109
*DISCD*FRONT SQUARE RAIL
Price
$82.80
109A
*DISCD*FRONT SQUARE RAIL SUPPORT
Item is no longer available
Price
N/A
110
*DISCD*FRONT ANGLE IRON SUPPORT
Price
$49.75
111
P1023111
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
112
LOCK WASHER 3/8
Price
N/A
113
CAP SCREW 1/4-20 X 5/8
Price
N/A
114
P1023114
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
115
*DISCD*PLATE
Price
$12.65
116
*DISCD*MAIN FENCE CASTING
Price
$62.10
117A
*DISCD*LOCKING PLUNGER W/118 1.594
Item is no longer available
Price
N/A
117B
*DISCD*LOCKING PLUNGER W/118 1.635
Item is no longer available
Price
N/A
117C
*DISCD*ADJUSTABLE PLUNGER
Item is no longer available
Price
N/A
119
FLAT HD SCR 10-24 X 1/2
Price
N/A
120
SET SCREW 1/4-20 X 1/2
Price
N/A
121
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
122
*DISCD*GIB PLATE
Item is no longer available
Price
N/A
123
P1023123
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
124
P1023124
Now: PW03
FLAT WASHER #10
Price
N/A
125
*DISCD*PLEXIGLASS POINTER
Price
$4.35
126
*DISCD*PIN
Item is no longer available
Price
N/A
127
*DISCD*SPRING
Item is no longer available
Price
N/A
128
E-CLIP 10MM
Price
N/A
129
*DISCD*HANDLE
Item is no longer available
Price
N/A
130
ROLL PIN 3/16 X 3/4
Price
N/A
131
*DISCD*PLASTIC KNOB
Item is no longer available
Price
N/A
132
SCALE
Price
$3.65
133
*DISCD*PLASTIC STRIP
Price
$3.45
134
*DISCD*FENCE RAIL PLUG
Price
$4.90
135
*DISCD*MOUNTING PLATE
Price
$8.35
136
P1023136
Now: PW06
FLAT WASHER 1/4
Price
N/A
137
P1023137
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
138
P1023138
Now: PN08
HEX NUT 3/8-16
Price
N/A
139
*DISCD*GUIDE SHAFT
Item is no longer available
Price
N/A
139A
*DISCD*GUIDE SHAFT ASSY
Price
$10.10
140
*DISCD*GUIDE ROLLER
Item is no longer available
Price
N/A
141
E-CLIP 10MM
Price
N/A
142
*DISCD*COMPLETE REAR FENCE GUIDE
Price
$19.85
143
*DISCD*COMPLETE FENCE-OLD STYLE
Item is no longer available
Price
N/A
144
CAP SCREW 3/8-16 X 3/4
Price
N/A
145
*DISCD*TRUNNION GUIDE BLOCK
Item is no longer available
Price
N/A
146
CAP SCREW 1/4-20 X 1
Price
N/A
147
*DISCD*BLACK BASE STRIPE 3-3/4 X 72 IN
Price
$20.70
201
MITER GAUGE BODY V1.12.95
Price
$41.70
201A
MITER GAUGE BODY V2.06.97
Price
$34.15
202
MITER HINGE PIN V1.12.95
Price
$3.45
202A
*DISCD*STUD V2.10.97
Item is no longer available
Price
N/A
203
P1023203
Now: PN07
HEX NUT 10-24
Price
N/A
204
P1023204
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
205
LOCK KNOB
Item is no longer available
Price
N/A
205A
LOCK KNOB FOR OLD MITER
Item is no longer available
Price
N/A
206
P1023206
Now: PW06
FLAT WASHER 1/4
Price
N/A
207
*DISCD*FIBER WASHER
Price
$1.49
208
*DISCD*STUD
Item is no longer available
Price
N/A
209
PUSH HANDLE
Price
$3.65
210
P1023210
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
211
P1023211
Now: PW03
FLAT WASHER #10
Price
N/A
212
MITER BAR
Price
$21.50
213
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
214
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
215
SCALE
Price
$1.60
216
STOP BLOCK
Price
$1.49
217
STOP PIN
Price
$1.60
218
FLAT HD SCR 10-24 X 3/8
Price
N/A
220
Clamping Miter Gauge
Price
N/A
220A
COMPLETE MITER GAUGE ASSY V1.07.96
Price
N/A
220B
COMPLETE MITER GAUGE ASSY V1.07.96
Price
N/A
220C
MITER GAUGE BODY V2.01.98
Price
$32.50
301
*DISCD*LEFT BLADE GUARD
Price
$16.40
302
*DISCD*SEE THRU PLATE
Price
$3.45
303
ROLL PIN 5 X 29
Price
N/A
304
P1023304
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
305
*DISCD*SEE THRU TOP PLATE
Price
$2.60
306
*DISCD*ROLL PIN 10 X 35
Price
$1.49
307
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
308
*DISCD*RIGHT BLADE GUARD
Price
$16.40
309
*DISCD*SPACER
Price
$1.49
310
*DISCD*SUPPORT ARM
Price
$16.40
311
P1023311
Now: PN05
HEX NUT 1/4-20
Price
N/A
312
LOCK NUT 1/4-20
Price
N/A
313
*DISCD*ANTI KICKBACK PAWL
Price
$1.49
314
P1023314
Now: PW06
FLAT WASHER 1/4
Price
N/A
315
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
316
*DISCD*GUARD SUPPORT ARM
Price
$6.05
318
*DISCD*SPLITTER
Item is no longer available
Price
N/A
319
*DISCD*COMPLETE BLADE GUARD V1.11.96
Item is no longer available
Price
N/A
319A
*DISCD*COMPLETE CLR BLADE GUARD ASSY
Price
N/A
320
*DISCD*HARDWARE BAG
Item is no longer available
Price
N/A
400
*DISCD*COMPLETE MITER GAUGE
Price
$49.75
401
*DISCD*KNOB V1.11.96
Item is no longer available
Price
N/A
401A
MITER GAUGE HANDLE V2.10.01
Price
$10.90
402
P1023402
Now: PW06
FLAT WASHER 1/4
Price
N/A
403
MITER GAUGE BODY V2.05.07
Price
N/A
403A
MITER GAUGE BODY V1.11.96
Price
$28.75
404
*DISCD*ADJUSTABLE MITER BAR
Price
N/A
404A
MITER BAR ASSY V2.04.03
Price
N/A
405
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
406
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
407
P1023407
Now: PN07
HEX NUT 10-24
Price
N/A
408
SET SCREW 10-24 X 5/8
Price
N/A
409
SET SCREW 10-24 X 1/4
Price
N/A
409A
ROLL PIN 3 X 6
Price
N/A
410
MITER GAUGE STOP
Price
N/A
411
*DISCD*POINTER
Item is no longer available
Price
N/A
412
MITER GAUGE SCALE
Price
N/A
412A
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
413
*DISCD*ADJUSTABLE MITER BAR
Price
N/A
501
*DISCD*BLADE GUARD
Item is no longer available
Price
N/A
502
HEX BOLT M6-1 X 40
Price
N/A
503
LOCK NUT M6-1
Price
N/A
504
*DISCD*SUPPORTING ARM
Price
N/A
505
*DISCD*PIVOT PIN
Price
N/A
506
ROLL PIN 4 X 24
Price
N/A
507
*DISCD*RETAINER
Price
N/A
508
*DISCD*SPRING 14 X 6
Price
N/A
509
*DISCD*SPACER
Price
N/A
510
COMPLETE BLADE GUARD ASSY
Price
N/A
511
*DISCD*PAWL
Price
N/A
512
ROLL PIN 4 X 22
Price
N/A
513
FLAT HD SCR M5-.8 X 12
Price
N/A
535
U-CLAMP
Price
$3.35
536
L-BRACKET
Price
$5.15

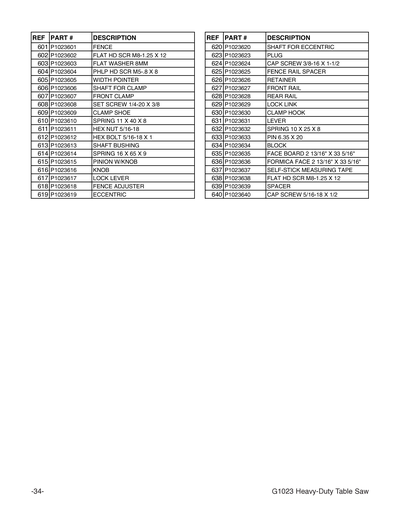

601
*DISCD*FENCE
Price
N/A
601A
*DISCD*COMPLETE FENCE ASSY ROUND V2.02.0
Price
$322.30
602
FLAT HD SCR M8-1.25 X 12
Price
N/A
603
FLAT WASHER 8MM
Price
N/A
604
PHLP HD SCR M5-.8 X 8
Price
N/A
605
*DISCD*WIDTH POINTER
Price
N/A
606
*DISCD*SHAFT FOR CLAMP
Price
N/A
607
*DISCD*FRONT CLAMP
Item is no longer available
Price
N/A
608
SET SCREW 1/4-20 X 3/8
Price
N/A
609
*DISCD*CLAMP SHOE
Price
N/A
610
*DISCD*SPRING 11 X 40 X 8
Price
N/A
611
P1023611
Now: PN02
HEX NUT 5/16-18
Price
N/A
612
P1023612
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
613
*DISCD*SHAFT BUSHING
Price
N/A
614
*DISCD*SPRING 16 X 65 X 9
Price
N/A
615
*DISCD*PINION W/KNOB
Price
N/A
616
*DISCD*KNOB
Price
$1.49
617
*DISCD*LOCK LEVER
Price
$2.90
618
*DISCD*FENCE ADJUSTER
Price
N/A
619
*DISCD*ECCENTRIC
Price
N/A
620
*DISCD*SHAFT FOR ECCENTRIC
Price
$3.45
621
P1023621
Now: PN08
HEX NUT 3/8-16
Price
N/A
622
P1023622
Now: PW02
FLAT WASHER 3/8
Price
N/A
623
*DISCD*PLUG
Price
$4.35
624
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
625
*DISCD*FENCE RAIL SPACER
Price
$4.35
626
*DISCD*RETAINER
Price
N/A
627
*DISCD*FRONT RAIL
Item is no longer available
Price
N/A
627A
*discd*front & Rear Rail Set
Item is no longer available
Price
N/A
628
*DISCD*REAR RAIL
Price
$51.20
629
*DISCD*LOCK LINK
Price
N/A
630
*DISCD*CLAMP HOOK
Price
N/A
631
*DISCD*LEVER
Price
N/A
632
*DISCD*SPRING 10 X 25 X 8
Price
N/A
633
*DISCD*PIN 6.35 X 20
Price
N/A
634
*DISCD*BLOCK
Price
N/A
635
*DISCD*FACE BOARD 2 13/16" X 33 5/16"
Item is no longer available
Price
N/A
635A
*DISCD*FENCE W/WOOD & FORMICA FACING
Price
$33.95
636
*DISCD*FORMICA FACE 2 13/16" X 33 5/16"
Item is no longer available
Price
N/A
637
Self-Stick Measuring Tape - 6' Left to Right Reading
Price
N/A
638
FLAT HD SCR M8-1.25 X 12
Price
N/A
639
*DISCD*SPACER
Item is no longer available
Price
N/A
640
CAP SCREW 5/16-18 X 1/2
Price
N/A
700
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
701
*DISCD*FOAM TOP
Item is no longer available
Price
N/A
702
CARTON FOR G1023
Price
N/A
703
PLANS
Item is no longer available
Price
N/A
900
CARTON FOR G1023
Item is no longer available
Price
N/A
901
STYROFOAM 2PC
Item is no longer available
Price
N/A
CLAMP
*DISCD*FRONT CLAMP ASSY
Price
N/A
COVER
*DISCD*MOTOR COVER W/O HINGE
Price
N/A
FENCE
*DISCD*COMPLETE FENCE ASSY ROUND V2.02.0
Price
N/A
MANUAL
MANUAL FOR G1023 04/97
Price
$14.65
