Parts for G1023S110 10" Table Saw 2 HP Single-Phase 110V

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

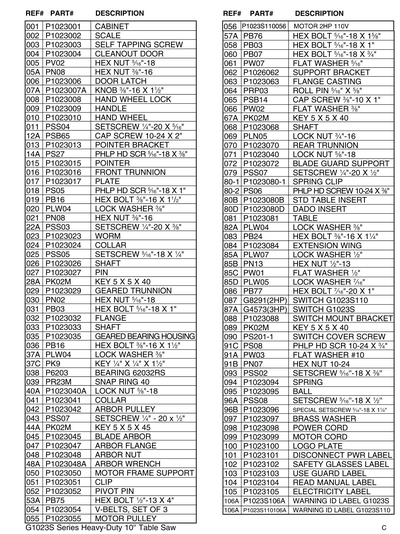

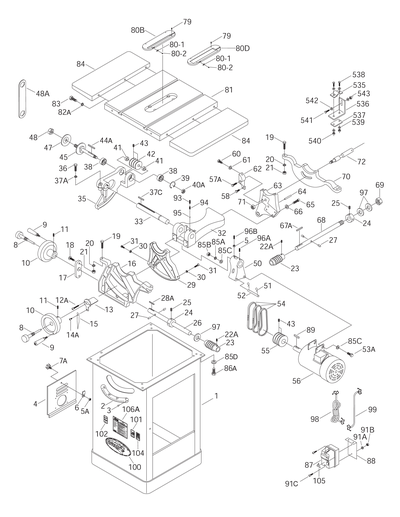

1
*DISCD*CABINET
Price
N/A
2
SCALE
Price
N/A
3
TAP SCREW #6 X 1/2
Price
N/A
4
*DISCD*TRAP DOOR
Price
N/A
5
Now: PN02
HEX NUT 5/16-18
Price
N/A
6
*DISCD*LATCH
Price
N/A
7
KNOB 3/8-16 X 1-1/2
Price
N/A
8
HANDWHEEL LOCK V2.01.06
Price
N/A
9
HANDLE V1.12.95
Price
N/A
10
HANDWHEEL V2.01.06
Price
N/A
11
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
12
PHLP HD SCR 10-24 X 2
Price
N/A
13
POINTER BRACKET
Price
N/A
14
Now: PS27
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
15
*DISCD*POINTER
Price
N/A
16
FRONT TRUNNION
Price
N/A
17
PLATE
Price
N/A
18
Now: PS05
PHLP HD SCR 5/16-18 X 1
Price
N/A
19
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
20
Now: PLW04
LOCK WASHER 3/8
Price
N/A
21
Now: PN08
HEX NUT 3/8-16
Price
N/A
22A
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
23
WORM 1.410" OD
Price
N/A
24
COLLAR
Price
N/A
25
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
26
*DISCD*SHAFT V2.07.98
Price
N/A
27
DOWEL PIN
Price
N/A
28
Now: PK01
KEY 3/16 X 3/16 X 1-1/2
Price
N/A
29
*DISCD*GEARED TRUNNION V2.01.98
Price
N/A
30
Now: PN02
HEX NUT 5/16-18
Price
N/A
31
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
32
FLANGE
Price
N/A
33
SHAFT
Price
N/A
35
*DISCD*GEARED BEARING HOUSING
Price
N/A
36
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
37A
Now: PLW04
LOCK WASHER 3/8
Price
N/A
37B
Now: PK03
KEY 1/4 X 1/4 X 2
Price
N/A
38
BALL BEARING 6203-2RS
Price
N/A
39
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
40
JAM NUT 5/8-18
Price
N/A
41
COLLAR
Price
N/A
42
ARBOR PULLEY
Price
N/A
43
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
44
Now: PK33M
KEY 5 X 5 X 45
Price
N/A
45
BLADE ARBOR W/SHAFT
Price
N/A
47
ARBOR FLANGE
Price
N/A
48
ARBOR NUT 5/8-12 LH
Price
N/A
48A
ARBOR WRENCH 7/8 X 7/8" COMBO
Price
N/A
50
*DISCD*MOTOR FRAME SUPPORT V2.12.95
Price
N/A
51
CLIP
Price
N/A
52
*DISCD*PIVOT PIN
Price
N/A
53
Now: PB14
HEX BOLT 7/16-20 X 3/4
Price
N/A
54
V-BELT 3L250 FM25 QTY 3
Price
N/A
55
MOTOR PULLEY
Price
N/A
56
*DISCD*MOTOR 2HP 110V 1-PH
Item is no longer available
Price
N/A
56A
*DISCD*MOTOR 2HP 110V 1-PH
Price
N/A
57
Now: PB28
HEX BOLT 5/16-18 X 2-1/4
Price
N/A
58
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
60
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
Now: PW07
FLAT WASHER 5/16
Price
N/A
62
SUPPORT BRACKET
Price
N/A
63
FLANGE CASTING V1.12.95
Price
N/A
64
Now: PRP03
ROLL PIN 5/16 X 5/8
Price
N/A
65
CAP SCREW 3/8-16 X 1
Price
N/A
66
Now: PW02
FLAT WASHER 3/8
Price
N/A
67
Now: PK06
KEY 3/16 X 3/16 X 1-9/16
Price
N/A
68
*DISCD*SHAFT
Price
N/A
69
Now: PLN05
LOCK NUT 3/4-16
Price
N/A
70
*DISCD*REAR TRUNNION V3.02.96
Price
N/A
71
Now: PN09
HEX NUT 5/8-18
Price
N/A
72
BLADE GUARD SUPPORT
Price
N/A
73
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
74
BLOCK 2 PCS V2.08.98
Price
N/A
75
L-BRACKET
Price
N/A
76
Now: PW07
FLAT WASHER 5/16
Price
N/A
77
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
78
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
79
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
80B
STD TABLE INSERT 8.5
Price
N/A
80D
*DISCD*DADO TABLE INSERT 8.5 IN
Price
N/A
81
*DISCD*TABLE
Price
N/A
82
Now: PLW05
LOCK WASHER 7/16
Price
N/A
83
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
84
*DISCD*EXT WING V1.12.95
Price
N/A
85
Now: PW04
FLAT WASHER 7/16
Price
N/A
86
Now: PB14
HEX BOLT 7/16-20 X 3/4
Price
N/A
87
MAGNETIC SWITCH ASSEMBLY SDE
88
SWITCH MOUNT BRACKET
Price
N/A
89
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
90
SWITCH COVER SCREW #10-24 X 3/4
91
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
93
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
94
SPRING 5.5 X 12 X 7
Price
N/A
95
*DISCD*BALL
Price
N/A
96
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
97
WAVY WASHER 18MM
Price
N/A
98
POWER CORD 12G X 3W 86"L
Price
N/A
99
POWER CORD 12G X 3W 36"L
Price
N/A
100
Now: G8588
Nameplate - Small
Price
N/A
101
DISCONNECT POWER LABEL
Price
N/A
102
SAFETY GLASSES LABEL
Price
N/A
103
USE GUARD LABEL
Price
N/A
104
READ MANUAL LABEL
Price
N/A
105
ELECTRICITY LABEL
Price
N/A
106
WARNING ID LABEL

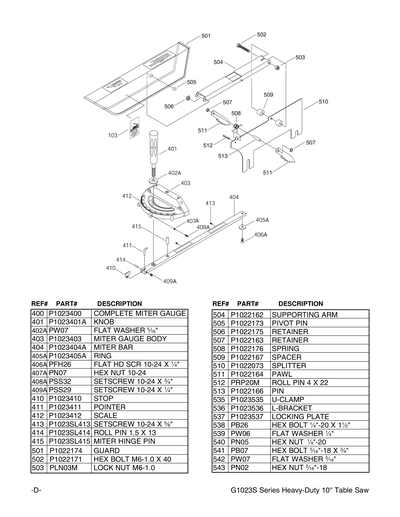

400
*DISCD*COMPLETE MITER GAUGE
Price
N/A
401
*DISCD*KNOB V1.11.96
Price
N/A
402
Now: PW06
FLAT WASHER 1/4
Price
N/A
403
MITER GAUGE BODY V2.05.07
Price
N/A
404
MITER BAR ASSY V2.04.03
Price
N/A
405
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
406
Now: PFH09
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
407
Now: PN07
HEX NUT 10-24
Price
N/A
408
Now: PSS31
SET SCREW 10-24 X 5/8
Price
N/A
409
Now: PSS29
SET SCREW 10-24 X 1/4
Price
N/A
410
MITER GAUGE STOP
Price
N/A
411
*DISCD*POINTER
Price
N/A
412
MITER GAUGE SCALE
Price
N/A
413
Now: PSS31
SET SCREW 10-24 X 5/8
Price
N/A
414
ROLL PIN 1.5 X 13
Price
N/A
415
MITER GAUGE HINGE PIN
Price
N/A
501
*DISCD*BLADE GUARD ONLY
Price
N/A
502
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
503
LOCK NUT M6-1
Price
N/A
504
*DISCD*SUPPORTING ARM
Price
N/A
505
*DISCD*PIVOT PIN
Price
N/A
506
ROLL PIN 4 X 24
Price
N/A
507
*DISCD*RETAINER
Price
N/A
508
*DISCD*SPRING 14 X 6
Price
N/A
509
*DISCD*SPACER
Price
N/A
510
COMPLETE BLADE GUARD ASSY
Price
N/A
511
*DISCD*PAWL
Price
N/A
512
ROLL PIN 4 X 22
Price
N/A
513
PIN
Item is no longer available
Price
N/A
80-1
SPRING CLIP 10 X 30.7 X 7.5
Item is no longer available
Price
N/A
80-2
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
87A
MAGNETIC SWITCH ASSEMBLY SDE
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G1023S 11/02
