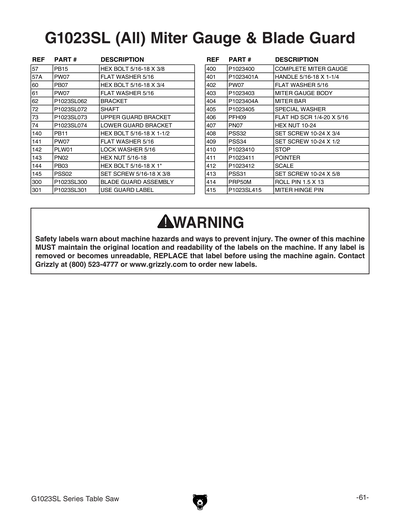

Parts for G1023SLWX 10" 5 HP Single-Phase Left Tilt Cabinet Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CABINET
Price
N/A
1A
PANEL LOWER
Price
N/A
2A
SCALE V2.03.06
Price
N/A
3
TAP SCREW 10-24 X 3/8
Price
N/A
4
MOTOR COVER
Price
N/A
5
CORD CLAMP
Price
N/A
6A
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
6B
Now: PN14
HEX NUT 8-32
Price
N/A
7
LATCH
Price
N/A
8A
LOCK KNOB
Price
N/A
9B
HANDLE
Price
N/A
10A
HANDWHEEL
Price
N/A
11
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
12
CAP SCREW 10-24 X 2
Price
N/A
12A
Now: PLW03
LOCK WASHER #10
Price
N/A
13
POINTER BRACKET
Price
N/A
14A
Now: PW07
FLAT WASHER 5/16
Price
N/A
14B
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
15A
POINTER ADAPTER
Price
N/A
15B
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
15C
POINTER
Price
N/A
16
FRONT TRUNNION BRACKET
Price
N/A
16A
GUIDE BLOCK
Price
N/A
16B
CAP SCREW 1/4-20 X 3/4
Price
N/A
16C
Now: PW06
FLAT WASHER 1/4
Price
N/A
17
PLATE
Price
N/A
18
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
19
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
20
Now: PLW04
LOCK WASHER 3/8
Price
N/A
21
Now: PN08
HEX NUT 3/8-16
Price
N/A
22
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
23
WORM 1.410" OD
Price
N/A
24
COLLAR
Price
N/A
25
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
26
TILT SHAFT
Price
N/A
26A
BRASS WASHER 3/4
Price
N/A
27
DOWEL PIN
Price
N/A
27A
***USE P0658004***
Price
N/A
28
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
29A
*DISCD*GEARED TRUNNION
Price
N/A
29B
BUSHING
Price
N/A
30
Now: PN02
HEX NUT 5/16-18
Price
N/A
30A
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
30B
SPACER
Price
N/A
31
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
32
FLANGE
Price
N/A
33
SHAFT
Price
N/A
35A
GEAR BEARING HOUSING V2.09.03
Price
N/A
35B
HOUSING CAP
Price
N/A
35C
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
35D
Now: PLW03
LOCK WASHER #10
Price
N/A
36
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
37A
Now: PLW04
LOCK WASHER 3/8
Price
N/A
37B
Now: PK03
KEY 1/4 X 1/4 X 2
Price
N/A
38
BALL BEARING 6203ZZ
Price
N/A
40
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
41
COLLAR
Price
N/A
42
ARBOR PULLEY
Price
N/A
43
Now: PSS10
SET SCREW 1/4-20 X 5/8
Price
N/A
43A
Now: PSS06
SET SCREW 1/4-20 X 3/4
Price
N/A
44
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
45
*DISCD*BLADE ARBOR
Price
N/A
47
ARBOR FLANGE
Price
N/A
48
***USE P1023RL108***
Price
N/A
50
MOTOR FRAME SUPPORT
Price
N/A
51
CLIP
Price
N/A
52
*DISCD*PIVOT PIN
Price
N/A
53
CAP SCREW 3/8-16 X 1
Price
N/A
54
Now: PVM25
V-BELT M25 3L250
Price
N/A
55
MOTOR PULLEY
Price
N/A
56
*DISCD*MOTOR 5HP 220V 1-PH
Item is no longer available
Price
N/A
56-1
MOTOR FAN 5HP 1PH
Item is no longer available
Price
N/A
56-2
MOTOR FAN COVER 5HP 1PH
Item is no longer available
Price
N/A
56-3
CAPACITOR COVER 5HP 1PH
Item is no longer available
Price
N/A
56-5
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
56-6
WIRING BOX 5HP 1PH
Item is no longer available
Price
N/A
56-7
CAPACITOR COVER
Item is no longer available
Price
N/A
56-8
R CAPACITOR 50M 350V 2 X 3-1/2
56A
MOTOR PLATE
Item is no longer available
Price
N/A
57
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
57A
Now: PW07
FLAT WASHER 5/16
Price
N/A
58
*DISCD*CORD CLAMP
Price
N/A
58A
CORD CLAMP PLATE
Price
N/A
58B
CORD CLAMP PLATE
Price
N/A
60
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
Now: PW07
FLAT WASHER 5/16
Price
N/A
62
SUPPORT BRACKET
Price
N/A
63A
*DISCD*REAR TRUNNION
Price
N/A
63B
BUSHING
Price
N/A
64
Now: PRP07
ROLL PIN 5/16 X 1
Price
N/A
65
CAP SCREW 3/8-16 X 1
Price
N/A
66
Now: PLW04
LOCK WASHER 3/8
Price
N/A
68
*DISCD*SHAFT
Price
N/A
69
Now: PLN05
LOCK NUT 3/4-16
Price
N/A
70
REAR TRUNNION BRACKET
Price
N/A
72
SHAFT
Price
N/A
73
UPPER GUARD BRACKET
Price
N/A
74
*DISCD*GUARD BRACKET LOWER
Price
N/A
79
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
80
*DISCD*STANDARD TABLE INSERT
Price
N/A
80A
*DISCD*DADO TABLE INSERT
Price
N/A
81
*DISCD*TABLE
Price
N/A
82
Now: PLW04
LOCK WASHER 3/8
Price
N/A
83
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
83-1
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
84L
EXT WING LEFT
Price
N/A
84R
EXTENSION WING RIGHT
Price
N/A
85
Now: PW02
FLAT WASHER 3/8
Price
N/A
86
CAP SCREW 3/8-16 X 3/4
Price
N/A
87
MAG SWITCH 5HP 1PH
87A
Now: PS31
PHLP HD SCR 10-24 X 1-3/4
Price
N/A
87B
Now: PN07
HEX NUT 10-24
Price
N/A
87C
MOTOR CORD
87D
POWER CORD
Item is no longer available
Price
N/A
87G
STRAIN RELIEF TYPE-3 MG20A
Price
N/A
87H
*DISCD*STATOR
Price
N/A
88
SWITCH MOUNT BRACKET
Price
N/A
88A
Now: PFH25
FLAT HD SCR 5/16-18 X 1
Price
N/A
88B
Now: PW07
FLAT WASHER 5/16
Price
N/A
88C
Now: PN02
HEX NUT 5/16-18
Price
N/A
89
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
90A
MACHINE ID LABEL
Item is no longer available
Price
N/A
91
DUST PORT
Price
N/A
92
Now: PW07
FLAT WASHER 5/16
Price
N/A
94
*DISCD*DUST DEFLECTOR
Price
N/A
95
MOTOR FRAME SUPPORT SCREW 5/16-18 X 1-1/
Price
N/A
95A
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
95B
Now: PN02
HEX NUT 5/16-18
Price
N/A
99
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
104
Now: PW03
FLAT WASHER #10
Price
N/A
140
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
141
Now: PW07
FLAT WASHER 5/16
Price
N/A
142
Now: PLW01
LOCK WASHER 5/16
Price
N/A
143
Now: PN02
HEX NUT 5/16-18
Price
N/A
144
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
145
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
154
SWITCH PLATE BRACE
Price
N/A
155
MOTOR BRACE
Price
N/A
211
Now: G8588
Nameplate - Small
Price
N/A
212
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
213
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
216
HEX WRENCH 8MM
Price
N/A
217
ARBOR WRENCH 7/8 X 7/8" COMBO
Price
N/A
218
ELECTRICITY 1.4W X 1.2H
Price
N/A
219
UNPLUG 220V/BLADES 2W X 3.3H
Price
N/A
220
HEX WRENCH 3MM
Price
N/A
221
HEX WRENCH 4MM
Price
N/A
222
FLAT WRENCH 22MM
Price
N/A
300
BLADE GUARD ASSEMBLY
Price
N/A
3001
CABINET
Price
N/A
3001A
PANEL LOWER
Price
N/A
3002A
SCALE V2.03.06
Price
N/A
3003
TAP SCREW 10-24 X 3/8
Price
N/A
3004
MOTOR COVER
Price
N/A
3005
CORD CLAMP
Price
N/A
3006A
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
3006B
Now: PN14
HEX NUT 8-32
Price
N/A
3007
LATCH
Price
N/A
3008A
LOCK KNOB
Price
N/A
3009B
HANDLE
Price
N/A
301
BLADE GUARD LABEL
Price
N/A
3010A
HANDWHEEL
Price
N/A
3011
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
3012
CAP SCREW 10-24 X 2
Price
N/A
3012A
Now: PLW03
LOCK WASHER #10
Price
N/A
3013
POINTER BRACKET
Price
N/A
3014A
Now: PW07
FLAT WASHER 5/16
Price
N/A
3014B
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
3015A
POINTER ADAPTER
Price
N/A
3015B
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
3015C
POINTER
Price
N/A
3016
FRONT TRUNNION BRACKET
Price
N/A
3016A
GUIDE BLOCK
Price
N/A
3016B
CAP SCREW 1/4-20 X 3/4
Price
N/A
3016C
Now: PW06
FLAT WASHER 1/4
Price
N/A
3017
PLATE
Price
N/A
3018
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
3019
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
3020
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3021
Now: PN08
HEX NUT 3/8-16
Price
N/A
3022
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
3023
WORM 1.410" OD
Price
N/A
3024
COLLAR
Price
N/A
3025
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
3026
TILT SHAFT
Price
N/A
3026A
BRASS WASHER 3/4
Price
N/A
3027
DOWEL PIN
Price
N/A
3027A
***USE P0658004***
Price
N/A
3028
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
3029A
*DISCD*GEARED TRUNNION
Price
N/A
3029B
BUSHING
Price
N/A
3030
Now: PN02
HEX NUT 5/16-18
Price
N/A
3030A
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
3030B
SPACER
Price
N/A
3031
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
3032
FLANGE
Price
N/A
3033
SHAFT
Price
N/A
3035A
GEAR BEARING HOUSING V2.09.03
Price
N/A
3035B
HOUSING CAP
Price
N/A
3035C
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
3035D
Now: PLW03
LOCK WASHER #10
Price
N/A
3036
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
3037A
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3037B
Now: PK03
KEY 1/4 X 1/4 X 2
Price
N/A
3038
BALL BEARING 6203ZZ
Price
N/A
3041
COLLAR
Price
N/A
3042
ARBOR PULLEY
Price
N/A
3043
Now: PSS10
SET SCREW 1/4-20 X 5/8
Price
N/A
3043A
Now: PSS06
SET SCREW 1/4-20 X 3/4
Price
N/A
3044
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
3045
*DISCD*BLADE ARBOR
Price
N/A
3047
ARBOR FLANGE
Price
N/A
3048
***USE P1023RL108***
Price
N/A
3050
MOTOR FRAME SUPPORT
Price
N/A
3051
CLIP
Price
N/A
3052
*DISCD*PIVOT PIN
Price
N/A
3053
CAP SCREW 3/8-16 X 1
Price
N/A
3054
Now: PVM25
V-BELT M25 3L250
Price
N/A
3055
MOTOR PULLEY
Price
N/A
3056
*DISCD*MOTOR 5HP 220V/440V 3-PH
Item is no longer available
Price
N/A
3056-1
MOTOR FAN 5HP 3PH
Item is no longer available
Price
N/A
3056-2
MOTOR FAN COVER 5HP 3PH
Item is no longer available
Price
N/A
3056-6
WIRING BOX 5HP 3PH
Item is no longer available
Price
N/A
3056A
MOTOR PLATE
Item is no longer available
Price
N/A
3057
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
3057A
Now: PW07
FLAT WASHER 5/16
Price
N/A
3058
*DISCD*CORD CLAMP
Price
N/A
3058A
CORD CLAMP PLATE
Price
N/A
3058B
CORD CLAMP PLATE
Price
N/A
3060
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
3061
Now: PW07
FLAT WASHER 5/16
Price
N/A
3062
SUPPORT BRACKET
Price
N/A
3063A
*DISCD*REAR TRUNNION
Price
N/A
3063B
BUSHING
Price
N/A
3064
Now: PRP07
ROLL PIN 5/16 X 1
Price
N/A
3065
CAP SCREW 3/8-16 X 1
Price
N/A
3066
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3068
*DISCD*SHAFT
Price
N/A
3069
Now: PLN05
LOCK NUT 3/4-16
Price
N/A
3070
REAR TRUNNION BRACKET
Price
N/A
3072
SHAFT
Price
N/A
3073
UPPER GUARD BRACKET
Price
N/A
3074
*DISCD*GUARD BRACKET LOWER
Price
N/A
3079
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
3080
*DISCD*STANDARD TABLE INSERT
Price
N/A
3080A
*DISCD*DADO TABLE INSERT
Price
N/A
3081
*DISCD*TABLE
Price
N/A
3082
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3083
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
3083-1
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
3084L
EXT WING LEFT
Price
N/A
3084R
EXTENSION WING RIGHT
Price
N/A
3085
Now: PW02
FLAT WASHER 3/8
Price
N/A
3086
CAP SCREW 3/8-16 X 3/4
Price
N/A
3087
Now: G4674
Magnetic Switch, 3-Phase, 220V Only, 5 HP
Price
N/A
3087A
Now: PS31
PHLP HD SCR 10-24 X 1-3/4
Price
N/A
3087B
Now: PN07
HEX NUT 10-24
Price
N/A
3087C
MOTOR CORD
Item is no longer available
Price
N/A
3087D
POWER CORD
Item is no longer available
Price
N/A
3087G
STRAIN RELIEF TYPE-3 MG20A
Price
N/A
3087H
*DISCD*STATOR
Price
N/A
3087S
MAGNETIC SWITCH 5HP 440V 3PH
3088
SWITCH MOUNT BRACKET
Price
N/A
3088A
Now: PFH25
FLAT HD SCR 5/16-18 X 1
Price
N/A
3088B
Now: PW07
FLAT WASHER 5/16
Price
N/A
3088C
Now: PN02
HEX NUT 5/16-18
Price
N/A
3089
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
3090A
MACHINE ID LABEL
Item is no longer available
Price
N/A
3091
DUST PORT
Price
N/A
3092
Now: PW07
FLAT WASHER 5/16
Price
N/A
3094
*DISCD*DUST DEFLECTOR
Price
N/A
3095
MOTOR FRAME SUPPORT SCREW 5/16-18 X 1-1/
Price
N/A
3095A
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
3095B
Now: PN02
HEX NUT 5/16-18
Price
N/A
3099
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
3104
Now: PW03
FLAT WASHER #10
Price
N/A
3140
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
3141
Now: PW07
FLAT WASHER 5/16
Price
N/A
3142
Now: PLW01
LOCK WASHER 5/16
Price
N/A
3143
Now: PN02
HEX NUT 5/16-18
Price
N/A
3144
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
3145
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
3154
SWITCH PLATE BRACE
Price
N/A
3155
MOTOR BRACE
Price
N/A
3211
Now: G8588
Nameplate - Small
Price
N/A
3212
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
3213
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
3216
HEX WRENCH 8MM
Price
N/A
3217
ARBOR WRENCH 7/8 X 7/8" COMBO
Price
N/A
3218
ELECTRICITY 1.4W X 1.2H
Price
N/A
3219
UNPLUG 220V/BLADES 2W X 3.3H
Price
N/A
3220
HEX WRENCH 3MM
Price
N/A
3221
HEX WRENCH 4MM
Price
N/A
3222
FLAT WRENCH 22MM
Price
N/A
3300
BLADE GUARD ASSEMBLY
Price
N/A
3301
BLADE GUARD LABEL
Price
N/A

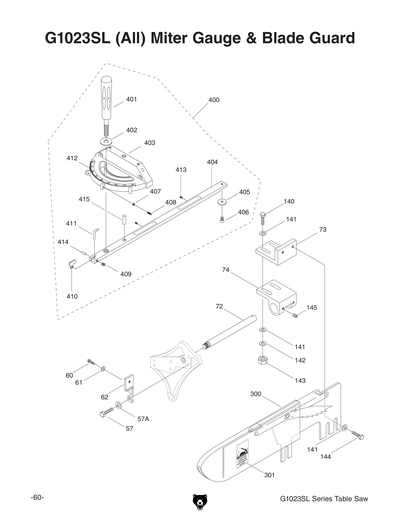

3400
*DISCD*COMPLETE MITER GAUGE
Price
N/A
3401
MITER GAUGE HANDLE V2.10.01
Price
N/A
3402
Now: PW07
FLAT WASHER 5/16
Price
N/A
3403
MITER GAUGE BODY V2.05.07
Price
N/A
3404
MITER BAR ASSY V2.04.03
Price
N/A
3405
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
3406
Now: PFH09
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
3407
Now: PN07
HEX NUT 10-24
Price
N/A
3408
Now: PSS32
SET SCREW 10-24 X 3/4
Price
N/A
3409
Now: PSS34
SET SCREW 10-24 X 1/2
Price
N/A
3410
MITER GAUGE STOP
Price
N/A
3411
*DISCD*POINTER
Price
N/A
3412
MITER GAUGE SCALE
Price
N/A
3413
Now: PSS31
SET SCREW 10-24 X 5/8
Price
N/A
3414
ROLL PIN 1.5 X 13
Price
N/A
3415
MITER GAUGE HINGE PIN
Price
N/A
3500
HANDWHEEL UPGRADE KIT
Price
N/A

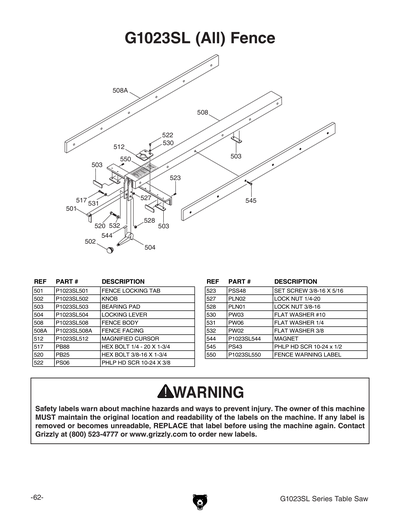

3501
FENCE LOCKING TAB
Price
N/A
3502
KNOB 3/8-16, D1-9/16, TAPERED BALL V2.04.07
Price
N/A
3503
BEARING PAD
Price
N/A
3504
LOCKING LEVER
Price
N/A
3508
FENCE BODY
Price
N/A
3508A
FENCE FACING
Price
N/A
3512
MAGNIFIED CURSOR
Price
N/A
3514
SCALE 26"
Price
N/A

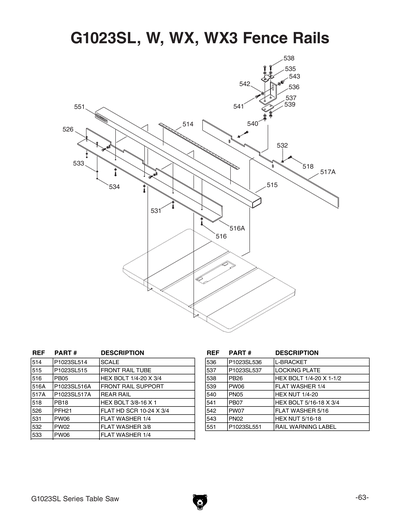

3515
FRONT RAIL TUBE
Price
N/A
3516
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
3516A
FRONT RAIL 46-1/2"
Price
N/A
3517
Now: PB88
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
3517A
REAR RAIL 46-1/2"
Price
N/A
3518
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
3520
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
3522
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
3523
Now: PSS48
SET SCREW 1/4-28 X 5/8
Price
N/A
3526
Now: PFH21
FLAT HD SCR 10-24 X 3/4
Price
N/A
3527
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
3528
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
3530
Now: PW03
FLAT WASHER #10
Price
N/A
3531
Now: PW06
FLAT WASHER 1/4
Price
N/A
3532
Now: PW02
FLAT WASHER 3/8
Price
N/A
3533
Now: PW06
FLAT WASHER 1/4
Price
N/A
3534
Now: PN05
HEX NUT 1/4-20
Price
N/A
3535
V-CLAMP
Price
N/A
3536
L-BRACKET
Price
N/A
3537
LOCK PLATE
Price
N/A
3538
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
3539
Now: PW06
FLAT WASHER 1/4
Price
N/A
3540
Now: PN05
HEX NUT 1/4-20
Price
N/A
3541
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
3542
Now: PW07
FLAT WASHER 5/16
Price
N/A
3543
Now: PN02
HEX NUT 5/16-18
Price
N/A
3544
MAGNET
Price
N/A
3545
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
3550
FENCE WARNING LABEL
Price
N/A
3551
RAIL WARNING LABEL
Price
N/A

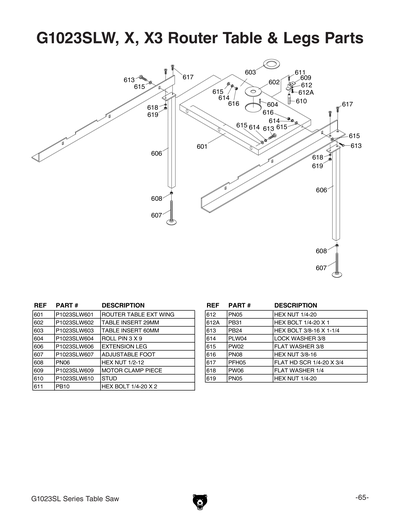

3601
ROUTER TABLE EXT WING
Price
N/A
3602
TABLE INSERT 29MM
Price
N/A
3603
TABLE INSERT 60MM
Price
N/A
3604
ROLL PIN 3 X 9
Price
N/A
3606
EXTENSION LEG
Price
N/A
3607
ADJUSTABLE FOOT
Price
N/A
3608
Now: PN06
HEX NUT 1/2-12
Price
N/A
3609
MOTOR CLAMP PIECE
Price
N/A
3610
CLAMP NUT
Price
N/A
3611
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
3612
Now: PN05
HEX NUT 1/4-20
Price
N/A
3612A
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
3613
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
3614
Now: PLW04
LOCK WASHER 3/8
Price
N/A
3615
Now: PW02
FLAT WASHER 3/8
Price
N/A
3616
Now: PN08
HEX NUT 3/8-16
Price
N/A
3617
Now: PFH05
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
3618
Now: PW06
FLAT WASHER 1/4
Price
N/A
3619
Now: PN05
HEX NUT 1/4-20
Price
N/A
3MAN
MANUAL FOR G1023SLWX3 03/06
Item is no longer available
Price
N/A
400
*DISCD*COMPLETE MITER GAUGE
Price
N/A
401
MITER GAUGE HANDLE V2.10.01
Price
N/A
402
Now: PW07
FLAT WASHER 5/16
Price
N/A
403
MITER GAUGE BODY V2.05.07
Price
N/A
404
MITER BAR ASSY V2.04.03
Price
N/A
405
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
406
Now: PFH09
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
407
Now: PN07
HEX NUT 10-24
Price
N/A
408
Now: PSS32
SET SCREW 10-24 X 3/4
Price
N/A
409
Now: PSS34
SET SCREW 10-24 X 1/2
Price
N/A
410
MITER GAUGE STOP
Price
N/A
411
*DISCD*POINTER
Price
N/A
412
MITER GAUGE SCALE
Price
N/A
413
Now: PSS31
SET SCREW 10-24 X 5/8
Price
N/A
414
ROLL PIN 1.5 X 13
Price
N/A
415
MITER GAUGE HINGE PIN
Price
N/A
500
HANDWHEEL UPGRADE KIT
Price
N/A
501
FENCE LOCKING TAB
Price
N/A
502
KNOB 3/8-16, D1-9/16, TAPERED BALL V2.04.07
Price
N/A
503
BEARING PAD
Price
N/A
504
LOCKING LEVER
Price
N/A
508
FENCE BODY
Price
N/A
508A
FENCE FACING
Price
N/A
512
MAGNIFIED CURSOR
Price
N/A
514
SCALE 26"
Price
N/A
515
FRONT RAIL TUBE
Price
N/A
516
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
516A
FRONT RAIL 46-1/2"
Price
N/A
517
Now: PB88
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
517A
REAR RAIL 46-1/2"
Price
N/A
518
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
520
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
522
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
523
Now: PSS48
SET SCREW 1/4-28 X 5/8
Price
N/A
526
Now: PFH21
FLAT HD SCR 10-24 X 3/4
Price
N/A
527
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
528
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
530
Now: PW03
FLAT WASHER #10
Price
N/A
531
Now: PW06
FLAT WASHER 1/4
Price
N/A
532
Now: PW02
FLAT WASHER 3/8
Price
N/A
533
Now: PW06
FLAT WASHER 1/4
Price
N/A
534
Now: PN05
HEX NUT 1/4-20
Price
N/A
535
V-CLAMP
Price
N/A
536
L-BRACKET
Price
N/A
537
LOCK PLATE
Price
N/A
538
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
539
Now: PW06
FLAT WASHER 1/4
Price
N/A
540
Now: PN05
HEX NUT 1/4-20
Price
N/A
541
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
542
Now: PW07
FLAT WASHER 5/16
Price
N/A
543
Now: PN02
HEX NUT 5/16-18
Price
N/A
544
MAGNET
Price
N/A
545
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
550
FENCE WARNING LABEL
Price
N/A
551
RAIL WARNING LABEL
Price
N/A
601
ROUTER TABLE EXT WING
Price
N/A
602
TABLE INSERT 29MM
Price
N/A
603
TABLE INSERT 60MM
Price
N/A
604
ROLL PIN 3 X 9
Price
N/A
606
EXTENSION LEG
Price
N/A
607
ADJUSTABLE FOOT
Price
N/A
608
Now: PN06
HEX NUT 1/2-12
Price
N/A
609
MOTOR CLAMP PIECE
Price
N/A
610
CLAMP NUT
Price
N/A
611
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
612
Now: PN05
HEX NUT 1/4-20
Price
N/A
612A
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
613
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
614
Now: PLW04
LOCK WASHER 3/8
Price
N/A
615
Now: PW02
FLAT WASHER 3/8
Price
N/A
616
Now: PN08
HEX NUT 3/8-16
Price
N/A
617
Now: PFH05
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
618
Now: PW06
FLAT WASHER 1/4
Price
N/A
619
Now: PN05
HEX NUT 1/4-20
Price
N/A
BOX2
COMPLETE FENCE ASSY BOX 2
Item is no longer available
Price
N/A
MAN
MANUAL FOR G1023SLWX 03/06
Item is no longer available
Price
N/A
