Parts for G1023SLX - 10" Table Saw 3 HP Single-Phase 220V Left-Tilt w/ 7' Rails

1/8

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

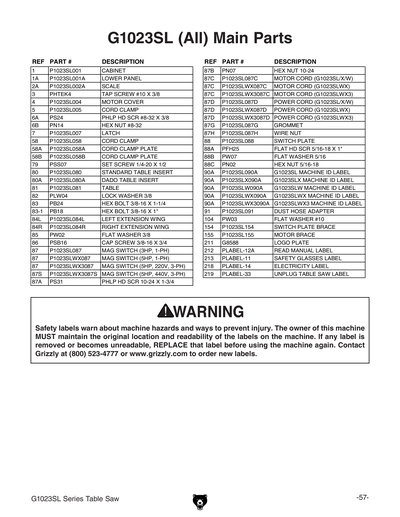

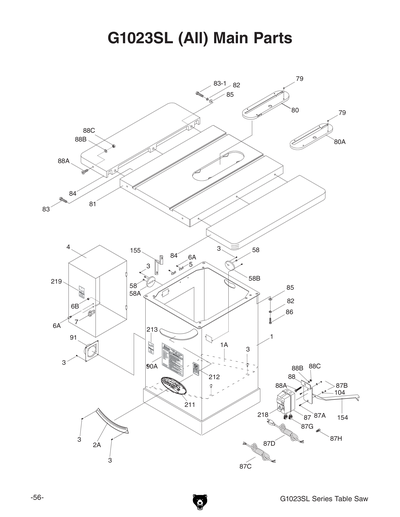

1
CABINET
Price
N/A
1A
PANEL LOWER
Price
N/A
2
SCALE V1.09.01
Price
N/A
2A
SCALE V2.03.06
Price
N/A
3
TAP SCREW 10-24 X 3/8
Price
N/A
4
MOTOR COVER
Price
N/A
5
CORD CLAMP
Price
N/A
6A
PHLP HD SCR 10-24 X 1/2
Price
N/A
6B
HEX NUT 10-24
Price
N/A
7
LATCH
Price
N/A
7A
STRIKE
Price
N/A
8
*DISCD*HANDWHEEL LOCK V1.12.95
Price
N/A
8A
LOCK KNOB
Price
N/A
9
HANDLE V1.12.95
Price
N/A
9B
HANDLE
Price
N/A
10
HANDWHEEL V2.01.06
Price
N/A
10A
HANDWHEEL
Price
N/A
11
SET SCREW 1/4-20 X 3/8
Price
N/A
12
CAP SCREW 10-24 X 2
Price
N/A
12A
LOCK WASHER #10
Price
N/A
13
POINTER BRACKET
Price
N/A
14
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
14A
FLAT WASHER 5/16
Price
N/A
14B
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
15
POINTER
Price
N/A
15A
POINTER ADAPTER
Price
N/A
15B
PHLP HD SCR 8-32 X 1/4
Price
N/A
15C
POINTER
Price
N/A
16
FRONT TRUNNION BRACKET
Price
N/A
16A
GUIDE BLOCK
Price
N/A
16B
CAP SCREW 1/4-20 X 3/4
Price
N/A
16C
FLAT WASHER 1/4
Price
N/A
16D
FLAT WASHER 1/4
Price
N/A
17
PLATE
Price
N/A
18
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
19
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
20
LOCK WASHER 3/8
Price
N/A

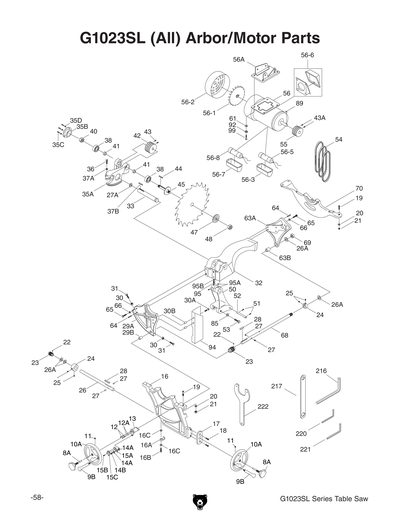

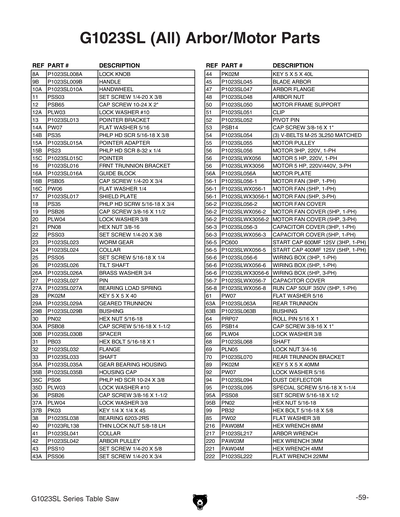

21
HEX NUT 3/8-16
Price
N/A
22
SET SCREW 1/4-20 X 3/8
Price
N/A
23
WORM 1.410" OD
Price
N/A
24
COLLAR
Price
N/A
25
SET SCREW 5/16-18 X 1/4
Price
N/A
26
TILT SHAFT
Price
N/A
26A
BRASS WASHER 3/4
Price
N/A
27
DOWEL PIN
Price
N/A
27A
WAVY WASHER 30MM
Price
N/A
28
KEY 5 X 5 X 35
Price
N/A
29A
GEARED TRUNNION
Price
N/A
29B
BUSHING
Price
N/A
30
HEX NUT 5/16-18
Price
N/A
30A
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
30B
SPACER
Price
N/A
31
HEX BOLT 5/16-18 X 1
Price
N/A
32
FLANGE
Price
N/A
33
SHAFT
Price
N/A
35
*DISCD*GEAR BEARING HOUSING V1.09.01
Price
N/A
35A
GEAR BEARING HOUSING V2.09.03
Price
N/A
35B
HOUSING CAP
Price
N/A
35C
PHLP HD SCR 10-24 X 3/8
Price
N/A
35D
LOCK WASHER #10
Price
N/A
36
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
37A
LOCK WASHER 3/8
Price
N/A
37B
KEY 1/4 X 1/4 X 2
Price
N/A
38
BALL BEARING 6203ZZ
Price
N/A
39
INT RETAINING RING 40MM
Price
N/A
40
THIN LOCK NUT 5/8-18 LH
Price
N/A
41
COLLAR
Price
N/A
42
ARBOR PULLEY
Price
N/A
43
SET SCREW 1/4-20 X 1/4
Price
N/A
43A
SET SCREW 1/4-20 X 1/2
Price
N/A
44
KEY 5 X 5 X 40
Price
N/A
45
*DISCD*BLADE ARBOR
Price
N/A
46
BLADE
Price
N/A
47
ARBOR FLANGE
Price
N/A
48
*DISCD*ARBOR NUT 5/8-12 RH
Price
N/A
49
COLLAR
Item is no longer available
Price
N/A
50
MOTOR FRAME SUPPORT
Price
N/A
51
CLIP
Price
N/A
52
*DISCD*PIVOT PIN
Price
N/A
53
CAP SCREW 3/8-16 X 1
Price
N/A
54
V-BELT M25 3L250
Price
N/A
55
MOTOR PULLEY
Price
N/A
56
*DISCD*MOTOR 3HP 220V 1-PH
Price
N/A
56-1
MOTOR FAN 3HP 1PH
Price
N/A
56-2
MOTOR FAN COVER
Price
N/A
56-3
CAPACITOR COVER
Price
N/A
56-5
S CAPACITOR 600M 125V 1-3/4 X 3-1/2
Price
N/A
56-6
WIRING BOX 3HP 1PH
Price
N/A
56A
MOTOR MOUNT PLATE
Price
N/A
57
HEX BOLT 5/16-18 X 3/8
Price
N/A
57A
FLAT WASHER 5/16
Price
N/A
58
*DISCD*CORD CLAMP
Price
N/A
58A
CORD CLAMP PLATE
Price
N/A
58B
CORD CLAMP PLATE
Price
N/A
60
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
FLAT WASHER 5/16
Price
N/A
62
SUPPORT BRACKET
Price
N/A
63A
*DISCD*REAR TRUNNION
Price
N/A
63B
BUSHING
Price
N/A
64
ROLL PIN 5/16 X 1
Price
N/A
65
CAP SCREW 3/8-16 X 1
Price
N/A
66
LOCK WASHER 3/8
Price
N/A
68
SHAFT
Price
N/A
69
HEX NUT 3/4-16
Price
N/A
70
REAR TRUNNION BRACKET
Price
N/A
72
SHAFT
Price
N/A
73
UPPER GUARD BRACKET
Price
N/A
74
GUARD BRACKET LOWER
Price
N/A
79
SET SCREW 1/4-20 X 1/2
Price
N/A
80
*DISCD*STANDARD TABLE INSERT
Price
N/A
80A
DADO TABLE INSERT
Price
N/A
80B
SPRING CLIP 10 X 30.7 X 7.5
Price
N/A
80C
PHLP HD SCR 10-24 X 3/8
Price
N/A
81
*DISCD*TABLE
Price
N/A
82
LOCK WASHER 3/8
Price
N/A
83
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
83-1
HEX BOLT 3/8-16 X 1
Price
N/A
84
*DISCD*EXT WING 10" W/BLACK EDGE
Price
N/A
84L
EXT WING LEFT
Price
N/A
84R
EXTENSION WING RIGHT
Price
N/A
85
FLAT WASHER 3/8
Price
N/A
86
CAP SCREW 3/8-16 X 3/4
Price
N/A
87
MAGNETIC SWITCH 3HP 1PH
Price
N/A
87A
PHLP HD SCR 10-24 X 1-3/4
Price
N/A
87B
HEX NUT 10-24
Price
N/A
87C
POWER CORD 12G X 3W 36"L
Price
N/A
87D
POWER CORD 12G X 3W 86"L
Price
N/A
87E
1,000 pc. Cable Tie Assortment
Price
N/A
87G
STRAIN RELIEF TYPE-3 MG20A
Price
N/A
87H
*DISCD*STATOR
Price
N/A
88
SWITCH MOUNT BRACKET
Price
N/A
88A
FLAT HD SCR 5/16-18 X 1
Price
N/A
88B
FLAT WASHER 5/16
Price
N/A
88C
HEX NUT 5/16-18
Price
N/A
89
KEY 5 X 5 X 40
Price
N/A
90A
MACHINE ID LABEL
Price
N/A
91
DUST PORT
Price
N/A
92
FLAT WASHER 5/16
Price
N/A
94
*DISCD*DUST DEFLECTOR
Price
N/A
95
MOTOR FRAME SUPPORT SCREW 5/16-18 X 1-1/
Price
N/A
95A
SET SCREW 5/16-18 X 1/2
Price
N/A
95B
HEX NUT 5/16-18
Price
N/A
99
HEX BOLT 5/16-18 X 5/8
Price
N/A
104
FLAT WASHER #10
Price
N/A
106
FLAT WASHER 3/8
Price
N/A
140
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
141
FLAT WASHER 5/16
Price
N/A
142
LOCK WASHER 5/16
Price
N/A
143
HEX NUT 5/16-18
Price
N/A
144
HEX BOLT 5/16-18 X 1
Price
N/A
145
SET SCREW 5/16-18 X 3/8
Price
N/A
154
SWITCH PLATE BRACE
Price
N/A
155
MOTOR BRACE
Price
N/A
211
GRIZZLY NAMEPLATE 8 X 3.5"
Price
N/A
212
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
213
SAFETY GLASSES 2W X 3.3H V1
Price
N/A
214
SELF TAPPING SCREW 1/8 X 3/8
Price
N/A
216
WRENCH 5/8" COMBO
Price
N/A
217
OPEN-END ARBOR WRENCH 7/8 X 7/8"
Price
N/A
218
ELECTRICITY 1.4W X 1.2H
Price
N/A
219
READ MANUAL LABEL
Price
N/A
220
HEX WRENCH 3MM
Price
N/A
221
HEX WRENCH 4MM
Price
N/A
222
FLAT WRENCH 22MM
Price
N/A

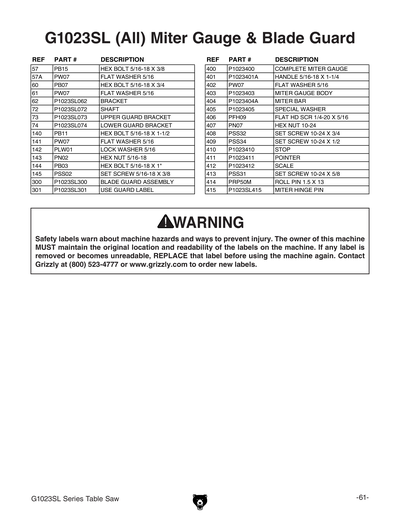

300
BLADE GUARD ASSEMBLY
Price
N/A
301
BLADE GUARD LABEL
Price
N/A
30A
CAP SCREW 5/16-18 X 1-1/2
Price
N/A

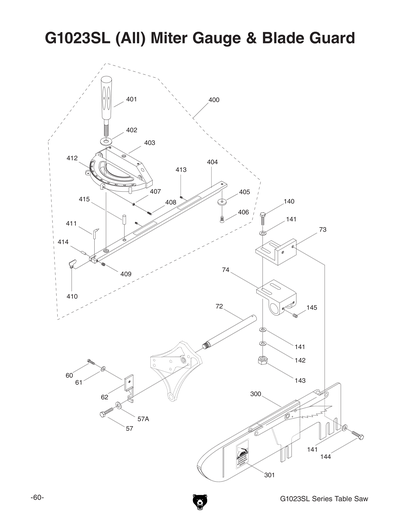

400
*DISCD*COMPLETE MITER GAUGE
Price
N/A
401
MITER GAUGE HANDLE V2.10.01
Price
N/A
402
FLAT WASHER 1/4
Price
N/A
403
MITER GAUGE BODY V2.05.07
Price
N/A
404
MITER BAR ASSY V2.04.03
Price
N/A
405
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
406
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
407
HEX NUT 10-24
Price
N/A
408
SET SCREW 10-24 X 5/8
Price
N/A
409
SET SCREW 10-24 X 1/4
Price
N/A
410
MITER GAUGE STOP
Price
N/A
411
*DISCD*POINTER
Price
N/A
412
MITER GAUGE SCALE
Price
N/A
413
SET SCREW 10-24 X 5/8
Price
N/A
414
ROLL PIN 1.5 X 13
Price
N/A
415
MITER GAUGE HINGE PIN
Price
N/A
500
HANDWHEEL UPGRADE KIT
Price
N/A

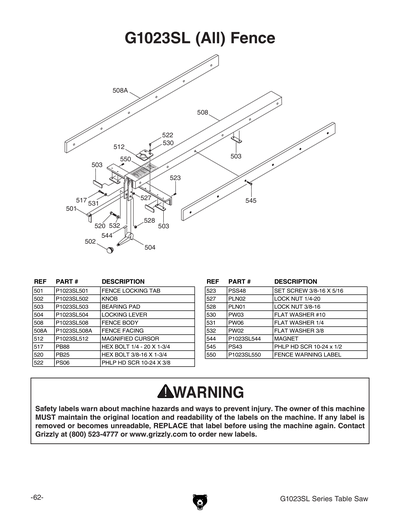

501
FENCE LOCKING TAB
Price
N/A
502
KNOB M10-1.5, D40, TAPERED BALL V2.04.07
Price
N/A
503
BEARING PAD
Price
N/A
504
LOCKING LEVER
Price
N/A

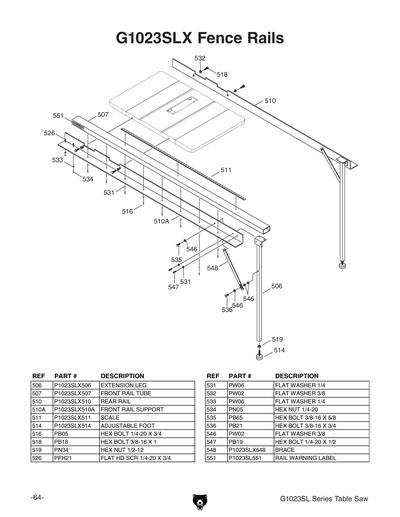

506
EXTENSION LEG
Price
$48.30
507
FRONT RAIL TUBE 84"
Price
$144.65
508
FENCE BODY
Price
N/A
508A
FENCE FACING
Price
N/A
510
REAR RAIL
Price
N/A
510A
FRONT RAIL SUPPORT
Price
N/A
511
SCALE 53"
Price
$11.25
512
MAGNIFIED CURSOR
Price
N/A
514
ADJUSTABLE FOOT
Price
N/A
516
HEX BOLT 1/4-20 X 3/4
Price
N/A
516A
FRONT RAIL SUPPORT
Item is no longer available
Price
N/A
517
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
517A
REAR RAIL
Item is no longer available
Price
N/A
518
HEX BOLT 3/8-16 X 1
Price
N/A
519
HEX NUT 1/2-12
Price
N/A
520
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
522
PHLP HD SCR 10-24 X 3/8
Price
N/A
523
SET SCREW 1/4-28 X 5/8
Price
N/A
526
FLAT HD SCR 10-24 X 3/4
Price
N/A
527
LOCK NUT 1/4-20
Price
N/A
528
LOCK NUT 3/8-16
Price
N/A
530
FLAT WASHER #10
Price
N/A
531
FLAT WASHER 1/4
Price
N/A
532
FLAT WASHER 3/8
Price
N/A
533
FLAT WASHER 1/4
Price
N/A
534
HEX NUT 1/4-20
Price
N/A
535
HEX BOLT 3/8-16 X 5/8
Price
N/A
536
HEX BOLT 3/8-16 X 3/4
Price
N/A
544
MAGNET
Price
N/A
545
PHLP HD SCR 10-24 X 1/2
Price
N/A
546
FLAT WASHER 3/8
Price
N/A
547
HEX BOLT 1/4-20 X 1/2
Price
N/A
548
BRACE
Price
$9.80
550
FENCE WARNING LABEL
Price
N/A
551
RAIL WARNING LABEL
Price
N/A
900
CARTON FOR G1023SLX
Item is no longer available
Price
N/A
95B
HEX NUT 5/16-18
Price
N/A
BOX2
COMPLETE FENCE ASSY BOX 2
Price
$196.40
BOX3
COMPLETE RAIL ASSY BOX 3
Item is no longer available
Price
N/A
BOX4
COMPLETE TABLE ASSY BOX 4
Item is no longer available
Price
N/A
BOX5
COMPLETE LEG ASSY BOX 5
Price
$87.40
MANUAL
MANUAL FOR G1023SL 03/06
Price
N/A
