Parts for G1023Z - 10" Deluxe Heavy Duty-3 HP Table Saw

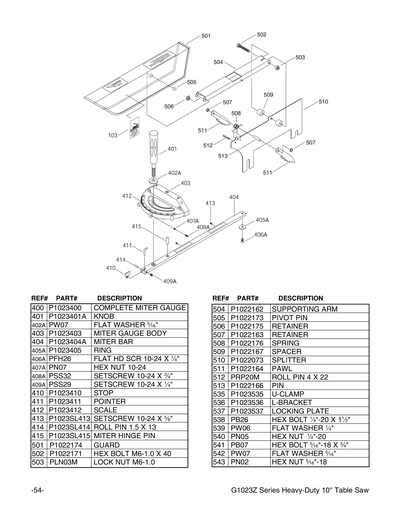

Part Diagram for G1023Z

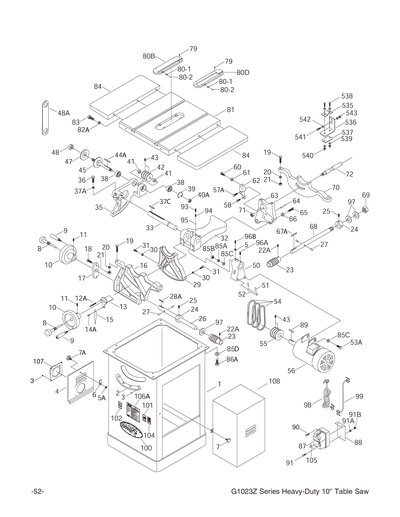

Part Diagram for G1023Z
Part Diagram for G1023Z
Part Diagram for G1023Z
Part Diagram for G1023Z
Part Diagram for G1023Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

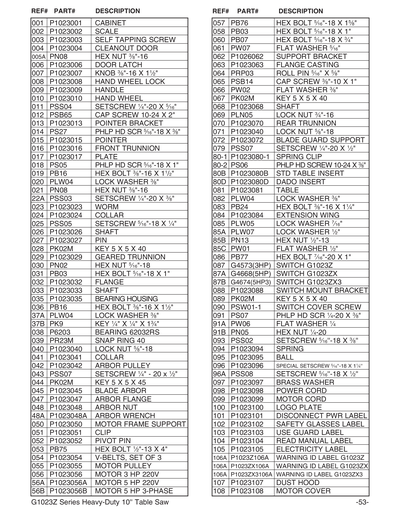

Ref #
Part #
Description
1
*DISCD*CABINET
Price
N/A
2
SCALE
Price
N/A
3
TAP SCREW #6 X 1/2
Price
N/A
4
*DISCD*TRAP DOOR
Price
N/A
5
HEX NUT 5/16-18
Price
N/A
6
*DISCD*LATCH
Price
N/A
8
HANDWHEEL LOCK V2.01.06
Price
N/A
9
HANDLE V1.12.95
Price
N/A
10
HANDWHEEL V2.01.06
Price
N/A
11
SET SCREW 1/4-20 X 5/16
Price
N/A
12
PHLP HD SCR 10-24 X 2
Price
N/A
13
POINTER BRACKET
Price
N/A
14
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
15
*DISCD*POINTER
Price
N/A
16
FRONT TRUNNION
Price
N/A
17
PLATE
Price
N/A
18
PHLP HD SCR 5/16-18 X 1
Price
N/A
19
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
20
LOCK WASHER 3/8
Price
N/A
21
HEX NUT 3/8-16
Price
N/A
22A
SET SCREW 1/4-20 X 3/8
Price
N/A
23
WORM 1.410" OD
Price
N/A
24
COLLAR
Price
N/A
25
SET SCREW 5/16-18 X 1/4
Price
N/A
26
*DISCD*SHAFT V2.07.98
Price
N/A
27
DOWEL PIN
Price
N/A
28
KEY 3/16 X 3/16 X 1-1/2
Price
N/A
29
*DISCD*GEARED TRUNNION V2.01.98
Price
N/A
30
HEX NUT 5/16-18
Price
N/A
31
HEX BOLT 5/16-18 X 1
Price
N/A
32
FLANGE
Price
N/A
33
SHAFT
Price
N/A
35
*DISCD*GEARED BEARING HOUSING
Price
N/A
36
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
37A
LOCK WASHER 3/8
Price
N/A
37B
KEY 1/4 X 1/4 X 2
Price
N/A
38
BALL BEARING 6203-2RS
Price
N/A
39
INT RETAINING RING 40MM
Price
N/A
40
HEX NUT 5/8-18
Price
N/A
41
COLLAR
Price
N/A
42
ARBOR PULLEY
Price
N/A
43
SET SCREW 1/4-20 X 1/2
Price
N/A
43A
SET SCREW 1/4-20 X 1/2
Price
N/A
44
KEY 5 X 5 X 45
Price
N/A
45
BLADE ARBOR W/SHAFT
Price
N/A
47
ARBOR FLANGE
Price
N/A
48
ARBOR NUT 5/8-12 LH
Price
N/A
50
*DISCD*MOTOR FRAME SUPPORT V2.12.95
Price
N/A
51
CLIP
Price
N/A
52
*DISCD*PIVOT PIN
Price
N/A
53
HEX BOLT 7/16-20 X 3/4
Price
N/A
54
V-BELT 3L270 QTY 3
Price
N/A
54A
V-BELT 3L270 QTY 3
Price
N/A
55
MOTOR PULLEY
Price
N/A
56
***MOTOR-MUST READ EXT DESC***
Item is no longer available
Price
N/A
56A
***MOTOR-MUST READ EXT DESC***
Item is no longer available
Price
N/A
56B
MOTOR FAN V2.02.02
Price
N/A
57
HEX BOLT 5/16-18 X 2-1/4
Price
N/A
58
HEX BOLT 5/16-18 X 1
Price
N/A
60
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
FLAT WASHER 5/16
Price
N/A
62
SUPPORT BRACKET
Price
N/A
63
*DISCD*FLANGE CASTING
Price
N/A
64
ROLL PIN 5/16 X 5/8
Price
N/A
65
CAP SCREW 3/8-16 X 1
Price
N/A
66
FLAT WASHER 3/8
Price
N/A
67
KEY 3/16 X 3/16 X 1-9/16
Price
N/A
68
*DISCD*SHAFT
Price
N/A
69
LOCK NUT 3/4-16
Price
N/A
70
*DISCD*REAR TRUNNION V3.02.96
Price
N/A
71
HEX NUT 5/8-18
Price
N/A
72
BLADE GUARD SUPPORT
Price
N/A
73
HEX BOLT 5/16-18 X 1
Price
N/A
74
BLOCK 2 PCS V2.08.98
Price
N/A
74A
BAR CLAMP
Item is no longer available
Price
N/A
75
ANGLE BLOCK ASSY V2.08.97
Price
N/A
76
FLAT WASHER 5/16
Price
N/A
76A
HEX NUT 1/4-20
Price
N/A
77
HEX BOLT 5/16-18 X 3/4
Price
N/A
78
HEX BOLT 5/16-18 X 1
Price
N/A
79
SET SCREW 1/4-20 X 1/2
Price
N/A
80-1
*DISCD*SPRING CLIP 10 X 30.7 X 7.5
Price
N/A
80-2
PHLP HD SCR 10-24 X 3/8
Price
N/A
80B
STD TABLE INSERT 8.5
Price
N/A
80D
*DISCD*DADO TABLE INSERT 8.5 IN
Price
N/A
81
*DISCD*TABLE
Price
N/A
82
LOCK WASHER 7/16
Price
N/A
83
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
84
*DISCD*EXT WING V1.12.95
Price
N/A
85
FLAT WASHER 7/16
Price
N/A
86
HEX BOLT 7/16-20 X 3/4
Price
N/A
87
Magnetic Switch, Single-Phase, 220V Only, 3 HP
Price
N/A
87A
*DISCD*MAGNETIC SWITCH ASSEMBLY SDE
Item is no longer available
Price
N/A
87B
Magnetic Switch, Single-Phase, 220V Only, 3 HP
Price
N/A
88
SWITCH MOUNT BRACKET
Price
N/A
89
KEY 5 X 5 X 40
Price
N/A
90
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
91
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
91A
FLAT WASHER 1/4
Price
N/A
91B
HEX NUT 1/4-20
Price
N/A
93
SET SCREW 5/16-18 X 3/8
Price
N/A
94
SPRING 5.5 X 12 X 7
Price
N/A
95
*DISCD*BALL
Price
N/A
96
SET SCREW 5/16-18 X 3/8
Price
N/A
97
WAVY WASHER 18MM
Price
N/A
98
POWER CORD 12G X 3W 86"L
Price
N/A
99
POWER CORD 12G X 3W 36"L
Price
N/A
100
Price
$7.25
101
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
102
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
103
Price
$4.25
104
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
105
ELECTRICITY 1.4W X 1.2H
Price
N/A
106
*DISCD*WARNING ID LABEL
Item is no longer available
Price
N/A
107
Price
$34.15
108
*DISCD*MOTOR COVER W/O HINGE
Item is no longer available
Price
N/A
132
SCALE
Price
N/A
220A
COMPLETE MITER GAUGE ASSY V1.07.96
Price
$63.15
220B
MITER GAUGE BODY V2.02.98
Item is no longer available
Price
N/A
319
*DISCD*COMPLETE CLR BLADE GUARD ASSY
Price
N/A
320
BOLT BAG
Item is no longer available
Price
N/A
400
*DISCD*COMPLETE MITER GAUGE
Price
N/A
401
MITER GAUGE HANDLE V2.10.01
Price
N/A
402
FLAT WASHER 1/4
Price
N/A
403
MITER GAUGE BODY V2.05.07
Price
N/A
404
MITER BAR ASSY V2.04.03
Price
$65.25
405
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
406
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
407
HEX NUT 10-24
Price
N/A
408
SET SCREW 10-24 X 5/8
Price
N/A
409
SET SCREW 10-24 X 1/4
Price
N/A
410
MITER GAUGE STOP
Price
N/A
411
*DISCD*POINTER
Price
N/A
412
MITER GAUGE SCALE
Price
N/A
413
SET SCREW 10-24 X 5/8
Price
N/A
414
ROLL PIN 1.5 X 13
Price
N/A
415
MITER GAUGE HINGE PIN
Price
N/A
501
*DISCD*BLADE GUARD ONLY
Price
N/A
502
HEX BOLT M6-1 X 40
Price
N/A
503
LOCK NUT M6-1
Price
N/A
504
*DISCD*SUPPORTING ARM
Price
N/A
505
*DISCD*PIVOT PIN
Price
N/A
506
ROLL PIN 4 X 24
Price
N/A
507
*DISCD*RETAINER
Price
N/A
508
*DISCD*SPRING 14 X 6
Price
N/A
509
*DISCD*SPACER
Price
N/A
510
*DISCD*COMPLETE CLR BLADE GUARD ASSY
Price
N/A
511
*DISCD*PAWL
Price
N/A
512
ROLL PIN 4 X 22
Price
N/A
513
FLAT HD SCR M5-.8 X 12
Price
N/A
900
CARTON FOR G1023Z
Item is no longer available
Price
N/A
901
STYROFOAM 2PC
Item is no longer available
Price
N/A
GRDBRT
ANGLE BLOCK ASSY V2.08.97
Price
N/A
GUARD
COMPLETE BLADE GUARD ASSY
Price
$88.80
L035B
DUST COVER
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G1023Z 11/02
Price
$14.65
