Parts for G1029 - 2 HP Dust Collector

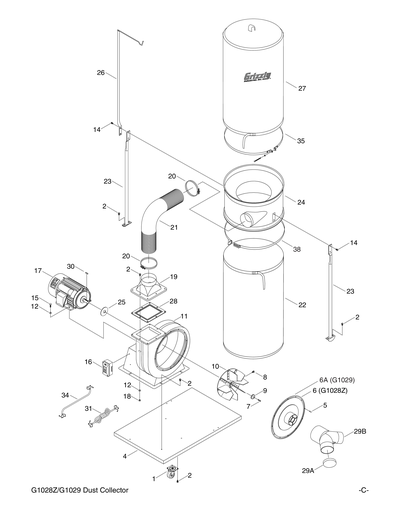

Part Diagram for G1029
Part Diagram for G1029
Part Diagram for G1029
Part Diagram for G1029
Part Diagram for G1029
Part Diagram for G1029
Part Diagram for G1029
Part Diagram for G1029

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
***USE P1028Z2001***
Price
N/A
2
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
4
BASE PLATE
Price
N/A
5
P1029005
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
6
INLET COVER 5IN V1.10.95
Price
$22.70
6A
INLET COVER 6" V2.10.01
Price
$31.45
7
CAP SCREW M6-1 X 20 LH
Price
N/A
8
P1029008
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
9
IMPELLER WASHER 1-1/2" W/ 1/4" HOLE
Price
N/A
10
*DISCD*IMPELLER 12"
Price
N/A
10A
*DISCD*TURBO FAN CURVED FIN V1.12.95
Item is no longer available
Price
N/A
11
COLLECTOR BODY
Price
N/A
12
P1029012
Now: PW07
FLAT WASHER 5/16
Price
N/A
13
P1029013
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
14
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
15
P1029015
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
16
PUSH BUTTON SWITCH
Price
N/A
17
Price
$495.10
17A
MOTOR FAN
Price
N/A
17B
Price
$13.15
17C
Price
$10.65
17D
Price
$12.75
18
P1029018
Now: PN02
HEX NUT 5/16-18
Price
N/A
19
MOTOR 1HP 110V/220V 1-PH V2.07.98
Price
N/A
20
HOSE CLAMP
Price
N/A
21
HOSE
Price
N/A
22
Lower Bag for Models G1028-29, G1030
Price
N/A
23
COLLECTOR SUPPORT
Price
N/A
24
COLLECTOR
Price
N/A
25
Price
$1.60
26
UPPER BAG SUPPORT
Price
N/A
27
Upper Bag for Models G1028-29, G1030
Price
N/A
28
GASKET
Price
N/A
29
Y-INLET 5 X 4 X 4" V1.10.95
Price
$13.60
29A
INLET CAP 4"
Price
N/A
29B
Y-INLET 6 X 4 X 4" V2.10.01
Price
$14.50
30
KEY 7 X 7 X 29
Price
N/A
31
POWER CORD 12G X 3W 36"L
Price
N/A
32
WRENCH 8MM OPEN
Price
N/A
33
HEX WRENCH 5MM
Price
N/A
34
POWER CORD 12G X 3W 86"L
Price
N/A
35
CLAMP FOR BAGS SINGLE
Price
N/A
36
MOTOR SHAFT ENDBELL
Item is no longer available
Price
N/A
38
BAG CLAMP
Price
N/A
MANUAL

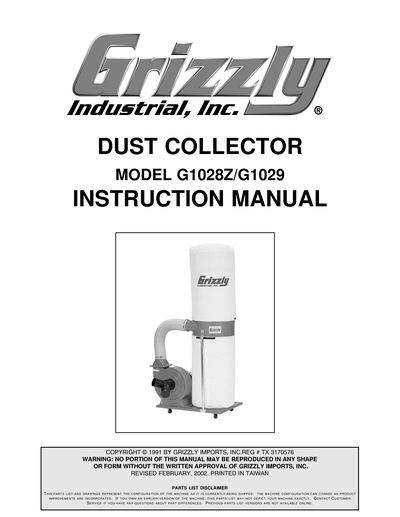

MANUAL FOR G1028/G1029 06/97
Price
N/A
