Parts for G1029Z2 - 2 HP Dust Collector with 2.5 Micron Bag and New Impeller

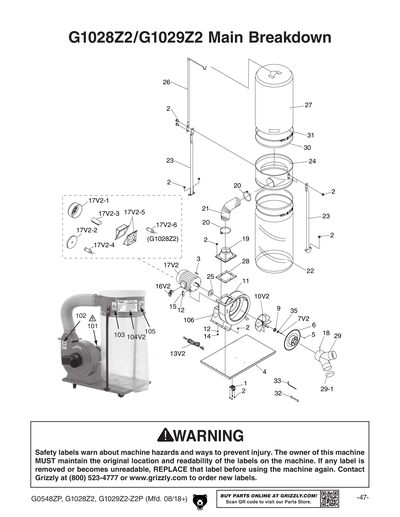

Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2
Part Diagram for G1029Z2

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
2
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
3
KEY 7 X 7 X 29
Price
N/A
4
BASE PLATE
Price
N/A
5
PHLP HD SCR 10-24 X 3/8
Price
N/A
6
INLET COVER 6"
Price
N/A
7
CAP SCREW M6-1 X 20 LH
Price
N/A
7V2
CAP SCREW M6-1 X 30LH PRE-COATED
Price
N/A
8
SET SCREW 3/8-16 X 3/8
Price
N/A
9
IMPELLER WASHER
Price
N/A
10
IMPELLER 12-3/4"X95MM X7/8 ALUM V2.09.11
Price
N/A
10V2
IMPELLER 12-3/4"X95MM X7/8 ALUM V2.09.11
Price
$196.35
11
COLLECTOR BODY
Price
N/A
12
FLAT WASHER 5/16
Price
N/A
13
POWER CORD 12G X 3W 86"L
Price
N/A
13V2
POWER CORD 14G 3C 6' 6-15 V2.09.11
Price
$23.90
14
HEX NUT 5/16-18
Price
N/A
15
HEX BOLT 5/16-18 X 1
Price
N/A
16
PUSH BUTTON SWITCH
Price
N/A
16V2
PADDLE SWITCH V2.09.11
Price
N/A
17
MOTOR 2HP 220V 1-PH
Price
N/A
17-1
MOTOR FAN COVER
Price
N/A
17-2
MOTOR FAN
Price
N/A
17-3
CAPACITOR COVER
Price
N/A
17-4
S CAPACITOR 300M 125V 1-1/2 X 2-1/2
Price
N/A
17-5
JUNCTION BOX
Price
N/A
17V2
MOTOR 2HP 220V 1-PH V2.09.11
Item is no longer available
Price
N/A
17V2-1
MOTOR FAN COVER
Price
N/A
17V2-2
MOTOR FAN
Price
N/A
17V2-3
CAPACITOR COVER
Price
N/A
17V2-4
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
17V2-5
JUNCTION BOX
Item is no longer available
Price
N/A
18
FLANGE SCREW 10-24 X 3/8
Price
N/A
19
OUTLET
Price
N/A
20
HOSE CLAMP
Price
N/A
21
HOSE
Price
N/A
22
19-3/4 D x 41" L Plastic Bottom Bag
Price
N/A
23
COLLECTOR SUPPORT
Price
N/A
24
COLLECTOR
Price
N/A
25
SPACER
Price
N/A
26
UPPER BAG SUPPORT
Price
N/A
27
2.5 Micron Top Bag for G1028Z/G1029Z
Price
N/A
28
GASKET
Price
N/A
29
Y-INLET 6 X 4 X 4"
Price
N/A
29-1
INLET CAP 4"
Price
N/A
30
FOAM STRIP 5 X 20MM
Price
N/A
31
62" Bag Clamp
Price
N/A
32
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
33
HEX WRENCH 5MM
Price
N/A
34
POWER CORD 12G X 3W 36"L
Price
N/A
38
LOCK WASHER 6MM
Price
N/A
101
ELECTRICITY 1.4W X 1.2H
Price
N/A
102
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
103
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
104
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
104V2
MACHINE ID LABEL CSA V2.09.11
Price
$16.40
105
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
106
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0548Z MFG-03.09 V3.03.11
Price
N/A
MANV1
MANUAL G0548Z MFG-03.09 V1.04.09
Price
N/A
MANV2
MANUAL G0548Z MFG-03.09 V2.12.09
Price
N/A
MANV3
MANUAL G0548Z MFG-03.09 V3.03.11
Price
N/A
MANV4
MANUAL G0548Z-ZP MFD-09.11 V4.02.12
Price
N/A
