Parts for G1030Z2 - 3 HP Dust Collector with New Impeller

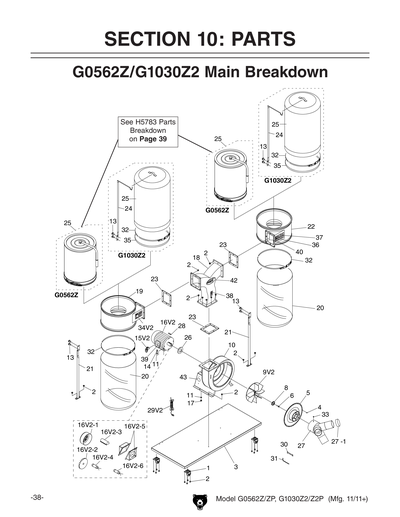

Part Diagram for G1030Z2

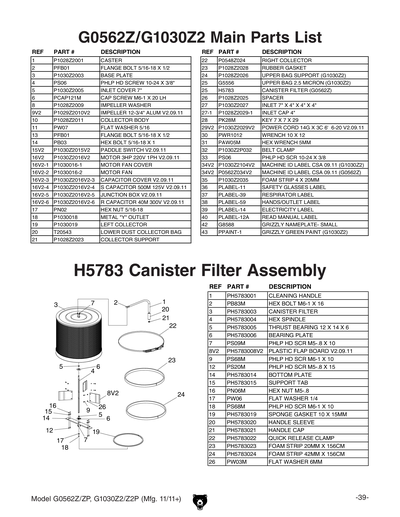

Part Diagram for G1030Z2
Part Diagram for G1030Z2
Part Diagram for G1030Z2

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CASTER
Price
N/A
2
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
3
BASE PLATE
Price
N/A
4
PHLP HD SCR 10-24 X 3/8
Price
N/A
5
INLET COVER 7"
Price
$27.80
6
CAP SCREW M6-1 X 20 LH
Price
N/A
7
SET SCREW 5/16-18 X 1/2
Price
N/A
8
IMPELLER WASHER
Price
N/A
9
IMPELLER 12-3/4"X95MM X7/8 ALUM V2.09.11
Price
N/A
9V2
IMPELLER 12-3/4"X95MM X7/8 ALUM V2.09.11
Price
N/A
10
ELECTRICITY 1.4W X 1.2H
Price
N/A
101
ELECTRICITY 1.4W X 1.2H
Price
N/A
102
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
103
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
104
ELECTRICITY 1.4W X 1.2H
Price
N/A
105
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
106
N/S GRIZZLY GREEN G1023S
Price
N/A
11
FLAT WASHER 5/16
Price
N/A
13
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
14
HEX BOLT 5/16-18 X 1
Price
N/A
15
PUSH BUTTON SWITCH
Price
N/A
15V2
PADDLE SWITCH V2.09.11
Price
$7.90
16
MOTOR 3HP 220V 1-PH
Price
N/A
16-1
MOTOR FAN COVER
Price
N/A
16-2
MOTOR FAN
Price
N/A
16-3
CAPACITOR COVER
Price
N/A
16-4
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
16-5
JUNCTION BOX
Price
N/A
16V2
MOTOR 3HP 220V 1-PH V2.09.11
Price
$439.55
16V2-1
MOTOR FAN COVER
Price
N/A
16V2-2
MOTOR FAN
Price
N/A
16V2-3
CAPACITOR COVER V2.09.11
Price
$5.85
16V2-4
S CAPACITOR 500M 125V 2 X 3-1/2 V2.09.11
Price
$22.60
16V2-5
JUNCTION BOX
Price
N/A
16V2-6
R CAPACITOR 40M 300V V2.09.11
Price
$37.20
17
HEX NUT 5/16-18
Price
N/A
18
OUTLET
Price
N/A
19
LEFT COLLECTOR
Price
N/A
20
19-3/4 D x 41" L Plastic Bottom Bag
Price
N/A
21
COLLECTOR SUPPORT
Price
N/A
22
RIGHT COLLECTOR
Price
N/A
23
GASKET
Price
N/A
24
UPPER BAG SUPPORT
Price
N/A
25
2.5 Micron Top Bag for G1028Z/G1029Z
Price
N/A
26
SPACER
Price
N/A
27
INLET 7" X 4" X 4" X 4"
Price
$90.50
27-1
INLET CAP 4"
Price
N/A
28
KEY 7 X 7 X 29
Price
N/A
29
POWER CORD 12G X 3W 86"L
Price
N/A
29V2
POWER CORD 14G X 3C 6' 6-20 V2.09.11
Price
$34.15
30
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
31
HEX WRENCH 5MM
Price
N/A
32
62" Bag Clamp
Price
N/A
33
PHLP HD SCR 10-24 X 3/8
Price
N/A
34
POWER CORD 12G X 3W 36"L
Price
N/A
34V2
MACHINE ID LABEL CSA V2.09.11
Price
N/A
35
FOAM STRIP 4 X 20MM
Price
N/A
36
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
37
RESPIRATOR 2W X 3.3H
Price
N/A
38
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
39
ELECTRICITY 1.4W X 1.2H
Price
N/A
40
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
42
Nameplate - Small
Price
N/A
43
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0562Z/G1030Z2 MFG 03/09 V1.04.09
Price
N/A
104
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
104V2
MACHINE ID LABEL CSA V2.09.11
Item is no longer available
Price
N/A
MAN
MANUAL G0562Z/G1030Z2 MFG 03/09 V1.04.09
Price
N/A
MANV1
MANUAL G0562Z/G1030Z2 MFG 03/09 V1.04.09
Price
$34.50
MANV2
MANUAL G0562Z/G1030Z2 MFG 03/09 V2.02.10
Item is no longer available
Price
N/A
MANV3
MANUAL G0562Z/G1030Z2 MFG 09/11 V3.09.11
Item is no longer available
Price
N/A
MANV4
MANUAL G0562Z/ZP G1030Z2/ZP MFG-11.11 +
Price
$12.00
P022
RIGHT COLLECTOR
Price
$115.35
P034
MACHINE ID LABEL CSA
Price
$16.40
