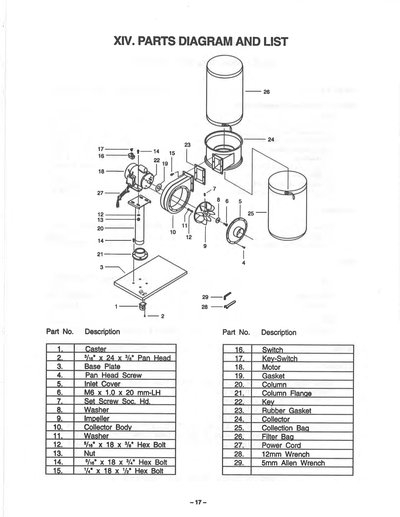

Parts for G1032 DUST COLLECTOR - 2 PC 1 HP

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CASTER
2
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
3
BASE PLATE
4
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
5
INLET COVER
6
CAP SCREW M6-1 X 20 LH
Price
N/A
7
CAP SCREW M6-1 X 20 LH
Price
N/A
8
IMPELLER WASHER 1-1/2" W/ 1/4" HOLE
Price
N/A
9
IMPELLER
10
COLLECTOR BODY
11
Now: PW07
FLAT WASHER 5/16
Price
N/A
12
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
12-1
Now: PN02
HEX NUT 5/16-18
Price
N/A
13
Now: PN02
HEX NUT 5/16-18
Price
N/A
14
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
14-1
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
15
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
16
Now: G8988
Safety Paddle Switch
Price
N/A
17
*DISCD*SAFETY KEY
Item is no longer available
Price
N/A
18
*DISCD*MOTOR 1HP 110V/220V 1-PH
Item is no longer available
Price
N/A
18-1
MOTOR FAN
18-2
MOTOR FAN COVER
Item is no longer available
Price
N/A
18-3
CAPACITOR COVER
Item is no longer available
Price
N/A
18-4
CONNECTION BOX
Item is no longer available
Price
N/A
18A
MOTOR FAN
Price
N/A
18B
MOTOR FAN COVER
Price
N/A
18C
CAPACITOR COVER
Price
N/A
18D
CONNECTION BOX
Price
N/A
19
GASKET
20
COLUMN
20-1
*DISCD*COLUMN FLANGE
Item is no longer available
Price
N/A
21
COLUMN FLANGE
Item is no longer available
Price
N/A
22
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
23
RUBBER GASKET
24
COLLECTOR
24A
*DISCD*BAG
Item is no longer available
Price
N/A
25
Now: G1034
Upper Bag for G1032 & G8027
Price
N/A
25A
*DISCD*BAG
Item is no longer available
Price
N/A
26
Now: G1034
Upper Bag for G1032 & G8027
Price
N/A
27
POWER CORD
Item is no longer available
Price
N/A
28
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
29
HEX WRENCH 5MM
Price
N/A
HDWBAG
HARDWARE BAG
MANUAL
MANUAL FOR THE G1032 11/97
Item is no longer available
Price
N/A
