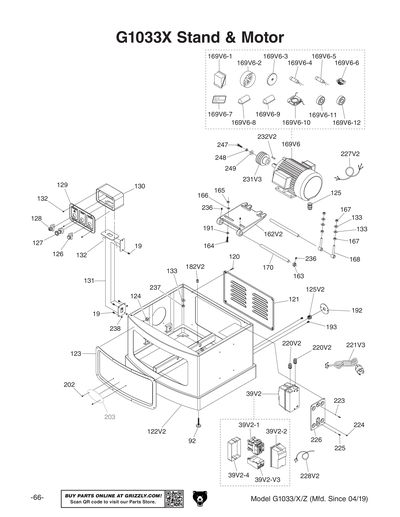

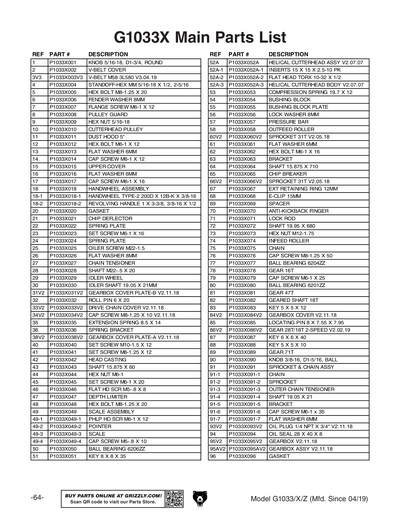

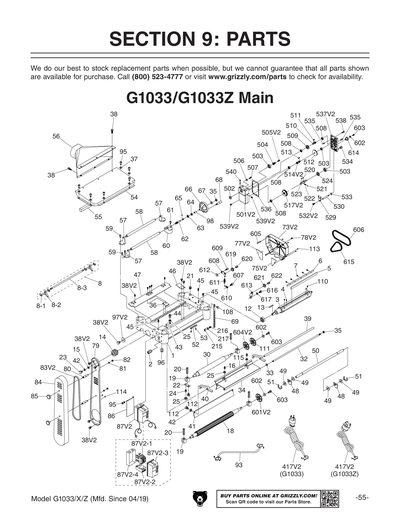

Parts for G1033X 20" 5 HP Helical Cutterhead Planer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

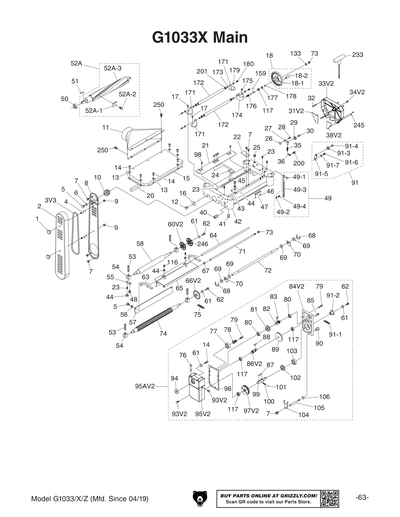

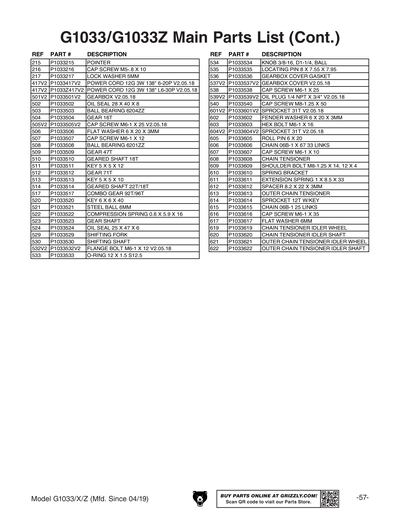

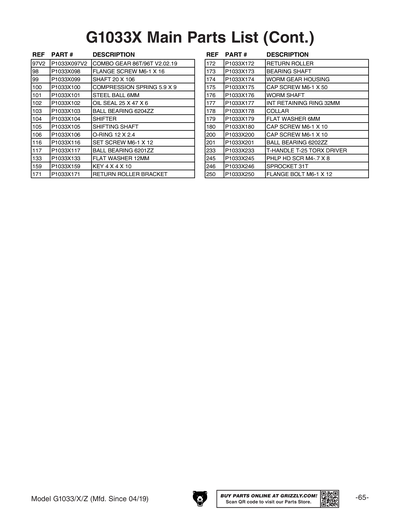

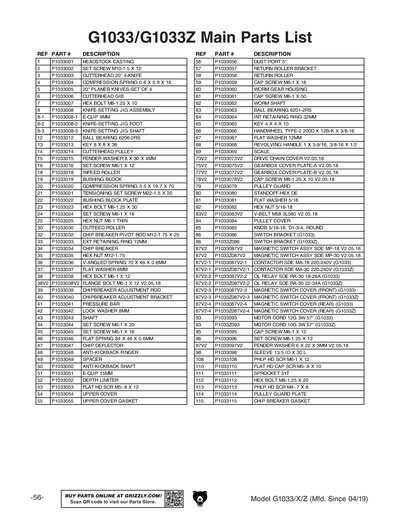

1
KNOB 5/16-18, D1-3/4, ROUND
2
V-BELT COVER
3
Now: PVM59
V-BELT M59 3L590
Price
N/A
3V2
V-BELT M57 3L 570 V2.05.13
3V3
Now: PVM58
V-BELT M58 3L580
Price
N/A
4
STANDOFF-HEX MM 5/16-18 X 1/2, 2-5/16
5
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
6
FENDER WASHER 8MM
Price
N/A
7
FLANGE SCREW M6-1 X 12
Price
N/A
8
PULLEY GUARD
9
Now: PN02
HEX NUT 5/16-18
Price
N/A
10
PULLEY
Price
N/A
11
DUST HOOD 5"
12
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
13
Now: PW03M
FLAT WASHER 6MM
Price
N/A
14
CAP SCREW M6-1 X 12
Price
N/A
15
UPPER COVER
16
Now: PW03M
FLAT WASHER 6MM
Price
N/A
17
CAP SCREW M6-1 X 16
Price
N/A
18
HANDWHEEL ASSEMBLY
18-1
HANDWHEEL TYPE-2 200D X 12B-K X 3/8-16
Price
N/A
18-2
REVOLVING HANDLE 1X3-9/16, 3/8-16X1/2
Price
N/A
19
FLANGE SCREW M6-1 X 12
Price
N/A
20
GASKET
21
CHIP DEFLECTOR
Price
N/A
22
SPRING PLATE
23
SET SCREW M6-1 X 16
Price
N/A
24
SPRING PLATE
25
OILER SCREW M22-1.5
26
Now: PW01M
FLAT WASHER 8MM
Price
N/A
27
CHAIN TENSIONER
28
SHAFT M22-.5 X 20
29
IDLER WHEEL
30
IDLER SHAFT
Price
N/A
31
GEARBOX COVER PLATE-B V1
31V2
GEARBOX COVER PLATE-B V2.05.18
Price
N/A
32
ROLL PIN 6 X 20
Price
N/A
33
DRIVE CHAIN COVER V1
33V2
DRIVE CHAIN COVER V2.05.18
Price
N/A
34
CAP SCREW M8-1.25 X 40
Price
N/A
34V2
CAP SCREW M8-1.25 X 10
Price
N/A
35
EXTENSION SPRING 8.5 X 14
36
SPRING BRACKET
38
GEARBOX COVER PLATE-A V1
38V2
GEARBOX COVER PLATE-A V2.05.18
Price
N/A
39
MAGNETIC SWITCH SDE MPE-30 V1
39-1
CONTACTOR SDE MA-30 220V
39-2
MAG SWITCH FRONT COVER
39-3
OL RELAY SDE RA-30 22-34A V1
39-3V2
OL RELAY SDE RA-30 18-26A V2.10.15
39-3V3
OL RELAY SDE RA-30 22-34A V1
Price
N/A
39-4
MAG SWITCH BACK COVER
Price
N/A
39V2
MAGNETIC SWITCH SDE MPE-30 V2.04.19
39V2-1
CONTACTOR SDE MA-30 220V
Price
N/A
39V2-2
MAG SWITCH FRONT COVER
Price
N/A
39V2-3
OL RELAY SDE RA-30 22-34A
Price
N/A
39V2-4
MAG SWITCH BACK COVER
Price
N/A
40
SET SCREW M10-1.5 X 12
Price
N/A
41
SET SCREW M8-1.25 X 12
Price
N/A
42
HEAD CASTING
43
SHAFT 15.875 X 60
44
Now: PN01M
HEX NUT M6-1
Price
N/A
45
SET SCREW M6-1 X 20
Price
N/A
46
FLAT HD SCR M5-.8 X 8
Price
N/A
47
DEPTH LIMITER
48
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
49
SCALE ASSEMBLY
49-1
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
49-2
POINTER
49-3
SCALE
49-4
CAP SCREW M5-.8 X 10
Price
N/A
50
BALL BEARING 6206ZZ
Price
N/A
51
Now: PK09M
KEY 8 X 8 X 35
Price
N/A
52
HELICAL CUTTERHEAD ASSY V1.02.06
52-1
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
52-2
Now: PFH32
FLAT HEAD TORX 10-32 X 1/2
Price
N/A
52-3
HELICAL CUTTERHEAD BODY V1.02.06
52-3A
HELICAL CUTTERHEAD BODY V2.07.07
Price
N/A
52A
HELICAL CUTTERHEAD ASSY V2.07.07
52A-1
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
52A-2
Now: PFH32
FLAT HEAD TORX 10-32 X 1/2
Price
N/A
52A-3
HELICAL CUTTERHEAD BODY V2.07.07
53
COMPRESSION SPRING 19.7 X 12
54
COMPRESSION SPRING BUSHING BLOCK
Price
N/A
55
PLATE
56
LOCK WASHER 8MM
Price
N/A
57
PRESSURE BAR
58
OUTFEED ROLLER
59
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
60
SPROCKET V1
60V2
SPROCKET 31T V2.05.18
Price
N/A
61
Now: PW03M
FLAT WASHER 6MM
Price
N/A
62
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
63
BRACKET
64
SHAFT 15.875 X 710
65
CHIP BREAKER
66
SPROCKET V1
66-1
LOW/HIGH DIRECTION LABEL (HANDWHEEL)
Price
N/A
66V2
SPROCKET 31T V2.05.18
Price
N/A
67
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
68
E-CLIP 15MM
Price
N/A
69
SPACER
70
ANTI-KICKBACK FINGER
71
LOCK ROD
72
SHAFT 19.95 X 680
73
Now: PN09M
HEX NUT M12-1.75
Price
N/A
74
INFEED ROLLER
75
CHAIN
76
CAP SCREW M8-1.25 X 50
Price
N/A
77
BALL BEARING 6204ZZ
Price
N/A
78
GEAR
Price
N/A
79
CAP SCREW M6-1 X 25
Price
N/A
80
BALL BEARING 6201ZZ
Price
N/A
81
GEAR 47T
82
SHAFT
Price
N/A
83
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
84
GEARBOX COVER (CAST IRON) V1
84V2
GEARBOX COVER V2.05.18
Price
N/A
85
LOCATING PIN 8 X 7.55 X 7.95
Price
N/A
86
GEAR 18T/22T 2-SPEED V1
86V2
GEAR 28T/18T 2-SPEED V2.02.19
87
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
88
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
89
GEAR 71T
90
KNOB 3/8-16, D1-5/16, BALL
91
SPROCKET & CHAIN ASSY
91-1
CHAIN 06B X 50P
Price
N/A
91-2
SPROCKET
91-3
OUTER CHAIN TENSIONER
91-4
IDLER SHAFT
Price
N/A
91-5
BRACKET
91-6
CAP SCREW M6-1 X 30
Price
N/A
91-7
Now: PW03M
FLAT WASHER 6MM
Price
N/A
91V2
SPROCKET & CHAIN ASSY V2.10.24
91V2-5
BRACKET V2.10.24
92
FOOT
Price
N/A
93
OIL PLUG V1
93V2
OIL PLUG 1/4 NPT X 3/4" V2.05.18
Price
N/A
94
OIL SEAL 28 X 40 X 8
95
GEARBOX V1
95-1
GEARBOX ASSY V1
Price
N/A
95A
GEARBOX ASSY V1
95AV2
GEARBOX ASSY V2.11.18
95AV3
GEARBOX ASSEMBLY V3.10.24
95V2
GEAR BOX
Price
N/A
96
GASKET
97
COMBO GEAR 96T/92T V1
97V2
COMBO GEAR 86T/96T V2.02.19
98
FLANGE SCREW M6-1 X 16
Price
N/A
99
SHAFT 20 X 106
100
BALL 6MM
Price
N/A
101
STEEL BALL 6MM
Price
N/A
102
OIL SEAL 25 X 47 X 6
Price
N/A
103
BALL BEARING 6204ZZ
Price
N/A
104
SHIFTER
105
HANDLE
Price
N/A
106
O-RING 12 X 2.4
Price
N/A

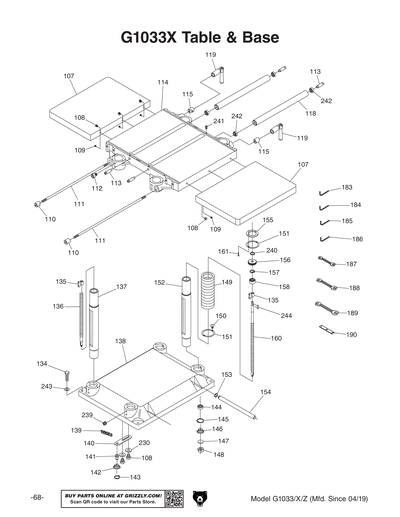

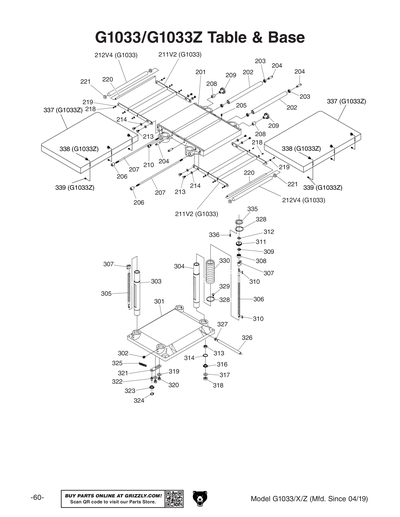

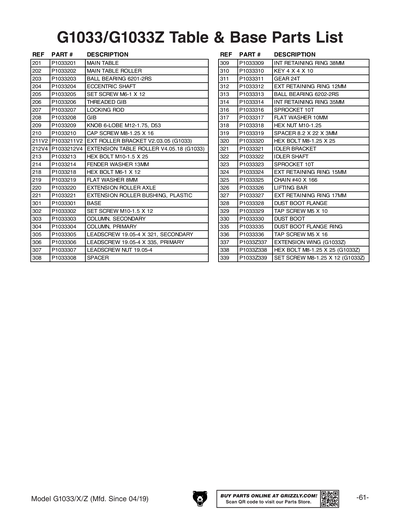

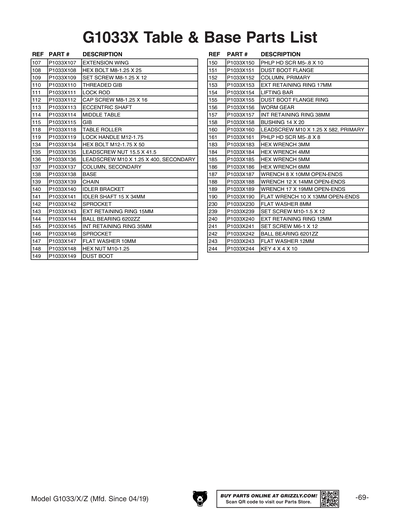

107
EXTENSION WING
107V2
EXTENSION WING V2.09.24
108
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
109
SET SCREW M8-1.25 X 12
Price
N/A
110
THREADED GIB
111
LOCK ROD
112
CAP SCREW M8-1.25 X 16
Price
N/A
113
ECCENTRIC SHAFT
114
MIDDLE TABLE
114V2
MIDDLE TABLE V2.09.24
115
GIB
116
SET SCREW M6-1 X 12
Price
N/A
117
BALL BEARING 6201ZZ
Price
N/A
118
TABLE ROLLER
119
LOCK HANDLE M12-1.75
120
FLAT HD SCR M6-1 X 20
Price
N/A
121
PANEL
121V2
MOTOR ACCESS PANEL V2.09.24

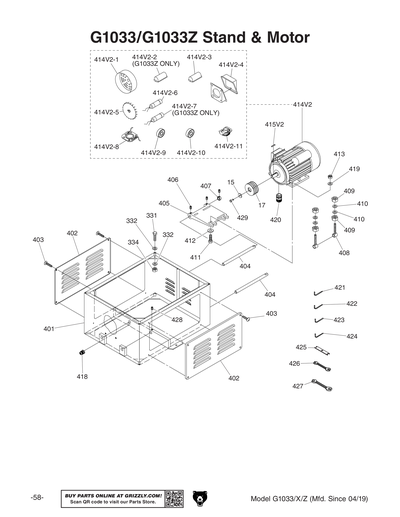

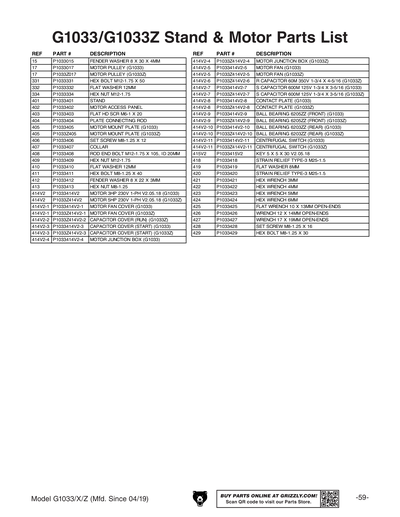

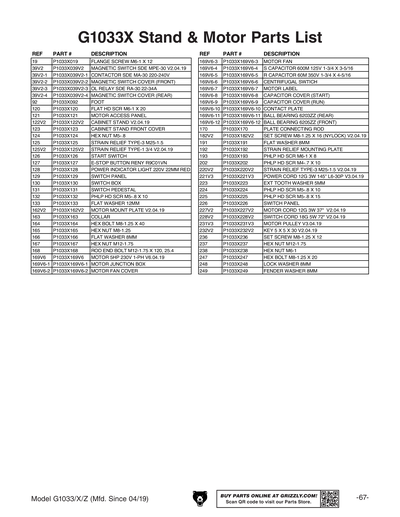

122
CABINET STAND V1
122V2
CABINET STAND V2.04.19
122V3
CABINET STAND V3.09.24
123
***USE P0495X114***
123V2
CABINET STAND FRONT COVER V2.09.24
124
Now: PN06M
HEX NUT M5-.8
Price
N/A
125
STRAIN RELIEF TYPE-3 M25-1.5 V1
125V2
STRAIN RELIEF TYPE-3 1
Price
N/A
126
START SWITCH
127
E-STOP BUTTON RENY R9C01VN
Item is no longer available
Price
N/A
128
POWER INDICATOR LIGHT 220V 22MM RED
129
SWITCH PANEL
130
SWITCH BOX V1
Price
N/A
130V2
SWITCH BOX V2.07.22
Price
N/A
130V3
SWITCH BOX V3.09.24
131
SWITCH PEDESTAL V1
131V2
SWITCH PEDESTAL V2.07.22
131V3
SWITCH PEDESTAL V3.09.24
132
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
133
Now: PW06M
FLAT WASHER 12MM
Price
N/A
134
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
135
LEADSCREW NUT 16-4
Price
N/A
136
LEADSCREW M10 X 1.25 X 400, SECONDARY
137
COLUMN, SECONDARY
138
BASE
139
CHAIN
140
IDLER BRACKET
141
SHAFT
Price
N/A
142
SPROCKET
143
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
144
BALL BEARING 6202ZZ
Price
N/A
145
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
146
SPROCKET
147
Now: PW04M
FLAT WASHER 10MM
Price
N/A
148
Now: PN08M
HEX NUT M10-1.25
Price
N/A
149
DUST BOOT
Price
N/A
150
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
151
DUST BOOT FLANGE
152
COLUMN, PRIMARY
153
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
154
LIFTING BAR
155
DUST BOOT FLANGE RING
156
WORM GEAR
157
Now: PR22M
INT RETAINING RING 38MM
Price
N/A
158
BUSHING 14 X 20
159
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
160
LEADSCREW M10 X 1.25 X 582, PRIMARY
161
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
162
MOTOR MOUNT PLATE V1
162V2
MOTOR MOUNT PLATE V2.04.19
163
COLLAR
164
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
165
Now: PN03M
HEX NUT M8-1.25
Price
N/A
166
Now: PW01M
FLAT WASHER 8MM
Price
N/A
167
Now: PN09M
HEX NUT M12-1.75
Price
N/A
168
ROD END BOLT M12-1.75 X 120, 25.4
169
MOTOR 5HP 220V 1-PH V1.02.06
169-1
CAPACITOR COVER
169-2
MOTOR FAN COVER
169-3
MOTOR FAN
169-4
S CAPACITOR 800M 250V 2 X 4
Price
N/A
169-5
R CAPACITOR 50M 350V
169-6
CENTRIFUGAL SWITCH
169-7
JUNCTION BOX
169-8
MOTOR LABEL
169V2
MOTOR 5HP 220V 1-PH V2.04.10
169V2-1
CAPACITOR COVER
169V2-2
MOTOR FAN COVER
Price
N/A
169V2-3
MOTOR FAN
Price
N/A
169V2-4
***USE P0605X1006V2-7***
Price
N/A
169V2-5
R CAPACITOR 35M 450V 2 X 3-1/2
169V2-6
CENTRIFUGAL SWITCH
169V2-7
JUNCTION BOX
169V2-8
MOTOR LABEL
169V4
*DISCD*MOTOR 5HP 220V 1-PH V4.05.16
Item is no longer available
Price
N/A
169V4-1
MOTOR JUNCTION BOX
169V4-2
MOTOR FAN COVER
Price
N/A
169V4-3
MOTOR FAN
169V4-4
S CAPACITOR 500MFD 250VAC
169V4-5
R CAPACITOR 30MFD 300VAC
169V4-6
CENTRIFUGAL SWITCH W/ CONTACT POINTS
Price
N/A
169V4-7
MOTOR LABEL
Price
N/A
169V5
MOTOR 5HP 220V 1-PH V5.03.18
169V5-1
MOTOR JUNCTION BOX
Price
N/A
169V5-2
MOTOR FAN COVER
Price
N/A
169V5-3
MOTOR FAN
169V5-4
S CAPACITOR 800M 250V
169V5-5
R CAPACITOR 50M 350V
169V5-6
CENTRIFUGAL SWTICH
169V5-7
MOTOR LABEL
169V5-8
CAPACITOR BOX
169V6
MOTOR 5HP 230V 1-PH V2.05.18
Price
N/A
169V6-1
MOTOR JUNCTION BOX
Price
N/A
169V6-10
CONTACT PLATE
Price
N/A
169V6-11
BALL BEARING 6203ZZ
Price
N/A
169V6-12
BALL BEARING 6205ZZ
Price
N/A
169V6-2
MOTOR FAN COVER
Price
N/A
169V6-3
MOTOR FAN
Price
N/A
169V6-4
S CAPACITOR 600M 125V 1-3/4 X 3-5/16
Price
N/A
169V6-5
R CAPACITOR 60M 350V 1-3/4 X 4-5/16
Price
N/A
169V6-6
CENTRIFUGAL SWITCH
Price
N/A
169V6-7
MOTOR LABEL
169V6-8
CAPACITOR COVER (START)
Price
N/A
169V6-9
CAPACITOR COVER (RUN)
Price
N/A
170
PLATE CONNECTING ROD
171
RETURN ROLLER BRACKET
172
RETURN ROLLER
173
BEARING SHAFT
174
WORM GEAR HOUSING
175
CAP SCREW M6-1 X 50
Price
N/A
176
WORM SHAFT
177
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
178
COLLAR
179
Now: PW03M
FLAT WASHER 6MM
Price
N/A
180
CAP SCREW M6-1 X 10
Price
N/A
182
SET SCREW M8-1.25 X 16 (NYLOCK) V2.04.19
Price
N/A
182V2
SET SCREW M8-1.25 X 16 (NYLOCK) V2.04.19
183
HEX WRENCH 3MM
Price
N/A
184
HEX WRENCH 4MM
Price
N/A
185
HEX WRENCH 5MM
Price
N/A
186
HEX WRENCH 6MM
Price
N/A
187
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
188
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
189
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
190
FLAT WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
191
Now: PW01M
FLAT WASHER 8MM
Price
N/A
192
STRAIN RELIEF MOUNTING PLATE
193
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
195
BUSHING 6.2 x 10.2 X 11
200
CAP SCREW M6-1 X 10
Price
N/A
201
BALL BEARING 6202ZZ
Price
N/A
202
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A

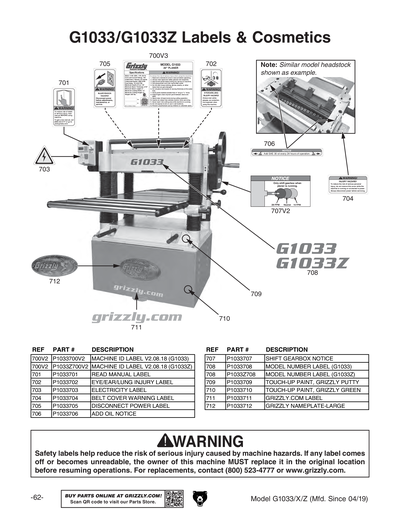

203
Now: G8589
Nameplate - Large
Price
N/A
204
MODEL NUMBER LABEL
204V2
MODEL NUMBER LABEL V2.09.24
205
WARNING LABEL-SHUT COVER
206
LUBRICATION LABEL
207
UNPLUG 220V/KNIVES 3.7W X 2H
Price
N/A
208
GEARBOX SHIFT WARNING V1
208V2
GEARBOX SHIFT WARNING V2.02.19
209
ELECTRICITY 1.4W X 1.2H
Price
N/A
210
ADJUST SCREW LABEL
211
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
212
MACHINE ID LABEL V1
212V2
MACHINE ID LABEL V2.02.19
212V3
MACHINE ID LABEL V3.04.19
214
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
215
Now: H7942
Extreme Series Nameplate
Price
N/A
217
CONTROL PANEL LABEL
218
N/S GRIZZLY GREEN G1023S
Price
N/A
219
GREY PUTTY REF G0504
Price
N/A
220
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A
220V2
STRAIN RELIEF TYPE-3 1
Price
N/A
221
POWER CORD 10G 3W V1
221V2
POWER CORD 12G 3W 138" L6-30P V2.05.18
Price
N/A
221V3
***USE PSB1109251***
222
STRAIN RELIEF TYPE-3 PG21
223
EXT TOOTH WASHER 5MM
Price
N/A
224
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
225
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
226
SWITCH PANEL
227
MOTOR CORD 10G 3W 57"
Price
N/A
227V2
MOTOR CORD 12G 3W 37" V2.04.19
228
*DISCD*SWITCH CORD 18G 4W V1
Item is no longer available
Price
N/A
228V2
SWITCH CORD 18G 5W 72" V2.04.19
229
NYLOCK HEX BOLT M8-1.25 X 20
230
Now: PW01M
FLAT WASHER 8MM
Price
N/A
231
MOTOR PULLEY 28MM ID V1
231V2
MOTOR PULLEY
Price
N/A
231V3
MOTOR PULLEY V3.04.19
232
KEY 8 X 7 X 55 V1
232V2
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
233
T-HANDLE T-25 TORX DRIVER V2.06.11
Price
N/A
233A
*DISCD*WRENCH T-HANDLE T-25 V2.07.07
Item is no longer available
Price
N/A
234
*DISCD*TORX BIT T-20 V1
Item is no longer available
Price
N/A
234A
*DISCD*TORX BIT T-25 V2.07.07
234V3
T-HANDLE T-25 TORX DRIVER V2.06.11
Price
N/A
235
SET SCREW M6-1 X 16
Price
N/A
236
SET SCREW M8-1.25 X 12
Price
N/A
237
Now: PN09M
HEX NUT M12-1.75
Price
N/A
238
Now: PN01M
HEX NUT M6-1
Price
N/A
239
SET SCREW M10-1.5 X 12
Price
N/A
240
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
241
SET SCREW M6-1 X 12
Price
N/A
242
BALL BEARING 6201ZZ
Price
N/A
243
Now: PW06M
FLAT WASHER 12MM
Price
N/A
244
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
245
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
246
SPROCKET 31T
Price
N/A
247
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
248
LOCK WASHER 8MM
Price
N/A
249
FENDER WASHER 8MM
Price
N/A
250
FLANGE BOLT M6-1 X 12
Price
N/A
MANUAL
MANUAL G1033X MFD-02.06-03.10 V1.07.07
MANV2
MANUAL G1033X MFD-04.10-03.12 V2.04.10
MANV3
MANUAL G1033X MFD-04.12-02.18 V3.12.14
MANV4
MANUAL G1033/X/Z MFD-04.19+ V4.04.19
Price
N/A
MANV5
MANUAL G1033/X/Z MFD-2.19-3.19 V3.02.19
Price
N/A
