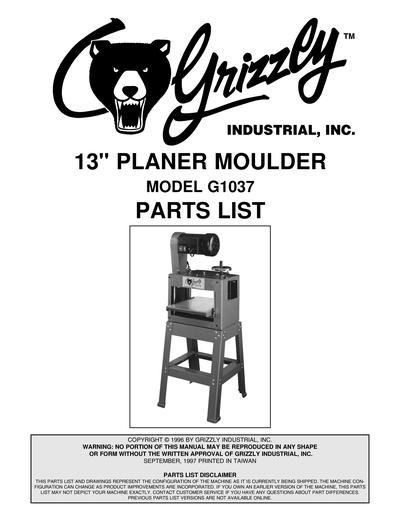

Parts for G1037 13" Planer / Moulder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

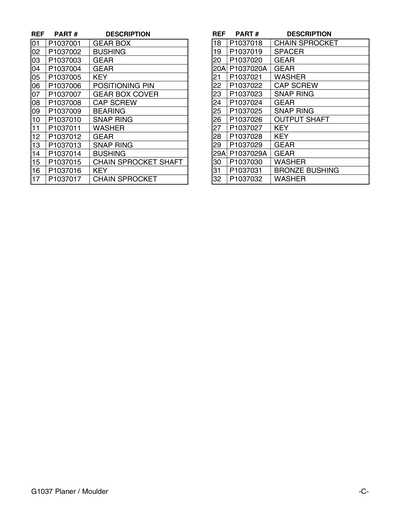

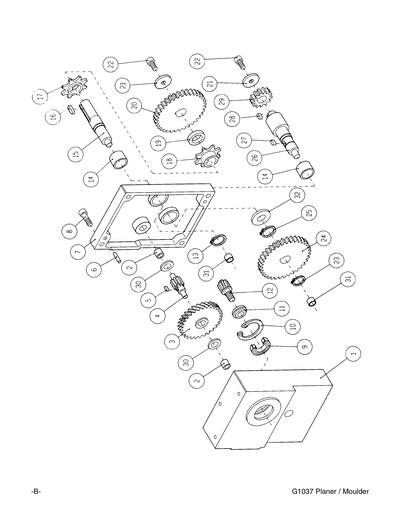

1
GEAR BOX
2
BUSHING
3
GEAR
4
GEAR
5
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
6
ROLL PIN 4 X 14
Price
N/A
7
GEAR BOX COVER
8
CAP SCREW M6-1 X 20
Price
N/A
9
BALL BEARING 6202ZZ
Price
N/A
10
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
11
GEAR WASHER 9 X 20 X 1
12
GEAR
13
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
14
BUSHING
15
CHAIN SPROCKET SHAFT
Price
N/A
16
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
17
CHAIN SPROCKET 8T 21.6 X 5.9MM BLACK
18
CHAIN SPROCKET 8T 21.5 X 11.88MM
19
SPACER
20
GEAR 57T
Price
N/A
20A
GEAR 46T
Price
N/A
21
Now: PW03M
FLAT WASHER 6MM
Price
N/A
22
CAP SCREW M6-1 X 12
Price
N/A
23
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
24
GEAR
25
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
26
OUTPUT SHAFT
27
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
28
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
29
GEAR 20T
Price
N/A
29A
PLANING GEAR 31T
30
Now: PW06M
FLAT WASHER 12MM
Price
N/A
31
BRONZE BUSHING
32
Now: PW15
FLAT WASHER 9/16
Price
N/A
46
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A

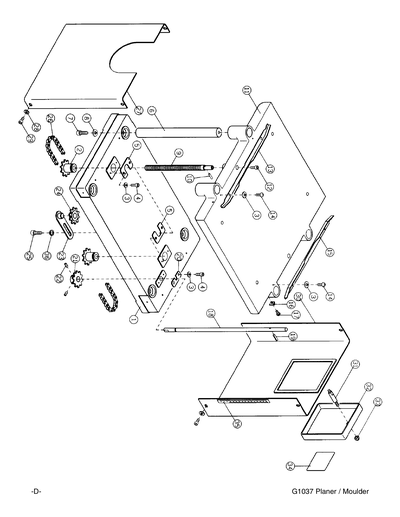

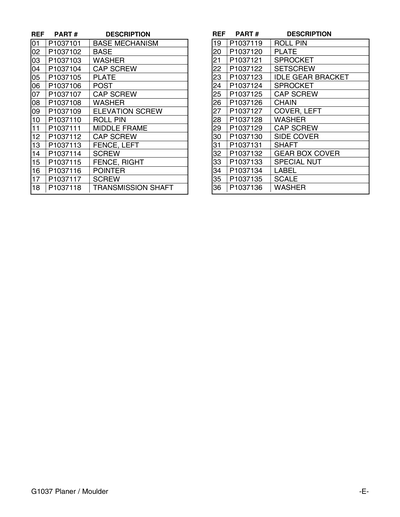

101
BASE
101-1
CHIP GUARD
Price
N/A
101-2
CHIP GUARD
Price
N/A
101-3
WING NUT M4-.7
Price
N/A
101-4
Now: PW05M
FLAT WASHER 4MM
Price
N/A
101-5
LOCK WASHER 4MM
Price
N/A
101.1
CHIP GUARD
Price
N/A
101.2
CHIP GUARD
Price
N/A
101.4
Now: PW05M
FLAT WASHER 4MM
Price
N/A
101.5
LOCK WASHER 4MM
Price
N/A
102
SPROCKET
102A
SPROCKET V2.08.04
103
LOCK WASHER 6MM
Price
N/A
104
CAP SCREW M6-1 X 12
Price
N/A
105
*DISCD*PLATE
Item is no longer available
Price
N/A
106
POST
107
CAP SCREW M8-1.25 X 25
Price
N/A
108
Now: PW01M
FLAT WASHER 8MM
Price
N/A
109
ELEVATION SCREW M14-2 X 197
110
ROLL PIN 3 X 14
Price
N/A
111
FRAME MIDDLE
112
CAP SCREW M6-1 X 16
Price
N/A
113
FENCE LEFT
Price
N/A
114
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
115
FENCE RIGHT
Price
N/A
116
POINTER
Price
N/A
117
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
118
TRANSMISSION SHAFT
119
ROLL PIN 3 X 20
Price
N/A
120
PLATE
121
SPROCKET 10T
Price
N/A
122
SET SCREW M6-1 X 6
Price
N/A
123
IDLE GEAR BRACKET
124
SPROCKET
125
CAP SCREW M8-1.25 X 20
Price
N/A
126
CHAIN
127
COVER LEFT
128
Now: PW03M
FLAT WASHER 6MM
Price
N/A
129
CAP SCREW M6-1 X 10
Price
N/A
130
COVER RIGHT
Price
N/A
131
SHAFT
132
GEAR BOX COVER
133
GEAR BOX COVER NUT M6-1
134
LABEL
135
SCALE
136
LOCK WASHER 8MM
Price
N/A
137
ANTI-KICK BACK FINGER
Price
N/A
138
SPACER
Price
N/A
139
PLATE
Price
N/A
140
LOCK WASHER 5MM
Price
N/A
141
CAP SCREW M5-.8 X 8
Price
N/A
142
GIB 5.5 IN
Price
N/A
143
GIB 2 IN
Price
N/A
144
SET SCREW M8-1.25 X 12
Price
N/A
145
GIB STRIP
Price
N/A
146
Now: G4517
13" x 5/8" x 1/8" HSS Planer Knives for G1037, Set of 3
Price
N/A
148
Now: PN02M
HEX NUT M10-1.5
Price
N/A
149
ADJUSTMENT SHAFT
Price
N/A
150
ADJUSTMENT SHAFT
Price
N/A
151
ADJUSTMENT NUT M22-1.5
Price
N/A
152
*DISCD*NAME PLATE
Price
N/A
153
SHAFT
Price
N/A
154
FLAT WASHER 3/4"
Price
N/A
155
DUST CHUTE
Price
N/A

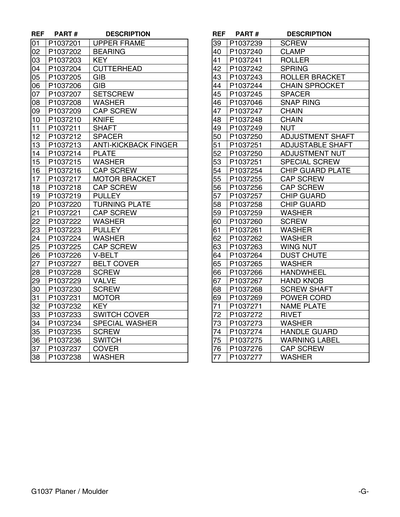

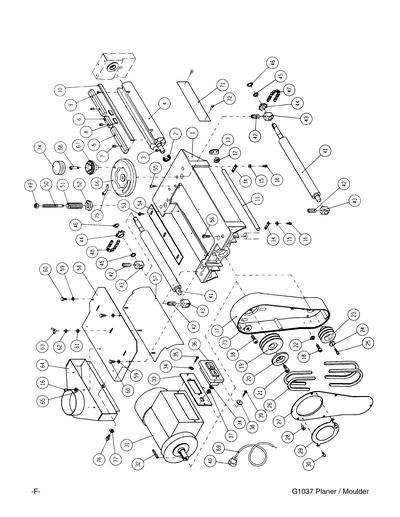

201
UPPER FRAME
202
BALL BEARING 6203ZZ
Price
N/A
203
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
204
CUTTERHEAD
205
GIB 5.5 IN
206
GIB 2 IN
207
SET SCREW M8-1.25 X 16
Price
N/A
208
GIB STRIP
209
JACK SCREW M5-.8 X 12
Price
N/A
210
Now: G4517
13" x 5/8" x 1/8" HSS Planer Knives for G1037, Set of 3
Price
N/A
211
SHAFT
212
SPACER
213
ANTI-KICK BACK FINGER
214
PLATE
215
LOCK WASHER 5MM
Price
N/A
216
CAP SCREW M5-.8 X 8
Price
N/A
217
*DISCD*MOTOR BRACKET
Item is no longer available
Price
N/A
218
CAP SCREW 5/16-18 X 1
Price
N/A
219
MOTOR PULLEY
220
TURNING PLATE
221
CAP SCREW M6-1 X 20
Price
N/A
222
LOCK WASHER 8MM
Price
N/A
223
CUTTERHEAD PULLEY
224
Now: PW06
FLAT WASHER 1/4
Price
N/A
225
CAP SCREW M6-1 X 20
Price
N/A
226
Now: PVM30
V-BELT M30 3L300
Price
N/A
227
BELT COVER
228
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
229
COVER PLATE
230
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
231
*DISCD*MOTOR 1.5HP 110V/220V 1-PH
Item is no longer available
Price
N/A
231-1
CONNECTION BOX
231A
CONNECTION BOX
Price
N/A
231B
MOTOR FAN
231C
MOTOR FAN COVER
232
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
233
SWITCH MOUNT
Price
N/A
234
Now: PLW03
LOCK WASHER #10
Price
N/A
235
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
236
ON/OFF BUTTON SWITCH
Price
N/A
236A
ON/OFF BUTTON SWITCH
237
Now: PN07
HEX NUT 10-24
Price
N/A
238
Now: PW03
FLAT WASHER #10
Price
N/A
239
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
240
CLAMP
241
ROLLER
Price
N/A
242
HELICAL SPRING 2 X 28
243
ROLLER BRACKET
244
CHAIN SPROCKET 8T 21.5 X 11.88MM
Price
N/A
245
SPACER
246
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
247
CHAIN
248
CHAIN
249
Now: PN02M
HEX NUT M10-1.5
Price
N/A
250
ADJUSTMENT SHAFT
251
ADJUSTMENT SHAFT
252
ADJUSTMENT NUT M22-1.5
253
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
254
CHIP GUARD PLATE
Price
N/A
255
CAP SCREW M6-1 X 16
Price
N/A
256
CAP SCREW M8-1.25 X 20
Price
N/A
257
CHIP GUARD
258
CHIP GUARD
259
Now: PW03M
FLAT WASHER 6MM
Price
N/A
260
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
261
Now: PW05M
FLAT WASHER 4MM
Price
N/A
262
LOCK WASHER 4MM
Price
N/A
263
WING NUT M4-.7
Price
N/A
264
DUST CHUTE
265
Now: PLW03
LOCK WASHER #10
Price
N/A
266
HAND WHEEL
267
*DISCD*HAND KNOB
Item is no longer available
Price
N/A
268
SCREW SHAFT M8-1.25 X 9
Item is no longer available
Price
N/A
269
POWER CORD
271
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
272
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
273
Now: PW01M
FLAT WASHER 8MM
Price
N/A
274
*DISCD*HANDLE GUARD
Item is no longer available
Price
N/A
275
WARNING LABEL
276
CAP SCREW M6-1 X 12
Price
N/A
277
Now: PLW02
LOCK WASHER 1/4
Price
N/A
300

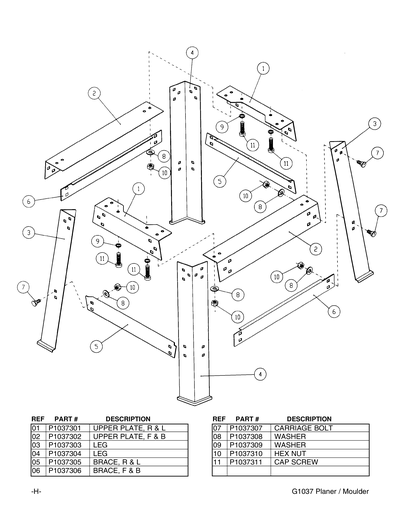

COMPLETE STAND ASSY
Item is no longer available
Price
N/A
301
UPPER PLATE R & L
Item is no longer available
Price
N/A
302
UPPER PLATE F & B
303
LEG RIGHT
304
LEG LEFT
305
BRACE R & L
Item is no longer available
Price
N/A
306
BRACE F & B
Item is no longer available
Price
N/A
307
Now: PCB01
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
308
Now: PW07
FLAT WASHER 5/16
Price
N/A
309
Now: PW01M
FLAT WASHER 8MM
Price
N/A
310
Now: PN02
HEX NUT 5/16-18
Price
N/A
311
CAP SCREW M8-1.25 X 35
Price
N/A
312
CAP SCREW M6-1 X 20
Price
N/A
314
Now: PW06
FLAT WASHER 1/4
Price
N/A
315
Now: PN01M
HEX NUT M6-1
Price
N/A
319
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
320
CHAIN SPROCKET SHAFT
Price
N/A
321
KEY SPROCKET
Price
N/A
322
SPROCKET
Price
N/A
324
GEAR 57T
Price
N/A
325
Now: PW06
FLAT WASHER 1/4
Price
N/A
326
CAP SCREW M6-1 X 12
Price
N/A
327
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
328
OUTPUT SHAFT
Price
N/A
329
GEAR 20T
Price
N/A
330
BUSHING
Price
N/A
331
*DISCD*BUSHING
Item is no longer available
Price
N/A
332
Now: PN06
HEX NUT 1/2-12
Price
N/A
401
Now: PVM30
V-BELT M30 3L300
Price
N/A
402
MOTOR PULLEY
Price
N/A
403
Now: PW01M
FLAT WASHER 8MM
Price
N/A
404
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
405
*DISCD*MOTOR 1.5HP 110V/220V 1-PH
Price
N/A
406
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
407
POWER CORD
Price
N/A
408
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
409
*DISCD*FIXING PIECE
Item is no longer available
Price
N/A
410
Now: PW07
FLAT WASHER 5/16
Price
N/A
411
*DISCD*MOTOR PLATE
Item is no longer available
Price
N/A
412
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
413
Now: PS27
PHLP HD SCR 5/16-18 X 3/8
Price
N/A
414
Now: PW07
FLAT WASHER 5/16
Price
N/A
415
Now: PN02
HEX NUT 5/16-18
Price
N/A
416
UPPER PLATE F & B
Price
N/A
417
UPPER PLATE R & L
Price
N/A
418
CAP SCREW M8-1.25 X 45
Price
N/A
419
UPPER PLATE R & L
Price
N/A
420
SWITCH MOUNT
Price
N/A
421
Now: G8988
Safety Paddle Switch
Price
N/A
422
ON/OFF BUTTON SWITCH
Price
N/A
423
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
424
Now: PW03
FLAT WASHER #10
Price
N/A
425
*DISCD*TOOTH WASHER
Item is no longer available
Price
N/A
426
Now: PN04M
HEX NUT M4-.7
Price
N/A
427
Now: PW02M
FLAT WASHER 5MM
Price
N/A
428
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
429
CONNECTION BOX
Price
N/A
430
BRACE R & L
Price
N/A
431
BRACE F & B
Price
N/A
432
LEG RIGHT
Price
N/A
433
*DISCD*NAME PLATE
Price
N/A
434
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
438
LEG LEFT
Price
N/A
439
Now: PN08
HEX NUT 3/8-16
Price
N/A
440
*DISCD*MOTOR BRACKET
Price
N/A
441
COMPLETE KNIFE GAUGE ASSY
441-1
KNIFE GAUGE 1 OF 2
Price
N/A
441-2
ROD FOR KNIFE GAUGE
Item is no longer available
Price
N/A
441-3
E-CLIP FOR KNIFE GAUGE
Item is no longer available
Price
N/A
443
POWER CORD
Price
N/A
444
CLAMP
Price
N/A
445
POWER CORD
Price
N/A
446
LOCK WASHER 8MM
Price
N/A
447
KNIFE GAUGE 1 OF 2
448
L-GAUGE
Price
N/A
449
DRIFT
Price
N/A
450
SCREWDRIVER
Price
N/A
451
WRENCH 17 X 32 OPEN END
Item is no longer available
Price
N/A
452
ACCESSORY BAG
Item is no longer available
Price
N/A
800
CARTON FOR G1037
Item is no longer available
Price
N/A
801
STYROFOAM 2PC
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G1037 09/97
PART
MISC PART FOR G1037
Item is no longer available
Price
N/A
