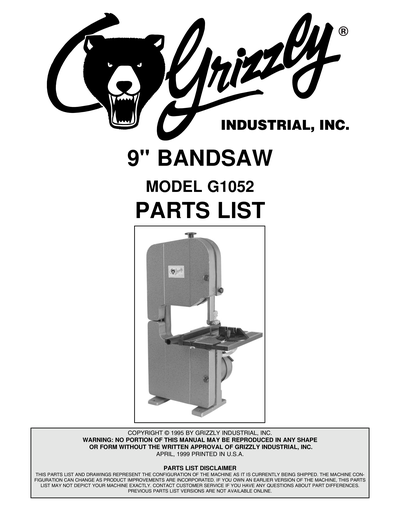

Parts for G1052 9" Heavy-Duty Bench Top Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

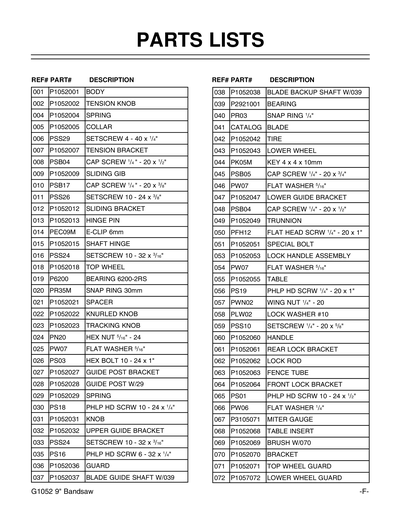

1

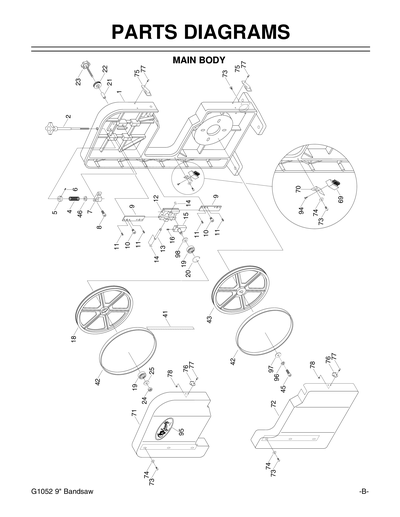

BODY
2
*DISCD*TENSION KNOB
4
SPRING 14 X 42
5
COLLAR
6
Now: PSS29
SET SCREW 10-24 X 1/4
Price
N/A
7
TENSION BRACKET
8
CAP SCREW 1/4-20 X 1/2
Price
N/A
9
SLIDING GIB
10
CAP SCREW 1/4-20 X 3/8
Price
N/A
11
Now: PSS26
SET SCREW 10-24 X 3/8
Price
N/A
12
SLIDING BRACKET
13
HINGE PIN
14
E-CLIP 6MM
Price
N/A
15
SHAFT HINGE
Item is no longer available
Price
N/A
16
Now: PSS24
SET SCREW 10-32 X 3/16
Price
N/A
18
TOP WHEEL
19
BALL BEARING 6200-2RS
Price
N/A
20
Now: PR35M
INT RETAINING RING 30MM
Price
N/A
21
SPACER
22
KNURLED KNOB
23
TRACKING KNOB
24
Now: PN20
HEX NUT 5/16-24
Price
N/A
25
Now: PW07
FLAT WASHER 5/16
Price
N/A
26
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
27

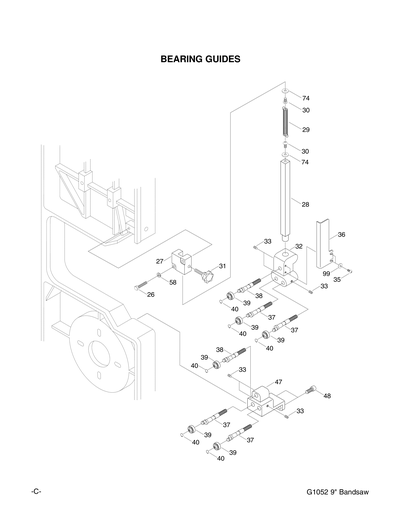

GUIDE POST BRACKET
28
GUIDE POST W/SPRING 9 X 34
29
SPRING 9 X 34
30
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
31
KNOB
32
UPPER GUIDE BRACKET
33
Now: PSS24
SET SCREW 10-32 X 3/16
Price
N/A
35
Now: PS16
PHLP HD SCR 6-32 X 1-1/4
Price
N/A
36
*DISCD*GUARD
Item is no longer available
Price
N/A
37
BLADE GUIDE SHAFT W/039
38
BLADE BACK UP SHAFT W/039
39
Now: G3854
Bearing - 5/8" x 1/4"
Price
N/A
40
Now: PR03
EXT RETAINING RING 1/4
Price
N/A
42
*DISCD*TIRE
Item is no longer available
Price
N/A
43
LOWER WHEEL
44
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
45
CAP SCREW 1/4-20 X 3/4
Price
N/A
46
Now: PW07
FLAT WASHER 5/16
Price
N/A
47
GUIDE BRACKET LOWER
48
CAP SCREW 1/4-20 X 1/2
Price
N/A
49
TRUNNION
50
Now: PFH12
FLAT HD SCR 1/4-20 X 1
Price
N/A
51
*DISCD*TRUNNION BOLT 5/16-18 X 1
Item is no longer available
Price
N/A
53
LOCK HANDLE ASSY
54
Now: PW07
FLAT WASHER 5/16
Price
N/A
55

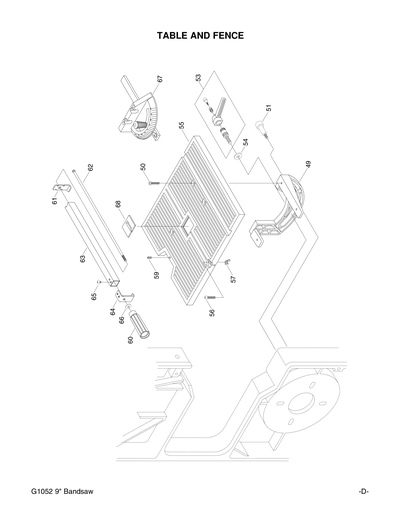

*DISCD*TABLE
Item is no longer available
Price
N/A
56
Now: PS19
PHLP HD SCR 1/4-20 X 1
Price
N/A
57
Now: PWN02
WING NUT 1/4-20
Price
N/A
58
Now: PLW02
LOCK WASHER 1/4
Price
N/A
59
Now: PSS10
SET SCREW 1/4-20 X 5/8
Price
N/A
60
*DISCD*HANDLE
Item is no longer available
Price
N/A
61
*DISCD*REAR LOCK BRACKET
Item is no longer available
Price
N/A
62
LOCK ROD
63
*DISCD*FENCE TUBE
Price
N/A
63A
*DISCD*FENCE TUBE
Item is no longer available
Price
N/A
63B
*DISCD*COMPLETE FENCE TUBE ASSY
Item is no longer available
Price
N/A
64
*DISCD*FRONT LOCK BRACKET
Item is no longer available
Price
N/A
65
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
66
Now: PW06
FLAT WASHER 1/4
Price
N/A
67
*DISCD*MITER GAUGE
Price
N/A
68
*DISCD*TABLE INSERT
Item is no longer available
Price
N/A
69
BRUSH W/BRACKET
70
BRACKET
71
TOP WHEEL GUARD
72
LOWER WHEEL GUARD
73

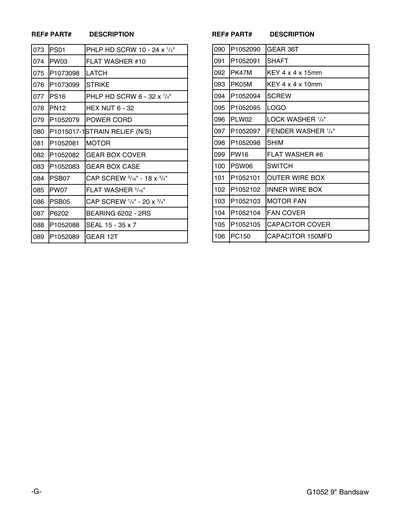

Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
74
Now: PW03
FLAT WASHER #10
Price
N/A
75
LATCH
Price
N/A
76
STRIKE
Price
N/A
77
Now: PS16
PHLP HD SCR 6-32 X 1-1/4
Price
N/A
78
Now: PN12
HEX NUT 6-32
Price
N/A
79
POWER CORD 16G X 3W 73"L
Price
N/A
80
STRAIN PLATE
Price
N/A
81

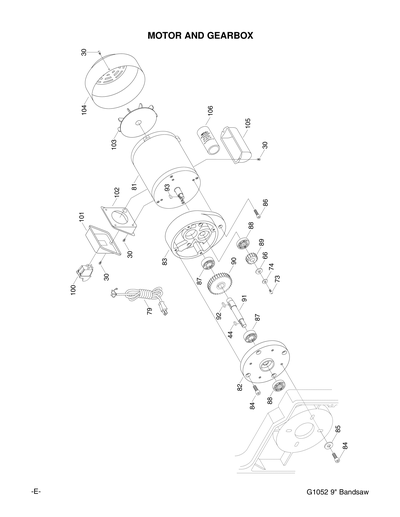

MOTOR 1/2HP 110V 1-PH
81A
MOTOR 1/2HP 110V 1-PH & GEARBOX ASSY
82
GEAR BOX COVER
83
GEAR BOX CASE
83A
GREASE RETAINER
Item is no longer available
Price
N/A
84
CAP SCREW 5/16-18 X 3/4
Price
N/A
85
Now: PW07
FLAT WASHER 5/16
Price
N/A
86
CAP SCREW 1/4-20 X 3/4
Price
N/A
87
BALL BEARING 6202-2RS
Price
N/A
88
OIL SEAL TC15 X 35 X 7
Price
N/A
89
GEAR 12T
90
GEAR 36T
91
SHAFT
92
Now: PK47M
KEY 4 X 4 X 15
Price
N/A
93
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
94
SCREW #6-3/8 X 4
Item is no longer available
Price
N/A
95
LOGO
Item is no longer available
Price
N/A
96
Now: PLW02
LOCK WASHER 1/4
Price
N/A
97
FENDER WASHER 1/4
98
SHIM
99
Now: PW16
FLAT WASHER #6
Price
N/A
100
Now: G8988
Safety Paddle Switch
Price
N/A
101
OUTER WIRE BOX
102
INNER WIRE BOX
Item is no longer available
Price
N/A
103
MOTOR FAN
104
FAN COVER
Item is no longer available
Price
N/A
105
CAPACITOR COVER
106
Now: PC150
S CAPACITOR 150M 125V 1-5/16 X 2-3/4
Price
N/A
107
COMPLETE UPPER WHEEL SHAFT ASSY
MANUAL
MANUAL FOR G1052 04/99
