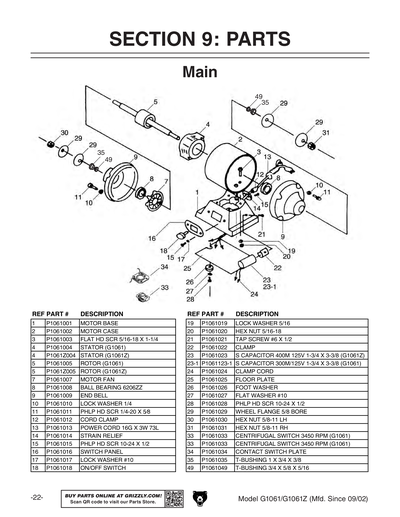

Parts for G1061 1 HP, 3450 RPM Buffer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MOTOR BASE
2
*DISCD*MOTOR CASE V1
2V2
MOTOR CASE W/ STATOR V2
3
Now: PFH07
FLAT HD SCR 5/16-18 X 1-1/4
Price
N/A
4
MOTOR CASE W/ STATOR V2
Price
N/A
5
ROTOR
6
ROTOR
Price
N/A
7
MOTOR FAN
8
BALL BEARING 6206ZZ
Price
N/A
9
END BELL
10
Now: PLW02
LOCK WASHER 1/4
Price
N/A
11
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
12
CORD CLAMP
Price
N/A
13
POWER CORD 16G X 3W 73"L
Price
N/A
14
STRAIN PLATE
Price
N/A
15
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
16
SWITCH PANEL
17
Now: PLW03
LOCK WASHER #10
Price
N/A
18
ON/OFF SWITCH
19
Now: PLW01
LOCK WASHER 5/16
Price
N/A
20
Now: PN02
HEX NUT 5/16-18
Price
N/A
21
TAP SCREW #6 X 1/2
Price
N/A
22
CLAMP
23
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
23-1
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
24
CLAMP CORD
25
FLOOR PLATE
26
Now: PW02M
FLAT WASHER 5MM
Price
N/A
27
Now: PW03
FLAT WASHER #10
Price
N/A
28
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
29
WHEEL FLANGE 5/8" BORE
30
HEX NUT LH
31
Now: PN04
HEX NUT 5/8-11
Price
N/A
32
*DISCD*CORD HOLDER
Item is no longer available
Price
N/A
33
CENTRIFUGAL SWITCH 3450
34
CONTACT SWITCH PLATE
35
T-BUSHING 3/4 X 1-1/4 X 3/8
49
T-BUSHING 5/8 X 1 X 5/16
101

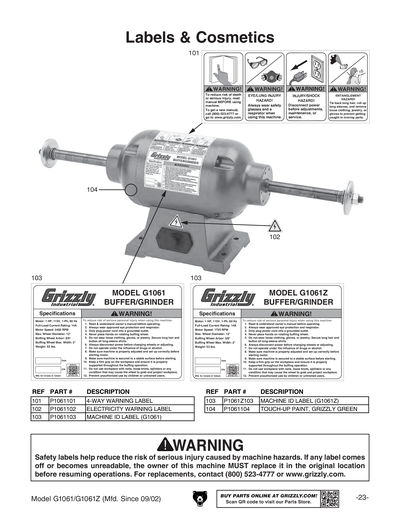

4-WAY WARNING LABEL
102
ELECTRICAL WARNING LABEL
103
MACHINE ID LABEL (G1061)
104
N/S GRIZZLY GREEN G1023S
Price
N/A
MANUAL
MANUAL FOR G1061 01/02
