Parts for G1066 - 24" Drum Sander

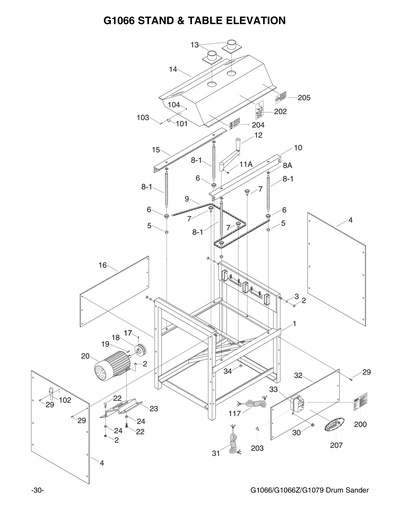

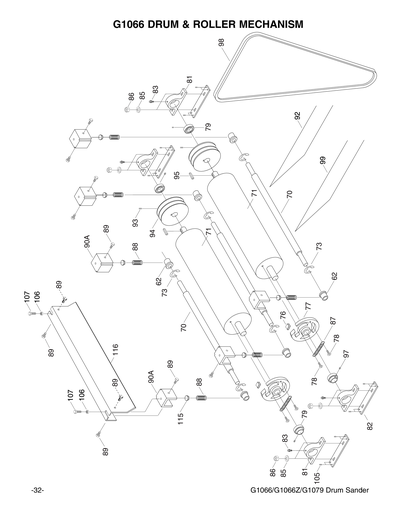

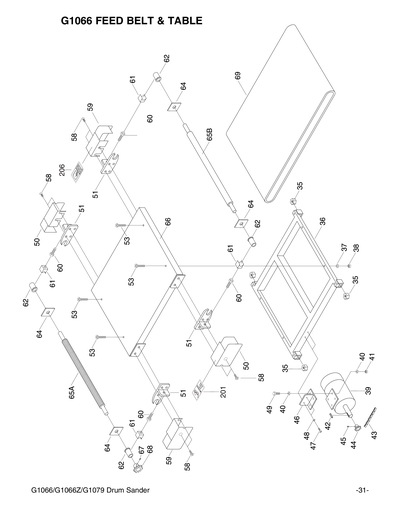

Part Diagram for G1066
Part Diagram for G1066
Part Diagram for G1066
Part Diagram for G1066
Part Diagram for G1066
Part Diagram for G1066
Part Diagram for G1066
Part Diagram for G1066

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

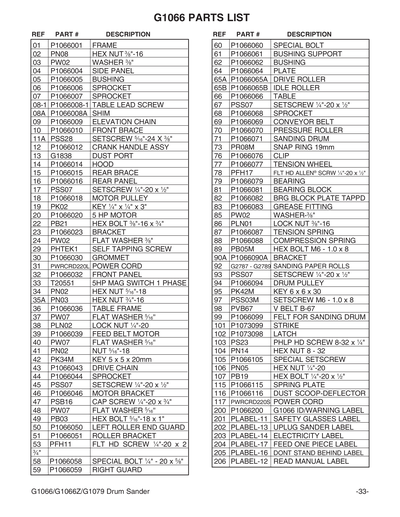

Ref #
Part #
Description
1
FRAME
Item is no longer available
Price
N/A
2
P1066002
Now: PN08
HEX NUT 3/8-16
Price
N/A
3
P1066003
Now: PW02
FLAT WASHER 3/8
Price
N/A
4
SIDE PANEL
Price
$68.85
5
*DISCD*BUSHING
Item is no longer available
Price
N/A
5-1
BRASS SHIM
Price
$1.49
6
SPROCKET
Price
$13.05
7
SPROCKET
Price
$5.05
7-1
SHAFT
Price
$4.85
8
*DISCD*TABLE SCREW COARSE THREADS
Item is no longer available
Price
N/A
8-1
TABLE SCREW FINE THREADS 3/4-16
Price
$23.35
8A
TABLE SCREW SHIM 1/2 X 27 X 1
Price
$3.65
9
CHAIN
Price
$39.85
10
FRONT BRACE
Price
$45.35
11
SET SCREW 5/16-24 X 3/8
Price
N/A
11A
SET SCREW 5/16-24 X 3/8
Price
N/A
12
COMPLETE CRANK HANDLE ASSY
Price
$22.85
12-1
CRANK W/O HANDLE
Price
N/A
12-2
HANDLE W/SCREW V1
Price
N/A
12A
CRANK W/O HANDLE
Price
$6.70
13
Universal Dust Port
Price
N/A
14
HOOD V1
Price
$108.70
14V2
*DISCD*HOOD V2.09.22
Item is no longer available
Price
N/A
15
REAR BRACE
Price
$45.35
16
REAR PANEL
Price
$63.45
17
SET SCREW 1/4-20 X 1/2
Price
N/A
18
MOTOR PULLEY
Price
$38.40
19
KEY 5 X 5 X 50
Price
N/A
20
DRIVE MOTOR 5HP 220V 1-PH
Price
$741.20
20-1
MOTOR FAN
Price
N/A
20-2
MOTOR FAN COVER
Price
$7.60
21
P1066021
Now: PN08
HEX NUT 3/8-16
Price
N/A
22
P1066022
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
23
BRACKET
Price
$34.15
24
P1066024
Now: PW02
FLAT WASHER 3/8
Price
N/A
25
P1066025
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
26
P1066026
Now: PW02
FLAT WASHER 3/8
Price
N/A
27
P1066027
Now: PN08
HEX NUT 3/8-16
Price
N/A
28
SIDE PANEL
Price
N/A
29
TAP SCREW #6 X 1/2
Price
N/A
30
GROMMET 35 X 26MM
Price
$3.65
31
POWER CORD 12G X 3W 86"L
Price
N/A
32
FRONT PANEL
Price
$68.55
33
5 HP 220V Magnetic Switch Single-Phase
Price
N/A
34
P1066034
Now: PN02
HEX NUT 5/16-18
Price
N/A
35
*DISCD*SQUARE NUT COARSE THREAD
Item is no longer available
Price
N/A
35-1
HEX NUT 3/4-16 1-1/4"DIA
Price
N/A
35A
HEX NUT 3/4-16 1-1/4"DIA
Price
$4.85
36
*DISCD*TABLE FRAME
Item is no longer available
Price
N/A
37
P1066037
Now: PW07
FLAT WASHER 5/16
Price
N/A
38
LOCK NUT 1/4-20
Price
N/A
39
FEED MOTOR 1/4HP 220V 1-PH
Price
$380.35
39-1
R CAPACITOR 12M 350V 1-1/2 X 2
Price
$21.20
39-2
GEAR 45T FOR FEED MOTOR
Price
$12.65
39-3
BALL BEARING 6072-OPEN
Price
N/A
39-4
PINION FOR FEED MOTOR
Price
$17.25
39-5
FEED MOTOR ROTOR
Price
$33.10
39-6
GEAR 7T FEED MOTOR
Price
$13.30
39-8
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
39A
R CAPACITOR 12M 350V 1-1/2 X 2
Price
N/A
39B
GEAR 45T FOR FEED MOTOR
Price
N/A
39C
BALL BEARING 6072-OPEN
Price
N/A
39D
PINION FOR FEED MOTOR
Price
N/A
39E
FEED MOTOR ROTOR
Price
N/A
40
P1066040
Now: PW07
FLAT WASHER 5/16
Price
N/A
41
P1066041
Now: PN02
HEX NUT 5/16-18
Price
N/A
42
KEY 5 X 5 X 20
Price
N/A
43
CHAIN
Price
$36.45
44
SPROCKET
Price
$8.35
45
SET SCREW 1/4-20 X 1/2
Price
N/A
46
MOTOR BRACKET
Price
$26.00
47
CAP SCREW 3/8-16 X 3/4
Price
N/A
48
P1066048
Now: PW07
FLAT WASHER 5/16
Price
N/A
49
P1066049
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
50
GUARD HINGED LEFT
Price
N/A
50A
GUARD HINGED LEFT
Price
$15.70
51
ROLLER BRACKET
Price
$20.50
52
FLAT HD SCR 1/4-20 X 1-3/4
Price
N/A
53
FLAT HD SCR 1/4-20 X 2-3/8
Price
N/A
54
P1066054
Now: PW07
FLAT WASHER 5/16
Price
N/A
55
LOCK NUT 1/4-20
Price
N/A
56
*DISCD*TABLE BRACKET
Item is no longer available
Price
N/A
57
ROLLER BRACKET
Price
N/A
57A
ROLLER BRACKET
Price
N/A
58
CAP SCREW 1/4-20 X 3/4
Price
N/A
59
GUARD RIGHT
Price
$15.70
59A
HINGED GUARD RIGHT
Price
$12.75
60
ROLLER BRACKET BOLT 1/2-13 X 70
Price
$4.95
61
BUSHING SUPPORT
Price
$4.75
62
BUSHING
Price
$6.10
64
PLATE
Price
$6.60
65
DRIVE ROLLER KNURLED 24 IN
Price
N/A
65A
DRIVE ROLLER KNURLED 24 IN
Price
$62.90
65B
IDLE ROLLER SMOOTH 24 IN
Price
$54.80
66
*DISCD*TABLE 3ROW 12HOLE 1-3/8" THICK
Item is no longer available
Price
N/A
67
SET SCREW 1/4-20 X 1/2
Price
N/A
68
SPROCKET
Price
$15.45
69
CONVEYOR BELT
Price
$144.60
70
PRESSURE ROLLER
Price
$123.20
71
*DISCD*SANDING DRUM
Item is no longer available
Price
N/A
72
PRESSURE ROLLER
Price
N/A
73
EXT RETAINING RING 19MM
Price
N/A
74
BUSHING
Price
N/A
75
*DISCD*EYE BOLT
Price
$1.49
76
CLIP
Price
$3.65
77
TENSION WHEEL
Price
$27.75
78
FLAT HD ALLEN SCR 1/4-20 X 1/2
Price
N/A
79
PILLOW BLOCK BEARING UCP205
Price
N/A
80
P1066080
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
81
BEARING BLOCK
Price
N/A
81A
BEARING BLOCK
Price
$25.90
81B
*DISCD*TAPPED BEARING BLOCK
Item is no longer available
Price
N/A
82
BEARING BLOCK PLATE, TAPPED
Price
$11.10
83
GREASE FITTING M6-1 X 5
Price
N/A
85
P1066085
Now: PW02
FLAT WASHER 3/8
Price
N/A
86
LOCK NUT 3/8-16
Price
N/A
87
TENSION SPRING
Price
$2.60
88
COMPRESSION SPRING
Price
$2.45
89
HEX BOLT M6-1 X 8
Price
N/A
90
PRESSURE ROLLER BRACKET W/ FOOT
Price
$10.65
90A
BRACKET
Price
N/A
91
LOCK NUT 1/4-20
Price
N/A
92
6" x 50' A/O Sanding Roll 60-X Grit, Cloth
Price
N/A
93
SET SCREW 3/8-16 X 1/2
Price
N/A
94
DRUM PULLEY
Price
$68.85
95
KEY 6 X 6 X 30
Price
N/A
97
SET SCREW M6-1 X 8
Price
N/A
98
V-BELT B67
Price
N/A
99
*DISCD*FELT 19 X 24 IN
Price
$7.05
100
*DISCD*RUBBER BUSHING
Item is no longer available
Price
N/A
101
STRIKE
Price
N/A
102
LATCH
Price
N/A
103
P1066103
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
104
P1066104
Now: PN14
HEX NUT 8-32
Price
N/A
105
SET SCREW 5/16-24 X 5/8
Price
N/A
106
P1066106
Now: PN05
HEX NUT 1/4-20
Price
N/A
107
P1066107
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
108
GEAR 7T FEED MOTOR
Price
N/A
109
KEY 4 X 4 X 8
Price
N/A
115
SPRING PLATE
Price
$3.65
116
DUST SCOOP DEFLECTOR
Price
$32.65
117
POWER CORD 12G X 3W 36"L
Price
N/A
200
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
201
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
202
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
203
ELECTRICITY 1.4W X 1.2H
Price
N/A
204
FEED ONLY ONE 5.3W X 2.8H V2.04.08
Price
N/A
205
SANDER REAR EJECT 5.3W X 2.8H V2.04.08
Price
N/A
206
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
207
Nameplate - Large
Price
N/A
900
CARTON FOR G1066
Item is no longer available
Price
N/A
901
STYROFOAM 2PC
Item is no longer available
Price
N/A
A147
SANDER BELT PINCH 4W X 2.1H
Price
N/A
MANUAL
MANUAL FOR G1066/Z/R/G1079 06/12
Price
$21.95
