Parts for G1067Z - 14" x 40" Swivel-Head Wood Lathe - Z Series

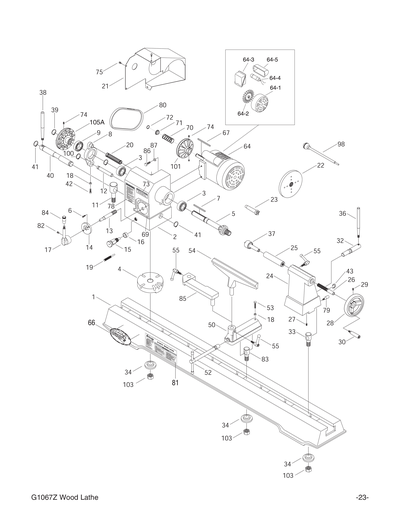

Part Diagram for G1067Z

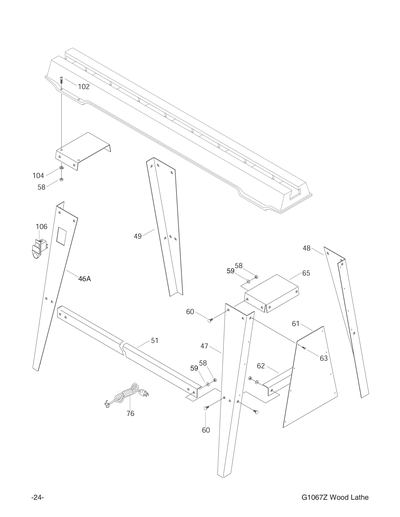

Part Diagram for G1067Z
Part Diagram for G1067Z
Part Diagram for G1067Z
Part Diagram for G1067Z
Part Diagram for G1067Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

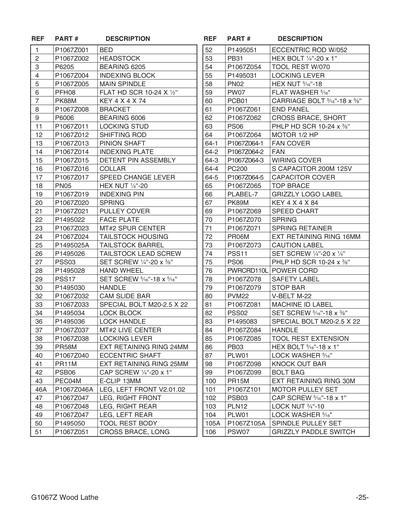

Ref #
Part #
Description
1
BED
Price
$357.10
2
HEADSTOCK
Item is no longer available
Price
N/A
2A
*DISCD* COMPLETE HEADSTOCK
Price
$220.80
3
BALL BEARING 6205-2RS
Price
N/A
4
INDEXING BLOCK
Price
$77.35
5
*DISCD* MAIN SPINDLE
Price
$43.15
5A
*DISCD*SPACER FOR INSERT
Item is no longer available
Price
N/A
6
FLAT HD SCR 10-24 X 1/2
Price
N/A
7
KEY 4 X 4 X 74
Price
N/A
8
*DISCD* BRACKET
Price
$6.35
9
BALL BEARING 6006-2RS
Price
N/A
10
*DISCD* MOTOR PULLEY SET
Price
N/A
11
*DISCD* LOCK HEAD STUD
Price
$12.95
12
*DISCD* SHIFTING ROD
Price
$6.65
13
*DISCD* PINION SHAFT
Price
$12.95
14
*DISCD* INDEXING PLATE
Price
$15.25
15
*DISCD* DETENT PIN ASSY
Price
$14.10
16
*DISCD* COLLAR
Price
$14.10
17
*DISCD* SPEED CHANGE LEVER
Price
$43.15
18
HEX NUT 1/4-20
Price
N/A
19
*DISCD*INDEXING PIN
Item is no longer available
Price
N/A
20
*DISCD* SPRING
Price
$3.45
21
*DISCD*PULLEY COVER
Item is no longer available
Price
N/A
22
*DISCD*FACEPLATE
Price
N/A
23
*DISCD*SPUR CENTER MT#2
Item is no longer available
Price
N/A
24
*DISCD* TAILSTOCK HOUSING
Price
$65.55
24A
*DISCD*COMPLETE TAILSTOCK ASSY
Item is no longer available
Price
N/A
25
*DISCD*BARREL W/ 5/8"-18 LH
Price
N/A
26
*DISCD*LEADSCREW 5/8-18 X 120 LH
Price
N/A
27
SET SCREW 1/4-20 X 3/8
Price
N/A
28
*DISCD*HAND WHEEL
Price
N/A
29
SET SCREW 5/16-18 X 5/16
Price
N/A
30
*DISCD*HANDLE
Price
N/A
31
*DISCD*STOP BAR
Item is no longer available
Price
N/A
32
*DISCD* CAM SLIDE BAR
Price
$7.50
33
*DISCD* BED BOLT M20-2.5 X 22
Price
$10.10
34
*DISCD*LOCK BLOCK
Price
N/A
35
HEX NUT 3/4-10
Price
N/A
36
*DISCD*LOCK HANDLE
Price
N/A
37
*DISCD*LIVE CENTER MT#2
Item is no longer available
Price
N/A
38
*DISCD* LOCK LEVER
Price
$7.50
39
EXT RETAINING RING 24MM
Price
N/A
40
ECCENTRIC SHAFT
Price
$11.80
41
EXT RETAINING RING 25MM
Price
N/A
42
CAP SCREW 1/4-20 X 1
Price
N/A
43
E-CLIP 13MM
Price
N/A
44
PHLP HD SCR 10-24 X 1
Price
N/A
45
Safety Paddle Switch
Price
N/A
46
*DISCD* LEG FRONT LEFT V1.08.96
Price
$15.25
46A
*DISCD* LEG FRONT LEFT V2.01.02
Item is no longer available
Price
N/A
47
*DISCD* LEFT FRONT RIGHT
Price
$15.25
48
*DISCD* LEG REAR RIGHT
Price
$15.25
49
*DISCD* LEFT FRONT RIGHT
Price
N/A
49A
LEG REAR RIGHT W/HOLE FOR CORD
Price
$15.25
50
*DISCD*TOOL REST BODY
Price
N/A
51
*DISCD*CROSS BRACE LONG
Item is no longer available
Price
N/A
52
*DISCD*ECCENTRIC ROD W/HANDLE
Price
N/A
53
HEX BOLT 1/4-20 X 1
Price
N/A
54
*DISCD*TOOL REST W/070
Item is no longer available
Price
N/A
54-1
*DISCD*TOOL REST SHAFT
Item is no longer available
Price
N/A
55
*DISCD*LOCK LEVER
Price
N/A
56
*DISCD* REAR SWITCH COVER
Item is no longer available
Price
N/A
57
HEX NUT 10-24
Price
N/A
58
HEX NUT 5/16-18
Price
N/A
59
FLAT WASHER 5/16
Price
N/A
60
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
61
*DISCD*END PANEL
Item is no longer available
Price
N/A
62
*DISCD* CROSS BRACE SHORT
Price
$10.10
63
PHLP HD SCR 10-24 X 3/8
Price
N/A
64
*DISCD*MOTOR 1/2HP 110V 1-PH
Item is no longer available
Price
N/A
64-1
FAN COVER
Item is no longer available
Price
N/A
64-2
FAN
Item is no longer available
Price
N/A
64-3
WIRING COVER
Item is no longer available
Price
N/A
64-4
S CAPACITOR 200M 125V 1-5/16 X 2-1/4
Price
N/A
64-5
CAPACITOR COVER
Item is no longer available
Price
N/A
65
*DISCD* TOP BRACE
Price
$5.20
66
Nameplate - Small
Price
N/A
67
KEY 4 X 4 X 84
Price
N/A
68
*DISCD* SPINDLE PULLEY SET 4-5/8IN V1.08
Price
N/A
68A
MACHINE ID LABEL
Item is no longer available
Price
N/A
69
*DISCD* SPEED CHART
Price
$1.49
70
*DISCD* SPRING
Price
$1.49
71
*DISCD* SPRING RETAINER
Price
$1.49
72
EXT RETAINING RING 16MM
Price
N/A
73
CAUTION LABEL
Price
$4.25
74
SET SCREW 1/4-20 X 1/4
Price
N/A
75
PHLP HD SCR 10-24 X 3/8
Price
N/A
76
POWER CORD
Item is no longer available
Price
N/A
77
Safety Paddle Switch
Price
N/A
78
SAFETY LABEL
Price
$4.25
79
*DISCD* STOP BAR
Price
$1.49
80
V-BELT M22 3L220
Price
N/A
81
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
82
SET SCREW 5/16-18 X 3/8
Price
N/A
83
*DISCD*BASE BOLT D19.2 X 66
Price
N/A
84
*DISCD*HANDLE
Item is no longer available
Price
N/A
85
*DISCD* TOOL REST EXTENSION
Price
$18.40
86
HEX BOLT 5/16-18 X 1
Price
N/A
87
LOCK WASHER 5/16
Price
N/A
89
*DISCD*SPRING
Item is no longer available
Price
N/A
98
*DISCD*KNOCKOUT BAR
Item is no longer available
Price
N/A
99
BOLT BAG
Price
$2.60
100
EXT RETAINING RING 30MM
Price
N/A
101
*DISCD* MOTOR PULLEY SET
Item is no longer available
Price
N/A
102
CAP SCREW 5/16-18 X 1
Price
N/A
103
LOCK NUT 3/4-10
Price
N/A
104
LOCK WASHER 5/16
Price
N/A
105
*DISCD* SPINDLE PULLEY SET 4-5/8IN V1.08
Price
$41.40
105A
*DISCD* SPINDLE PULLEY SET 5-1/4IN V2.12
Item is no longer available
Price
N/A
106
Safety Paddle Switch
Price
N/A
MANUAL
MANUAL FOR G1067Z 01/04
Price
$14.65
