Parts for G1071 - 1 HP Oscillating Spindle Sander

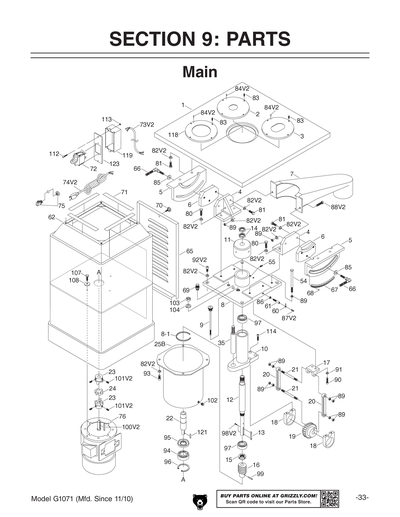

Part Diagram for G1071
Part Diagram for G1071
Part Diagram for G1071
Part Diagram for G1071
Part Diagram for G1071
Part Diagram for G1071
Part Diagram for G1071
Part Diagram for G1071

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

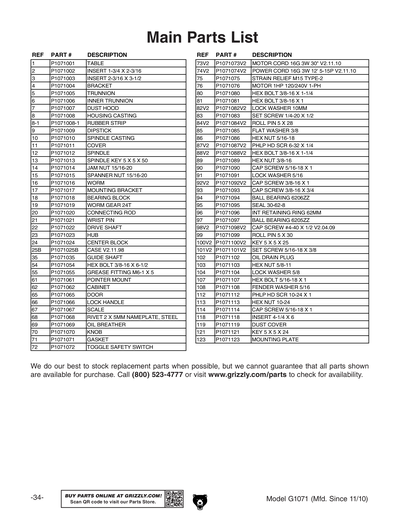

Ref #
Part #
Description
1
TABLE
Price
$594.10
2
INSERT 1-3/4 X 2
Price
$21.10
3
INSERT 2" X 3-3/8"
Price
$22.20
4
BRACKET
Price
$45.35
5
TRUNNION
Price
$48.65
6
INNER TRUNNION
Price
$34.80
7
DUST HOOD
Price
$79.70
8
HOUSING CASTING
Price
$124.40
8-1
RUBBER STRIP
Price
$5.40
9
DIPSTICK
Price
$5.50
10
SPINDLE CASTING
Price
$141.30
11
COVER
Price
$25.05
12
SPINDLE
Price
$72.45
13
SPINDLE KEY 5 X 5 X 50
Price
$6.05
14
JAM NUT 15/16-20
Price
$5.55
15
SPANNER NUT 15/16-20
Price
$9.70
16
WORM
Price
$25.40
17
MOUNTING BRACKET
Price
$18.30
18
BEARING BLOCK
Price
$39.00
19
WORM GEAR 24T
Price
$39.85
20
CONNECTING ROD
Price
$14.45
21
WRIST PIN
Price
$3.40
22
DRIVE SHAFT
Price
$34.45
23
HUB
Price
$21.20
24
CENTER BLOCK
Price
$4.30
25
CASE V2.11.98
Price
N/A
25-1
RUBBER STRIP
Price
N/A
25A
RUBBER STRIP
Price
N/A
25B
CASE V2.11.98
Price
$181.15
25C
COMPLETE TUB ASSY
Price
$720.90

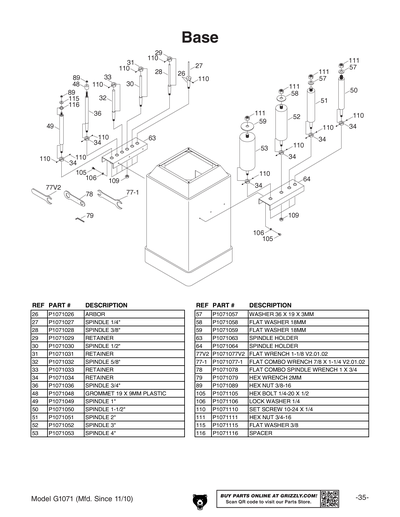

26
ARBOR
Price
$12.35
27
SPINDLE 1/4"
Price
$19.15
27A
COMPLETE SPINDLE ASSY 1/4 IN
Price
$23.75
28
SPINDLE 3/8"
Price
$29.65
29
RETAINER
Price
$4.30
30
SPINDLE 1/2"
Price
$21.75
31
RETAINER
Price
$4.60
32
SPINDLE 5/8"
Price
$21.50
33
RETAINER
Price
$4.60
34
RETAINER
Price
$5.50
35
GUIDE SHAFT
Price
$6.70
36
SPINDLE 3/4"
Price
$31.00
48
GROMMET 19 X 9MM PLASTIC
Price
$4.50
49
SPINDLE 1"
Price
$29.95
49A
COMPLETE SPINDLE ASSY 1"
Price
$54.35
50
SPINDLE 1-1/2"
Price
$58.45
50A
SPINDLE 1-1/2"
Price
N/A
51
SPINDLE 2"
Price
$70.70
52
SPINDLE 3"
Price
$97.85
53
SPINDLE 4"
Price
$127.45
54
HEX BOLT 3/8-16 X 6-1/2
Price
$1.60
55
GREASE FITTING M6-1 X 5
Price
N/A
57
WASHER 36 X 19 X 3MM
Price
$3.80
58
FLAT WASHER 18MM
Price
$4.00
59
FLAT WASHER 18MM
Price
$5.60
60
POINTER
Price
N/A
61
POINTER MOUNT
Price
$3.95
62
CABINET
Price
$416.60
63
SPINDLE HOLDER
Price
$18.75
64
SPINDLE HOLDER
Price
$18.75
65
DOOR
Price
$31.95
66
LOCK HANDLE
Price
$7.00
67
SCALE
Price
$1.60
68
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
69
OIL BREATHER
Price
$7.90
70
KNOB
Price
$2.20
71
GASKET
Price
$7.00
72
Toggle Safety Switch
Price
N/A
72A
Safety Paddle Switch
Price
N/A
73
SWITCH-MOTOR CORD V1
Price
$8.80
73V2
MOTOR CORD 16AWG 3C 30" V2.11.10
Price
$10.00
74
POWER CORD V1
Price
$25.10
74V2
POWER CORD 16AWG 3C 12FT 5-15 V2.11.10
Price
$45.95
75
STRAIN RELIEF M15 TYPE-2
Price
N/A
76
MOTOR 1HP 120/240V 1-PH
Price
$298.75
77
*DISCD*WRENCH 29MM V1.12.95
Price
$2.60
77-1
FLAT COMBO WRENCH 7/8 X 1-1/4 V2.01.02
Price
$8.50
77A
*DISCD*WRENCH 32MM V2.12.98
Item is no longer available
Price
N/A
77B
*DISCD*WRENCH 35MM V3.06.03
Item is no longer available
Price
N/A
77V2
FLAT WRENCH 1-1/8 V2.01.02
Price
$5.50
78
FLAT COMBO SPINDLE WRENCH 1 X 3/4
Price
$6.70
79
HEX WRENCH 2MM
Price
N/A
80
P1071080
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
81
P1071081
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
82
LOCK WASHER 3/8
Price
N/A
82V2
LOCK WASHER 10MM
Price
N/A
83
SET SCREW 1/4-20 X 5/8
Price
N/A
84
ROLL PIN 3 X 20
Price
N/A
84V2
ROLL PIN 5 X 28
Price
N/A
85
P1071085
Now: PW02
FLAT WASHER 3/8
Price
N/A
86
P1071086
Now: PN02
HEX NUT 5/16-18
Price
N/A
87
CAP SCREW 10-32 X 3/8
Price
N/A
87V2
PHLP HD SCR 6-32 X 1/4
Price
N/A
88
P1071088
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
88V2
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
89
P1071089
Now: PN08
HEX NUT 3/8-16
Price
N/A
90
CAP SCREW 5/16-18 X 1
Price
N/A
91
LOCK WASHER 5/16
Price
N/A
92
CAP SCREW 3/8-16 X 3/4
Price
N/A
92V2
CAP SCREW 3/8-16 X 1
Price
N/A
93
CAP SCREW 3/8-16 X 3/4
Price
N/A
94
BALL BEARING 6206ZZ
Price
N/A
95
SEAL 30-62-8
Price
$7.25
96
INT RETAINING RING 62MM
Price
N/A
97
BALL BEARING 6205ZZ
Price
N/A
98
CAP SCREW M3-.5 X 10
Price
N/A
98V2
CAP SCREW #4-40 X 1/2 V2.04.09
Price
$4.30
99
ROLL PIN 5 X 30
Price
N/A
100
KEY 5 X 5 X 30
Price
N/A
100V2
KEY 5 X 5 X 25
Price
N/A
101
SET SCREW 5/16-18 X 1/2
Price
N/A
101V2
SET SCREW 5/16-18 X 3/8
Price
N/A
102
OIL DRAIN PLUG
Price
N/A
103
P1071103
Now: PN04
HEX NUT 5/8-11
Price
N/A
104
LOCK WASHER 5/8
Price
N/A
105
P1071105
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
106
LOCK WASHER 1/4
Price
N/A
107
P1071107
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
108
FENDER WASHER 5/16
Price
N/A
109
P1071109
Now: PN06
HEX NUT 1/2-12
Price
N/A
110
SET SCREW 10-24 X 1/4
Price
N/A
111
P1071111
Now: PN03
HEX NUT 3/4-16
Price
N/A
112
P1071112
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
113
P1071113
Now: PN07
HEX NUT 10-24
Price
N/A
114
CAP SCREW 5/16-18 X 1
Price
N/A
115
P1071115
Now: PW02
FLAT WASHER 3/8
Price
N/A
116
SPACER
Price
$2.40
117
NAME PLATE V2.03.06
Price
$7.00
117A
NAME PLATE V1.12.95
Price
$5.50
118
INSERT 4-1/8
Price
$21.75
119
DUST COVER
Price
$14.50
121
KEY 5 X 5 X 24
Price
N/A
122
*DISCD*STEEL INSERT 1 1/2"-4"
Item is no longer available
Price
N/A
123
*DISCD*MOUNTING PLATE
Item is no longer available
Price
N/A
200
CARTON FOR G1071
Price
N/A
201
STYROFOAM 2PC
Price
N/A

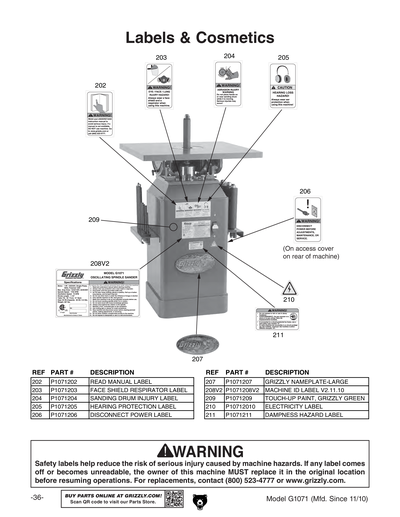

202
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
203
FACE SHIELD/RESPIRATOR 2W X 3.3H
Price
N/A
204
SANDING DRUM INJURY LABEL
Price
$23.10
205
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
206
DISCONNECT 110V 2W X 3.3H
Price
N/A
207
Nameplate - Large
Price
N/A
208
MACHINE ID LABEL
Price
$16.40
209
N/S GRIZZLY GREEN G1023S
Price
N/A
210
ELECTRICITY 1.4W X 1.2H
Price
N/A
900
CARTON FOR G1071
Price
$36.90
901
STYROFOAM 2PC
Price
$35.35
902
MACHINE ID/WARNING LABEL
Price
$16.40
MANUAL
MANUAL FOR G1071 02/99
Price
$14.65
POINTER
POINTER ASSY #60-61/86-87
Price
$3.65
