Parts for G1073 - 16" Bandsaw (Best on the Market!)

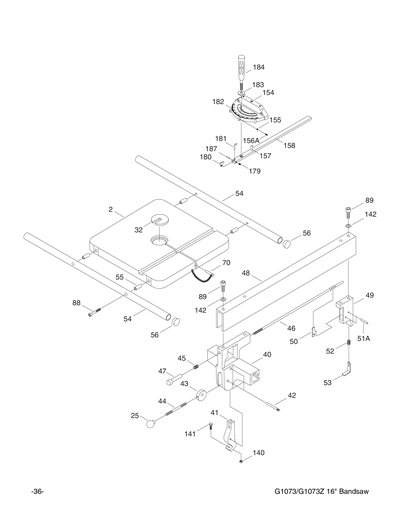

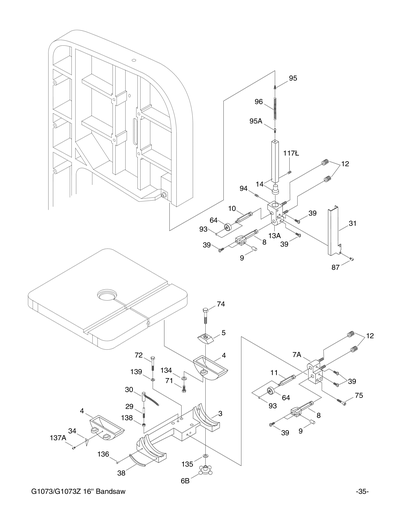

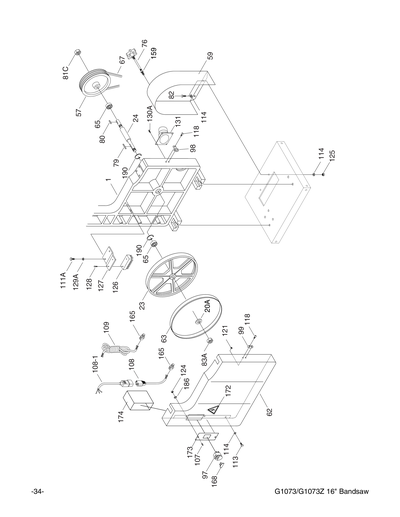

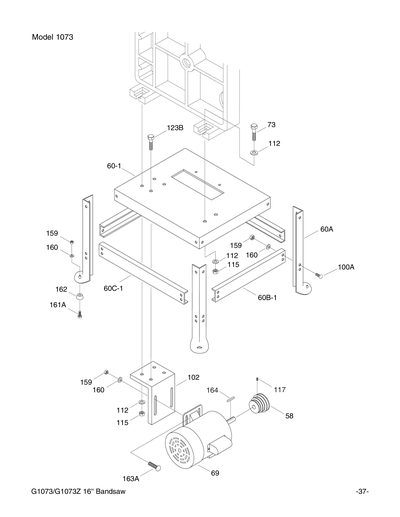

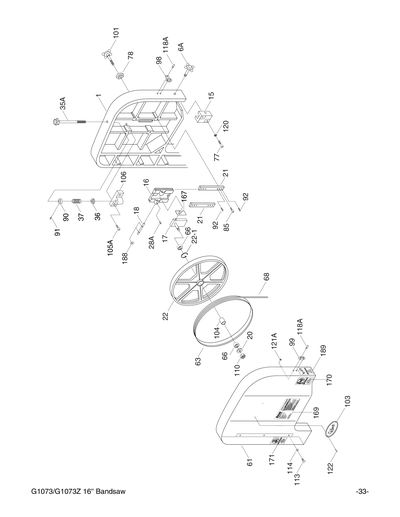

Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073
Part Diagram for G1073

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

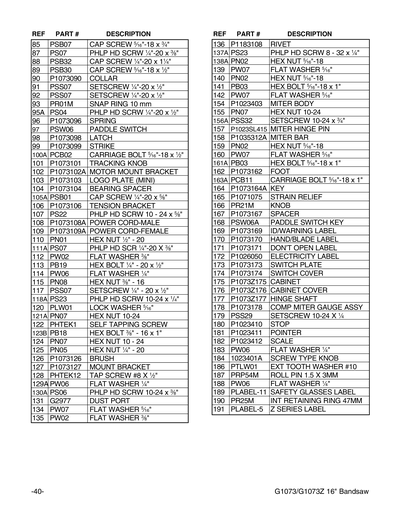

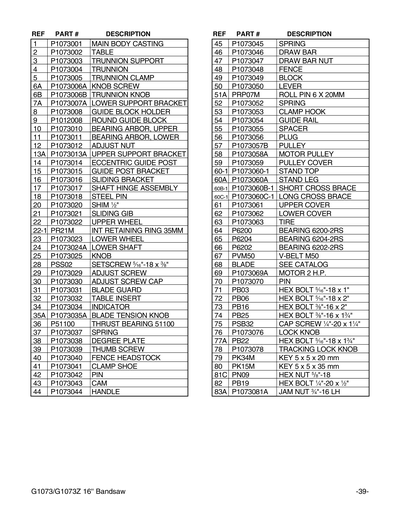

Ref #
Part #
Description
1
CASTING BODY
Item is no longer available
Price
N/A
2
TABLE
Price
$184.50
3
*DISCD*TRUNNION SUPPORT
Item is no longer available
Price
N/A
3A
*DISCD*TRUNNION SUPPORT 12-1/4IN
Item is no longer available
Price
N/A
4
*DISCD*TRUNNION
Item is no longer available
Price
N/A
5
TRUNNION CLAMP
Price
$1.60
6
*DISCD*KNOB SCREW 3/8-16
Price
N/A
6A
*DISCD*KNOB SCREW 3/8-16
Item is no longer available
Price
N/A
6B
*DISCD*TRUNNION KNOB THREADED
Item is no longer available
Price
N/A
7
SUPPORT BRACKET V1.10.95
Price
$12.00
7A
SUPPORT BRACKET LOWER V2.10.02
Price
$7.25
8
*DISCD*GUIDE BLOCK HOLDER
Item is no longer available
Price
N/A
8A
*DISCD*GUIDE BLOCK HOLDER 1/2 IN
Item is no longer available
Price
N/A
9
BLADE GUIDE BLOCK ROUND
Price
N/A
9A
*DISCD*GUIDE BLOCKS 1/2IN ROUND
Item is no longer available
Price
N/A
10
*DISCD*BEARING ARBOR UPPER
Item is no longer available
Price
N/A
11
*DISCD*BEARING ARBOR LOWER
Item is no longer available
Price
N/A
12
*DISCD*ADJUST NUT 5/16-24
Price
N/A
12A
*DISCD*ADJUST NUT 5/16-24
Item is no longer available
Price
N/A
12B
*DISCD*ADJUSTING NUT .19MM FLANGE
Price
$2.60
13
*DISCD*UPPER SUPPORT BRACKET V1.10.95
Item is no longer available
Price
N/A
13A
UPPER SUPPORT BRACKET V2.10.02
Item is no longer available
Price
N/A
13A-1
SET SCREW 5/16-24 X 1-3/4
Price
N/A
14
*DISCD*ECCENTRIC GUIDE POST
Item is no longer available
Price
N/A
15
*DISCD*GUIDE POST BRACKET
Price
$8.35
16
SLIDING BRACKET
Price
$20.85
17
*DISCD*SHAFT HINGE ASSY
Item is no longer available
Price
N/A
18
STEEL PIN
Price
$1.60
19
*DISCD*SHAFT HINGE ASSY
Price
N/A
20
BRACKET WASHER 5/8 X 30 X 27
Price
N/A
20A
SHIM 3/4"
Price
$2.45
21
SLIDING GIB
Price
$10.65
22
*DISC*UPPER WHEEL
Item is no longer available
Price
N/A
22-1
INT RETAINING RING 35MM
Price
N/A
23
LOWER WHEEL
Price
$78.85
24
SHAFT LOWER V2.05.98
Price
N/A
24A
SHAFT LOWER V2.05.98
Price
$16.95
25
*DISCD*KNOB
Item is no longer available
Price
N/A
28
SET SCREW 5/16-18 X 1/2
Price
N/A
28A
SET SCREW 5/16-18 X 3/8
Price
N/A
29
*DISCD*ADJUST SCREW 5/16-18
Item is no longer available
Price
N/A
30
ADJUST SCREW CAP
Price
$2.20
31
BLADE GUARD
Price
$10.65
32
TABLE INSERT
Price
$3.65
34
INDICATOR
Price
$1.60
35
*DISCD*BLADE TENSION KNOB V1.10.95
Price
$5.50
35A
BLADE TENSION KNOB V2.10.02
Price
$5.80
36
THRUST BEARING 51100
Price
N/A
37
*DISCD*SPRING 25 X 72
Item is no longer available
Price
N/A
38
DEGREE PLATE
Price
$3.95
39
THUMBSCREW 1/4-20 X 1/2
Price
N/A
40
*DISCD*FENCE HEADSTOCK
Price
$53.80
40A
COMPLETE FENCE HEADSTOCK ASSY
Price
$124.40
41
*DISCD*CLAMP SHOE
Price
$10.10
41-1
RUBBER SHAFT BUSHING
Item is no longer available
Price
N/A
41A
RUBBER SHAFT BUSHING
Price
N/A
42
*DISCD*PIN
Price
$1.49
43
*DISCD*CAM
Price
$3.75
44
*DISCD*HANDLE
Item is no longer available
Price
N/A
45
*DISCD*SPRING 16 X 34
Item is no longer available
Price
N/A
46
*DISCD*DRAWBAR
Price
$2.05
47
*DISCD*DRAWBAR NUT
Item is no longer available
Price
N/A
48
*DISCD*FENCE
Item is no longer available
Price
N/A
48A
*DISCD*COMPLETE FENCE ASSY
Item is no longer available
Price
N/A
49
*DISCD*BLOCK
Item is no longer available
Price
N/A
50
*DISCD*LEVER
Price
$3.45
51
ROLL PIN 4 X 20
Price
N/A
51A
ROLL PIN 6 X 20
Price
N/A
52
*DISCD*SPRING 10 X 26
Item is no longer available
Price
N/A
53
*DISCD*CLAMP HOOK
Item is no longer available
Price
N/A
54
*DISCD*GUIDE RAIL
Item is no longer available
Price
N/A
55
SPACER
Price
$2.45
56
GUIDE RAIL PLUG
Price
$1.60
57
CAST IRON WHEEL PULLEY
Price
N/A
57A
ALUMINUM PULLEY
Item is no longer available
Price
N/A
57B
CAST IRON WHEEL PULLEY
Price
$90.30
58
MOTOR PULLEY V1.10.95
Price
$17.25
58A
MOTOR PULLEY V2.11.98
Price
$17.25
59
PULLEY COVER
Price
$32.95
60
STAND TOP V1.12.95
Price
$53.80
60-1
STAND TOP V2.09.98
Price
$53.80
60A
STAND LEG
Price
$18.15
60B
SHORT CROSS BRACE V1.12.95
Price
$8.95
60B-1
SHORT CROSS BRACE V2.09.98
Price
$8.95
60C
CROSS BRACE LONG V1.12.95
Price
$11.50
60C-1
CROSS BRACE LONG V2.09.98
Price
$12.10
61
*DISCD*UPPER COVER
Price
$107.55
62
*DISCD*LOWER COVER
Price
$107.55
63
TIRE
Price
$17.25
64
BALL BEARING 6200-2RS
Price
N/A
65
BALL BEARING 6204-2RS
Price
N/A
66
BALL BEARING 6202-2RS
Price
N/A
67
V-BELT M50 3L500
Price
N/A
67A
V-BELT V2.11.98
Price
$12.40
68
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
69
*DISCD*MOTOR 1 1/2 HP
Item is no longer available
Price
N/A
69-1
FAN FOR MOTOR
Price
$7.90
69-2
FAN GUARD
Price
$8.95
69-3
COMPLETE MOTOR CONNECTION
Item is no longer available
Price
N/A
69-4
CAPACITOR COVER
Price
$2.75
69A
*DISCD*MOTOR 2HP 110V/220V 1-PH
Item is no longer available
Price
N/A
69B
FAN FOR MOTOR
Price
N/A
69C
FAN GUARD
Price
N/A
69D
COMPLETE MOTOR CONNECTION
Price
N/A
69E
CAPACITOR COVER
Price
N/A
70
*DISCD*PIN
Item is no longer available
Price
N/A
71
P1073071
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
72
P1073072
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
73
P1073073
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
74
P1073074
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
75
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
76
LOCK KNOB
Price
$1.60
77
CAP SCREW 5/16-18 X 1-3/4
Price
N/A
77A
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
78
*DISCD*RACKING ADJUST NUT 5/16-18
Item is no longer available
Price
N/A
79
KEY 5 X 5 X 20
Price
N/A
80
KEY 5 X 5 X 35
Price
N/A
81
NUT 3/4-16 RH
Price
N/A
81A
NUT 3/4-16 LH
Price
$1.60
81B
NUT 3/4-16 RH
Price
$1.60
81C
HEX NUT 5/8-18
Price
N/A
82
P1073082
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
83
NUT 3/4-16 RH
Price
N/A
83A
NUT 3/4-16 LH
Price
N/A
83B
JAM NUT 3/4-16 RH
Price
$1.49
85
CAP SCREW 5/16-18 X 3/4
Price
N/A
87
P1073087
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
88
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
89
CAP SCREW 5/16-18 X 1/2
Price
N/A
90
COLLAR
Price
$1.60
91
SET SCREW 1/4-20 X 1/2
Price
N/A
92
SET SCREW 1/4-20 X 1/2
Price
N/A
93
EXT RETAINING RING 10MM
Price
N/A
94
SET SCREW 5/16-18 X 3/4
Price
N/A
95
P1073095
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
95A
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
96
*DISCD*SPRING 10.2
Item is no longer available
Price
N/A
97
PUSH BUTTON SWITCH
Price
N/A
97A
Safety Paddle Switch
Price
N/A
98
LATCH
Price
$4.40
99
STRIKE
Price
$2.20
100
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
100A
CARRIAGE BOLT 5/16-18 X 1/2
Price
N/A
101
*DISCD*TRACKING KNOB
Item is no longer available
Price
N/A
102
MOTOR MOUNT BRACKET FOR 1.5 HP MOTOR
Price
$33.10
102A
MOTOR MOUNT BRACKET FOR 2HP MOTOR
Price
$34.80
103
NAME PLATE
Price
$7.00
104
*DISCD*BEARING SPACER
Item is no longer available
Price
N/A
105
CAP SCREW 1/4-20 X 3/4
Price
N/A
105A
CAP SCREW 1/4-20 X 5/8
Price
N/A
106
TENSION BRACKET
Price
$7.00
107
P1073107
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
108
*DISCD*QUICK DISCONNECT CORD MALE
Price
N/A
108A
*DISCD*QUICK DISCONNECT CORD MALE
Item is no longer available
Price
N/A
109
QUICK DISCONNECT CORD FEMALE
Price
N/A
109A
QUICK DISCONNECT CORD FEMALE
Price
$16.95
110
P1073110
Now: PN01
HEX NUT 1/2-20
Price
N/A
111
P1073111
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
111A
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
112
P1073112
Now: PW02
FLAT WASHER 3/8
Price
N/A
113
P1073113
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
114
P1073114
Now: PW06
FLAT WASHER 1/4
Price
N/A
115
P1073115
Now: PN08
HEX NUT 3/8-16
Price
N/A
116
E-CLIP 7MM
Price
N/A
117
SET SCREW 1/4-20 X 1/2
Price
N/A
118
P1073118
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
118A
PHLP HD SCR 10-24 X 1/4
Price
N/A
119
P1073119
Now: PW07
FLAT WASHER 5/16
Price
N/A
120
LOCK WASHER 5/16
Price
N/A
121
P1073121
Now: PN14
HEX NUT 8-32
Price
N/A
121A
HEX NUT 10-24
Price
N/A
122
TAP SCREW #6 X 1/2
Price
N/A
123
P1073123
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
123A
HEX BOLT 3/8-16 X 7/8
Price
N/A
123B
HEX BOLT 3/8-16 X 1
Price
N/A
124
P1073124
Now: PN07
HEX NUT 10-24
Price
N/A
125
P1073125
Now: PN05
HEX NUT 1/4-20
Price
N/A
126
*DISCD*BRUSH
Item is no longer available
Price
N/A
127
MOUNT BRACKET
Price
$4.30
128
TAP SCREW #6 X 1/2"
Price
$1.60
129
P1073129
Now: PW02
FLAT WASHER 3/8
Price
N/A
129A
FLAT WASHER 1/4
Price
N/A
130
P1073130
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
130A
PHLP HD SCR 10-24 X 3/8
Price
N/A
131
2-1/2" Universal Dust Port for Shop-Vac & Sears
Price
N/A
132
*DISCD*STUD-FT 5/16-24 X 1-3/4
Item is no longer available
Price
N/A
133
STUD-FT 5/16-24 X 1-1/2
Price
$1.60
134
P1073134
Now: PW07
FLAT WASHER 5/16
Price
N/A
135
P1073135
Now: PW02
FLAT WASHER 3/8
Price
N/A
136
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
137
P1073137
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
137A
PHLP HD SCR 8-32 X 1/4
Price
N/A
138
P1073138
Now: PN05
HEX NUT 1/4-20
Price
N/A
138A
HEX NUT 5/16-18
Price
N/A
139
P1073139
Now: PW07
FLAT WASHER 5/16
Price
N/A
140
P1073140
Now: PN02
HEX NUT 5/16-18
Price
N/A
141
P1073141
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
142
P1073142
Now: PW07
FLAT WASHER 5/16
Price
N/A
143
FLAT HD SCR 10-24 X 3/8
Price
N/A
144
STOP PIN
Price
N/A
145
STOP BLOCK
Price
N/A
146
SCALE
Price
N/A
147
P1073147
Now: PW03
FLAT WASHER #10
Price
N/A
148
P1073148
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
149
*DISCD*STUD
Price
N/A
150
*DISCD*FIBER WASHER
Price
N/A
151
P1073151
Now: PW06
FLAT WASHER 1/4
Price
N/A
152
LOCK KNOB
Price
N/A
153
PUSH HANDLE
Price
N/A
154
MITER GAUGE BODY V1.12.95
Price
N/A
154A
MITER GAUGE BODY V2.05.07
Price
N/A
155
P1073155
Now: PN07
HEX NUT 10-24
Price
N/A
156
P1073156
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
156A
SET SCREW 10-24 X 3/4
Price
N/A
157
MITER HINGE PIN V1.12.95
Price
N/A
158
MITER BAR
Price
N/A
158A
MITER BAR
Price
N/A
159
P1073159
Now: PN02
HEX NUT 5/16-18
Price
N/A
160
P1073160
Now: PW07
FLAT WASHER 5/16
Price
N/A
161
P1073161
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
161A
HEX BOLT 5/16-18 X 1
Price
N/A
162
FOOT
Price
$1.60
163
P1073163
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
163A
CARRIAGE BOLT 5/16-18 X 1
Price
N/A
164
KEY 5 X 5 X 30
Price
N/A
164A
KEY 5 X 5 X 35
Price
N/A
165
STRAIN RELIEF M15 TYPE-2
Price
N/A
166
KNOB
Item is no longer available
Price
N/A
167
SPACER
Price
$2.75
169
ID/WARNING LABEL
Price
$16.40
170
BANDSAW BLADE 2W X 3.3H V2.04.08
Price
N/A
171
DO NOT OPEN LABEL
Price
$4.25
172
ELECTRICITY 1.4W X 1.2H
Price
N/A
173
SWITCH PLATE
Price
$9.10
174
*DISCD*SWITCH COVER
Item is no longer available
Price
N/A
175
*DISCD*CABINET
Price
N/A
176
CABINET COVER
Price
N/A
177
HINGE SHAFT
Price
N/A
178
COMPLETE MITER GAUGE ASSY
Price
$73.95
179
SET SCREW 10-24 X 1/4
Price
N/A
180
MITER GAUGE STOP
Price
N/A
181
*DISCD*POINTER
Price
N/A
182
MITER GAUGE SCALE
Price
N/A
183
P1073183
Now: PW06
FLAT WASHER 1/4
Price
N/A
184
MITER GAUGE HANDLE V2.10.01
Price
N/A
185
Nameplate - Mini
Price
N/A
186
EXT TOOTH WASHER #10
Price
N/A
187
ROLL PIN 1.5 X 4
Price
N/A
188
P1073188
Now: PW06
FLAT WASHER 1/4
Price
N/A
189
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
190
INT RETAINING RING 47MM
Price
N/A
200
WARNING LABEL
Item is no longer available
Price
N/A
500
CARTON FOR G1073
Item is no longer available
Price
N/A
501
STYROFOAM 2PC
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G1073/Z 10/02
Price
$14.65
MITER
COMPLETE MITER GAUGE ASSY
Price
$41.70
