Parts for G1140 - 6" x 80" Floor Model Edge Sander

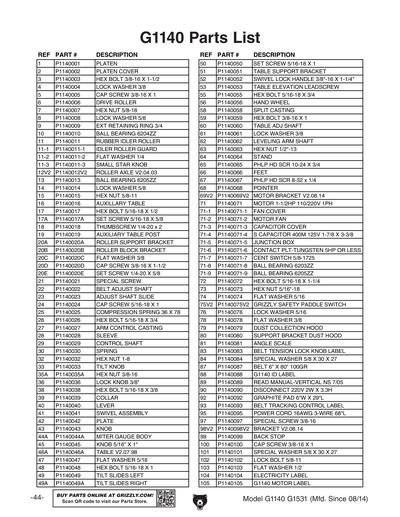

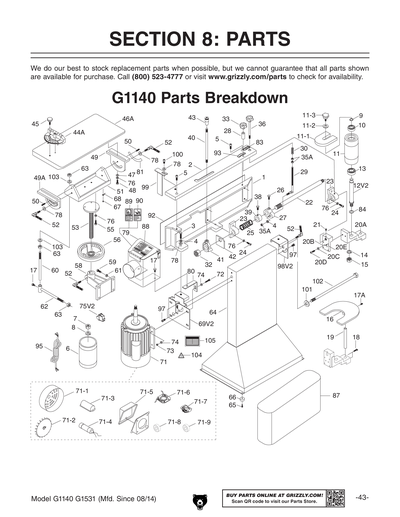

Part Diagram for G1140
Part Diagram for G1140
Part Diagram for G1140
Part Diagram for G1140

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
PLATEN
Price
N/A
18
*DISCD*THUMB SCREW 1/4 - 2"
Item is no longer available
Price
N/A
2
PLATEN COVER
Price
N/A
3
P1140003
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
4
LOCK WASHER 3/8
Price
N/A
5
CAP SCREW 3/8-16 X 1
Price
N/A
6
DRIVE ROLLER
Price
N/A
7
P1140007
Now: PN09
HEX NUT 5/8-18
Price
N/A
8
LOCK WASHER 5/8
Price
N/A
9
P1140009
Now: PR02
EXT RETAINING RING 3/4
Price
N/A
10
BALL BEARING 6204ZZ
Price
N/A
11
RUBBER IDLER ROLLER
Price
N/A
11-1
IDLER ROLLER GUARD
Price
$16.80
11-2
FLAT WASHER 1/4
Price
N/A
11-3
START KNOB SMALL
Price
$3.35
12
ROLLER AXLE V2.04.03
Price
N/A
12V2
ROLLER AXLE V2.04.03
Price
N/A
13
BALL BEARING 6205ZZ
Price
N/A
14
LOCK WASHER 5/8
Price
N/A
15
P1140015
Now: PN04
HEX NUT 5/8-11
Price
N/A
16
AUXILLARY TABLE
Price
N/A
17
P1140017
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
17A
SET SCREW 5/16-18 X 5/8
Price
N/A
18
THUMBSCREW 1/4-20 X 2
Price
N/A
19
AUXILLARY TABLE POST
Price
N/A
20A
ROLLER SUPPORT BRACKET V2.12.97
Price
N/A
20B
ROLLER BLOCK BRACKET V2.11.98
Price
N/A
20C
FLAT WASHER 3/8
Price
N/A
20D
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
20E
SET SCREW 1/4-20 X 5/8
Price
N/A
21
ROLLER BLOCK BRACKET SCREW 1/4-20 X 5/8
Price
N/A
22
BELT ADJUST SHAFT
Price
N/A
23
ADJUST SHAFT SLIDE
Price
N/A
24
CAP SCREW 5/16-18 X 1
Price
N/A
25
COMPRESSION SPRING 36 X 78
Price
N/A
26
P1140026
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
27
ARM CONTROL CASTING
Price
N/A
28
SLEEVE
Price
N/A
29
CONTROL SHAFT
Price
N/A
30
COMPRESSION SPRING 16.5 X 44
Price
N/A
32
P1140032
Now: PN22
HEX NUT 1-8
Price
N/A
33
TILT KNOB
Price
N/A
35A
HEX NUT 3/8-16
Price
N/A
36
LOCK KNOB 3/8" W/SHAFT
Price
N/A
38
P1140038
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
39
COLLAR
Price
N/A
40
LEVER
Price
N/A
41
SWIVEL ASSY
Price
N/A
42
PLATE
Price
N/A
43
KNOB
Price
N/A
44
MITER GAUGE BODY V1.12.95
Price
N/A
44A
MITER GAUGE BODY
Price
$22.50
45
KNOB 5/16 X 1
Price
N/A
46A
TABLE V2.07.98
Price
N/A
47
P1140047
Now: PW07
FLAT WASHER 5/16
Price
N/A
48
P1140048
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
49
TILT SLIDES LEFT
Price
N/A
49A
TILT SLIDES RIGHT
Price
N/A
50
SET SCREW 5/16-18 X 1
Price
N/A
51
TABLE SUPPORT BRACKET
Price
N/A
52
SWIVEL LOCK HANDLE 3/8-16 X 1-1/4"
Price
N/A
53
TABLE ELEVATION LEADSCREW
Price
$65.70
55
P1140055
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
56
HAND WHEEL
Price
N/A
57
SWIVEL LOCK HANDLE 3/8-16 X 1-1/4"
Price
N/A
58
SPLIT CASTING
Price
N/A
59
P1140059
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
60
TABLE ADJ SHAFT
Price
N/A
61
LOCK WASHER 3/8
Price
N/A
62
LEVELING ARM SHAFT
Price
N/A
63
P1140063
Now: PN13
HEX NUT 1/2-13
Price
N/A
64
STAND 5 HOLE
Price
$489.40
65
P1140065
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
66
FEET
Price
N/A
67
P1140067
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
68
POINTER
Price
$1.85
69
MOTOR BRACKET V2.08.14
Price
N/A
69V2
MOTOR BRACKET V2.08.14
Price
$33.55
71
MOTOR 1.5HP 110V/220V 1-PH
Price
N/A
71-1
FAN COVER
Price
$8.50
71-2
MOTOR FAN
Price
$4.30
71-3
CAPACITOR COVER
Price
$5.50
71-4
S CAPACITOR 400M 125V 1-7/8 X 3-3/8
Price
N/A
71-5
JUNCTION BOX
Price
$13.60
71-6
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
71-7
CENT SWITCH 5/8-1725
Price
N/A
71-8
BALL BEARING 6203ZZ
Price
N/A
71-9
BALL BEARING 6205ZZ
Price
N/A
72
P1140072
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
73
P1140073
Now: PN02
HEX NUT 5/16-18
Price
N/A
74
P1140074
Now: PW07
FLAT WASHER 5/16
Price
N/A
75
Safety Paddle Switch
Price
N/A
75V2
Safety Paddle Switch
Price
N/A
76
LOCK WASHER 5/16
Price
N/A
78
P1140078
Now: PW02
FLAT WASHER 3/8
Price
N/A
79
DUST COLLECTION HOOD
Price
N/A
80
DUST HOOD SUPPORT BRACKET
Price
N/A
81
ANGLE SCALE
Price
N/A
82
ANGLE SCALE
Price
N/A
83
BELT TENSION LOCK KNOB LABEL
Price
N/A
84
BRACKET WASHER 5/8 X 30 X 27
Price
N/A
87
6" x 80" A/O Sanding Belt 100 Grit, 2 Pk.
Price
N/A
88
MACHINE ID LABEL
Price
$16.40
89
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
90
DISCONNECT LABEL 220V 2W X 3.3H
Price
N/A
91
P1140091
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
92
GRAPHITE PAD 6W X 29L IN
Price
N/A
93
BELT TRACKING CONTROL LABEL
Price
N/A
95
*DISCD*POWER CORD 16AWG 3-WIRE 68"L
Item is no longer available
Price
N/A
97
BRACKET SCREW 3/8-16
Price
$7.00
98
BRACKET V1
Price
$18.75
98V2
BRACKET V2.08.14
Price
$14.50
99
BACK STOP
Price
$15.25
100
CAP SCREW 3/8-16 X 1
Price
N/A
101
BRACKET WASHER 5/8 X 30 X 27
Price
$1.60
102
LOCK BOLT 5/8-11
Price
$1.60
103
P1140103
Now: PW01
FLAT WASHER 1/2
Price
N/A
104
ELECTRICITY 1.4W X 1.2H
Price
N/A
105
*DISCD*G1140 MOTOR LABEL
Item is no longer available
Price
N/A
106
IDLER ROLLER GUARD
Price
N/A
500
CARTON FOR G1140
Price
$45.90
501
STYROFOAM 2PC
Price
$66.75
MANUAL
MANUAL FOR G1140 07/08
Price
$14.65
