Parts for G1148 - Heavy-Duty 15" Bandsaw

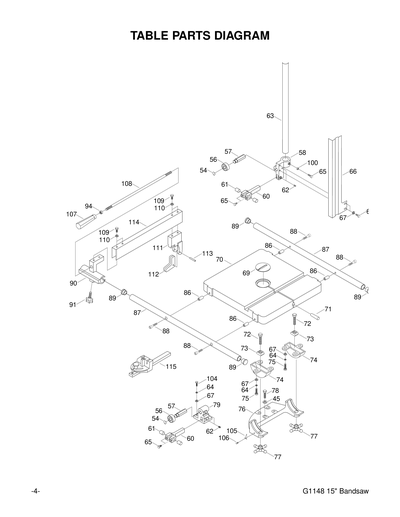

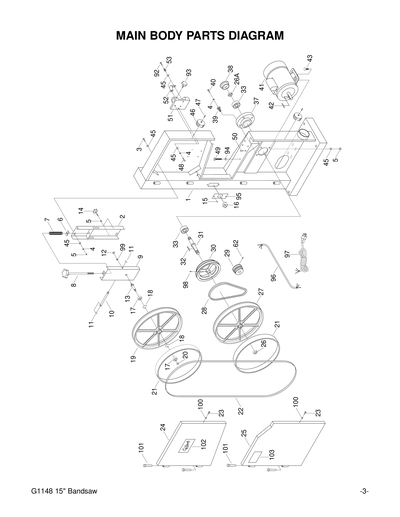

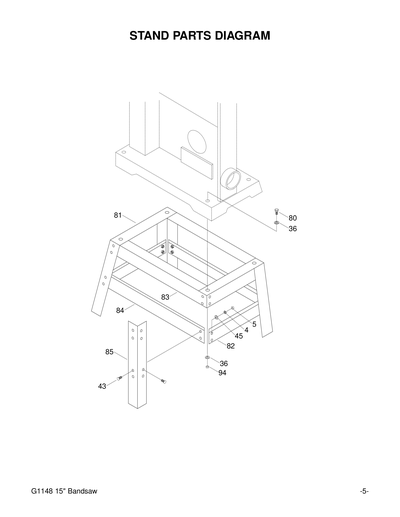

Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148
Part Diagram for G1148

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

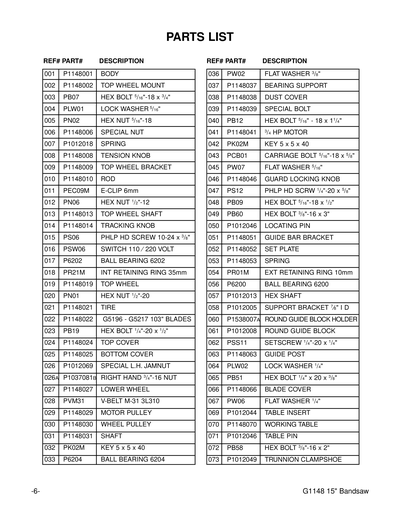

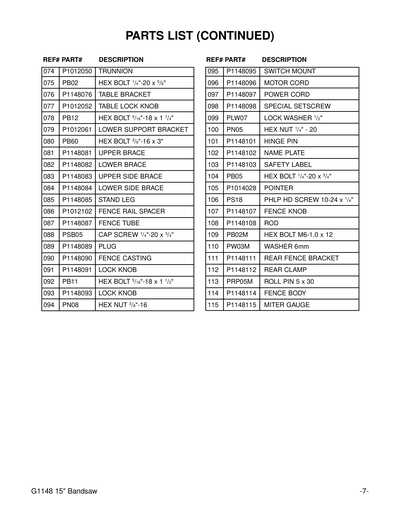

Ref #
Part #
Description
1
Price
$726.80
2
Price
$30.80
3
P1148003
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
4
LOCK WASHER 5/16
Price
N/A
5
P1148005
Now: PN02
HEX NUT 5/16-18
Price
N/A
6
TOP WHEEL MOUNT NUT 3/8-16
Price
$9.50
7
SPRING 4.2 X 76
Price
N/A
8
*DISCD*TENSION KNOB W/BOLT PRESSED V1
Item is no longer available
Price
N/A
8-1
TENSION KNOB W/O BOLT
Item is no longer available
Price
N/A
8V2
TENSION KNOB W/BOLT V2.12.10
Price
$44.70
9
*DISCD*TOP WHEEL BRACKET
Item is no longer available
Price
N/A
10
*DISCD*ROD
Item is no longer available
Price
N/A
11
E-CLIP 6MM
Price
N/A
12
P1148012
Now: PN06
HEX NUT 1/2-12
Price
N/A
13
Price
$7.20
14
*DISCD*TRACKING KNOB
Item is no longer available
Price
N/A
15
P1148015
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
16
Safety Paddle Switch
Price
N/A
17
BALL BEARING 6202-2RS
Price
N/A
18
INT RETAINING RING 35MM
Price
N/A
19
Price
$83.95
20
P1148020
Now: PN01
HEX NUT 1/2-20
Price
N/A
21
TIRE RUBBER
Price
N/A
22
103" x 1/2" x .025" x 6 TPI Hook Bandsaw Blade
Price
N/A
23
P1148023
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
24
Price
$63.25
25
Price
$63.25
26
LOWER WHEEL LH NUT 3/4-10
Price
N/A
26A
NUT 3/4-16 RH
Price
N/A
27
*DISCD*LOWER WHEEL
Item is no longer available
Price
N/A
28
V-BELT M31 3L310
Price
N/A
29
Price
$26.45
30
Price
$37.40
31
*DISCD*SHAFT
Item is no longer available
Price
N/A
32
KEY 5 X 5 X 40
Price
N/A
33
BALL BEARING 6204-2RS
Price
N/A
36
P1148036
Now: PW02
FLAT WASHER 3/8
Price
N/A
37
Price
$35.10
38
COVER
Price
N/A
39
*DISCD*SPECIAL BOLT
Item is no longer available
Price
N/A
40
P1148040
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
41
*DISCD*MOTOR 3/4HP
Item is no longer available
Price
N/A
41A
*DISCD*MOTOR 1HP
Item is no longer available
Price
N/A
41A-1
*DISCD*JUNCTION BOX COVER
Item is no longer available
Price
N/A
42
KEY 5 X 5 X 40
Price
N/A
43
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
45
P1148045
Now: PW07
FLAT WASHER 5/16
Price
N/A
46
*DISCD*GUARD LOCKING KNOB
Item is no longer available
Price
N/A
47
P1148047
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
48
P1148048
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
49
P1148049
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
50
Price
$1.49
51
*DISCD*GUIDE BAR BRACKET
Price
$34.80
52
Price
$1.49
53
Price
$1.49
54
EXT RETAINING RING 10MM
Price
N/A
56
BALL BEARING 6200-2RS
Price
N/A
57
*DISCD*HEX SHAFT V1.12.95
Price
N/A
58
SUPPORT BRACKET CAST IRON 7/8"ID V2.12.1
Price
N/A
60
GUIDE BLOCK HOLDER ROUND
Price
N/A
61
BLADE GUIDE BLOCK ROUND
Price
N/A
62
SET SCREW 1/4-20 X 1/4
Price
N/A
63
Price
$17.00
64
LOCK WASHER 1/4
Price
N/A
65
P1148065
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
66
*DISCD*BLADE GUARD
Price
N/A
67
P1148067
Now: PW06
FLAT WASHER 1/4
Price
N/A
69
***USE P1019Z077***
Price
N/A
70
*DISCD*WORKING TABLE
Item is no longer available
Price
N/A
71
TAPERED PIN
Price
N/A
72
P1148072
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
73
TRUNNION CLAMPSHOE
Price
N/A
74
TRUNNION
Price
N/A
75
P1148075
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
76
*DISCD*TABLE BRACKET
Item is no longer available
Price
N/A
77
LOCK KNOB FOR TABLE
Price
N/A
78
P1148078
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
79
SUPPORT BRACKET LOWER
Price
N/A
80
P1148080
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
81
*DISCD*UPPER BRACE
Item is no longer available
Price
N/A
82
Price
$6.90
83
*DISCD*UPPER SIDE BRACE
Price
$7.50
84
*DISCD*LOWER SIDE BRACE
Price
$8.35
85
Price
$8.05
86
FENCE RAIL SPACER
Price
N/A
87
Price
$46.00
88
CAP SCREW 1/4-20 X 3/4
Price
N/A
89
Price
$1.49
90
*DISCD*FENCE CASTING
Item is no longer available
Price
N/A
91
*DISCD*LOCK KNOB
Item is no longer available
Price
N/A
92
P1148092
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
93
Price
$1.49
94
P1148094
Now: PN08
HEX NUT 3/8-16
Price
N/A
95
Price
$1.49
96
*DISCD*MOTOR CORD
Item is no longer available
Price
N/A
97
*DISCD*POWER CORD
Item is no longer available
Price
N/A
98
SET SCREW 1/4-20 X 1/4
Price
N/A
99
LOCK WASHER 1/2
Price
N/A
100
P1148100
Now: PN05
HEX NUT 1/4-20
Price
N/A
101
Price
$2.05
102
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
103
*DISCD*SAFETY LABEL
Item is no longer available
Price
N/A
104
P1148104
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
105
POINTER
Price
N/A
106
P1148106
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
107
*DISCD*FENCE KNOB
Item is no longer available
Price
N/A
108
Price
$6.05
109
HEX BOLT M6-1 X 12
Price
N/A
110
FLAT WASHER 6MM
Price
N/A
111
*DISCD*REAR FENCE BRACKET
Item is no longer available
Price
N/A
112
*DISCD*REAR CLAMP
Item is no longer available
Price
N/A
113
ROLL PIN 5 X 30
Price
N/A
114
*DISCD*FENCE BODY
Item is no longer available
Price
N/A
115
*DISCD*MITER GAUGE BAR 18MM
Item is no longer available
Price
N/A
116
*DISCD*COMPLETE FENCE ASSY
Price
$96.90
117
*DISCD*COMPLETE BOLT BAG
Price
$18.40
HDWBAG
*DISCD*HARDWARE BAG FOR STAND
Price
$11.25
MANUAL
*DISCD*MANUAL FOR G1148
Item is no longer available
Price
N/A
PART
MISC PART FOR G1148
Item is no longer available
Price
N/A
