Parts for G1182Z 6" x 47" Super Heavy-Duty Jointer - Z Series

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

28
*DISCD*INFEED TABLE
Price
N/A
200
WARNING LABEL
Price
N/A
201
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
500
CARTON FOR G1182Z
Item is no longer available
Price
N/A
501
STYROFOAM 2PC
Item is no longer available
Price
N/A
HWBOX2
COMPLETE STAND ASSY BOX 2
Item is no longer available
Price
N/A
HWMANUAL
MANUAL FOR G1182HW/ZHW/Z/ZX 01/02
Price
N/A
MANUAL
MANUAL FOR G1182Z 01/02
PG1182Z001
BASE
Price
N/A
PG1182Z002
*DISCD*INFEED TABLE
Price
N/A
PG1182Z003
*DISCD*OUTFEED TABLE
Price
N/A
PG1182Z004
GIB
Price
N/A
PG1182Z005
*DISCD*TABLE LOCK HANDLE
Price
N/A
PG1182Z005A
***SEE EXT. DESCRIPTION***
Price
N/A
PG1182Z006
Now: PSS12
SET SCREW 1/4-20 X 1
Price
N/A
PG1182Z007
Now: PN05
HEX NUT 1/4-20
Price
N/A
PG1182Z008
TABLE ADJUST ROD
Price
N/A
PG1182Z009
E-CLIP 13MM
Price
N/A
PG1182Z010
BASE ROD
Price
N/A
PG1182Z011
TABLE ADJUST BLOCK
Price
N/A
PG1182Z012
TABLE ADJUST LEVER
Price
N/A
PG1182Z013
KNOB
Price
N/A
PG1182Z014
BELT GUARD
Price
N/A
PG1182Z015
Now: PW07
FLAT WASHER 5/16
Price
N/A
PG1182Z016
Now: PB23
HEX BOLT 5/16-18 X 2-1/2
Price
N/A
PG1182Z017
CUTTERHEAD WARNING 3.6W X 1.9H
Price
N/A
PG1182Z018
***SEE EXT. DESCRIPTION***
Price
N/A
PG1182Z018A
SHOULDER STUD
Price
N/A
PG1182Z019
***SEE EXT. DESCRIPTION***
Price
N/A
PG1182Z020
SPRING PLATE
Price
N/A
PG1182Z021
SPRING 22.3 X 24
Price
N/A
PG1182Z022
*DISCD*SPRING HOUSING
Price
N/A
PG1182Z023
HOUSING MOUNT
Price
N/A
PG1182Z024
Now: PS29
PHLP HD SCR 6-32 X 5/8
Price
N/A
PG1182Z025
Now: PN02
HEX NUT 5/16-18
Price
N/A
PG1182Z026
SCALE
Price
N/A
PG1182Z027
POINTER
Price
N/A
PG1182Z028
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
PG1182Z029
*DISCD*FENCE SUPPORT
Price
N/A
PG1182Z030
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PG1182Z031
FENCE SUPPORT WASHER
Price
N/A
PG1182Z032
KEY 3/8 X 3/8 X 225
Price
N/A
PG1182Z033
ROLL PIN 4 X 12
Price
N/A
PG1182Z034
Now: PW02
FLAT WASHER 3/8
Price
N/A
PG1182Z035
Now: PN08
HEX NUT 3/8-16
Price
N/A
PG1182Z036
KNOB
Price
N/A
PG1182Z037
*DISCD*CABINET DOOR 14-3/4 X 13 IN V1.02.03
Price
N/A

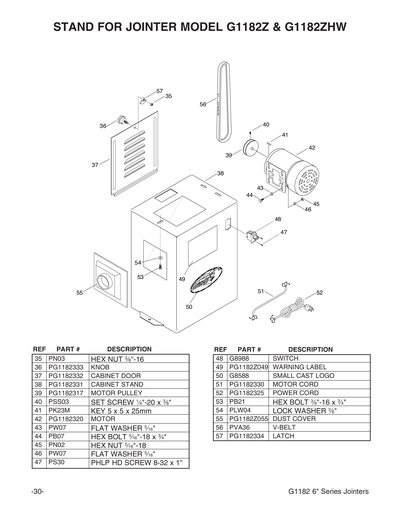

PG1182Z038
CABINET STAND
Price
N/A
PG1182Z039
MOTOR PULLEY
Price
N/A
PG1182Z040
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
PG1182Z041
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
PG1182Z042
MOTOR 1HP 110V/220V 1-PH
Price
N/A
PG1182Z043
Now: PW07
FLAT WASHER 5/16
Price
N/A
PG1182Z044
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
PG1182Z045
Now: PN02
HEX NUT 5/16-18
Price
N/A
PG1182Z046
Now: PW07
FLAT WASHER 5/16
Price
N/A
PG1182Z047
Now: PS30
PHLP HD SCR 8-32 X 1
Price
N/A
PG1182Z048
Now: G8988
Safety Paddle Switch
Price
N/A
P
WARNING LABEL
PG1182Z050
Now: G8588
Nameplate - Small
Price
N/A
PG1182Z051
MOTOR CORD
Price
N/A
PG1182Z052
POWER CORD 16G X 3W 73"L
Price
N/A
PG1182Z053
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
PG1182Z054
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PG1182Z055
Now: W1001
Jointer Dust Hood
Price
N/A
PG1182Z056
Now: PVA36
V-BELT A36
Price
N/A
PG1182Z057
*DISCD*LATCH
Price
N/A

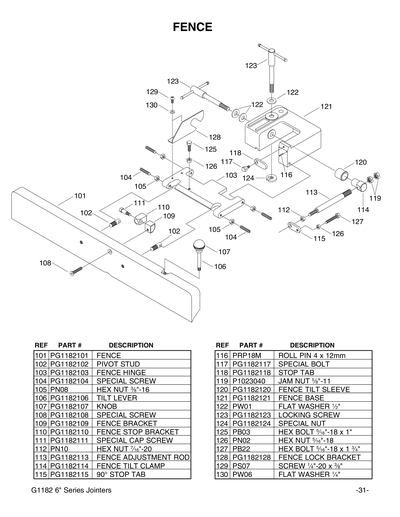

PG1182Z101
FENCE
Price
N/A
PG1182Z102
STANDOFF-HEX MF
Price
N/A
PG1182Z103
*DISCD*FENCE HINGE
Price
N/A
PG1182Z104
FENCE HINGE SCREW
Price
N/A
PG1182Z105
Now: PN08
HEX NUT 3/8-16
Price
N/A
PG1182Z106
TILT LEVER
Price
N/A
PG1182Z107
KNOB
Price
N/A
PG1182Z108
FENCE SCREW
Price
N/A
PG1182Z109
FENCE BRACKET
Price
N/A
PG1182Z110
FENCE STOP BRACKET
Price
N/A
PG1182Z111
FENCE BRACKET HEX HD BOLT 5/16-18
Price
N/A
PG1182Z112
Now: PN10
HEX NUT 7/16-20
Price
N/A
PG1182Z113
FENCE ADJUSTMENT ROD
Price
N/A
PG1182Z114
FENCE TILT CLAMP
Price
N/A
PG1182Z115
STOP TAB 90DEG
Price
N/A
PG1182Z116
ROLL PIN 4 X 12
Price
N/A
PG1182Z117
FENCE BASE BOLT 5/16-18
Price
N/A
PG1182Z118
STOP TAB
Price
N/A
PG1182Z119
Now: PN09
HEX NUT 5/8-18
Price
N/A
PG1182Z120
FENCE TILT SLEEVE
Price
N/A
PG1182Z121
*DISCD*FENCE BASE
Price
N/A
PG1182Z122
Now: PW01
FLAT WASHER 1/2
Price
N/A
PG1182Z123
*DISCD*LOCK SCREW 1/2-12
Price
N/A
PG1182Z124
FENCE BASE NUT 1/2-12
Price
N/A
PG1182Z125
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
PG1182Z126
Now: PN02
HEX NUT 5/16-18
Price
N/A
PG1182Z127
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
PG1182Z128
FENCE LOCK BRACKET
Price
N/A
PG1182Z129
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
PG1182Z130
Now: PW06
FLAT WASHER 1/4
Price
N/A

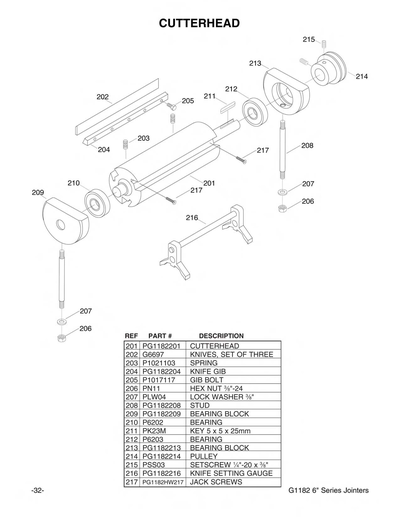

PG1182Z201
CUTTERHEAD V2.02.04
Price
N/A
PG1182Z202
Now: G6697
6" x 1" x 1/8" HSS Jointer Knives, Set of 3
Price
N/A
PG1182Z203
COMPRESSION SPRING 0.6 X 5.9 X 16
Price
N/A
PG1182Z204
KNIFE GIB 6"
Price
N/A
PG1182Z205
HEX HD GIB BOLT 1/4-28 X 7
Price
N/A
PG1182Z206
Now: PN11
HEX NUT 3/8-24
Price
N/A
PG1182Z207
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PG1182Z208
STUD-DE 3/8"-24 X 4 1RH
Price
N/A
PG1182Z209
BEARING BLOCK 1.970"
Price
N/A
PG1182Z209A
BEARING BLOCK 1.820"
Price
N/A
PG1182Z210
BALL BEARING 6202ZZ
Price
N/A
PG1182Z211
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
PG1182Z212
BALL BEARING 6203ZZ
Price
N/A
PG1182Z213
BEARING BLOCK 2.120"
Price
N/A
PG1182Z213A
BEARING BLOCK 1.970"
Price
N/A
PG1182Z214
PULLEY
Price
N/A
PG1182Z215
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
PG1182Z216
COMPLETE KNIFE GAUGE ASSY FOR G1182
Price
N/A
PG1182Z217
CUTTERHEAD JACK SCREW M5-.8 X 12
Item is no longer available
Price
N/A
P
CABINET STAND
P
CABINET STAND ASSY W/MOTOR 1HP 110V/220V
PG1182Z332
*DISCD*CABINET DOOR 14-3/4 X 13 IN V1.02.03
Item is no longer available
Price
N/A
PG1182Z332V2
CABINET DOOR 15-3/4 X 13-7/8 IN V2.12.08
Item is no longer available
Price
N/A
P
KNOB
PG1182Z334
*DISCD*LATCH
Item is no longer available
Price
N/A
P
MANUAL FOR G1182HW/ZHW/Z/ZX 01/02
