Parts for G1183 - 6" x 48" Belt/12" Disc Combo Sander, 3450 RPM

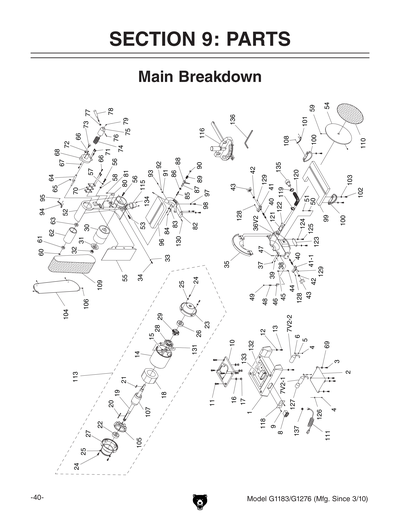

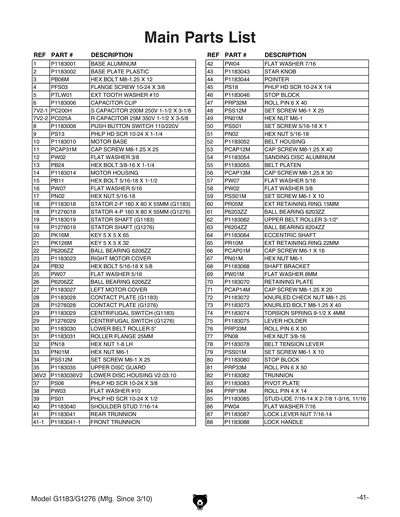

Part Diagram for G1183

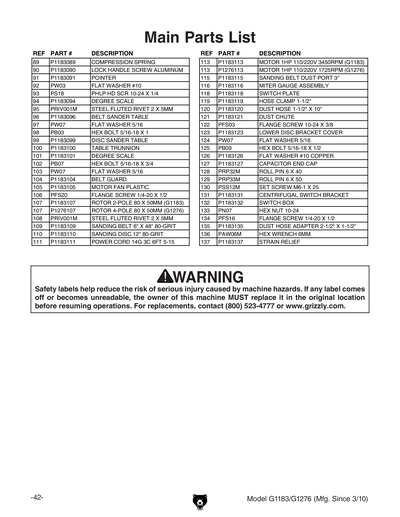

Part Diagram for G1183
Part Diagram for G1183
Part Diagram for G1183
Part Diagram for G1183
Part Diagram for G1183

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE ALUMINUM
Price
$164.85
2
BASE PLATE PLASTIC
Price
$2.20
3
HEX BOLT M8-1.25 X 12
Price
N/A
4
FLANGE SCREW 10-24 X 3/8
Price
N/A
5
EXT TOOTH WASHER #10
Price
N/A
6
CAPACITOR CLIP
Price
$1.60
7
*DISCD*S CAPACITOR 200M 250V 3-3/4 X 1-3
Item is no longer available
Price
N/A
7V2-1
S CAPACITOR 200M 250V 1-1/2 X 3-1/8
Price
N/A
7V2-2
R CAPACITOR 25M 350V 1-1/2 X 3-5/8
Price
N/A
8
SWITCH AND SWITCH PLATE
Price
N/A
8A
***USE P1183118A***
Item is no longer available
Price
N/A
9
P1183009
Now: PS13
PHLP HD SCR 10-24 X 1-1/4
Price
N/A
10
MOTOR BASE
Price
$78.25
11
CAP SCREW M8-1.25 X 16
Price
N/A
12
P1183012
Now: PW02
FLAT WASHER 3/8
Price
N/A
13
CAP SCREW 7/16-14 X 1-1/4
Price
N/A
14
MOTOR HOUSING
Price
$195.40
15
P1183015
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
16
P1183016
Now: PW07
FLAT WASHER 5/16
Price
N/A
17
P1183017
Now: PN02
HEX NUT 5/16-18
Price
N/A
18
STATOR 2-POLE 160 X 080 X 55MM
Price
$288.60
19
STATOR SHAFT
Price
$195.40
20
KEY 5 X 5 X 65
Price
N/A
21
KEY 5 X 5 X 32
Price
N/A
22
BALL BEARING 6206ZZ
Price
N/A
23
RIGHT MOTOR COVER
Price
$34.15
24
P1183024
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
25
P1183025
Now: PW07
FLAT WASHER 5/16
Price
N/A
26
BALL BEARING 6206ZZ
Price
N/A
27
LEFT MOTOR COVER
Price
$48.65
28
CONTACT PLATE
Price
$14.50
29
CENTRIFUGAL SWITCH
Price
$15.25
30
LOWER BELT ROLLER 5"
Price
$126.80
31
ROLLER FLANGE 25MM
Price
$3.65
32
P1183032
Now: PN18
HEX NUT 1-8 LH
Price
N/A
33
HEX NUT M6-1
Price
N/A
34
SET SCREW M6-1 X 25
Price
N/A
35
UPPER DISC GUARD
Price
$1.60
36
*DISCD*BASE V1
Price
$75.35
36V2
LOWER DISC HOUSING V2.03.10
Price
$92.75
37
P1183037
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
38
P1183038
Now: PW03
FLAT WASHER #10
Price
N/A
39
P1183039
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
40
SHOULDER STUD 7/16-14
Price
$3.05
41
FRONT TRUNNION
Price
N/A
41-1
FRONT TRUNNION
Price
$24.05
42
P1183042
Now: PW04
FLAT WASHER 7/16
Price
N/A
43
STAR KNOB
Price
$22.70
44
POINTER
Price
$3.05
45
P1183045
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
46
STOP BLOCK
Price
$1.60
47
ROLL PIN 6 X 40
Price
N/A
48
SET SCREW M6-1 X 25
Price
N/A
49
HEX NUT M6-1
Price
N/A
50
SET SCREW 5/16-18 X 1
Price
N/A
51
P1183051
Now: PN02
HEX NUT 5/16-18
Price
N/A
52
BELT HOUSING
Price
$311.55
53
CAP SCREW M8-1.25 X 40
Price
N/A
54
SANDING DISC ALUMINUM
Price
$90.85
55
BELT PLATEN
Price
$81.10
56
CAP SCREW M8-1.25 X 30
Price
N/A
57
P1183057
Now: PW07
FLAT WASHER 5/16
Price
N/A
58
P1183058
Now: PW02
FLAT WASHER 3/8
Price
N/A
59
SET SCREW M6-1 X 10
Price
N/A
60
EXT RETAINING RING 15MM
Price
N/A
61
BALL BEARING 6203ZZ
Price
N/A
62
UPPER BELT ROLLER 3-1/2"
Price
$76.90
63
BALL BEARING 6204ZZ
Price
N/A
64
ECCENTRIC SHAFT
Price
$24.85
65
EXT RETAINING RING 22MM
Price
N/A
66
CAP SCREW M6-1 X 16
Price
N/A
67
HEX NUT M6-1
Price
N/A
68
SHAFT BRACKET
Price
$36.35
69
FLAT WASHER 8MM
Price
N/A
70
RETAINING PLATE
Price
$3.15
71
CAP SCREW M8-1.25 X 20
Price
N/A
72
KNURLED CHECK NUT M8-1.25
Price
$2.80
73
KNURLED BOLT M8-1.25 X 40
Price
$2.60
74
TORSION SPRING 9-1/2 X 4MM
Price
$8.00
75
LEVER HOLDER
Price
$20.30
76
ROLL PIN 6 X 50
Price
N/A
77
P1183077
Now: PN08
HEX NUT 3/8-16
Price
N/A
78
BELT TENSION LEVER
Price
$5.15
79
SET SCREW M6-1 X 10
Price
N/A
80
STOP BLOCK
Price
$1.60
81
ROLL PIN 6 X 50
Price
N/A
82
TRUNNION
Price
$65.35
83
PIVOT PLATE
Price
$3.40
84
ROLL PIN 4 X 14
Price
N/A
85
STUD-UDE 7/16-14 X 2-7/8 1-3/16RH/11/16R
Price
$3.40
86
P1183086
Now: PW04
FLAT WASHER 7/16
Price
N/A
87
LOCK LEVER NUT 7/16-14
Price
$4.50
88
LOCK HANDLE
Price
$4.95
89
COMPRESSION SPRING
Price
$2.25
90
LOCK HANDLE SCREW ALUMINUM
Price
$2.75
91
POINTER
Price
$1.60
92
P1183092
Now: PW03
FLAT WASHER #10
Price
N/A
93
P1183093
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
94
DEGREE SCALE
Price
$2.20
95
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
96
BELT SANDER TABLE
Price
$144.30
97
P1183097
Now: PW07
FLAT WASHER 5/16
Price
N/A
98
P1183098
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
99
DISC SANDER TABLE
Price
$152.15
100
TABLE TRUNNION
Price
$24.15
101
DEGREE SCALE
Price
$3.65
102
P1183102
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
103
P1183103
Now: PW07
FLAT WASHER 5/16
Price
N/A
104
BELT GUARD
Price
$35.85
105
MOTOR FAN PLASTIC
Price
$4.60
106
FLANGE SCREW 1/4-20 X 1/2
Price
N/A
107
ROTOR 2-POLE 80 X 50MM
Price
$195.40
109
SANDING BELT 6" X 48" 80-GRIT
Price
$16.35
110
SANDING DISC 12" 80-GRIT
Price
$10.00
111
POWER CORD 14G 3C 6FT 5-15
Price
$19.70
112
MOTOR FAN PLASTIC
Price
N/A
113
MOTOR 1HP 110V/220V 1-PH
Price
$455.90
113-1
MOTOR LABEL
Price
$2.40
114
COMPLETE IDLER ARM ASSY
Price
$185.70
115
SANDING BELT DUST PORT 3"
Price
$3.40
116
MITER GAUGE ASSEMBLY
Price
$20.90
116-1
MITER GAUGE POINTER
Price
$1.60
117
MITER GAUGE ASSEMBLY
Price
N/A
118
SWITCH AND SWITCH PLATE
Price
N/A
118A
SWITCH AND SWITCH PLATE
Price
$27.05
119
HOSE CLAMP 1-1/2"
Price
$2.20
120
DUST HOSE 1-1/2" X 10"
Price
$4.05
121
DUST CHUTE
Price
$1.85
123
LOWER DISC BRACKET COVER
Price
$7.75
126
FLAT WASHER 3MM
Price
N/A
127
CAPACITOR END CAP
Price
$1.60
131
CENTRIFUGAL SWITCH BRACKET
Price
$1.60
132
SWITCH BOX
Price
$5.50
135
DUST HOSE ADAPTER 2-1/2" X 1-1/2"
Price
$4.85
137
GROMMET M1 TYPE-1 PUSH-IN
Price
$1.60
MANUAL
MANUAL FOR G1183 03/11
Price
$14.65
