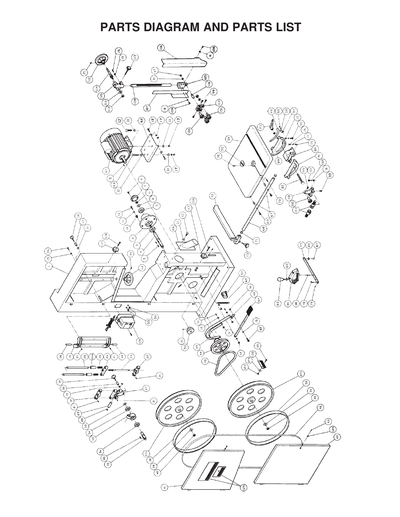

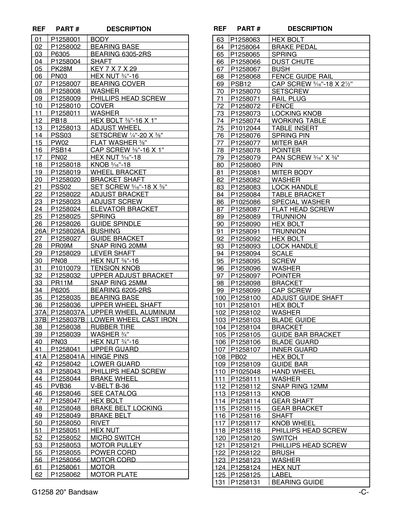

Parts for G1258 20" Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BODY
Item is no longer available
Price
N/A
2
BEARING BASE
3
BALL BEARING 6206-2RS
Price
N/A
4
SHAFT
5
Now: PK28M
KEY 7 X 7 X 29
Price
N/A
6
Now: PN03
HEX NUT 3/4-16
Price
N/A
7
BEARING COVER
Item is no longer available
Price
N/A
8
Now: PW13M
FLAT WASHER 20MM
Price
N/A
9
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
10
COVER
Item is no longer available
Price
N/A
11
Now: PW01M
FLAT WASHER 8MM
Price
N/A
12
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
13
ADJUST WHEEL
14
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
15
Now: PW02
FLAT WASHER 3/8
Price
N/A
16
CAP SCREW 3/8-16 X 1
Price
N/A
17
Now: PN02
HEX NUT 5/16-18
Price
N/A
18
KNOB 5/16 X 18TPI
19
WHEEL BRACKET
20
*DISCD*BRACKET SHAFT
Item is no longer available
Price
N/A
21
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
22
ADJUST BRACKET
23
WHEEL BRACKET ADJUST SCREW 5/8-11 X 60
Item is no longer available
Price
N/A
24
ELEVATOR BRACKET
25
HELICAL SPRING OD4 X 85
26
GUIDE SPINDLE
26A
BUSHING
27
GUIDE BRACKET
28
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
29
LEVER SHAFT
Item is no longer available
Price
N/A
30
Now: PN08
HEX NUT 3/8-16
Price
N/A
31
KNOB 3/8-16 X 3-1/2
Price
N/A
32
UPPER ADJUST BRACKET
33
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
34
BALL BEARING 6205-2RS
Price
N/A
35
BEARING BASE
36
UPPER WHEEL SHAFT (THREADED BOTH ENDS)
37
UPPER WHEEL ALUMINUM
Price
N/A
37A
UPPER WHEEL ALUMINUM
Item is no longer available
Price
N/A
37B
LOWER WHEEL CAST IRON
38
RUBBER TIRE
39
Now: PW13
FLAT WASHER 3/4
Price
N/A
40
HEX NUT 3/4-16 LH
Price
N/A
41
UPPER GUARD
41A
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
42
GUARD LOWER
43
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
44
BRAKE WHEEL
45
Now: PVB36
V-BELT B36
Price
N/A
46
*SEE CATALOG*
Item is no longer available
Price
N/A
47
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
48
*DISCD*BRAKE BELT LOCKING
Item is no longer available
Price
N/A
49
BRAKE BELT
Item is no longer available
Price
N/A
50
RIVET 3/16 X 5/8"
Item is no longer available
Price
N/A
51
Now: PN05
HEX NUT 1/4-20
Price
N/A
52
*DISCD*MICRO SWITCH
Item is no longer available
Price
N/A
53
MOTOR PULLEY
55
POWER CORD
Item is no longer available
Price
N/A
56
MOTOR CORD
Item is no longer available
Price
N/A
57
BALL BEARING 6204-2RS
Price
N/A
58
*DISCD*INTERMEDIATE WHEEL SHAFT
Item is no longer available
Price
N/A
61
MOTOR 3HP 1PH 115/230V
Item is no longer available
Price
N/A
61-1
MOTOR FAN
61-2
CAPACITOR COVER
61-3
MOTOR FAN COVER
61A
MOTOR FAN
Price
N/A
62
MOTOR PLATE
Item is no longer available
Price
N/A
63
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
64
BRAKE PEDAL
Item is no longer available
Price
N/A
65
*DISCD*HELICAL SPRING OD2 X 150
Item is no longer available
Price
N/A
66
DUST CHUTE
67
*DISCD*BUSHING
68
FENCE GUIDE RAIL
69
CAP SCREW 5/16-18 X 2-1/2
Price
N/A
70
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
71
*DISCD*RAIL PLUG
72
FENCE
73
LOCK KNOB
74
WORKING TABLE
75
***USE P1019Z077***
Price
N/A
76
ROLL PIN 3 X 10
Price
N/A
77
MITER BAR
78
POINTER
79
PAN HD SCR 3/16 X 3/8
80
PIN
81
MITER BODY
Item is no longer available
Price
N/A
82
Now: PW03M
FLAT WASHER 6MM
Price
N/A
83
LOCK HANDLE
84
TABLE BRACKET
85
SPRING WASHER
Item is no longer available
Price
N/A
86
MITER BAR WASHER ID8 X 3MMT
87
Now: PFH23
FLAT HD SCR 5/16-18 X 1-1/2
Price
N/A
88
*DISCD*CARRIAGE BOLT
Item is no longer available
Price
N/A
89
TRUNNION
90
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
91
TRUNNION
Item is no longer available
Price
N/A
92
CARRIAGE BOLT 1/2-12 X 4
93
LOCK HANDLE
94
SCALE
Item is no longer available
Price
N/A
95
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
96
Now: PW02M
FLAT WASHER 5MM
Price
N/A
97
POINTER
98
GUIDE BRACKET LOWER
99
CAP SCREW 1/4-20 X 3/4
Price
N/A
100
ADJUST GUIDE SHAFT
Item is no longer available
Price
N/A
101
CAP SCREW 1/4-20 X 5/8
Price
N/A
102
Now: PLW02
LOCK WASHER 1/4
Price
N/A
103
BLADE GUIDE
Item is no longer available
Price
N/A
104
BRACKET
105
GUIDE BAR BRACKET
106
BLADE GUARD
107
BLADE INNER GUARD
Item is no longer available
Price
N/A
108
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
109
GUIDE BAR
110
*DISCD*HANDWHEEL
Price
N/A
111
FLAT WASHER 1/2-25MM PLASTIC
112
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
113
KNOB
114
GEAR SHAFT
115
GEAR BRACKET
116
SHAFT
Item is no longer available
Price
N/A
117
KNOB WHEEL
118
Now: PS19
PHLP HD SCR 1/4-20 X 1
Price
N/A
120
SWITCH 220V 15A 50-60HZ
121
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
122
BRUSH
Item is no longer available
Price
N/A
123
Now: PW03M
FLAT WASHER 6MM
Price
N/A
124
Now: PN07
HEX NUT 10-24
Price
N/A
125
LABEL
129
SWITCH 220V 15A 50-60HZ
Price
N/A
1296
SWITCH 220V 15A 50-60HZ
Price
N/A
131
BEARING GUIDE
200
WARNING LABEL
Item is no longer available
Price
N/A
201
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A

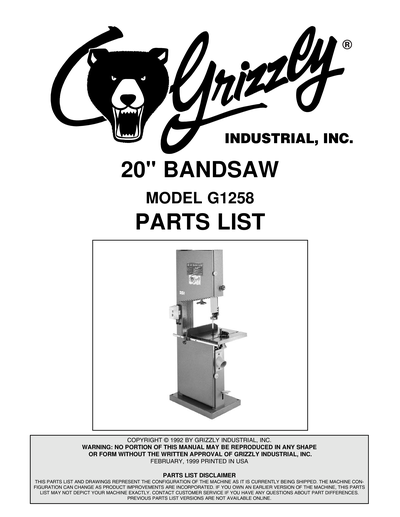

MANUAL
MANUAL FOR G1258 02/99
