Parts for G1258 - 20" Bandsaw

Part Diagram for G1258
Part Diagram for G1258
Part Diagram for G1258
Part Diagram for G1258
Part Diagram for G1258
Part Diagram for G1258

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

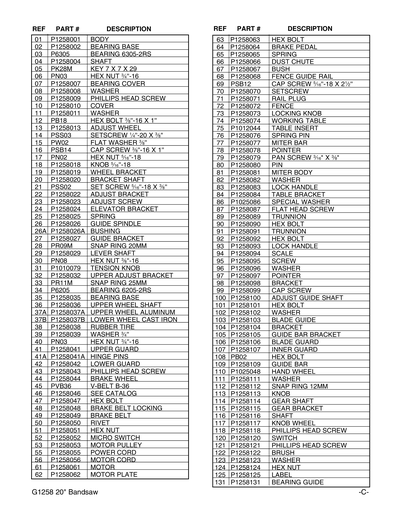

Ref #
Part #
Description
1
BODY
Item is no longer available
Price
N/A
2
BEARING BASE
Price
$83.95
3
BALL BEARING 6206-2RS
Price
N/A
4
SHAFT
Price
$89.60
5
KEY 7 X 7 X 29
Price
N/A
6
P1258006
Now: PN03
HEX NUT 3/4-16
Price
N/A
7
BEARING COVER
Item is no longer available
Price
N/A
8
FLAT WASHER 20MM
Price
N/A
9
P1258009
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
10
COVER
Item is no longer available
Price
N/A
11
FLAT WASHER 8MM
Price
N/A
12
P1258012
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
13
ADJUST WHEEL
Price
$27.95
14
SET SCREW 1/4-20 X 3/8
Price
N/A
15
P1258015
Now: PW02
FLAT WASHER 3/8
Price
N/A
16
CAP SCREW 3/8-16 X 1
Price
N/A
17
P1258017
Now: PN02
HEX NUT 5/16-18
Price
N/A
18
KNOB 5/16 X 18TPI
Price
$1.85
19
WHEEL BRACKET
Price
$91.55
20
*DISCD*BRACKET SHAFT
Item is no longer available
Price
N/A
21
SET SCREW 5/16-18 X 3/8
Price
N/A
22
ADJUST BRACKET
Price
$19.90
23
WHEEL BRACKET ADJUST SCREW 5/8-11 X 60
Item is no longer available
Price
N/A
24
ELEVATOR BRACKET
Price
$13.05
25
HELICAL SPRING OD4 X 85
Price
$10.30
26
GUIDE SPINDLE
Price
$10.00
26A
BUSHING
Price
$7.60
27
GUIDE BRACKET
Price
$55.00
28
EXT RETAINING RING 20MM
Price
N/A
29
LEVER SHAFT
Item is no longer available
Price
N/A
30
P1258030
Now: PN08
HEX NUT 3/8-16
Price
N/A
31
KNOB 3/8-16 X 3-1/2
Price
N/A
32
UPPER ADJUST BRACKET
Price
$14.50
33
EXT RETAINING RING 25MM
Price
N/A
34
BALL BEARING 6205-2RS
Price
N/A
35
BEARING BASE
Price
$22.50
36
UPPER WHEEL SHAFT (THREADED BOTH ENDS)
Price
$37.35
37
UPPER WHEEL ALUMINUM
Price
N/A
37A
UPPER WHEEL ALUMINUM
Item is no longer available
Price
N/A
37B
LOWER WHEEL CAST IRON
Price
$418.75
38
RUBBER TIRE
Price
$47.85
39
P1258039
Now: PW13
FLAT WASHER 3/4
Price
N/A
40
HEX NUT 3/4-16 LH
Price
N/A
41
UPPER GUARD
Price
$125.10
41A
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
42
GUARD LOWER
Price
$129.70
43
P1258043
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
44
BRAKE WHEEL
Price
$53.50
45
V-BELT B36
Price
N/A
46
*SEE CATALOG*
Item is no longer available
Price
N/A
47
P1258047
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
48
*DISCD*BRAKE BELT LOCKING
Item is no longer available
Price
N/A
49
BRAKE BELT
Price
$19.90
50
RIVET 3/16 X 5/8"
Item is no longer available
Price
N/A
51
P1258051
Now: PN05
HEX NUT 1/4-20
Price
N/A
52
*DISCD*MICRO SWITCH
Item is no longer available
Price
N/A
53
MOTOR PULLEY
Price
$19.10
55
POWER CORD
Item is no longer available
Price
N/A
56
MOTOR CORD
Item is no longer available
Price
N/A
57
BALL BEARING 6204-2RS
Price
N/A
58
*DISCD*INTERMEDIATE WHEEL SHAFT
Item is no longer available
Price
N/A
61
MOTOR 3HP 1PH 115/230V
Price
$951.95
61-1
MOTOR FAN
Price
$3.20
61-2
CAPACITOR COVER
Price
$4.05
61-3
MOTOR FAN COVER
Price
$18.15
61A
MOTOR FAN
Price
N/A
62
MOTOR PLATE
Item is no longer available
Price
N/A
63
P1258063
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
64
BRAKE PEDAL
Item is no longer available
Price
N/A
65
*DISCD*HELICAL SPRING OD2 X 150
Item is no longer available
Price
N/A
66
DUST CHUTE
Price
$21.40
67
*DISCD*BUSHING
Price
$2.10
68
FENCE GUIDE RAIL
Price
$25.65
69
CAP SCREW 5/16-18 X 2-1/2
Price
N/A
70
SET SCREW 5/16-18 X 1/2
Price
N/A
71
*DISCD*RAIL PLUG
Price
$1.60
72
FENCE
Price
$104.05
73
LOCK KNOB
Price
$2.25
74
WORKING TABLE
Price
$464.65
75
***USE P1019Z077***
Price
N/A
76
ROLL PIN 3 X 10
Price
N/A
77
MITER BAR
Price
$15.15
78
POINTER
Price
$1.49
79
PAN HD SCR 3/16 X 3/8
Price
$1.49
80
PIN
Price
$1.49
81
MITER BODY
Item is no longer available
Price
N/A
82
FLAT WASHER 6MM
Price
N/A
83
LOCK HANDLE
Price
$1.85
84
TABLE BRACKET
Price
$68.25
85
SPRING WASHER
Item is no longer available
Price
N/A
86
MITER BAR WASHER ID8 X 3MMT
Price
$1.60
87
FLAT HD SCR 5/16-18 X 1-1/2
Price
N/A
88
*DISCD*CARRIAGE BOLT
Item is no longer available
Price
N/A
89
TRUNNION
Price
$71.30
90
P1258090
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
91
TRUNNION
Item is no longer available
Price
N/A
92
CARRIAGE BOLT 1/2-12 X 4
Price
$6.80
93
LOCK HANDLE
Price
$20.55
94
SCALE
Item is no longer available
Price
N/A
95
HEX BOLT M5-.8 X 10
Price
N/A
96
FLAT WASHER 5MM
Price
N/A
97
POINTER
Price
$1.49
98
GUIDE BRACKET LOWER
Price
$24.80
99
CAP SCREW 1/4-20 X 3/4
Price
N/A
100
ADJUST GUIDE SHAFT
Price
$18.80
101
CAP SCREW 1/4-20 X 5/8
Price
N/A
102
LOCK WASHER 1/4
Price
N/A
103
BLADE GUIDE
Price
$55.30
104
BRACKET
Price
$20.55
105
GUIDE BAR BRACKET
Price
$33.85
106
BLADE GUARD
Price
$26.60
107
BLADE INNER GUARD
Item is no longer available
Price
N/A
108
P1258108
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
109
GUIDE BAR
Price
$99.35
110
*DISCD*HANDWHEEL
Price
N/A
111
FLAT WASHER 1/2-25MM PLASTIC
Price
$1.60
112
EXT RETAINING RING 12MM
Price
N/A
113
KNOB
Price
$2.50
114
GEAR SHAFT
Price
$19.35
115
GEAR BRACKET
Price
$46.20
116
SHAFT
Item is no longer available
Price
N/A
117
KNOB WHEEL
Price
$3.45
118
P1258118
Now: PS19
PHLP HD SCR 1/4-20 X 1
Price
N/A
120
SWITCH 220V 15A 50-60HZ
Price
$213.55
121
P1258121
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
122
BRUSH
Price
$3.95
123
FLAT WASHER 6MM
Price
N/A
124
P1258124
Now: PN07
HEX NUT 10-24
Price
N/A
125
LABEL
Price
$16.40
129
SWITCH 220V 15A 50-60HZ
Price
N/A
1296
SWITCH 220V 15A 50-60HZ
Price
N/A
131
BEARING GUIDE
Price
$41.85
200
WARNING LABEL
Item is no longer available
Price
N/A
201
*DISCD*GRIZZLY NAMEPLATE 8W X 3.5H
Price
N/A
MANUAL
MANUAL FOR G1258 02/99
Price
$16.25
