Parts for G1763 - Tailstock for G1049

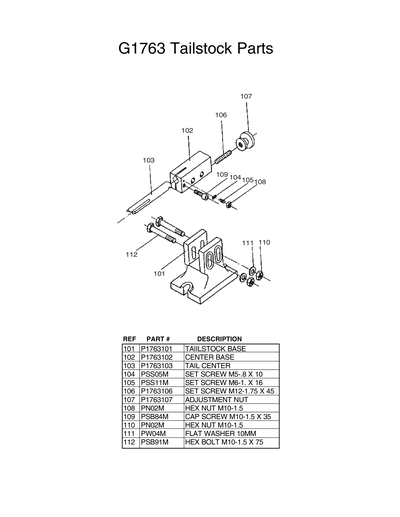

Part Diagram for G1763
Part Diagram for G1763

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
101
Price
$75.85
102
Price
$51.05
103
Price
$20.70
104
SET SCREW M5-.8 X 10
Price
N/A
105
SET SCREW M6-1 X 16
Price
N/A
106
SET SCREW M12-1.75 X 45
Price
N/A
107
ADJUSTMENT NUT M12-1.75
Price
$10.65
108
HEX NUT M10-1.5
Price
N/A
109
CAP SCREW M10-1.5 X 35
Price
N/A
110
FLAT WASHER 5MM
Price
N/A
111
FLAT WASHER 10MM
Price
N/A
112
CAP SCREW M10-1.5 X 75
Price
N/A
