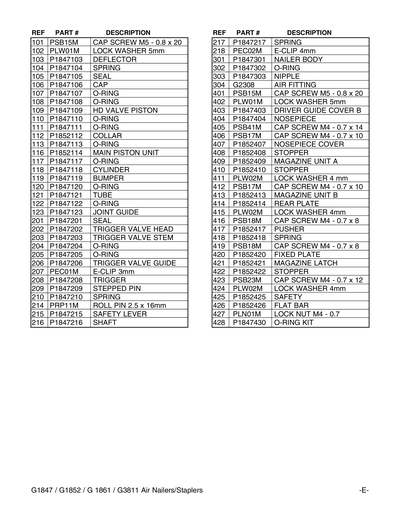

Parts for G1847 Pneumatic Stapler

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

101
CAP SCREW M5-.8 X 20
Price
N/A
102
LOCK WASHER 5MM
Price
N/A
103
*DISCD*DEFLECTOR
104
*DISCD*SPRING
105
*DISCD*SEAL
106
*DISCD*CAP
Item is no longer available
Price
N/A
107
*DISCD*O-RING
108
*DISCD*O-RING 37.5 X 1.8
109
*DISCD*HD VALVE PISTON
110
*DISCD*O-RING
111
*DISCD*O-RING 23 X 3.5
112
*DISCD*COLLAR
113
*DISCD*O-RING 21.7 X 2.9
Item is no longer available
Price
N/A
116
*DISCD*MAIN PISTON UNIT
116A
*DISCD*MAIN PISTON UNIT
Price
N/A
117
O-RING 31.6 X 2.4
Price
N/A
118
*DISCD*CYLINDER
119
*DISCD*BUMPER
Item is no longer available
Price
N/A
120
*DISCD*O-RING
121
*DISCD*TUBE
122
*DISCD*O-RING
123
*DISCD*JOINT GUIDE
201
*DISCD*SEAL
202
*DISCD*TRIGGER VALVE HEAD
203
*DISCD*TRIGGER VALVE STEM
Item is no longer available
Price
N/A
204
*DISCD*O-RING
205
*DISCD*O-RING 13 X 2
206
*DISCD*TRIGGER VALVE GUIDE
207
E-CLIP 3MM
Price
N/A
208
*DISCD*TRIGGER
209
*DISCD*STEPPED PIN
210
*DISCD*SPRING
Item is no longer available
Price
N/A
214
ROLL PIN 2.5 X 16
Price
N/A
215
*DISCD*SAFETY LEVER
216
*DISCD*SHAFT
Item is no longer available
Price
N/A
217
*DISCD*SPRING
Item is no longer available
Price
N/A
218
E-CLIP 3MM
Price
N/A
301
*DISCD*GUN BODY
Item is no longer available
Price
N/A
302
*DISCD*O-RING
303
*DISCD*NIPPLE
Item is no longer available
Price
N/A
304
Now: G2308
COUPLER MALE - OUTSIDE THREAD
Price
N/A
304A
*DISCD*CONNECTOR
Item is no longer available
Price
N/A
401
CAP SCREW M5-.8 X 20
Price
N/A
402
LOCK WASHER 5MM
Price
N/A
403
*DISCD*DRIVER GUIDE COVER B
404
CAP SCREW M4-.7 X 10
Price
N/A
405
*DISCD*NOSEPIECE COVER
Item is no longer available
Price
N/A
406
*DISCD*DRIVER GUIDE NOSEPIECE
407
CAP SCREW M4-.7 X 14
Price
N/A
408
*DISCD*MAGAZINE UNIT "A"
Item is no longer available
Price
N/A
409
*DISCD*STOPPER
410
CAP SCREW M4-.7 X 8
Price
N/A
411
*DISCD*MAGAZINE UNIT "B"
Item is no longer available
Price
N/A
413
CAP SCREW M4-.7 X 8
Price
N/A
414
*DISCD*PUSHER
Item is no longer available
Price
N/A
415
*DISCD*PUSHER PIN
Item is no longer available
Price
N/A
416
*DISCD*SPRING
Item is no longer available
Price
N/A
417
*DISCD*REAR PLATE
Item is no longer available
Price
N/A
418
*DISCD*MAGAZINE LATCH
419
CAP SCREW M4-.7 X 16
Price
N/A
420
LOCK WASHER 4MM
Price
N/A
421
*DISCD*STOPPER
422
*DISCD*FIXED PLATE
Item is no longer available
Price
N/A
423
CAP SCREW M4-.7 X 8
Price
N/A
424
LOCK WASHER 4MM
Price
N/A
425
CAP SCREW M4-.7 X 10
Price
N/A
427
LOCK NUT M4-.7
Price
N/A
429
*DISCD*SAFETY
430
*DISCD*O-RING KIT
Item is no longer available
Price
N/A
MANUAL

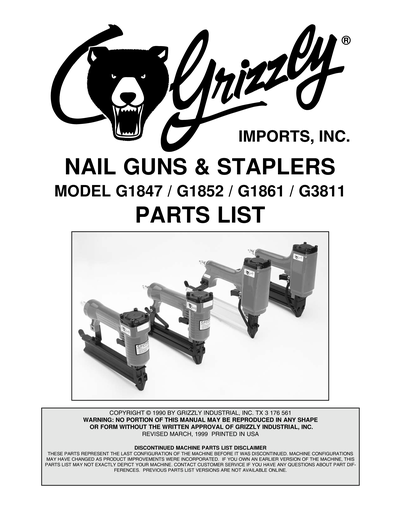

MANUAL FOR G1847/G1852/G1861 06/97
