Parts for G3102 - Vertical Mill

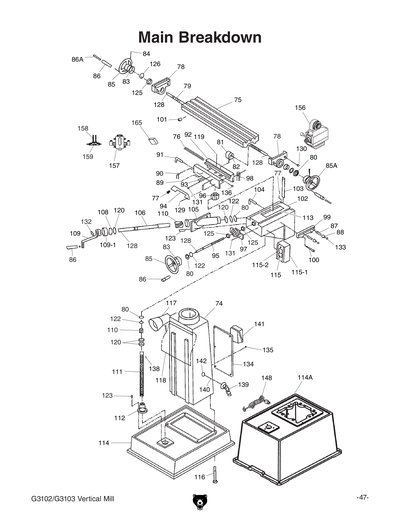

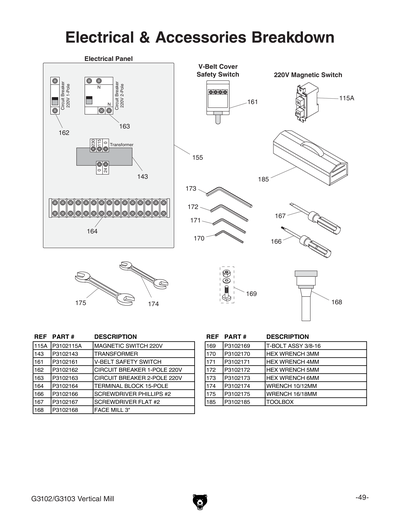

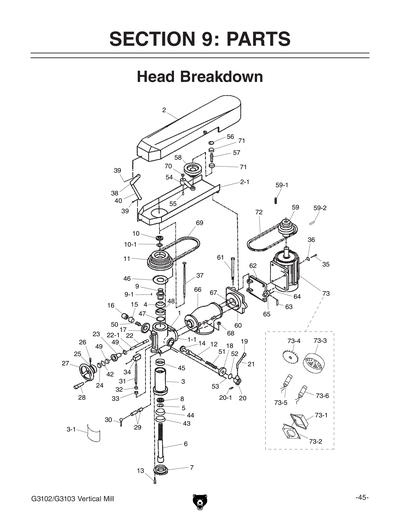

Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102
Part Diagram for G3102

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

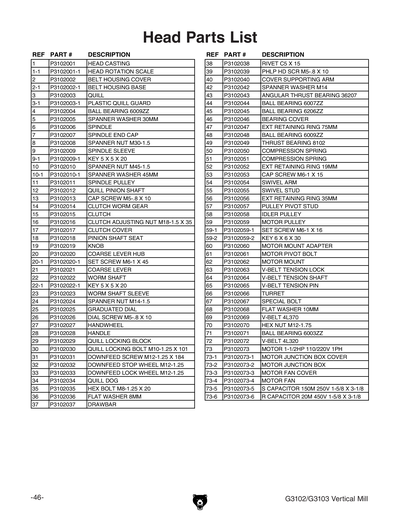

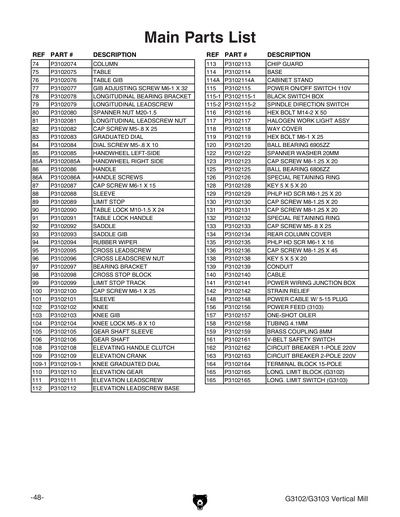

Ref #
Part #
Description
1
*DISCD*HEAD CASTING
Price
$638.25
1-1
*DISCD*HEAD ROTATION SCALE
Item is no longer available
Price
N/A
2
*DISCD*BELT HOUSING COVER
Price
$89.70
2-1
*DISCD*BELT HOUSING BASE
Price
$110.40
3
*DISCD*QUILL
Item is no longer available
Price
N/A
3-1
*DISCD*QUILL GUARD PLASTIC
Price
$8.65
3A
*DISCD*COMPLETE QUILL ASSY
Price
$1,124.70
4
*DISCD*SNAP RING
Item is no longer available
Price
N/A
5
*DISCD*SPANNER WASHER 30MM
Price
$3.45
6
*DISCD*SPINDLE
Price
$362.25
7
*DISCD*SPINDLE END CAP
Price
$20.70
8
*DISCD*SPANNER NUT M30-1.5
Item is no longer available
Price
N/A
9
*DISCD*SPINDLE SLEEVE
Price
$131.10
9-1
KEY 5 X 5 X 20
Price
N/A
10
*DISCD*SPANNER NUT M45-1.5
Item is no longer available
Price
N/A
10-1
*DISCD*SPANNER WASHER 44MM
Price
$3.45
11
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
12
*DISCD*QUILL PINION SHAFT
Price
$89.70
13
CAP SCREW M5-.8 X 10
Price
N/A
14
*DISCD*CLUTCH WORM GEAR
Item is no longer available
Price
N/A
15
*DISCD*CLUTCH
Item is no longer available
Price
N/A
16
*DISCD*CLUTCH ADJUSTING NUT M18 X 1.5 X
Item is no longer available
Price
N/A
17
*DISCD*CLUTCH COVER
Item is no longer available
Price
N/A
18
*DISCD*PINION SHAFT SEAT
Item is no longer available
Price
N/A
19
*DISCD*KNOB
Price
$3.45
20
*DISCD*COARSE LEVER HUB
Price
$27.05
20-1
SET SCREW M6-1 X 45
Price
N/A
21
*DISCD*COARSE LEVER
Item is no longer available
Price
N/A
22
*DISCD*WORM SHAFT
Price
$72.45
22-1
KEY 5 X 5 X 20
Price
N/A
23
*DISCD*WORM SHAFT SLEEVE
Price
$13.25
24
*DISCD*SPANNER NUT M14-1.5
Item is no longer available
Price
N/A
25
*DISCD*GRADUATED DIAL
Price
$65.55
26
*DISCD*DIAL SCREW M5-.8 X 10
Price
N/A
27
*DISCD*HANDWHEEL
Price
$62.10
28
*DISCD*HANDLE
Item is no longer available
Price
N/A
29
*DISCD*QUILL LOCKING BLOCK
Price
$75.90
30
*DISCD*QUILL LOCKING BOLT M10-1.25 X 101
Item is no longer available
Price
N/A
31
*DISCD*DOWNFEED SCREW M12-1.25 X 184
Item is no longer available
Price
N/A
32
*DISCD*DOWNFEED STOP WHEEL M12-1.25
Item is no longer available
Price
N/A
33
*DISCD*DOWNFEED LOCK WHEEL M12-1.25
Item is no longer available
Price
N/A
34
*DISCD*QUILL DOG
Item is no longer available
Price
N/A
35
HEX BOLT M8-1.25 X 20
Price
N/A
36
FLAT WASHER 8MM
Price
N/A
37
*DISCD*DRAWBAR 12.25"
Item is no longer available
Price
N/A
38
*DISCD*RIVET C5 X 15
Item is no longer available
Price
N/A
39
PHLP HD SCR M5-.8 X 10
Price
N/A
40
*DISCD*COVER SUPPORTING ARM
Item is no longer available
Price
N/A
42
*DISCD*SPANNER WASHER M14
Price
$1.75
43
*DISCD*ANGULAR THRUST BEARING 36207
Item is no longer available
Price
N/A
44
BALL BEARING 6007ZZ
Price
N/A
45
BALL BEARING 6206ZZ
Price
N/A
46
*DISCD*BEARING COVER
Item is no longer available
Price
N/A
47
EXT RETAINING RING 75MM
Price
N/A
48
BALL BEARING 6009ZZ
Price
N/A
49
THRUST BEARING 8102
Price
N/A
50
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
51
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
52
EXT RETAINING RING 19MM
Price
N/A
53
CAP SCREW M6-1 X 15
Price
N/A
54
*DISCD*SWIVEL ARM
Price
$15.55
55
*DISCD*SWIVEL STUD
Item is no longer available
Price
N/A
56
EXT RETAINING RING 35MM
Price
N/A
57
*DISCD*STANDOFF-ROUND DE
Item is no longer available
Price
N/A
58
*DISCD*IDLER PULLEY
Price
$110.40
59
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
59-1
SET SCREW M6-1 X 16
Price
N/A
59-2
KEY 6 X 6 X 30
Price
N/A
60
*DISCD*MOTOR MOUNT ADAPTER
Price
$55.20
61
*DISCD*MOTOR PIVOT BOLT
Item is no longer available
Price
N/A
62
*DISCD*MOTOR MOUNT
Price
$48.30
63
*DISCD*V-BELT TENSION LOCK
Price
$8.65
64
*DISCD*V-BELT TENSION SHAFT
Price
$12.10
65
*DISCD*V-BELT TENSION PIN 12 X 75
Item is no longer available
Price
N/A
66
*DISCD*TURRET
Price
$94.90
67
*DISCD*MOTOR MOUNT BOLT M10-1.5 X 35
Item is no longer available
Price
N/A
68
FLAT WASHER 10MM
Price
N/A
69
V-BELT A37
Price
N/A
70
HEX NUT M12-1.75
Price
N/A
71
Bearing - 35mm x 17mm
Price
N/A
72
V-BELT A32
Price
N/A
73
*DISCD*MOTOR 1.5HP 110V/220V 1-PH
Item is no longer available
Price
N/A
73-1
*DISCD*MOTOR JUNCTION BOX COVER
Item is no longer available
Price
N/A
73-2
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
73-3
*DISCD*MOTOR FAN COVER
Price
$14.95
73-4
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
73-5
S CAPACITOR 150M 250V 1-5/8 X 3-1/8
Price
N/A
73-6
*DISCD*R CAPACITOR 20M 450V 1-5/8 X 3-1/
Item is no longer available
Price
N/A
74
*DISCD*COLUMN
Item is no longer available
Price
N/A
75
*DISCD*TABLE
Item is no longer available
Price
N/A
76
*DISCD*TABLE GIB
Price
$27.60
77
*DISCD*GIB ADJUSTING SCR M6-1 X 32
Item is no longer available
Price
N/A
78
*DISCD*LONGITUDINAL BEARING BRACKET
Price
$55.20
79
*DISCD*LONGITUDINAL LEADSCREW
Item is no longer available
Price
N/A
80
*DISCD*SPANNER NUT M20-1.5
Item is no longer available
Price
N/A
81
*DISCD*LONGITUDINAL LEADSCREW NUT
Item is no longer available
Price
N/A
82
CAP SCREW M5-.8 X 25
Price
N/A
83
*DISCD*GRADUATED DIAL LH
Price
$69.00
83A
*DISCD*GRADUATED DIAL RH
Item is no longer available
Price
N/A
84
*DISCD*DIAL SCREW M5-.8 X 10
Price
$5.20
85
*DISCD*HANDWHEEL LEFT SIDE
Item is no longer available
Price
N/A
85A
*DISCD*HANDWHEEL RIGHT SIDE
Price
$69.00
86
*DISCD*HANDLE
Price
$13.80
86A
*DISCD*HANDLE SCREW
Item is no longer available
Price
N/A
87
CAP SCREW M6-1 X 15
Price
N/A
88
*DISCD*SLEEVE
Price
$2.90
89
*DISCD*LIMIT STOP
Price
$5.20
90
*DISCD*TABLE LOCK M10-1.5 X 24
Item is no longer available
Price
N/A
91
*DISCD*TABLE LOCK HANDLE
Item is no longer available
Price
N/A
92
*DISCD*SADDLE
Item is no longer available
Price
N/A
93
*DISCD*SADDLE GIB
Item is no longer available
Price
N/A
94
*DISCD*WIPER RUBBER
Price
$5.20
95
*DISCD*CROSS LEADSCREW
Item is no longer available
Price
N/A
96
*DISCD*CROSS LEADSCREW NUT
Item is no longer available
Price
N/A
97
*DISCD*BEARING BRACKET
Item is no longer available
Price
N/A
98
*DISCD*CROSS STOP BLOCK
Price
$3.45
99
*DISCD*LIMIT STOP TRACK
Price
$55.20
100
CAP SCREW M6-1 X 25
Price
N/A
101
*DISCD*SLEEVE
Price
$3.45
102
*DISCD*KNEE
Item is no longer available
Price
N/A
103
*DISCD*KNEE GIB
Price
$27.60
104
*DISCD*KNEE LOCK M5-.8 X 10
Item is no longer available
Price
N/A
105
*DISCD*GEAR SHAFT SLEEVE
Price
$60.40
106
*DISCD*GEAR SHAFT
Item is no longer available
Price
N/A
108
*DISCD*ELEVATING HANDLE CLUTCH
Item is no longer available
Price
N/A
109
*DISCD*ELEVATION CRANK
Item is no longer available
Price
N/A
109-1
*DISCD*KNEE GRADUATED DIAL
Price
$34.50
110
*DISCD*ELEVATION GEAR
Price
$62.10
111
*DISCD*ELEVATION LEADSCREW
Price
$110.40
112
*DISCD*ELEVATION LEADSCREW BASE
Price
$193.20
113
*DISCD*CHIP GUARD
Item is no longer available
Price
N/A
114
*DISCD*BASE
Price
$234.60
114A
*DISCD*CABINET STAND
Item is no longer available
Price
N/A
114A-1
*DISCD*LOCK LEVER FOR CABINET STAND DOOR
Price
$13.80
115
*DISCD*POWER ON/OFF SWITCH 110V
Item is no longer available
Price
N/A
115-1
*DISCD*BLACK SWITCH BOX
Item is no longer available
Price
N/A
115-2
*DISCD*POWER ON/OFF SWITCH 110V
Price
N/A
115-3
*DISCD*POWER ON/OFF SWITCH 110V
Price
N/A
115A
ON/OFF SWITCH ASSY KEDU JD3 220V
Price
N/A
116
HEX BOLT M14-2 X 50
Price
N/A
117
*DISCD*HALOGEN WORK LIGHT ASSY
Item is no longer available
Price
N/A
117-1
*DISCD*HALOGEN WORK LIGHT ASSY
Price
N/A
118
*DISCD*WAY COVER
Item is no longer available
Price
N/A
119
HEX BOLT M6-1 X 25
Price
N/A
120
BALL BEARING 6905ZZ
Price
N/A
122
*DISCD*SPANNER WASHER 20MM
Item is no longer available
Price
N/A
123
CAP SCREW M8-1.25 X 20
Price
N/A
125
BALL BEARING 6806ZZ
Price
N/A
126
*DISCD*GRADUATED DIAL RETAINING RING
Item is no longer available
Price
N/A
128
KEY 5 X 5 X 20
Price
N/A
129
PHLP HD SCR M8-1.25 X 20
Price
N/A
130
CAP SCREW M8-1.25 X 20
Price
N/A
131
CAP SCREW M8-1.25 X 20
Price
N/A
132
*DISCD*ELEVATION CRANK RETAINING RING
Price
$2.90
133
CAP SCREW M5-.8 X 25
Price
N/A
134
*DISCD*COLUMN COVER REAR
Item is no longer available
Price
N/A
135
PHLP HD SCR M6-1 X 16
Price
N/A
136
CAP SCREW M8-1.25 X 45
Price
N/A
138
KEY 5 X 5 X 20
Price
N/A
139
*DISCD*CONDUIT
Price
$13.25
140
*DISCD*CABLE 10PC WIRE SET W/TUBE
Item is no longer available
Price
N/A
141
*DISCD*POWER WIRING JUNCTION BOX
Price
$27.60
142
*DISCD*STRAIN RELIEF M24 TYPE-6 ST
Price
$6.90
143
*DISCD*TRANSFORMER
Item is no longer available
Price
N/A
144
*DISCD*LIGHT BULB
Item is no longer available
Price
N/A
145
*DISCD*FUSE 16A
Price
$1.49
146
*DISCD*FUSE 2A
Price
$1.49
148
POWER CORD 16G X 3W 73"L
Price
N/A
155
*DISCD*ELECTRIC PLATE
Item is no longer available
Price
N/A
156
*DISCD*POWERFEEDER APF-500X V2.06.11
Price
N/A
157
*DISCD*ONE SHOT OILER
Item is no longer available
Price
N/A
158
*DISCD*TUBING 4.1MM
Item is no longer available
Price
N/A
159
*DISCD*OIL DISTRIBUTOR V1
Item is no longer available
Price
N/A
159-1
*DISCD*COUPLING 10MM BRASS
Price
$10.35
159V2
*DISCD*OIL DISTRIBUTOR V2.10.08
Price
$3.45
159V2-1
*DISCD*COUPLING 8MM BRASS
Item is no longer available
Price
N/A
160
*DISCD*ONE SHOT OILER
Price
N/A
161
*DISCD*V-BELT SAFETY SWITCH
Item is no longer available
Price
N/A
162
*DISCD*CIRCUIT BREAKER 20A PEO DZ47-63 C
Price
$18.40
163
*DISCD*CIRCUIT BREAKER 32A PEO DZ47LE-32
Item is no longer available
Price
N/A
164
*DISCD*TERMINAL BLOCK 15-POLE
Item is no longer available
Price
N/A
165
*DISCD*LONGITUDINAL LIMIT BLOCK
Item is no longer available
Price
N/A
166
SCREWDRIVER PHILLIPS #2
Price
N/A
167
SCREWDRIVER FLAT #2
Price
N/A
168
*DISCD*FACE MILL 3"
Item is no longer available
Price
N/A
169
*DISCD*T-BOLT ASSY 3/8-16
Item is no longer available
Price
N/A
170
HEX WRENCH 3MM
Price
N/A
171
HEX WRENCH 4MM
Price
N/A
172
HEX WRENCH 5MM
Price
N/A
173
HEX WRENCH 6MM
Price
N/A
174
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
175
WRENCH 16 X 18MM OPEN-ENDS
Price
N/A
176

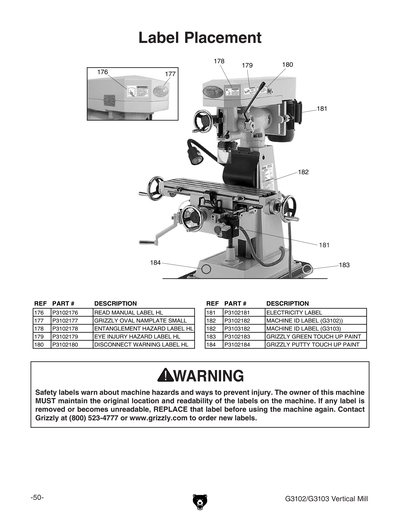

READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
177
Nameplate - Mini
Price
N/A
178
ENTANGLEMENT HAZARD 3.8W X 2H
Price
N/A
179
SAFETY GLASSES 3.8W X 2H
Price
N/A
180
DISCONNECT 110V 3.8W X 2H
Price
N/A
181
ELECTRICITY 0.7W X 0.6H
Price
N/A
182
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
183
N/S GRIZZLY GREEN G1023S
Price
N/A
184
GREY PUTTY REF G0504
Price
N/A
185
*DISCD*TOOLBOX
Item is no longer available
Price
N/A
186
*DISCD*RIGHT HANDWHEEL SPACER
Price
$34.50
MANUAL
*DISCD*MANUAL FOR G3102/G3103 09/08
Item is no longer available
Price
N/A
