Parts for G3358 Mill / Drill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*COVER PLASTIC
Price
N/A
2
*DISCD*BELT TOP COVER
Price
N/A
3
*DISCD*DRAWBAR COVER
Price
N/A
7
*DISCD*SPINDLE LOCK NUT M42-1.5
Price
N/A
8
Now: PVB40
V-BELT B40
Price
N/A
9
*DISCD*SPINDLE PULLEY
Price
N/A
10
*DISCD*SPINDLE TAPER SLEEVE
Price
N/A
11
BALL BEARING 6009ZZ
Price
N/A
12
*DISCD*BEARING SPACER
Price
N/A
13
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
14
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
15
Now: PN13M
HEX NUT M16-2
Price
N/A
16
Now: PW08M
FLAT WASHER 16MM
Price
N/A
17
CAP SCREW M6-1 X 20
Price
N/A
19
*DISCD*COLUMN GEAR COVER
Price
N/A
20
*DISCD*WORM
Price
N/A
21
*DISCD*SHAFT
Price
N/A
22
*DISCD*WORM SHAFT
Price
N/A
23
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
24
Now: PW01M
FLAT WASHER 8MM
Price
N/A
26
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A
27
*DISCD*CLIP PLATE
Price
N/A
28
*DISCD*NAME PLATE
Price
N/A
29
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
30
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
31
*DISCD*BALL BEARING 6204
Price
N/A
32
*DISCD*IDLER PULLEY
Price
N/A
33
*DISCD*V-BELT 5L330
Price
N/A
34
*DISCD*IDLER PULLEY SHAFT
Price
N/A
35
*DISCD*IDLER PULLEY BASE
Price
N/A
36
*DISCD*BELT BOTTOM COVER
Price
N/A
37
*DISCD*MOTOR PULLEY
Price
N/A
38
SET SCREW M5-.8 X 8
Price
N/A
39
*DISCD*MOTOR 2HP 110V/220V 1-PH
Price
N/A
39-1
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
39-2
*DISCD*CONTACT PLATE
Price
N/A
40
*DISCD*KEY 8 X 40
Price
N/A
41
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
42
Now: PW08M
FLAT WASHER 16MM
Price
N/A
43
*DISCD*MOTOR MOUNT
Price
N/A
44
Now: PW01M
FLAT WASHER 8MM
Price
N/A
45
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
46
*DISCD*COLLAR RUBBER
Price
N/A
47
*DISCD*PIN
Price
N/A
48
*DISCD*COMPRESSION SPRING 1.4 X 12 X 80
Price
N/A
49
*DISCD*HEAD BODY
Price
N/A
50
*DISCD*HEAD BODY WING SCREW M8-1.25 X 22
Price
N/A
51
*DISCD*HEAD BOLT M16-2 X 150
Price
N/A
52
*DISCD*CLUTCH KNOB
Price
N/A
54
*DISCD*QUILL HANDLE KNOB M12-1.25
Price
N/A
55
*DISCD*QUILL HANDLE
Price
N/A
56
*DISCD*SPRING BASE
Price
N/A
57
*DISCD*FEED COVER
Price
N/A
58
Now: PK70M
KEY 8 X 8 X 12
Price
N/A
59
*DISCD*PINION SHAFT
Price
N/A
60
Now: PS39M
PHLP HD SCR M8-1.25 X 10
Price
N/A
61
*DISCD*THREADED COLLAR
Price
N/A
62
LOCK NUT M30-1.5
Price
N/A
64
LOCK WASHER 30MM
Price
N/A
66
*DISCD*SPINDLE SLEEVE
Price
N/A
67
*DISCD*ROLLER BEARING D7207
Price
N/A
68
*DISCD*SPINDLE SHAFT
Price
N/A
68-1
*DISCD*DRAWBAR 7/16-20 X 402MM
Price
N/A
69
*DISCD*BEARING CAP
Price
N/A
70
ROLL PIN 3 X 18
Price
N/A
71
*DISCD*DEPTH STOP KNOB
Price
N/A
72
*DISCD*SUPPORT BASE
Price
N/A
73
Now: PN01M
HEX NUT M6-1
Price
N/A
74
Now: PW03M
FLAT WASHER 6MM
Price
N/A
75
*DISCD*FEED BASE
Price
N/A
76
Now: PB39M
HEX BOLT M6-1 X 50
Price
N/A
77
LOCK NUT M16-2
Price
N/A
78
*DISCD*STOP NUT M20-1.5 X 23
Price
N/A
79
*DISCD*QUILL STOP ADJ ROD M12 X 227
Price
N/A
81
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
83
*DISCD*STOP BLOCK
Price
N/A
84
*DISCD*KNOB HANDLE
Price
N/A
85
*DISCD*DOWNFEED CONTROL KNOB
Price
N/A
86
SET SCREW M5-.8 X 8
Price
N/A
87
*DISCD*SPACER
Price
N/A
89
*DISCD*KNURLED SCREW M5-.8 X 12
Price
N/A
90
CAP SCREW M5-.8 X 16
Price
N/A
91
*DISCD*WORM COVER
Price
N/A
92
BALL BEARING 6202ZZ
Price
N/A
93
*DISCD*BEARING SPACER
Price
N/A
94
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
95
*DISCD*WORM SHAFT
Price
N/A
96
*DISCD*WORM GEAR BOX
Price
N/A
97
CAP SCREW M8-1.25 X 20
Price
N/A
98
TAP SCREW M3 X 8
Price
N/A
99
*DISCD*PROTECTION PIECE
Price
N/A
100
*DISCD*GRADUATED DIAL
Price
N/A
1001
*DISCD*DRAWBAR 7/16-20 X 402MM
Item is no longer available
Price
N/A
1002
*DISCD*SPINDLE LOCK NUT M42-1.5
Item is no longer available
Price
N/A
1003
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
1004
*DISCD*BELT BOTTOM COVER
1005
*DISCD*SWITCH HZ-20 4M05T6
Item is no longer available
Price
N/A
1006
*DISCD*SPINDLE TAPER SLEEVE
Item is no longer available
Price
N/A
1007
BALL BEARING 6009ZZ
Price
N/A
1008
*DISCD*BEARING SPACER
Item is no longer available
Price
N/A
1009
*DISCD*QUILL STOP ADJ ROD M12 X 227
101
*DISCD*COVER PLATE FRONT
Price
N/A
1010
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
1011
*DISCD*HEAD BODY
Item is no longer available
Price
N/A
1012
*DISCD*FLANGE RUBBER
Item is no longer available
Price
N/A
1013
*DISCD*FEED BASE
Item is no longer available
Price
N/A
1014
LOCK NUT M30-1.5
Price
N/A
1015
*DISCD*ROLLER BEARING D7206 62 X 30
Item is no longer available
Price
N/A
1016
*DISCD*SPINDLE SLEEVE
Item is no longer available
Price
N/A
1017
*DISCD*SPINDLE SHAFT
Item is no longer available
Price
N/A
1018
*DISCD*ROLLER BEARING D7207
Item is no longer available
Price
N/A
1019
*DISCD*BEARING CAP
102
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1020
*DISCD*CUTTER ARBOR R8
Item is no longer available
Price
N/A
1020-1
FLAT HD SCR M5-.8 X 8
Price
N/A
1020-2
*DISCD*KEY 11.5 X 10 X 28
Item is no longer available
Price
N/A
1021
*DISCD*DRILL CHUCK ARBOR R8 X JT3, 140MM
1022
*DISCD*GRIP
1023
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
1024
*DISCD*QUILL LOCK HANDLE
Item is no longer available
Price
N/A
1025
*DISCD*COLLAR
Item is no longer available
Price
N/A
1026
*DISCD*THREADED COLLAR
1027
*DISCD*SCREW KEY
Item is no longer available
Price
N/A
103
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
1035
*DISCD*BEARING SPACER
Item is no longer available
Price
N/A
1039
*DISCD*QUILL HANDLE
Item is no longer available
Price
N/A
104
*DISCD*QUILL LOCK HANDLE
Price
N/A
1040
*DISCD*QUILL HANDLE KNOB M12-1.25
Item is no longer available
Price
N/A
1044
*DISCD*MICRO ADJUSTING INDICATOR
Item is no longer available
Price
N/A
1045
*DISCD*WORM COVER
1046
BALL BEARING 6202ZZ
Price
N/A
1047
*DISCD*WORM SHAFT
Item is no longer available
Price
N/A
105
*DISCD*COLLAR
Price
N/A
1050
*DISCD*LOCK HANDLE
Item is no longer available
Price
N/A
1051
*DISCD*HEAD BODY WING SCREW M8-1.25 X 22
1052
*DISCD*HEAD BOLT M16-2 X 150
Item is no longer available
Price
N/A
1055
*DISCD*GRADUATED DIAL
Item is no longer available
Price
N/A
1056
*DISCD*SPACER
1057
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
1058
*DISCD*HEAD HANDLE
Item is no longer available
Price
N/A
1059
*DISCD*WORM SHAFT
Item is no longer available
Price
N/A
1060
*DISCD*WORM
1061
*DISCD*SHAFT
Item is no longer available
Price
N/A
1062
*DISCD*COMPRESSION SPRING 1.4 X 12 X 80
1063
*DISCD*PIN
1066
*DISCD*MOTOR MOUNT
1067
*DISCD*MOTOR 2HP 110V/220V 1-PH
Item is no longer available
Price
N/A
1067-1
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
1067-2
*DISCD*MOTOR HOUSING
Item is no longer available
Price
N/A
1067-3
*DISCD*JUNCTION BOX
Item is no longer available
Price
N/A
1067-4
*DISCD*S CAPACITOR 400M 250V 2 X 3-1/2
Price
N/A
1067-5
*DISCD*R CAPACITOR 35M 450V 2 X 3-3/4
Price
N/A
1067-6
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
1067-7
*DISCD*CENTRIFUGAL SWITCH
1067-8
*DISCD*CONTACT PLATE
1069
*DISCD*BELT TOP COVER
1069-1
*DISCD*DRAWBAR COVER
Item is no longer available
Price
N/A
1069-2
*DISCD*COVER PLASTIC
Item is no longer available
Price
N/A
107
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
1070
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
1071
*DISCD*V-BELT 5L330
Item is no longer available
Price
N/A
1072
*DISCD*BALL BEARING 6204
1073
*DISCD*IDLER PULLEY
Item is no longer available
Price
N/A
1074
Now: PVB40
V-BELT B40
Price
N/A
1075
*DISCD*IDLER PULLEY SHAFT
1076
*DISCD*IDLER PULLEY BASE
Item is no longer available
Price
N/A
1077
*DISCD*CLIP PLATE
Item is no longer available
Price
N/A
1079
*DISCD*COLLAR RUBBER
Item is no longer available
Price
N/A
108
*DISCD*DEPTH STOP KNOB
Price
N/A
1085
*DISCD*KNOB M6-1 X 14
Item is no longer available
Price
N/A
1086
*DISCD*FACE MILL 80MM
Item is no longer available
Price
N/A
1086-1
*DISCD*CUTTING BITS
Item is no longer available
Price
N/A
1087
*DISCD*DRILL CHUCK JT#3 0"-1/2"
Item is no longer available
Price
N/A
109
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1091
*DISCD*STOP NUT M20-1.5 X 23
Item is no longer available
Price
N/A
1092
*DISCD*STOP BLOCK
Item is no longer available
Price
N/A
1093
LOCK NUT M16-2
Price
N/A
1094
*DISCD*SUPPORT BASE
1095
*DISCD*DEPTH STOP KNOB
1096
*DISCD*COVER PLATE FRONT
1097
*DISCD*PROTECTION PIECE
Item is no longer available
Price
N/A
110
*DISCD*SPRING COVER
Price
N/A
1101
*DISCD*COLUMN GEAR COVER
Item is no longer available
Price
N/A
1102
*DISCD*LIMIT PLATE
1103
*DISCD*SPRING COVER
Item is no longer available
Price
N/A
1104
*DISCD*COILED SPRING 68 X 19
Item is no longer available
Price
N/A
1105
*DISCD*SPRING BASE
Item is no longer available
Price
N/A
1106
*DISCD*PINION SHAFT
1107
*DISCD*FEED COVER
Item is no longer available
Price
N/A
1108
*DISCD*WORM GEAR BOX
Item is no longer available
Price
N/A
1109
*DISCD*COMPRESSION SPRING 2 X 16 X 25
111
*DISCD*COILED SPRING 68 X 19
Price
N/A
1110
*DISCD*SPRING BASE
Item is no longer available
Price
N/A
1110-1
*DISCD*CLUTCH KNOB
Item is no longer available
Price
N/A
112
*DISCD*SCREW KEY
Price
N/A
113
*DISCD*SPRING BASE
Price
N/A
1132
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1133
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A
1134
Now: PB39M
HEX BOLT M6-1 X 50
Price
N/A
1135
Now: PN01M
HEX NUT M6-1
Price
N/A
1136
ROLL PIN 3 X 18
Price
N/A
1137
LOCK WASHER 30MM
Price
N/A
1139
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
114
ROLL PIN 3 X 10
Price
N/A
1140
ROLL PIN 3 X 10
Price
N/A
1141
Now: PN02M
HEX NUT M10-1.5
Price
N/A
1142
Now: PK70M
KEY 8 X 8 X 12
Price
N/A
1143
CAP SCREW M8-1.25 X 20
Price
N/A
1145
SET SCREW M5-.8 X 8
Price
N/A
1146
*DISCD*KNURLED SCREW M5-.8 X 12
1147
CAP SCREW M5-.8 X 16
Price
N/A
1148
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
1150
Now: PN13M
HEX NUT M16-2
Price
N/A
1151
Now: PW08M
FLAT WASHER 16MM
Price
N/A
1152
TAP SCREW M3 X 8
Price
N/A
1153
SET SCREW M8-1.25 X 12
Price
N/A
1155
CAP SCREW M6-1 X 20
Price
N/A
1156
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
1157
*DISCD*HEX BOLT M12-1 X 25
Item is no longer available
Price
N/A
1158
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1159
*DISCD*KEY 8 X 40
1160
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
1161
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1162
*DISCD*OUTLINE BUSHING
Item is no longer available
Price
N/A
1163
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
1164
TAP SCREW M3 X 8
Price
N/A
1185
*DISCD*DEPTH STOP INDICATOR
Item is no longer available
Price
N/A
1187
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1188
Now: PS39M
PHLP HD SCR M8-1.25 X 10
Price
N/A
1190
*DISCD*DOWNFEED CONTROL KNOB
Item is no longer available
Price
N/A
1190-1
*DISCD*KNOB HANDLE
1200
*DISCD*COMPLETE SPINDLE ASSY
1201
*DISCD*TABLE HANDLE WHEEL
Item is no longer available
Price
N/A
1202
*DISCD*DIAL CLUTCH
1203
Now: P8103
THRUST BEARING 8103
Price
N/A
1204
*DISCD*FLANGE SQUARE
Item is no longer available
Price
N/A
1205
*DISCD*CROSSFEED LEADSCREW T24-2.54 LH X
Item is no longer available
Price
N/A
1206
*DISCD*BASE
Item is no longer available
Price
N/A
1207
*DISCD*CROSS SLIDE GIB
Item is no longer available
Price
N/A
1208
*DISCD*COLUMN BASE
Item is no longer available
Price
N/A
1209
*DISCD*COLUMN FLANGE RING
1210
*DISCD*RACK
1211
*DISCD*COLUMN HEAD
1212
*DISCD*GIB STRIP BOLT M8-1.25 X 35
Item is no longer available
Price
N/A
1213
*DISCD*LEAF SCREW
1214
*DISCD*MOVABLE FIXED BLOCK
1215
*DISCD*CROSS SLIDE LEADSCREW NUT T24-2.5
Item is no longer available
Price
N/A
1216
*DISCD*CENTER BASE
Item is no longer available
Price
N/A
1217
*DISCD*WAY COVER BRACKET
1218
*DISCD*WAY COVER
Item is no longer available
Price
N/A
1219
*DISCD*WAY COVER BRACKET
1220
*DISCD*TABLE CLUTCH
1222
*DISCD*FLANGE LEFT
Item is no longer available
Price
N/A
1223
*DISCD*LEADSCREW NUT T24-2.54
Item is no longer available
Price
N/A
1224
*DISCD*LONGITUDINAL LEADSCREW
1226
*DISCD*FLANGE RIGHT
Item is no longer available
Price
N/A
1227
*DISCD*LONGITUDINAL GIB
Item is no longer available
Price
N/A
1228
*DISCD*TABLE
1229
*DISCD*FIXED BLOCK
Item is no longer available
Price
N/A
1230
*DISCD*MOVABLE FIXED RING
Item is no longer available
Price
N/A
1331
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
1343
CAP SCREW M8-1.25 X 25
Price
N/A
1345
SET SCREW M8-1.25 X 25
Price
N/A
1366
ROLL PIN 5 X 50
Price
N/A
1367
*DISCD*GRADUATED COLLAR
1368
*DISCD*BALL OILER
Item is no longer available
Price
N/A
1372
HEX BOLT M16-2 X 60
Price
N/A
1373
LOCK WASHER 16MM
Price
N/A
1374
CAP SCREW M5-.8 X 12
Price
N/A
1375
CAP SCREW M8-1.25 X 20
Price
N/A
1376
CAP SCREW M6-1 X 12
Price
N/A

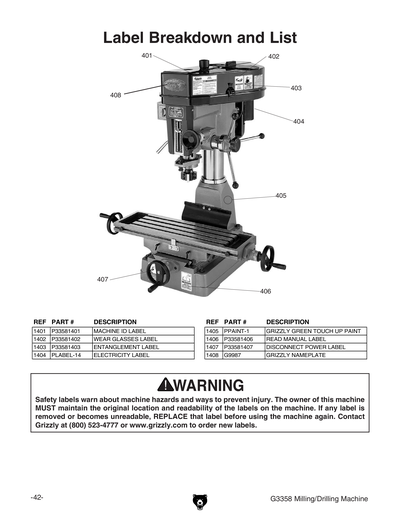

1402
*DISCD*WEAR GLASSES LABEL
1403
*DISCD*ENTANGLEMENT LABEL
1404
ELECTRICITY 1.4W X 1.2H
Price
N/A
1405
N/S GRIZZLY GREEN G1023S
Price
N/A
1406
*DISCD*READ MANUAL LABEL
Item is no longer available
Price
N/A
1407
*DISCD*DISCONNECT POWER LABEL
1408
Now: G9987
Nameplate - Mini
Price
N/A
200
*DISCD*COMPLETE SPINDLE ASSY
Price
N/A
201
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
202
LOCK WASHER 8MM
Price
N/A
203
*DISCD*COLUMN HEAD
Price
N/A
204
*DISCD*COLUMN FLANGE RING
Price
N/A
205
*DISCD*COLUMN BASE
Price
N/A
206
*DISCD*RACK
Price
N/A
207
HEX BOLT M16-2 X 60
Price
N/A
208
LOCK WASHER 16MM
Price
N/A
209
*DISCD*BASE
Price
N/A
209-1
*DISCD*CROSS SLIDE GIB
Price
N/A
210
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
211
*DISCD*WAY COVER BRACKET
Price
N/A
212
*DISCD*WAY COVER
Price
N/A
213
ROLL PIN 5 X 50
Price
N/A
214
*DISCD*TABLE CLUTCH
Price
N/A
215
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
216
CAP SCREW M8-1.25 X 25
Price
N/A
217
*DISCD*BALL OILER
Price
N/A
218
*DISCD*FLANGE LEFT
Price
N/A
219
*DISCD*TABLE
Price
N/A
219-1
*DISCD*LONGITUDINAL GIB
Price
N/A
220
*DISCD*FIXED BLOCK
Price
N/A
221
*DISCD*MOVABLE FIXED RING
Price
N/A
222
*DISCD*LEADSCREW NUT T24-2.54
Price
N/A
225
*DISCD*FLANGE RIGHT
Price
N/A
226
THRUST BEARING 51103
Price
N/A
227
*DISCD*KNURLED SCREW M5-.8 X 12
Price
N/A
228
*DISCD*GRADUATED COLLAR
Price
N/A
229
*DISCD*DIAL CLUTCH
Price
N/A
230
SET SCREW M6-1 X 8
Price
N/A
231
*DISCD*DOWNFEED CONTROL KNOB
Price
N/A
232
*DISCD*KNOB HANDLE
Price
N/A
233
*DISCD*KNOB HANDLE
Price
N/A
234
CAP SCREW M8-1.25 X 20
Price
N/A
235
LOCK WASHER 8MM
Price
N/A
236
*DISCD*CENTER BASE
Price
N/A
238
*DISCD*LEAF SCREW
Price
N/A
239
*DISCD*MOVABLE FIXED BLOCK
Price
N/A
240
CAP SCREW M8-1.25 X 25
Price
N/A
241
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
242
*DISCD*CROSS SLIDE GIB
Price
N/A
244
*DISCD*LONGITUDINAL GIB
Price
N/A
245
CAP SCREW M8-1.25 X 25
Price
N/A
246
*DISCD*LEADSCREW NUT T24-2.54
Price
N/A
247
*DISCD*LONGITUDINAL LEADSCREW
Price
N/A
248
*DISCD*FLANGE SQUARE
Price
N/A
249
*DISCD*CROSSFEED LEADSCREW T24-2.54 LH X
Price
N/A
250
*DISCD*CROSS SLIDE LEADSCREW NUT T24-2.5
Price
N/A
251
*DISCD*SWITCH HZ-20 4M05T6
Price
N/A
MANUAL
*DISCD*MANUAL FOR G3358 05/08
