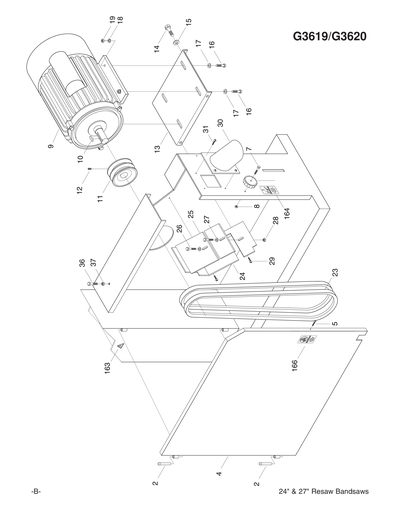

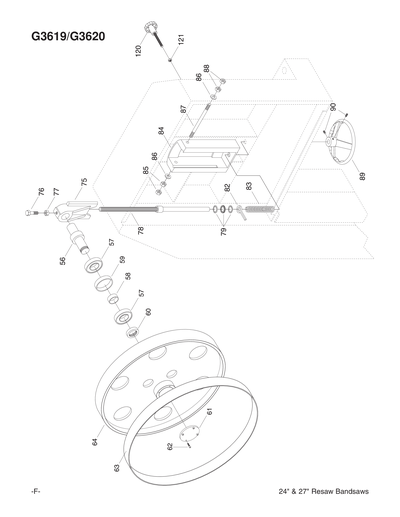

Parts for G3619 24" Resaw Bandsaw 5 HP Single-Phase

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

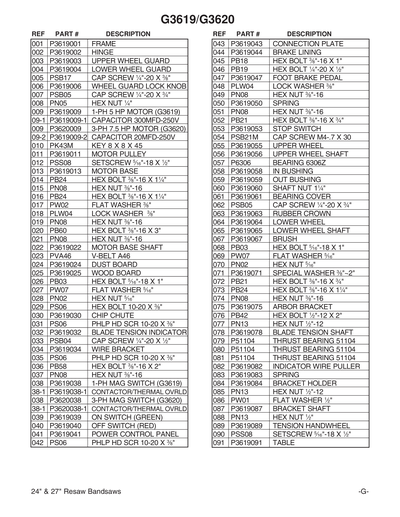

1

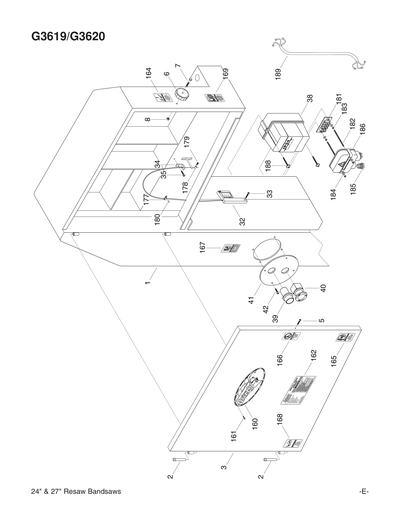

FRAME
Item is no longer available
Price
N/A
2
HINGE
Item is no longer available
Price
N/A
3
WHEEL GUARD UPPER
Item is no longer available
Price
N/A
4
LOWER WHEEL GUARD
Item is no longer available
Price
N/A
5
CAP SCREW 1/4-20 X 3/8
Price
N/A
6
WHEEL GUARD LOCK KNOB
Item is no longer available
Price
N/A
7
CAP SCREW 1/4-20 X 3/4
Price
N/A
8
Now: PN05
HEX NUT 1/4-20
Price
N/A
9
*DISCD*MOTOR 5HP 220V 1-PH
Item is no longer available
Price
N/A
9-1
S CAPACITOR 300M 250V 1-3/4 X 3-3/4 SECC
Price
N/A
9-2
R CAPACITOR 30M 300V 1-7/8 X 4
Price
N/A
9-3
MOTOR FAN COVER
9-4
FAN
Item is no longer available
Price
N/A
10
Now: PK43M
KEY 8 X 8 X 45
Price
N/A
11
MOTOR PULLEY
12
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
13
MOTOR BASE
14
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
15
Now: PN08
HEX NUT 3/8-16
Price
N/A
16
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
17
Now: PW02
FLAT WASHER 3/8
Price
N/A
18
Now: PLW04
LOCK WASHER 3/8
Price
N/A
19
Now: PN08
HEX NUT 3/8-16
Price
N/A
20
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
21
Now: PN08
HEX NUT 3/8-16
Price
N/A
23
Now: PVA42
V-BELT A42
Price
N/A
24
DUST BOARD
25
*DISCD*WOOD BOARD
26
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
27
Now: PW07
FLAT WASHER 5/16
Price
N/A
28
Now: PN02
HEX NUT 5/16-18
Price
N/A
29
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
30
CHIP CHUTE
31
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
32
BLADE TENSION INDICATOR
33
CAP SCREW 1/4-20 X 1/2
Price
N/A
34
WIRE BRACKET
35
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
36
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
37
Now: PN08
HEX NUT 3/8-16
Price
N/A
38
*DISCD*MAG SWITCH 5HP 1PH
39
*DISCD*ON SWITCH GREEN
Item is no longer available
Price
N/A
40
*DISCD*OFF SWITCH RED
Item is no longer available
Price
N/A
41
*DISCD*POWER CONTROL PANEL
42
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
43
*DISCD*BRAKE LINING
Price
N/A
44
*DISCD*BRAKE LINING
45
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
46
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
47
*DISCD*FOOT BRAKE PEDAL
Item is no longer available
Price
N/A
48
Now: PLW04
LOCK WASHER 3/8
Price
N/A
49
Now: PN08
HEX NUT 3/8-16
Price
N/A
50
*DISCD*SPRING HELICAL 110MM
51
Now: PN08
HEX NUT 3/8-16
Price
N/A
52
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
53
*DISCD*LOWER WHEEL DOOR LIMIT SWITCH
54
CAP SCREW M4-.7 X 30
Price
N/A
55

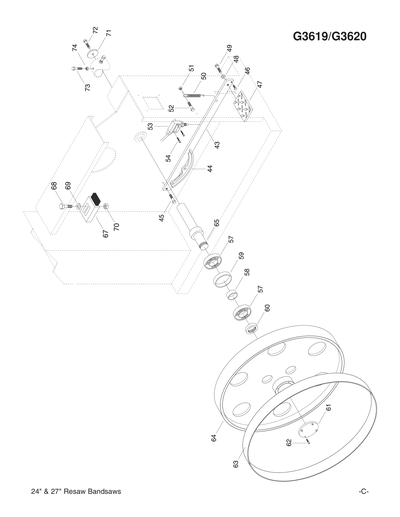

WHEEL UPPER
Item is no longer available
Price
N/A
56
*DISCD*WHEEL SHAFT UPPER
Item is no longer available
Price
N/A
57
BALL BEARING 6306ZZ
Price
N/A
58
*DISCD*IN BUSHING
59
*DISCD*OUT BUSHING
60
*DISCD*SHAFT NUT M30-1.5
61
BEARING COVER
Item is no longer available
Price
N/A
62
CAP SCREW 1/4-20 X 3/4
Price
N/A
63
*DISCD*CROWN RUBBER
64
*DISCD*LOWER WHEEL
65
LOWER WHEEL SHAFT
66
*DISCD*BUSH BRACKET
Item is no longer available
Price
N/A
67
BRUSH
Item is no longer available
Price
N/A
68
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
69
Now: PW07
FLAT WASHER 5/16
Price
N/A
70
Now: PN02
HEX NUT 5/16-18
Price
N/A
71
LOWER WHEEL WASHER 3/8"~2
72
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
73
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
74
Now: PN08
HEX NUT 3/8-16
Price
N/A
75
*DISCD*ARBOR BRACKET W/ HOLDER
Price
N/A
76
Now: PB42
HEX BOLT 1/2-12 X 2
Price
N/A
77
Now: PN06
HEX NUT 1/2-12
Price
N/A
78
BLADE TENSION SHAFT
79
THRUST BEARING 51104
Price
N/A
80
THRUST BEARING 51104
Price
N/A
81
THRUST BEARING 51104
Price
N/A
82
INDICATOR WIRE PULLER
83
*DISCD*SPRING HELICAL 70MM
84
*DISCD*ARBOR BRACKET W/ HOLDER
85
Now: PN06
HEX NUT 1/2-12
Price
N/A
86
Now: PW01
FLAT WASHER 1/2
Price
N/A
87
BRACKET SHAFT
88
Now: PN06
HEX NUT 1/2-12
Price
N/A
89
TENSION HANDWHEEL
Item is no longer available
Price
N/A
90
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
91

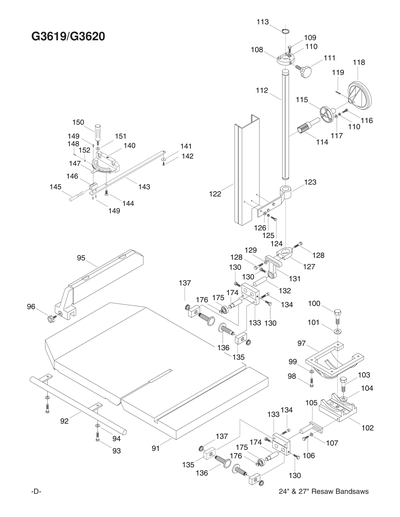

TABLE
Item is no longer available
Price
N/A
92

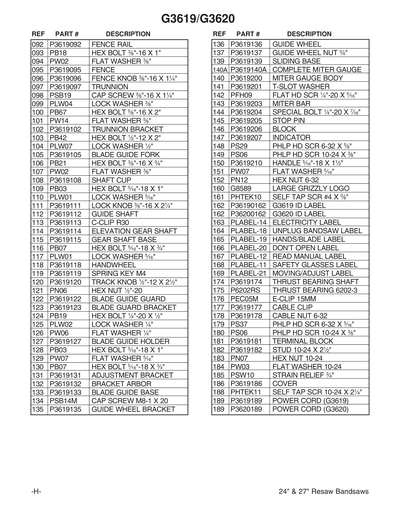

FENCE RAIL
93
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
94
Now: PW02
FLAT WASHER 3/8
Price
N/A
95
*DISCD*FENCE BODY
Item is no longer available
Price
N/A
96
*DISCD*FENCE LOCK KNOB
97
*DISCD*TRUNNION
Price
N/A
97A
*DISCD*ANGLE GAUGE
98
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
99
Now: PLW04
LOCK WASHER 3/8
Price
N/A
100
Now: PB67
HEX BOLT 3/8-16 X 7/8
Price
N/A
101
Now: PW14
FLAT WASHER 5/8
Price
N/A
102
*DISCD*TRUNNION BRACKET
103
Now: PB42
HEX BOLT 1/2-12 X 2
Price
N/A
104
Now: PLW07
LOCK WASHER 1/2
Price
N/A
105
GUIDE FORK
106
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
107
Now: PW02
FLAT WASHER 3/8
Price
N/A
108
*DISCD*SHAFT CUP
Item is no longer available
Price
N/A
109
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
110
Now: PLW01
LOCK WASHER 5/16
Price
N/A
111
*DISCD*LOCK KNOB 3/8-16 X 2-1/4"
112
GUIDE SHAFT
113
C-CLIP R30
Item is no longer available
Price
N/A
114
*DISCD*ELEVATION GEAR SHAFT
Item is no longer available
Price
N/A
115
GEAR SHAFT BASE
Item is no longer available
Price
N/A
116
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
117
Now: PLW01
LOCK WASHER 5/16
Price
N/A
118
HANDWHEEL
Item is no longer available
Price
N/A
119
*DISCD*SPRING KEY M4 X 30
120
*DISCD*TRACKING KNOB 1/2"-12X2 1/2"
Item is no longer available
Price
N/A
121
Now: PN06
HEX NUT 1/2-12
Price
N/A
122
BLADE GUIDE GUARD
Item is no longer available
Price
N/A
123
BLADE GUARD BRACKET
124
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
125
Now: PLW02
LOCK WASHER 1/4
Price
N/A
126
Now: PW06
FLAT WASHER 1/4
Price
N/A
127
BLADE GUIDE HOLDER
128
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
129
Now: PW07
FLAT WASHER 5/16
Price
N/A
130
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
131
*DISCD*ADJUSTMENT BRACKET
Item is no longer available
Price
N/A
132
*DISCD*BRACKET ARBOR
Item is no longer available
Price
N/A
133
*DISCD*BLADE GUIDE BASE
134
CAP SCREW M8-1.25 X 20
Price
N/A
135
*DISCD*GUIDE WHEEL BRACKET
136
*DISCD*GUIDE WHEEL
Price
N/A
137
*DISCD*GUIDE WHEEL NUT 7/8-14
Price
N/A
138
*DISCD*BLADE SUPPORT BEARING/SHAFT
139
MITER BAR
Price
N/A
140
MITER BODY
Item is no longer available
Price
N/A
140A
COMPLETE MITER GAUGE
141
T-SLOT WASHER 13MM
Item is no longer available
Price
N/A
142
Now: PFH09
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
143
MITER BAR
Item is no longer available
Price
N/A
144
MITER BAR BOLT 1/4"-20X 7/16"
Item is no longer available
Price
N/A
145
STOP PIN
Item is no longer available
Price
N/A
146
BLOCK
Item is no longer available
Price
N/A
147
INDICATOR
Item is no longer available
Price
N/A
148
Now: PS29
PHLP HD SCR 6-32 X 5/8
Price
N/A
149
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
150
HANDLE 5/16-18 X 1-1/2"
Item is no longer available
Price
N/A
151
Now: PW07
FLAT WASHER 5/16
Price
N/A
152
Now: PN12
HEX NUT 6-32
Price
N/A
160
Now: G8589
Nameplate - Large
Price
N/A
161
SELF TAPPING SCREW #4 X 3/8"
Item is no longer available
Price
N/A
162
MACHINE ID LABEL
Item is no longer available
Price
N/A
163
ELECTRICITY 1.4W X 1.2H
Price
N/A
164
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
165
***USE PLABEL-19A***
Price
N/A
166
DONT OPEN 2W X 3.3H
Price
N/A
167
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
168
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
169
BS MOVING/ADJUST 2W X 3.3H
Price
N/A
174
*DISCD*THRUST BEARING SHAFT
175
BALL BEARING 6202-2RS
Price
N/A
176
E-CLIP 15MM
Price
N/A
177
CABLE CLIP
178
*DISCD*CABLE NUT 6-32
178-1
CONTACTOR/THERM OVRLD 220V 60HZ 3HP NHD
Item is no longer available
Price
N/A
179
Now: PS37
PHLP HD SCR 6-32 X 5/16
Price
N/A
180
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
181
*DISCD*JUNCTION BOX/ELEC. COVER (SM) SET
182
*DISCD*JUNCTION BOX/ELEC. COVER (SM) SET
Price
N/A
183
Now: PN07
HEX NUT 10-24
Price
N/A
184
Now: PW03
FLAT WASHER #10
Price
N/A
185
*DISCD*JUNCTION BOX/ELEC. COVER (SM) SET
Price
N/A
186
*DISCD*JUNCTION BOX/ELEC. COVER (SM) SET
Price
N/A
187
*DISCD*RELAY COVER
Item is no longer available
Price
N/A
188
TAP SCREW 10-24 X 1/2
Price
N/A
189
POWER CORD
Item is no longer available
Price
N/A
200
BANDSAW BLADE 2"
MANUAL
MANUAL FOR G3619 02/04
