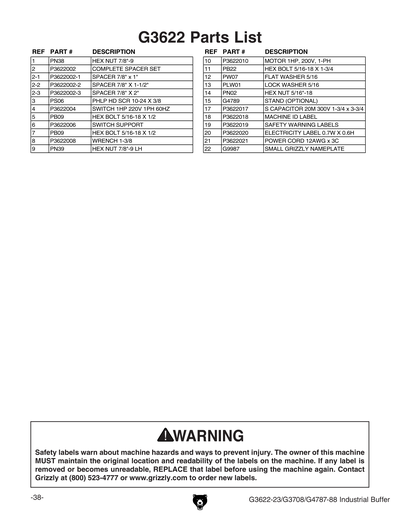

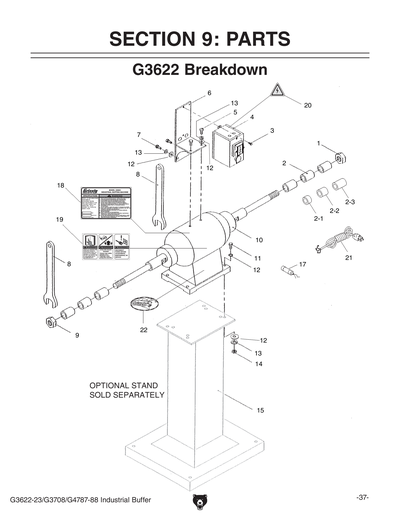

Parts for G3622 Industrial Buffing Machine - 1 HP Single-Phase

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PN38
HEX NUT 7/8-9
Price
N/A
2
*DISCD*COLLAR SET
2-1
COLLAR 7/8" X 1"
2-2
COLLAR 7/8" X 1-1/2"
2-3
COLLAR 7/8" X 2"
3
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
4
*DISCD*SWITCH 1HP 1PH 220V 60HZ
Item is no longer available
Price
N/A
5
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
6
SWITCH SUPPORT
Item is no longer available
Price
N/A
7
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
8
*DISCD*WRENCH 1-3/8 SPINDLE
Item is no longer available
Price
N/A
9
Now: PN39
HEX NUT 7/8-9 LH
Price
N/A
10
MOTOR 1HP 220V 1-PH
Item is no longer available
Price
N/A
11
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
12
Now: PW07
FLAT WASHER 5/16
Price
N/A
13
Now: PLW01
LOCK WASHER 5/16
Price
N/A
14
Now: PN02
HEX NUT 5/16-18
Price
N/A
15
Now: G4789
Buffing Stand
Price
N/A
17
S CAPACITOR 20M 300V 1-3/4 X 3-3/4
Item is no longer available
Price
N/A
18
MACHINE ID LABEL
Item is no longer available
Price
N/A
19
SAFETY WARNING LABEL
Item is no longer available
Price
N/A
20
ELECTRICITY LABEL 0.7W X 0.6H
Item is no longer available
Price
N/A
21
POWER CORD 12AWG X 3C
Item is no longer available
Price
N/A
22
Now: G9987
Nameplate - Mini
Price
N/A
MAN
MANUAL FOR G3622 04/08
