Parts for G4000 - 9" x 19" Benchtop Metal Lathe

Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000
Part Diagram for G4000

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
635
FLAT WASHER 10MM
Price
N/A
811
WOODRUFF KEY 3 X 13
Price
N/A

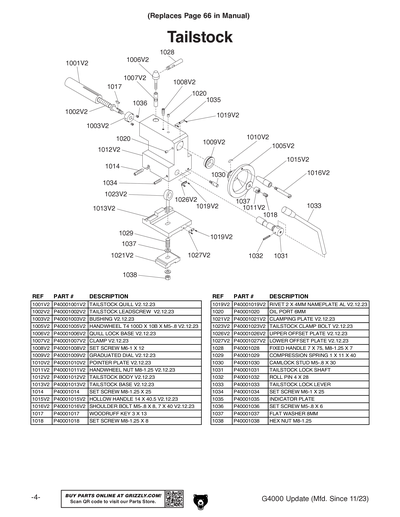

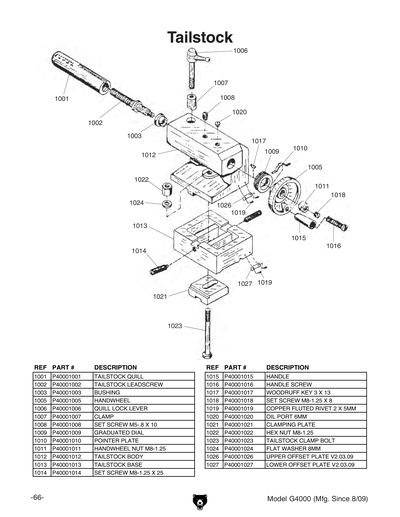

1000
COMPLETE TAILSTOCK ASSEMBLY
Price
$445.65
1000V2
COMPLETE TAILSTOCK ASSEMBLY V2.12.23
Price
$646.20
1001
TAILSTOCK QUILL
Price
$67.75
1001A
LIVE CENTER MT#2
Price
$113.95
1001V2
TAILSTOCK QUILL V2.12.23
Price
$84.70
1002
TAILSTOCK LEADSCREW
Price
$35.65
1002V2
TAILSTOCK LEADSCREW V2.12.23
Price
$44.60
1003
BUSHING
Price
$10.70
1003V2
BUSHING V2.12.23
Price
$13.40
1004
OFF SET INDICATOR PLATE
Price
$2.60
1005
HANDWHEEL
Price
$35.10
1005V2
HANDWHEEL T4 100D X 10B X M5-.8 V2.12.23
Price
$43.70
1006
QUILL LOCK LEVER
Price
$17.85
1006V2
QUILL LOCK BASE V2.12.23
Price
$11.20
1007
COMPLETE TAILSTOCK ASSEMBLY V2.12.23
Price
N/A
1007V2
CLAMP V2.12.23
Price
$20.10
1008
SET SCREW M5-.8 X 10
Price
N/A
1009
GRADUATED DIAL
Price
$21.60
1009V2
GRADUATED DIAL V2.12.23
Price
$26.75
101
HEADSTOCK CASTING
Price
$210.65
1010
COMPLETE TAILSTOCK ASSEMBLY V2.12.23
Price
N/A
1010V2
POINTER PLATE V2.12.23
Price
$2.25
1011
HANDWHEEL NUT M8-1.25
Price
$3.75
1011V2
HANDWHEEL NUT M8-1.25 V2.12.23
Price
$4.50
1012
TAILSTOCK BODY
Price
$101.20
1012V2
TAILSTOCK BODY V2.12.23
Price
$356.50
1013
COMPLETE TAILSTOCK ASSEMBLY V2.12.23
Price
N/A
1013V2
TAILSTOCK BASE V2.12.23
Price
$89.15
1014
SET SCREW M8-1.25 X 25
Price
N/A
1015
HANDLE
Price
$10.95
1015V2
HOLLOW HANDLE 14 X 40.5 V2.12.23
Price
$13.40
1016
HANDLE SCREW
Price
$7.20
1016V2
SHOULDER BOLT M5-.8 X 8, 7 X 40 V2.12.23
Price
$8.95
1017
WOODRUFF KEY 3 X 13
Price
$2.25
1018
SET SCREW M8-1.25 X 8
Price
N/A
1019
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
1019V2
RIVET 2 X 4MM NAMEPLATE AL V2.12.23
Price
$2.25
102
CHUCK 3-JAW BACKPLATE
Price
$49.10
1020
BALL OILER 6MM PRESS-IN
Price
N/A
1021
COMPLETE TAILSTOCK ASSEMBLY V2.12.23
Price
N/A
1021V2
CLAMPING PLATE V2.12.23
Price
$22.35
1022
HEX NUT M8-1.25
Price
N/A
1023
COMPLETE TAILSTOCK ASSEMBLY V2.12.23
Price
N/A
1023V2
TAILSTOCK CLAMP BOLT V2.12.23
Price
$13.40
1024
FLAT WASHER 8MM
Price
N/A
1025
*DISCD*TAILSTOCK
Item is no longer available
Price
N/A
1026
UPPER OFFSET PLATE
Price
$2.05
1026V2
UPPER OFFSET PLATE V2.12.23
Price
$2.25
1027
LOWER OFFSET PLATE
Price
$2.05
1027V2
LOWER OFFSET PLATE V2.12.23
Price
$2.25
1028
FIXED HANDLE 7 X 75, M8-1.25 X 7
Price
$11.20
1029
*DISCD*COMPRESSION SPRING 1 X 11 X 40
Item is no longer available
Price
N/A
103
SPINDLE
Price
$214.20
1030
CAMLOCK STUD M5-.8 X 30
Price
$4.50
1031
TAILSTOCK LOCK SHAFT
Price
$26.75
1032
ROLL PIN 4 X 28
Price
$2.25
1033
TAILSTOCK LOCK LEVER
Price
$22.35
1034
SET SCREW M6-1 X 25
Price
N/A
1035
INDICATOR PLATE
Price
$2.25
1036
SET SCREW M5-.8 X 6
Price
N/A
1037
FLAT WASHER 8MM
Price
N/A
1038
HEX NUT M8-1.25
Price
N/A
104
KEY 5 X 8 X 40
Price
$2.20
1042
QUILL LOCK LEVER
Price
N/A
1043
QUILL LOCK LEVER
Price
N/A
1044A
KNOB
Price
N/A
1045
CHANGE GEAR COVER W/HINGE
Price
N/A
1049
COVER PLATE
Price
$4.70
105
GASKET
Price
$9.00
106
TAPER ROLLER BEARING 32007
Price
N/A
107
BEARING CAP
Price
$6.90
108
SPACER
Price
$6.90
109
GEAR 40T X 30MM
Price
$27.00
110
SPINDLE PULLEY
Price
$57.95
1101
STEADY REST CASTING
Price
$75.85
1101A
STEADY REST ASSEMBLY
Price
$151.70
1102
STEADY REST FINGERS 3 PC
Price
$40.15
1102A
CHUCK 3-JAW REV JAWS 3PC
Price
N/A
1103
STEADY REST SCREW
Price
$4.70
1104
FLAT WASHER 8MM
Price
N/A
1105
HEX NUT M8-1.25
Price
N/A
1106
ADJUSTING SCREW
Price
$8.95
1107
CLAMPING PLATE
Price
$27.00
1108
HEX BOLT M8-1.25 X 60
Price
N/A
1109
FLAT WASHER 8MM
Price
N/A
111
STEEL BALL 5MM
Price
N/A
1110
STEADY REST FINGERS 3 PC
Price
N/A
112
SET SCREW M4-.7 X 5
Price
N/A
113
THREADED LOCK COLLAR
Price
$11.90
114
SET SCREW M4-.7 X 10
Price
N/A
115
SHAFT
Price
$8.95
116
*DISCD*SPACING RING
Item is no longer available
Price
N/A
117
SET SCREW M4-.7 X 5
Price
N/A
118
KEYED BUSHING
Price
N/A
119
*DISCD*GEAR 80T PLASTIC
Item is no longer available
Price
N/A
119A
GEAR 80T METAL
Price
$35.70
120
RETAINING CLIP
Price
$2.60

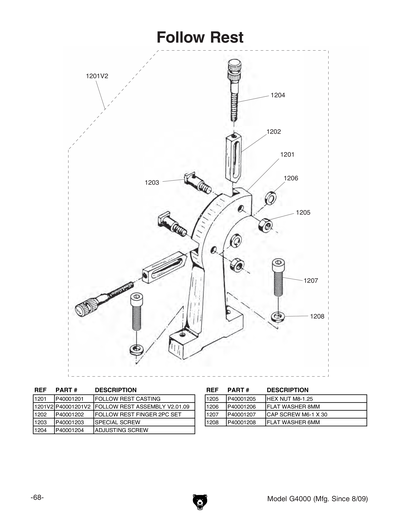

1201
FOLLOW REST CASTING
Price
$39.20
1201A
FOLLOW REST ASSEMBLY V2.01.09
Price
N/A
1201V2
FOLLOW REST ASSEMBLY V2.01.09
Price
$125.10
1202
FOLLOW REST FINGER 2PC
Price
$26.75
1203
STEADY REST SCREW
Price
N/A
1204
ADJUSTING SCREW
Price
N/A
1205
HEX NUT M8-1.25
Price
N/A
1206
FLAT WASHER 8MM
Price
N/A
1207
CAP SCREW M6-1 X 30
Price
N/A
1208
FLAT WASHER 6MM
Price
N/A
121
BALL OILER 6MM PRESS-IN
Price
N/A
122
GEAR 40T X 14MM
Price
$27.00
123
GEAR 28T
Price
$22.35
124
SET SCREW M6-1 X 10
Price
N/A
125
BACKPLATE 6"
Price
$71.60
125A
CHUCK 3-JAW BACKPLATE
Price
N/A
125B
FACEPLATE 7-1/2"
Price
N/A
126
CHUCK 3-JAW 4"
Price
$311.95
126A
LATHE CHUCK KEY 7.98MM STD
Price
$20.15
126B
CHUCK 3-JAW REV JAWS 3PC
Price
$195.50
126C
STANDARD JAWS 6MM SIDE GROOVE V2.03.07
Price
$156.00
126D
STANDARD JAWS 8MM SIDE GROOVE V1.10.05
Price
$156.00
127
CHUCK 4-JAW 7-1/4" V1.07.96
Price
$423.40
127A
***USE P4000127***
Item is no longer available
Price
N/A
127A-1
CHUCK 4-JAW KEY
Price
$22.35
127A-2
*DISCD*SQUARE SCREW FOR 4-JAW CHUCK
Item is no longer available
Price
N/A
128
*DISCD*COMPLETE SPINDLE ASSY
Item is no longer available
Price
N/A
129
DEAD CENTER MT#2
Price
$20.15
130
DEAD CENTER MT#3
Price
$24.85

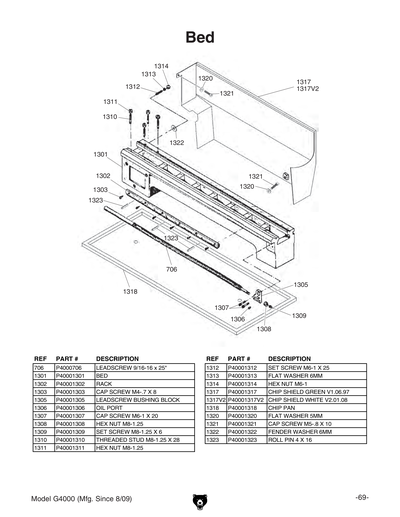

1301
BED
Price
$571.85
1302
RACK
Price
$53.50
1303
CAP SCREW M4-.7 X 8
Price
N/A
1304
FEED SCREW
Price
$57.80
1305
LEADSCREW BUSHING BLOCK
Price
$31.25
1306
BALL OILER 6MM PRESS-IN
Price
N/A
1307
CAP SCREW M6-1 X 20
Price
N/A
1308
NUT
Price
$2.25
1309
SET SCREW M8-1.25 X 6
Price
N/A
131
FACEPLATE 7-1/2"
Price
$98.15
1310
STUD-DE M8-1.25 X 28 22RH
Price
$1.90
1311
HEX NUT M8-1.25
Price
N/A
1312
SET SCREW M6-1 X 25
Price
N/A
1313
FLAT WASHER 6MM
Price
N/A
1314
HEX NUT M6-1
Price
N/A
1315
HEX BOLT M10-1.5 X 30
Price
N/A
1316
TOOL BOX
Price
$39.20
1316A
COMPLETE TOOL BOX
Price
$405.75
1317
CHIP SHIELD GREEN V1.06.97
Price
$200.60
1317V2
CHIP SHIELD WHITE V2.01.08
Price
$200.60
1318
CHIP PAN
Price
$178.25
1319
OIL BOTTLE
Price
$11.20
1320
FLAT WASHER 5MM
Price
N/A
1321
CAP SCREW M5-.8 X 10
Price
N/A
1322
FENDER WASHER 6MM
Price
N/A
1323
ROLL PIN 4 X 16
Price
N/A
13268
*DISCD*CHUCK WRENCH SET SECD/SH3
Item is no longer available
Price
N/A
1326A
*DISCD*CHUCK WRENCH SET
Item is no longer available
Price
N/A
1326B
*DISCD*CHUCK WRENCH SET
Item is no longer available
Price
N/A
133
CHUCK BAR SHORT
Price
$11.20
134
CHUCK BAR LONG
Price
$13.70
135
BALL OILER 8MM PRESS-IN
Price
N/A

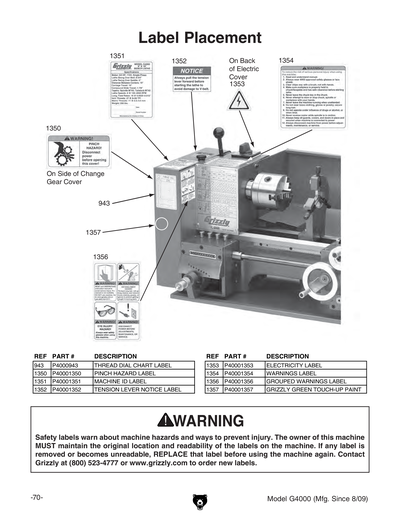

1350
PINCH HAZARD LABEL
Price
$1.25
1351
MACHINE ID LABEL
Price
$16.40
1352
TENSION LEVER NOTICE LABEL
Price
$5.95
1353
ELECTRICITY 0.7W X 0.6H
Price
N/A
1354
WARNINGS LABEL
Price
$4.25
1356
GROUPED WARNINGS LABEL
Price
$11.80
1357
N/S GRIZZLY GREEN G1023S
Price
N/A
2002
CAP SCREW M5-.8 X 20
Price
N/A
2003
IDDLER PULLEY SHAFT
Price
N/A

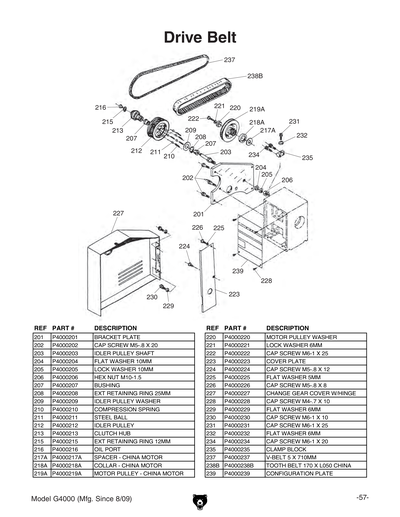

201
BRACKET PLATE
Price
$111.45
202
CAP SCREW M5-.8 X 20
Price
N/A
203
IDDLER PULLEY SHAFT
Price
$13.70
204
FLAT WASHER 10MM
Price
N/A
205
LOCK WASHER 10MM
Price
N/A
206
HEX NUT M10-1.5
Price
N/A
207
BUSHING
Price
$4.70
208
EXT RETAINING RING 25MM
Price
N/A
209
FENDER WASHER 24MM
Price
$4.70
210
COMPRESSION SPRING
Price
$2.60
211
STEEL BALL 5MM
Price
N/A
212
IDLER PULLEY
Price
$71.60
213
CLUTCH HUB
Price
$18.00
214
FENDER WASHER 24MM
Price
N/A
215
EXT RETAINING RING 12MM
Price
N/A
216
BALL OILER 6MM PRESS-IN
Price
N/A
217
SPACER - CHINA MOTOR
Price
N/A
217A
SPACER - CHINA MOTOR
Price
$3.65
217B
SPACER - US MOTOR
Price
$3.25
218
COLLAR - CHINA MOTOR
Price
N/A
218A
COLLAR - CHINA MOTOR
Price
$7.95
218B
COLLAR US MOTOR
Price
$6.15
219
MOTOR PULLEY - CHINA MOTOR
Price
N/A
219A
MOTOR PULLEY - CHINA MOTOR
Price
$69.75
219B
*DISCD*MOTOR PULLEY US MOTOR
Item is no longer available
Price
N/A
220
MOTOR PULLEY WASHER
Price
$3.65
221
LOCK WASHER 6MM
Price
N/A
222
CAP SCREW M6-1 X 25
Price
N/A
223
COVER PLATE
Price
$12.25
224
CAP SCREW M5-.8 X 12
Price
N/A
225
FLAT WASHER 5MM
Price
N/A
226
CAP SCREW M5-.8 X 8
Price
N/A
227
CHANGE GEAR COVER W/HINGE
Price
$113.70
228
CAP SCREW M4-.7 X 10
Price
N/A
229
FLAT WASHER 6MM
Price
N/A
230
CAP SCREW M6-1 X 10
Price
N/A
231
CAP SCREW M6-1 X 25
Price
N/A
232
FLAT WASHER 6MM
Price
N/A
233
SPRING
Price
$2.20
234
CAP SCREW M6-1 X 20
Price
N/A
235
CLAMP BLOCK
Price
$11.20
236
HEX NUT M6-1
Price
N/A
237
V-BELT 5 X 710MM
Price
$49.30
237A
V BELT M5 X 730 QTY 1
Price
$39.70
238
TOOTH BELT 160 X L050 80T
Price
N/A
238A
TOOTH BELT 160 X L050 80T
Price
$23.85
238B
TOOTH BELT 170 X L050 CHINA
Price
$21.40
239
CONFIGURATION PLATE
Price
$20.10
240
COMPLETE CLUTCH ASSY
Price
$125.10

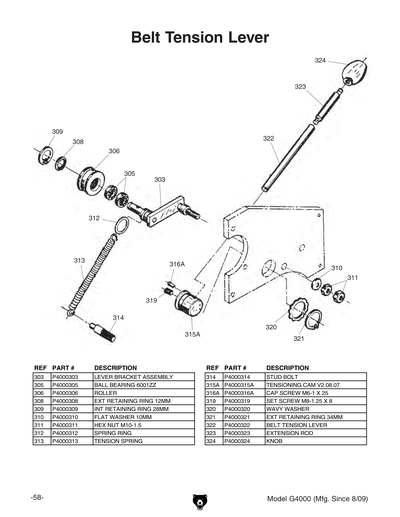

301
LEVER BRACKET ASSEMBLY
Price
N/A
302
LEVER BRACKET ASSEMBLY
Price
N/A
303
LEVER BRACKET ASSEMBLY
Price
$40.25
304
LEVER BRACKET ASSEMBLY
Price
N/A
305
BALL BEARING 6001ZZ
Price
N/A
306
ROLLER
Price
$18.00
307
FLAT WASHER 12MM
Price
N/A
308
EXT RETAINING RING 12MM
Price
N/A
309
INT RETAINING RING 28MM
Price
N/A
310
FLAT WASHER 10MM
Price
N/A
311
HEX NUT M10-1.5
Price
N/A
312
SPRING RING
Price
$3.60
313
TENSION SPRING
Price
$9.00
314
FLAT HEAD SCREW W/SHOULDER
Price
$4.70
315
*DISCD*TOGGLE V1.02.96
Item is no longer available
Price
N/A
315A
TENSIONING CAM V2.08.07
Price
$13.70
316
*DISCD*PIN V1.02.96
Item is no longer available
Price
N/A
316A
CAP SCREW M6-1 X 25
Price
N/A
317
*DISCD*SLEEVE V1.02.96
Item is no longer available
Price
N/A
317A
CAP SCREW M6-1 X 25
Price
N/A
318
EXT RETAINING RING 6MM
Price
N/A
319
SET SCREW M8-1.25 X 8
Price
N/A
320
WAVY WASHER 34MM
Price
$4.50
321
EXT RETAINING RING 34MM
Price
N/A
322
BELT TENSION LEVER
Price
$9.00
323
EXTENSION ROD
Price
$9.00
324
KNOB
Price
$4.70

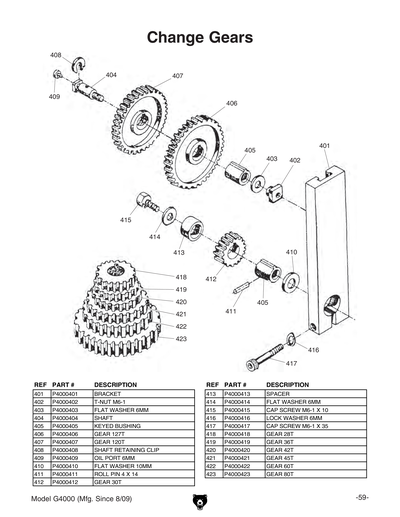

401
BRACKET
Price
$40.25
402
T-NUT M6-1
Price
$6.90
403
SPACER 6.5MM X 20MM X 2.5MM
Price
$2.60
404
SHAFT
Price
$9.00
405
KEYED BUSHING
Price
$4.50
406
GEAR 127T
Price
$44.60
407
GEAR 120T
Price
$40.25
408
SHAFT RETAINING CLIP
Price
$9.00
409
BALL OILER 6MM PRESS-IN
Price
N/A
410
SPACER 10.5MM X 20MM X 3MM
Price
$2.60
411
ROLL PIN 4 X 14
Price
N/A
412
GEAR 30T
Price
$27.00
413
SPACING RING
Price
$6.90
414
FENDER WASHER 6MM
Price
N/A
415
CAP SCREW M6-1 X 10
Price
N/A
416
LOCK WASHER 6MM
Price
N/A
417
CAP SCREW M6-1 X 35
Price
N/A
418
GEAR 28T
Price
$26.75
419
GEAR 36T
Price
$27.00
420
GEAR 42T
Price
$31.35
421
GEAR 45T
Price
$31.35
422
GEAR 60T
Price
$35.95
423
GEAR 80T
Price
$40.25
501
ELECTRICAL BOX
Price
$30.20
502
CAP SCREW M5-.8 X 10
Price
N/A
503
LOCK WASHER 6MM
Price
N/A
504
ELECTRICAL BOX COVER
Price
$18.00
505
CAPACITOR COVER W/CLIP
Price
$9.40
506
*DISCD*R CAPACITOR 60M 250V
Item is no longer available
Price
N/A
506A
*DISCD*S CAPACITOR 400M 160V
Item is no longer available
Price
N/A
506B
R CAPACITOR 20M 400V 1-5/8 X 2-7/8
Price
$38.15
506C
S CAPACITOR 100M 250V 1-5/8 X 3-1/8
Price
$38.15
507
STRAIN RELEIF NUT M16-1
Price
$8.95
508
STRAIN RELIEF M16
Price
$3.60
509
SPINDLE SWITCH
Price
$84.70
510
PHLP HD SCR M5-.8 X 10
Price
N/A
511
MOTOR 3/4HP 110V 1-PH
Price
$564.65
511-1
MOTOR FAN COVER
Price
$38.15
511-2
MOTOR FAN
Price
$38.15
511-3
TERMINAL COVER
Price
$30.20
511-4
R CAPACITOR 20M 400V 1-5/8 X 2-7/8
Price
N/A
511-5
S CAPACITOR 100M 250V 1-5/8 X 3-1/8
Price
N/A
511-6
WHITE MOTOR CORD 16G 7W 18"
Price
$11.20
511-7
MOTOR CONTACT PLATE
Price
$18.00
511-8
TERMINAL BLOCK PT
Price
$9.00
511A
*DISCD*MOTOR 3/4HP
Item is no longer available
Price
N/A
511B
*DISCD*METAL LATHE MOTOR 3/4HP USA
Price
$224.85
512
LOCK WASHER 5MM
Price
N/A
513
HEX NUT M4-.7
Price
N/A
514
PHLP HD SCR M4-.7 X 8
Price
N/A
515
CAPACITOR COVER W/CAP
Price
$55.75
516
PHLP HD SCR M4-.7 X 6
Price
N/A
517
CAPACITOR CLIP
Price
$9.00
518
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
519
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
520
HEX WRENCH 1.5MM
Price
N/A
521
HEX WRENCH 2MM
Price
N/A
522
HEX WRENCH 4MM
Price
N/A
523
HEX WRENCH 5MM
Price
N/A
524
HEX WRENCH 6MM
Price
N/A
525
PHLP HD SCR M4-.7 X 16
Price
N/A
526
STRAIN RELIEF NUT M24-1.5
Price
$1.90
527
STRAIN RELIEF M22 TYPE-6 ST
Price
$6.90

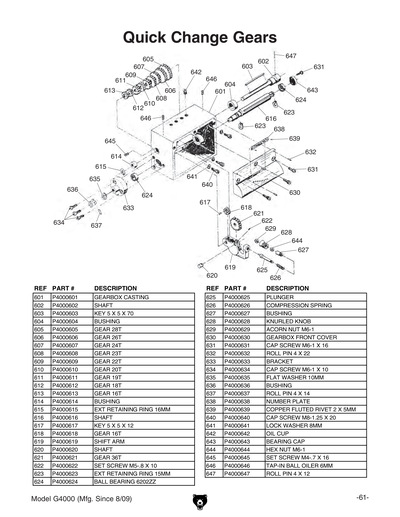

601
GEARBOX CASTING
Price
$156.70
602
SHAFT
Price
$31.35
603
KEY 5 X 5 X 70
Price
N/A
604
BUSHING
Price
$18.40
605
GEAR 28T
Price
$21.25
606
GEAR 26T
Price
$21.25
607
GEAR 24T
Price
$20.15
608
GEAR 23T
Price
$19.45
609
GEAR 22T
Price
$19.45
610
GEAR 20T
Price
$31.25
611
GEAR 19T
Price
$19.10
612
GEAR 18T
Price
$18.40
613
GEAR 16T
Price
$18.40
614
BUSHING
Price
$33.90
615
EXT RETAINING RING 16MM
Price
N/A
616
SHAFT
Price
$27.00
617
KEY 5 X 5 X 12
Price
N/A
618
GEAR 16T
Price
$22.35
619
SHIFT ARM
Price
$75.85
620
SHAFT
Price
$4.50
621
GEAR 36T
Price
$49.25
622
SET SCREW M5-.8 X 10
Price
N/A
623
EXT RETAINING RING 15MM
Price
N/A
624
BALL BEARING 6202ZZ
Price
N/A
625
PLUNGER
Price
$11.20
626
COMPRESSION SPRING
Price
$2.60
627
BUSHING
Price
$9.00
6276
GEARBOX FRONT COVER
Price
N/A
628
KNURLED KNOB
Price
$13.70
629
ACORN NUT M6-1
Price
N/A
630
GEARBOX FRONT COVER
Price
$66.90
631
CAP SCREW M6-1 X 16
Price
N/A
632
ROLL PIN 4 X 22
Price
N/A
633
BRACKET
Price
$22.35
634
CAP SCREW M6-1 X 10
Price
N/A
635
SPACER 10.5MM X 20MM X 3MM
Price
N/A
636
BUSHING
Price
$4.50
637
ROLL PIN 4 X 14
Price
N/A
638
NUMBER PLATE
Price
$2.60
639
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
640
CAP SCREW M8-1.25 X 20
Price
N/A
641
LOCK WASHER 8MM
Price
N/A
642
OIL CUP 1/8" NPT X 5MM X 15MM ST
Price
$4.50
643
BEARING CAP
Price
$9.40
644
HEX NUT M6-1
Price
N/A
645
SET SCREW M4-.7 X 16
Price
N/A
646
BALL OILER 6MM PRESS-IN
Price
N/A
647
ROLL PIN 4 X 12
Price
N/A

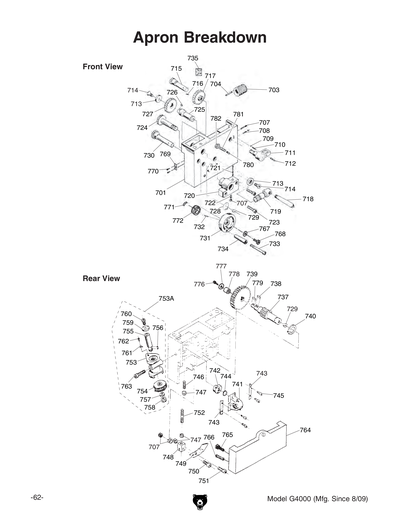

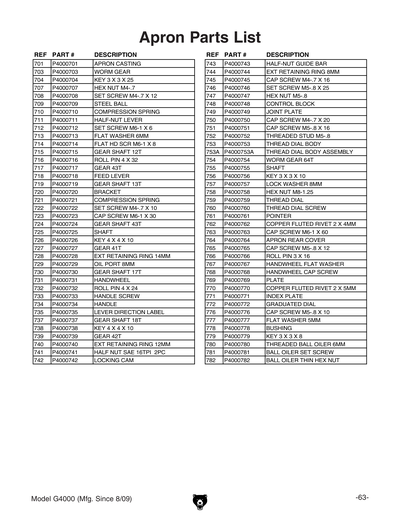

701
APRON CASTING V2.01.06
Price
N/A
701V2
APRON CASTING V2.01.06
Price
$276.40
702
APRON CASTING V2.01.06
Price
N/A
703
WORM GEAR
Price
$29.15
704
KEY 3 X 3 X 25
Price
N/A
705
CAP SCREW M6-1 X 25
Price
N/A
706
LEADSCREW 9/16-16 X 25"
Price
$93.85
707
HEX NUT M4-.7
Price
N/A
708
SET SCREW M4-.7 X 12
Price
N/A
709
STEEL BALL 5MM
Price
N/A
710
COMPRESSION SPRING
Price
$2.25
711
*SEE EXTENDED DESCRIPTION*
Item is no longer available
Price
N/A
711V2
HALF-NUT LEVER W/ HUB V2.12.18
Price
$43.90
711V2-1
PHLP HD SCR M4-.7 X 6
Price
N/A
711V2-2
FLAT WASHER 4MM
Price
N/A
711V2-3
KEY 2 X 2 X 6
Price
$2.25
712
SET SCREW M6-1 X 6
Price
N/A
713
COUNTERSUNK WASHER
Price
$4.70
714
FLAT HD SCR M6-1 X 8
Price
N/A
715
GEAR SHAFT 12T
Price
$31.35
716
ROLL PIN 4 X 32
Price
N/A
717
GEAR 43T
Price
$35.95
718
FEED LEVER
Price
$13.40
719
GEAR SHAFT 13T
Price
$31.35
720
BRACKET
Price
$71.60
721
COMPRESSION SPRING
Price
$2.20
722
SET SCREW M4-.7 X 10
Price
N/A
723
CAP SCREW M6-1 X 30
Price
N/A
724
GEAR SHAFT 36T
Price
$49.25
725
SHAFT
Price
$13.70
726
KEY 4 X 4 X 10
Price
N/A
727
GEAR 41T
Price
$31.35
727A
*DISCD*WORM GEAR 43T
Item is no longer available
Price
N/A
728
EXT RETAINING RING 14MM
Price
N/A
729
BALL OILER 6MM TAP-IN
Price
$2.25
730
GEAR SHAFT 17T
Price
$31.35
731
HANDWHEEL
Price
$42.40
732
ROLL PIN 4 X 24
Price
N/A
733
HANDLE SCREW
Price
$8.95
734
HANDLE 40 X 15 X 6
Price
$13.70
735
LEVER DIRECTION LABEL
Price
$3.65
737
GEAR SHAFT 18T
Price
$35.95
738
KEY 4 X 4 X 10
Price
N/A
739
GEAR 42T
Price
$44.60
740
EXT RETAINING RING 12MM
Price
N/A
741
HALF NUT SAE 16TPI 2PC
Price
$66.90
742
LOCKING CAM
Price
$22.35
743
HALF-NUT GUIDE BAR
Price
$9.00
744
EXT RETAINING RING 8MM
Price
N/A
745
CAP SCREW M4-.7 X 16
Price
N/A
746
SET SCREW M5-.8 X 25
Price
N/A
747
HEX NUT M5-.8
Price
N/A
748
CONTROL BLOCK
Price
$9.00
749
JOINT PLATE
Price
$31.35
750
CAP SCREW M4-.7 X 20
Price
N/A
751
CAP SCREW M5-.8 X 16
Price
N/A
752
STUD-UDE M5-.8 X 35 9LH / 15RH
Price
$5.10
753
THREAD DIAL BODY
Price
$18.40
753A
THREAD DIAL BODY ASSEMBLY
Price
$108.60
754
WORM GEAR 64T
Price
$22.35
755
SHAFT
Price
$8.95
756
KEY 3 X 3 X 10
Price
N/A
757
LOCK WASHER 8MM
Price
N/A
758
HEX NUT M8-1.25
Price
N/A
759
THREADED DIAL
Price
$18.00
760
THREADED DIAL SCREW
Price
$1.90
761
POINTER
Price
$2.60
762
RIVET 2 X 4MM NAMEPLATE, COPPER
Price
N/A
763
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
764
APRON REAR COVER
Price
$9.00
764V2
APRON REAR COVER V2.01.06
Price
$51.45
765
CAP SCREW M5-.8 X 12
Price
N/A
766
ROLL PIN 3 X 16
Price
N/A
767
FENDER WASHER 5MM
Price
N/A
768
HANDWHEEL CAP SCREW
Price
$1.90
769
PLATE
Price
$2.60
770
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
771
SPRING PLATE
Price
$1.80
772
GRADUATED DIAL
Price
$31.35
776
CAP SCREW M5-.8 X 10
Price
N/A
777
FENDER WASHER 5MM
Price
N/A
778
BUSHING
Price
$13.70
779
KEY 3 X 3 X 8
Price
N/A
780
THREADED BALL OILER 6MM
Price
$4.70
781
BALL OILER SET SCREW
Price
$4.50
782
BALL OILER THIN HEX NUT
Price
$2.25

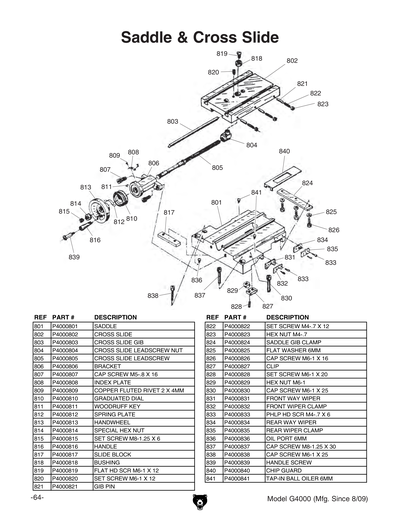

801
SADDLE
Price
$168.60
802
CROSS SLIDE
Price
$165.00
803
CROSS SLIDE GIB
Price
$24.85
804
CROSS SLIDE LEADSCREW NUT
Price
$22.35
805
CROSS SLIDE LEADSCREW
Price
$55.75
806
BRACKET
Price
$35.95
807
CAP SCREW M5-.8 X 16
Price
N/A
808
INDEX PLATE
Price
$2.60
809
RIVET 2 X 4MM NAMEPLATE, COPPER
Price
N/A
810
GRADUATED DIAL
Price
$21.60
811
WOODRUFF KEY 3 X 13
Price
N/A
812
SPRING PLATE
Price
$2.25
813
HANDWHEEL
Price
$29.15
814
HANDWHEEL NUT
Price
$4.70
815
SET SCREW M8-1.25 X 6
Price
N/A
816
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
816V2
HANDLE V2.01.14
Price
$6.15
817
SLIDE BLOCK
Price
$6.15
818
BUSHING
Price
$4.70
819
FLAT HD SCR M6-1 X 12
Price
N/A
820
SET SCREW M6-1 X 12
Price
N/A
821
GIB PIN
Price
$2.60
822
SET SCREW M4-.7 X 12
Price
N/A
823
HEX NUT M4-.7
Price
N/A
824
SADDLE GIB CLAMP
Price
$24.85
825
FLAT WASHER 6MM
Price
N/A
826
CAP SCREW M6-1 X 16
Price
N/A
827
CLIP
Price
$11.20
828
SET SCREW M6-1 X 20
Price
N/A
829
HEX NUT M6-1
Price
N/A
830
CAP SCREW M6-1 X 25
Price
N/A
831
FRONT WAY WIPER
Price
$4.70
832
FRONT WIPER CLAMP
Price
$2.25
833
PHLP HD SCR M4-.7 X 6
Price
N/A
834
REAR WAY WIPER
Price
$4.70
835
REAR WIPER CLAMP
Price
$4.70
836
BALL OILER 6MM PRESS-IN
Price
N/A
837
CAP SCREW M8-1.25 X 30
Price
N/A
838
CAP SCREW M6-1 X 25
Price
N/A
839
HANDLE SCREW V2.01.14
Price
N/A
839V2
HANDLE SCREW V2.01.14
Price
$6.70
840
CHIP GUARD
Price
$9.00
841
BALL OILER 6MM PRESS-IN
Price
N/A

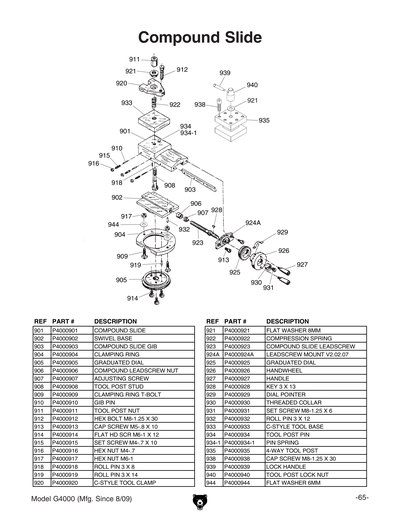

901
COMPOUND SLIDE
Price
$84.85
901A
COMPLETE COMPOUND SLIDE ASSEMBLY
Price
$437.00
902
SWIVEL BASE
Price
$71.60
903
COMPOUND SLIDE GIB
Price
$20.15
904
CLAMPING RING
Price
$38.15
905
GRADUATED DIAL
Price
$42.45
906
COMPOUND LEADSCREW NUT
Price
$15.65
907
ADJUSTING SCREW
Price
$9.00
908
TOOL POST STUD
Price
$13.40
909
CLAMPING RING T-BOLT
Price
$9.00
910
GIB PIN
Price
$2.60
911
TOOL POST NUT
Price
$2.20
912
HEX BOLT M8-1.25 X 30
Price
N/A
913
CAP SCREW M5-.8 X 10
Price
N/A
914
FLAT HD SCR M6-1 X 12
Price
N/A
915
SET SCREW M4-.7 X 10
Price
N/A
916
HEX NUT M4-.7
Price
N/A
917
HEX NUT M6-1
Price
N/A
918
ROLL PIN 3 X 8
Price
N/A
919
ROLL PIN 3 X 14
Price
N/A
920
C-STYLE TOOL CLAMP
Price
$31.35
921
FENDER WASHER 8MM
Price
N/A
922
COMPRESSION SPRING
Price
$4.70
923
COMPOUND SLIDE LEADSCREW
Price
$43.90
924
LEADSCREW MOUNT V2.02.07
Price
N/A
924A
LEADSCREW MOUNT V2.02.07
Price
$22.35
925
GRADUATED DIAL
Price
$20.15
926
HANDWHEEL
Price
$31.35
927
HANDLE
Price
$13.70
928
KEY 3 X 13
Price
$2.60
929
SPRING PLATE
Price
N/A
930
THREADED COLLAR
Price
$9.00
931
SET SCREW M8-1.25 X 6
Price
N/A
932
ROLL PIN 3 X 12
Price
N/A
933
C-STYLE TOOL BASE
Price
$22.35
934
TOOL POST PIN
Price
$2.25
934-1
PIN SPRING
Price
$2.60
935
TOOL POST 4-WAY
Price
$111.45
935-1
SPRING
Price
$2.20
936
SCREWDRIVER FLAT #2
Price
N/A
937
SCREWDRIVER PHILLIPS #2
Price
N/A
938
CAP SCREW M8-1.25 X 30
Price
N/A
939
LOCK HANDLE
Price
$5.10
940
TOOL POST LOCK NUT
Price
$13.40
941
LOCK HANDLE
Price
N/A
942
TOOL POST 4-WAY
Price
N/A
943
THREAD DIAL CHART LABEL
Price
$11.90
944
FLAT WASHER 6MM
Price
N/A
945
POWER CORD 16G X 3W 73"L
Price
N/A
ARBOR
*DISCONTINUED*
Item is no longer available
Price
N/A
CAN
*DISCONTINUED*
Item is no longer available
Price
N/A
GUARD
*DISCONTINUED*
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G4000 MFD 01/05-02/09 V1
Price
$14.65
MANV2
MAN FOR G4000 MFD 03/09-07/09 V2.09.09
Price
$21.95
MANV3
MANUAL G4000 MFD-8.09-10.23 V3.09.14
Price
$14.65
MANV4
MANUAL G4000 MFD-11.23+ V4.05.24
Price
$22.80
TAIL
*DISCONTINUED*
Item is no longer available
Price
N/A
