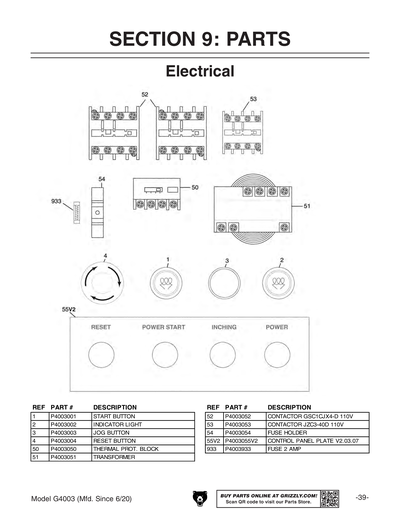

Parts for G4003 - 12" x 36" Gear-Head, Cam Lock Spindle, Lathe

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P4003001
Replaced By P4002001
START BUTTON
N/A View Replacement
2 P4003002
Replaced By P4002002
POWER INDICATOR LIGHT HUI XD103 22MM GRN
N/A View Replacement
3 P4003003
Replaced By P07091417
JOG BUTTON HUI LA103 22MM BLK
N/A View Replacement
4 P4003004
Replaced By P4002004
E-STOP BUTTON HUILONG LA103
N/A View Replacement
50 P4003050
Replaced By P4003G1204
OL RELAY TIANSHUI JRS4-09 25D 9-13A
N/A View Replacement
51 P4003051
Replaced By P4002051
TRANSFORMER JBK5 100VA 110/400V-24/110V
N/A View Replacement
52 P4003052
Replaced By P4002052
CONTACTOR GSC1 CJX4-D-1801 110V/120V
N/A View Replacement
53 P4003053
Replaced By P4002053
MAGNETIC CONTACTOR JZC3-40D 110/120V
N/A View Replacement
54 P4003054
Replaced By P4002054
FUSE HOLDER
N/A View Replacement
55 P4003055
Replaced By P4002055
CONTROL PANEL PLATE V1.03.01
N/A View Replacement
55V2 P4003055V2
Replaced By P4002055A
CONTROL PANEL PLATE V2.03.07
N/A View Replacement
65A P4003065A
Replaced By P40021104
OIL WINDOW 12MM
N/A View Replacement

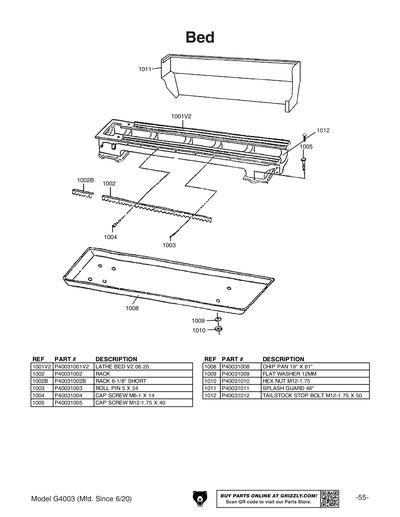

1001 P40031001 LATHE BED V1 $1,665.00
1001V2 P40031001V2 LATHE BED V2.06.20 $1,782.50
1002 P40031002
Replaced By P4003G0822
RACK 16-1/2" LONG 1PC
N/A View Replacement
1002B P40031002B
Replaced By P40021002B
RACK 6-1/8" SHORT
N/A View Replacement
1003 P40031003
Replaced By PRP06M
ROLL PIN 5 X 24
N/A View Replacement
1004 P40031004
Replaced By PCAP27M
CAP SCREW M6-1 X 14
N/A View Replacement
1005 P40031005
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
N/A View Replacement
1008 P40031008 CHIP PAN 19" X 61" $150.75
1009 P40031009
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
101 P4003101
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
1010 P40031010
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
1011 P40031011 SPLASH GUARD 46" $232.50

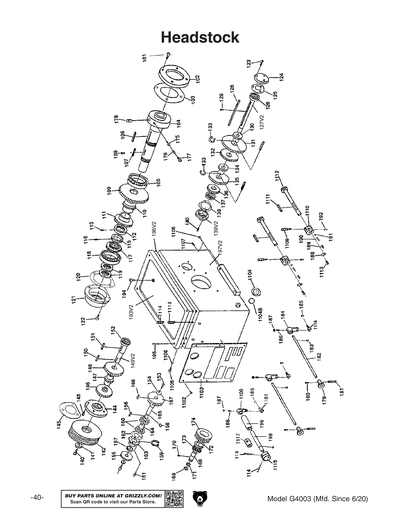

102 P4003102
Replaced By P4002102
COVER
N/A View Replacement
103 P4003103
Replaced By P4002103
OIL SEAL
N/A View Replacement

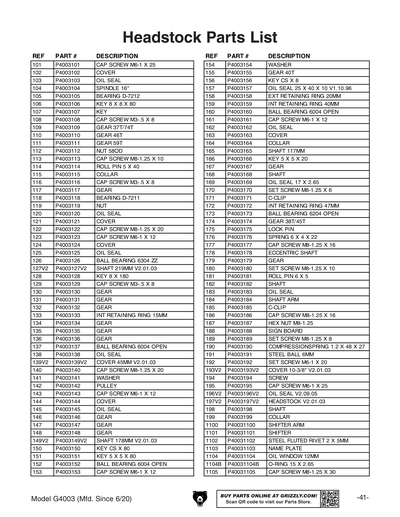

104 P4003104
Replaced By P4002104
SPINDLE 16" V1.03.96
N/A View Replacement
105 P4003105
Replaced By P7212
*DISCD*ANGULAR CONTACT BEARING 7212
N/A View Replacement
106 P4003106
Replaced By P4002106
KEY 8 X 8 X 80 W/ HOLE
N/A View Replacement
107 P4003107
Replaced By P4002107
KEY 8 X 7 X 45
N/A View Replacement
108 P4003108
Replaced By P4002108
SLOTTED SCREW M3-.5 X 8
N/A View Replacement
109 P4003109
Replaced By P4002109
GEAR 37T/74T
N/A View Replacement
110 P4003110
Replaced By P4002110
GEAR 46T
N/A View Replacement
1100 P40031100
Replaced By P40021100
SHIFTER ARM
N/A View Replacement
1101 P40031101
Replaced By P40021101
SHIFTER
N/A View Replacement
1102 P40031102
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
1103 P40031103 NAME PLATE $34.25
1104 P40031104
Replaced By P40021104
OIL WINDOW 12MM
N/A View Replacement
1104B P40031104B
Replaced By P40021104B
O-RING 15 X 2.65
N/A View Replacement
1105 P40031105
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement

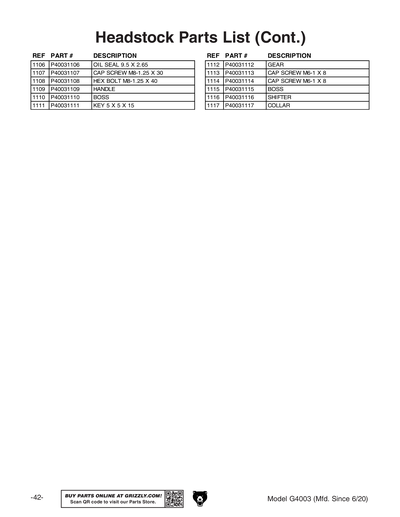

1106 P40031106
Replaced By P40021106
OIL SEAL 9.5 X 2.65
N/A View Replacement
1107 P40031107
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
1108 P40031108
Replaced By PB15M
HEX BOLT M8-1.25 X 40
N/A View Replacement
1109 P40031109
Replaced By P40021109
HANDLE
N/A View Replacement
111 P4003111
Replaced By P4002111
GEAR 59T
N/A View Replacement
1110 P40031110
Replaced By P40021110
BOSS
N/A View Replacement
1111 P40031111
Replaced By PK20M
KEY 5 X 5 X 15
N/A View Replacement
1112 P40031112
Replaced By P40021112
GEAR
N/A View Replacement
1113 P40031113
Replaced By PCAP68M
CAP SCREW M6-1 X 8
N/A View Replacement
1114 P40031114
Replaced By PCAP68M
CAP SCREW M6-1 X 8
N/A View Replacement
1115 P40031115
Replaced By P40021115
BOSS
N/A View Replacement
1116 P40031116
Replaced By P40021116
SHIFTER
N/A View Replacement
1117 P40031117
Replaced By P40021117
COLLAR
N/A View Replacement
1118 P40031118 INSERT TOOL HOLDER SET - 4 PC $87.50
112 P4003112
Replaced By P4002112
NUT 58OD
N/A View Replacement
113 P4003113
Replaced By PCAP52M
CAP SCREW M8-1.25 X 10
N/A View Replacement
114 P4003114
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
115 P4003115
Replaced By P4002115
COLLAR
N/A View Replacement
116 P4003116
Replaced By PCAP80M
CAP SCREW M3-.5 X 8
N/A View Replacement
117 P4003117
Replaced By P4002117
GEAR
N/A View Replacement
118 P4003118
Replaced By P7211
ANGULAR CONTACT BEARING 7211
N/A View Replacement
119 P4003119
Replaced By P4002119
NUT
N/A View Replacement
120 P4003120
Replaced By P4002120
OIL SEAL
N/A View Replacement

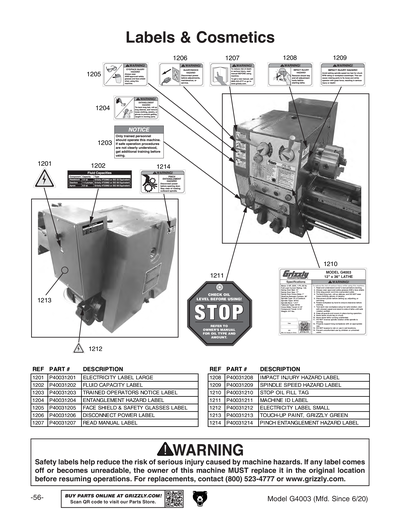

1201 P40031201
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
1203 P40031203
Replaced By PLABEL-85
TRAINED PERSONNEL NOTICE LABEL
N/A View Replacement
1204 P40031204
Replaced By PLABEL-55C
ENTANGLEMENT HAZARD 2.8W X 1.5H
N/A View Replacement
1206 P40031206
Replaced By PLABEL-62C
DISCONNECT 110V 2.8W X 1.5H
N/A View Replacement
1207 P40031207
Replaced By PLABEL-12D
READ MANUAL 2.8W X 1.5H
N/A View Replacement
121 P4003121
Replaced By P4002121
COVER
N/A View Replacement
1211 P40031211
Replaced By PLABEL-67
STOP OIL FILL TAG 4W X 4H
N/A View Replacement
1212 P40031212
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
1213 P40031213
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
1214 P40031214
Replaced By PLABEL-86C
PINCH/ENTANGLEMENT LABEL 2.8W X 1.5H
N/A View Replacement
122 P4003122
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
123 P4003123
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
124 P4003124
Replaced By P4002124
COVER
N/A View Replacement
125 P4003125
Replaced By P4002125
OIL SEAL
N/A View Replacement
126 P4003126
Replaced By P6304Z
BALL BEARING 6304Z
N/A View Replacement
127 P4003127
Replaced By P4002127
*DISCD*SHAFT V1
N/A View Replacement
127V2 P4003127V2
Replaced By P4002127V2
SHAFT 219MM V2.01.03
N/A View Replacement
128 P4003128
Replaced By P4002128
KEY 8 X 8 X 180
N/A View Replacement
129 P4003129
Replaced By PCAP80M
CAP SCREW M3-.5 X 8
N/A View Replacement
130 P4003130
Replaced By P4002130
GEAR
N/A View Replacement
131 P4003131
Replaced By P4002131
GEAR
N/A View Replacement
132 P4003132
Replaced By P4002132
GEAR
N/A View Replacement
133 P4003133
Replaced By PR54M
INT RETAINING RING 15MM
N/A View Replacement
134 P4003134
Replaced By P4002134
GEAR
N/A View Replacement
135 P4003135
Replaced By P4002135
GEAR
N/A View Replacement
136 P4003136
Replaced By P4002136
GEAR
N/A View Replacement
137 P4003137
Replaced By P6004-OPEN
BALL BEARING 6004-OPEN
N/A View Replacement
138 P4003138
Replaced By P4002138
OIL SEAL
N/A View Replacement
139 P4003139
Replaced By P4002139
*DISCD*COVER V1
N/A View Replacement
139V2 P4003139V2
Replaced By P4002139V2
COVER 45MM V2.01.03
N/A View Replacement
140 P4003140
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
141 P4003141
Replaced By P4002141
FLAT WASHER 8MM
N/A View Replacement
142 P4003142
Replaced By P4002142
PULLEY
N/A View Replacement
143 P4003143
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
144 P4003144
Replaced By P4002144
COVER
N/A View Replacement
145 P4003145
Replaced By P4002145
OIL SEAL
N/A View Replacement
146 P4003146
Replaced By P4002146
GEAR
N/A View Replacement
147 P4003147
Replaced By P4002147
GEAR
N/A View Replacement
148 P4003148
Replaced By P4002148
GEAR
N/A View Replacement
149 P4003149
Replaced By P4002149
*DISCD*SHAFT V1
N/A View Replacement
149V2 P4003149V2
Replaced By P4002149V2
SHAFT 178MM V2.01.03
N/A View Replacement
150 P4003150
Replaced By P4002150
KEY 5 X 5 X 30
N/A View Replacement
151 P4003151
Replaced By PK17M
KEY 5 X 5 X 80
N/A View Replacement
152 P4003152
Replaced By P6004-OPEN
BALL BEARING 6004-OPEN
N/A View Replacement
153 P4003153
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
154 P4003154
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
155 P4003155
Replaced By P4002155
GEAR 40T
N/A View Replacement
156 P4003156
Replaced By PK94M
KEY 5 X 5 X 8
N/A View Replacement
157 P4003157
Replaced By P4002157
OIL SEAL 25 X 40 X 10 V1.10.96
N/A View Replacement
158 P4003158
Replaced By PR09M
EXT RETAINING RING 20MM
N/A View Replacement
159 P4003159
Replaced By PR23M
INT RETAINING RING 40MM
N/A View Replacement
160 P4003160
Replaced By P6004-OPEN
BALL BEARING 6004-OPEN
N/A View Replacement
161 P4003161
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
162 P4003162
Replaced By P4002162
OIL SEAL
N/A View Replacement
163 P4003163
Replaced By P4002163
COVER
N/A View Replacement
164 P4003164
Replaced By P4002164
COLLAR
N/A View Replacement
165 P4003165
Replaced By P4002165
SHAFT 117MM LONG V1.10.96
N/A View Replacement
166 P4003166
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
167 P4003167
Replaced By P4002167
GEAR
N/A View Replacement
168 P4003168
Replaced By P4002168
SHAFT
N/A View Replacement
169 P4003169
Replaced By P4002169
OIL SEAL 17 X 2.65
N/A View Replacement
170 P4003170
Replaced By PSS17M
SET SCREW M8-1.25 X 6
N/A View Replacement
171 P4003171
Replaced By P4002171
C-CLIP
N/A View Replacement
172 P4003172
Replaced By PR25M
INT RETAINING RING 47MM
N/A View Replacement
173 P4003173
Replaced By P6204-OPEN
BALL BEARING 6204-OPEN
N/A View Replacement
174 P4003174
Replaced By P4002174
GEAR 38T/45T
N/A View Replacement
175 P4003175
Replaced By P4002175
LOCK PIN
N/A View Replacement
176 P4003176
Replaced By P4002176
SPRING 6 X 4 X 22
N/A View Replacement
177 P4003177
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
178 P4003178
Replaced By P4002178
ECCENTRIC SHAFT
N/A View Replacement
179 P4003179
Replaced By P4002179
GEAR
N/A View Replacement
180 P4003180
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
181 P4003181
Replaced By PRP09M
ROLL PIN 6 X 5
N/A View Replacement
182 P4003182
Replaced By P4002182
SHAFT
N/A View Replacement
183 P4003183
Replaced By P4002183
OIL SEAL
N/A View Replacement
184 P4003184
Replaced By P4002184
SHAFT ARM
N/A View Replacement
185 P4003185
Replaced By P4002185
C-CLIP
N/A View Replacement
186 P4003186
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
187 P4003187
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
188 P4003188
Replaced By P4002188
SIGN BOARD
N/A View Replacement
189 P4003189
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
190 P4003190
Replaced By P4002190
SPRING 1.2 X 48 X 27
N/A View Replacement
191 P4003191
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
192 P4003192
Replaced By PSS25M
SET SCREW M6-1 X 20
N/A View Replacement
193 P4003193
Replaced By P4002193
*DISCD*COVER 9-1/4" V1
N/A View Replacement
193V2 P4003193V2
Replaced By P4002193V2
COVER 10-3/8" V2.01.03
N/A View Replacement
194 P4003194
Replaced By P4002194
SCREW
N/A View Replacement
195 P4003195
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
196 P4003196
Replaced By P4002196
OIL SEAL V1.10.96
N/A View Replacement
196V2 P4003196V2
Replaced By P4002196A
OIL SEAL V2.09.05
N/A View Replacement
197 P4003197
Replaced By P4002197
*DISCD*HEADSTOCK V1
N/A View Replacement
197V2 P4003197V2
Replaced By P4002197V2
HEADSTOCK V2.01.03
N/A View Replacement
198 P4003198
Replaced By P4002198
SHAFT
N/A View Replacement
199 P4003199
Replaced By P4002199
COLLAR
N/A View Replacement
200 P4003200
Replaced By PR21M
INT RETAINING RING 35MM
N/A View Replacement
201 P4003201
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
202 P4003202
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement

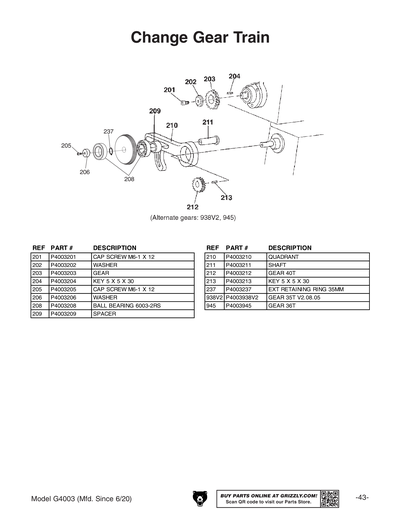

203 P4003203
Replaced By P4002203
GEAR
N/A View Replacement
204 P4003204
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
205 P4003205
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
206 P4003206
Replaced By P4002206
WASHER
N/A View Replacement
207B P4003207B
Replaced By P4002207A
GEAR 86T/91T V3.08.05
N/A View Replacement
208 P4003208
Replaced By P6003-2RS
BALL BEARING 6003-2RS
N/A View Replacement
209 P4003209
Replaced By P4002209
SPACER
N/A View Replacement
210 P4003210
Replaced By P4002210
QUADRANT
N/A View Replacement
211 P4003211
Replaced By P4002211
SHAFT
N/A View Replacement
212 P4003212
Replaced By P4002212
GEAR 40T
N/A View Replacement
213 P4003213
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
237 P4003237
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement

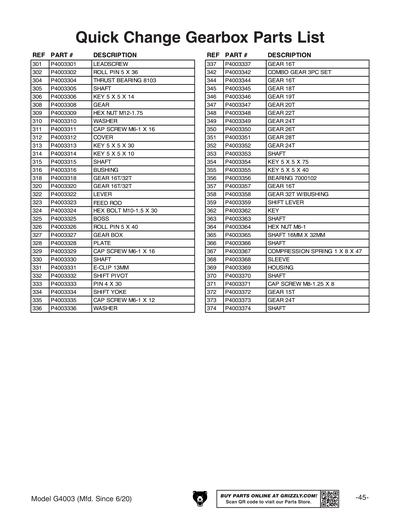

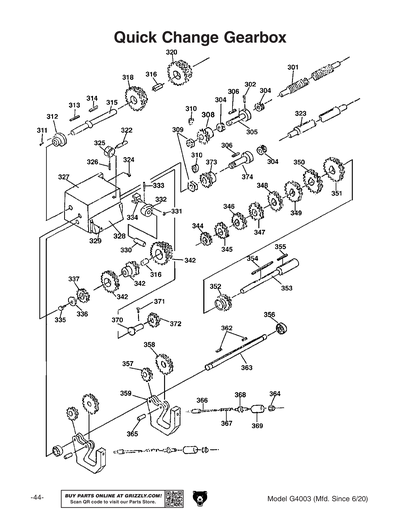

301 P4003301 LEADSCREW $217.00
302 P4003302
Replaced By PRP10M
ROLL PIN 5 X 36
N/A View Replacement
304 P4003304
Replaced By P8103
THRUST BEARING 8103
N/A View Replacement
305 P4003305
Replaced By P4002305
SHAFT
N/A View Replacement
306 P4003306
Replaced By PK19M
KEY 5 X 5 X 14
N/A View Replacement
308 P4003308
Replaced By P4002308
GEAR
N/A View Replacement
309 P4003309
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
310 P4003310
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
311 P4003311
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
312 P4003312
Replaced By P4002312
COVER
N/A View Replacement
313 P4003313
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
314 P4003314
Replaced By PK06M
KEY 5 X 5 X 10
N/A View Replacement
315 P4003315
Replaced By P4002315
SHAFT
N/A View Replacement
316 P4003316
Replaced By P4002316
BRASS BUSHING 16 X 19 X 18.8MM LONG
N/A View Replacement
318 P4003318
Replaced By P4002318
GEAR 16T/32T
N/A View Replacement
320 P4003320
Replaced By P4002320
GEAR 16T/32T
N/A View Replacement
322 P4003322
Replaced By P4002322
LEVER
N/A View Replacement
323 P4003323 FEED ROD $93.00
323A P4003323A
Replaced By P4002323A
LEADSCREW
N/A View Replacement
324 P4003324
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
325 P4003325
Replaced By P4002325
BOSS
N/A View Replacement
326 P4003326
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
327 P4003327
Replaced By P4002327
GEAR BOX
N/A View Replacement
327A P4003327A
Replaced By P4002327A
COMPLETE GEAR BOX
N/A View Replacement
328 P4003328
Replaced By P4002328
PLATE
N/A View Replacement
329 P4003329
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
330 P4003330
Replaced By P4002330
SHAFT
N/A View Replacement
331 P4003331
Replaced By PEC04M
E-CLIP 13MM
N/A View Replacement
332 P4003332
Replaced By P4002332
SHIFT PIVOT
N/A View Replacement
333 P4003333
Replaced By P4002333
PIN 4 X 30
N/A View Replacement
334 P4003334
Replaced By P4002334
SHIFT YOKE
N/A View Replacement
335 P4003335
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
336 P4003336
Replaced By P4002336
FENDER WASHER 6MM
N/A View Replacement
337 P4003337
Replaced By P4002337
GEAR 16T
N/A View Replacement
338 P4003338
Replaced By P4002338
*DISCD*HALF NUT
N/A View Replacement
339 P4003339
Replaced By P4002339
*DISCD*WORM
N/A View Replacement
340 P4003340
Replaced By P4002342
DUPLEX GEAR 32T/16T
N/A View Replacement
341 P4003341
Replaced By P4002342
DUPLEX GEAR 32T/16T
N/A View Replacement
342 P4003342
Replaced By P4002342
DUPLEX GEAR 32T/16T
N/A View Replacement
343 P4003343
Replaced By P4002343
*DISCD*GEAR
N/A View Replacement
344 P4003344
Replaced By P4002344
GEAR 16T
N/A View Replacement
345 P4003345
Replaced By P4002345
GEAR 18T
N/A View Replacement
346 P4003346
Replaced By P4002346
GEAR 19T
N/A View Replacement
347 P4003347
Replaced By P4002347
GEAR 20T
N/A View Replacement
348 P4003348
Replaced By P4002348
GEAR 22T
N/A View Replacement
349 P4003349
Replaced By P4002349
GEAR 24T
N/A View Replacement
350 P4003350
Replaced By P4002350
GEAR 26T
N/A View Replacement
351 P4003351
Replaced By P4002351
GEAR 28T
N/A View Replacement
352 P4003352
Replaced By P4002352
GEAR 24T
N/A View Replacement
353 P4003353
Replaced By P4002353
SHAFT
N/A View Replacement
354 P4003354
Replaced By PK120M
KEY 5 X 5 X 75
N/A View Replacement
355 P4003355
Replaced By PK02M
KEY 5 X 5 X 40
N/A View Replacement
356 P4003356
Replaced By P4002356
BEARING P6002-2RS
N/A View Replacement
357 P4003357
Replaced By P4002357
GEAR 16T
N/A View Replacement
358 P4003358
Replaced By P4002358
GEAR 32T W/BUSHING
N/A View Replacement
359 P4003359
Replaced By P4002359
SHIFT LEVER
N/A View Replacement
362 P4003362
Replaced By P4002362
KEY 5 X 5 X 16
N/A View Replacement
363 P4003363
Replaced By P4002363
SHAFT
N/A View Replacement
364 P4003364
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
365 P4003365
Replaced By P4002365
SHAFT 16MM X 32MM
N/A View Replacement
366 P4003366
Replaced By P4002366
SHAFT
N/A View Replacement
367 P4003367
Replaced By P4002367
SPRING 1 X 8 X 47
N/A View Replacement
368 P4003368
Replaced By P4002368
SLEEVE
N/A View Replacement
369 P4003369
Replaced By P4002369
HOUSING
N/A View Replacement
370 P4003370
Replaced By P4002370
SHAFT
N/A View Replacement
371 P4003371
Replaced By P4002371
CAP SCREW M8-1.25 X 8
N/A View Replacement
372 P4003372
Replaced By P4002372
GEAR 15T
N/A View Replacement
373 P4003373
Replaced By P4002373
GEAR 24T
N/A View Replacement
374 P4003374
Replaced By P4002374
SHAFT
N/A View Replacement

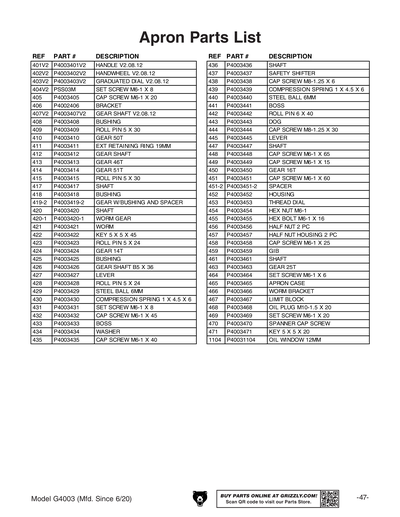

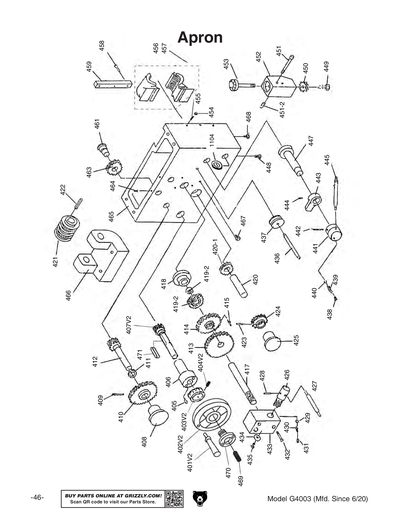

401 P4003401
Replaced By P4003G0401
HANDLE V1
N/A View Replacement
401V2 P4003401V2
Replaced By P4003G0401V2
HANDWHEEL HANDLE M8-1.25 X 8 V2.04.12
N/A View Replacement
402 P4003402
Replaced By P4003G0402
*DISCD*HANDWHEEL V1
N/A View Replacement
402V2 P4003402V2
Replaced By P4003G0402V2
CARRIAGE HANDWHEEL V2.04.12
N/A View Replacement
403 P4003403
Replaced By P4003G0403
GRADUATED DIAL V1
N/A View Replacement
403V2 P4003403V2
Replaced By P4003G0403V2
GRADUATED DIAL V2.04.12
N/A View Replacement
404 P4003404
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
404V2 P4003404V2
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
405 P4003405
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
406 P4003406
Replaced By P4002406
BRACKET
N/A View Replacement
407 P4003407
Replaced By P4003G0407
GEAR SHAFT V1
N/A View Replacement
407V2 P4003407V2
Replaced By P4003G0407V2
GEAR SHAFT 12T W/KEYWAY V2.04.12
N/A View Replacement
408 P4003408
Replaced By P4002408
BUSHING
N/A View Replacement
409 P4003409
Replaced By PRP05M
ROLL PIN 5 X 30
N/A View Replacement
410 P4003410
Replaced By P4002410
GEAR 50T
N/A View Replacement
411 P4003411
Replaced By PR08M
EXT RETAINING RING 19MM
N/A View Replacement
412 P4003412
Replaced By P4002412
GEAR SHAFT 11T
N/A View Replacement
413 P4003413
Replaced By P4002413
GEAR 46T
N/A View Replacement
414 P4003414
Replaced By P4002414
GEAR 51T
N/A View Replacement
415 P4003415
Replaced By PRP05M
ROLL PIN 5 X 30
N/A View Replacement
417 P4003417
Replaced By P4002417
SHAFT
N/A View Replacement
418 P4003418
Replaced By P4002418
*DISCD*BUSHING
N/A View Replacement
419-1 P4003419-1
Replaced By P4002419
GEAR W/BUSHING AND SPACER
N/A View Replacement
419-2 P4003419-2
Replaced By P4002419
GEAR W/BUSHING AND SPACER
N/A View Replacement
420 P4003420
Replaced By P4002420
SHAFT
N/A View Replacement
421 P4003421
Replaced By P4002421
WORM
N/A View Replacement
422 P4003422
Replaced By PK33M
KEY 5 X 5 X 45
N/A View Replacement
423 P4003423
Replaced By PRP06M
ROLL PIN 5 X 24
N/A View Replacement
424 P4003424
Replaced By P4002424
GEAR 14T
N/A View Replacement
425 P4003425
Replaced By P4002425
BUSHING
N/A View Replacement
426 P4003426
Replaced By P4002426
GEAR SHAFT B5 X 36
N/A View Replacement
427 P4003427
Replaced By P4002427
LEVER
N/A View Replacement
428 P4003428
Replaced By PRP06M
ROLL PIN 5 X 24
N/A View Replacement
429 P4003429
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
430 P4003430
Replaced By P4002430
SPRING 1 X 4.5 X 6
N/A View Replacement
431 P4003431
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
432 P4003432
Replaced By PCAP30M
CAP SCREW M6-1 X 45
N/A View Replacement
433 P4003433
Replaced By P4002433
BOSS
N/A View Replacement
434 P4003434
Replaced By P4002434
WASHER
N/A View Replacement
435 P4003435
Replaced By PCAP29M
CAP SCREW M6-1 X 40
N/A View Replacement
436 P4003436
Replaced By P4002436
SHAFT
N/A View Replacement
437 P4003437
Replaced By P4002437
SAFETY SHIFTER
N/A View Replacement
438 P4003438
Replaced By P4002438
CAP SCREW M8-1.25 X 6
N/A View Replacement
439 P4003439
Replaced By P4002439
SPRING 1X45X6
N/A View Replacement
440 P4003440
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
441 P4003441
Replaced By P4002441
BOSS
N/A View Replacement
442 P4003442
Replaced By PRP32M
ROLL PIN 6 X 40
N/A View Replacement
443 P4003443
Replaced By P4002443
DOG
N/A View Replacement
444 P4003444
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
445 P4003445
Replaced By P4002445
LEVER
N/A View Replacement
447 P4003447
Replaced By P4002447
SHAFT
N/A View Replacement
448 P4003448
Replaced By PCAP127M
CAP SCREW M6-1 X 65
N/A View Replacement
449 P4003449
Replaced By PCAP28M
CAP SCREW M6-1 X 15
N/A View Replacement
450 P4003450
Replaced By P4002450
GEAR 16T
N/A View Replacement
451 P4003451
Replaced By PCAP189M
CAP SCREW M6-1 X 60 BLK C12.9 USA
N/A View Replacement
451-2 P4003451-2
Replaced By P4002451-2
SPACER
N/A View Replacement
452 P4003452
Replaced By P4002452
HOUSING
N/A View Replacement
453 P4003453
Replaced By P4002453
THREAD DIAL
N/A View Replacement
454 P4003454
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
455 P4003455
Replaced By PB83M
HEX BOLT M6-1 X 16
N/A View Replacement
456 P4003456
Replaced By P4002456
HALF NUT 2-PC
N/A View Replacement
457 P4003457
Replaced By P4002457
HALF NUT HOUSING
N/A View Replacement
458 P4003458
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
459 P4003459
Replaced By P4002459
GIB
N/A View Replacement
461 P4003461
Replaced By P4002461
SHAFT
N/A View Replacement
463 P4003463
Replaced By P4002463
GEAR 25T
N/A View Replacement
464 P4003464
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
465 P4003465
Replaced By P4002465
APRON CASE
N/A View Replacement
466 P4003466
Replaced By P4002466
WORM BRACKET
N/A View Replacement
467 P4003467
Replaced By P4002467
LIMIT BLOCK
N/A View Replacement
468 P4003468
Replaced By P4002468
OIL PLUG M10-1.5 X 20
N/A View Replacement
469 P4003469
Replaced By PSS25M
SET SCREW M6-1 X 20
N/A View Replacement
470 P4003470
Replaced By P4003G0469
HANDWHEEL RETAINER
N/A View Replacement
471 P4003471
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement

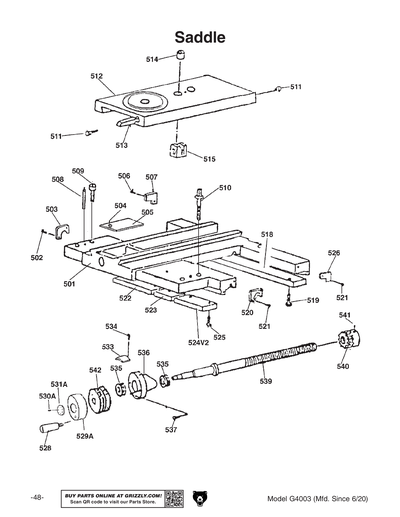

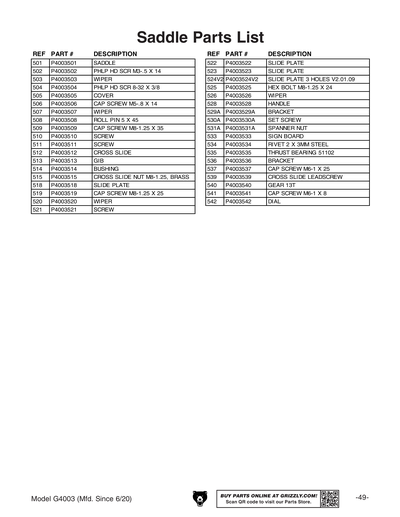

501 P4003501
Replaced By P4002501
SADDLE
N/A View Replacement
502 P4003502
Replaced By PS59M
PHLP HD SCR M3-.5 X 14
N/A View Replacement
503 P4003503
Replaced By P4002503
WIPER
N/A View Replacement
504 P4003504
Replaced By PS24
PHLP HD SCR 8-32 X 3/8
N/A View Replacement
505 P4003505
Replaced By P4002505
*DISCD*COVER
N/A View Replacement
506 P4003506
Replaced By PCAP20M
CAP SCREW M5-.8 X 14
N/A View Replacement
507 P4003507
Replaced By P4002507
WIPER
N/A View Replacement
508 P4003508
Replaced By PRP29M
ROLL PIN 5 X 45
N/A View Replacement
509 P4003509
Replaced By PCAP40M
CAP SCREW M8-1.25 X 35
N/A View Replacement
510 P4003510
Replaced By P4002510
SADDLE SCREW
N/A View Replacement
511 P4003511
Replaced By P4003G0511
GIB SCREW
N/A View Replacement
512 P4003512
Replaced By P4002512
CROSS SLIDE
N/A View Replacement
513 P4003513
Replaced By P4002513
GIB
N/A View Replacement
514 P4003514
Replaced By P4002514
BUSHING
N/A View Replacement
515 P4003515
Replaced By P4002515
LEADSCREW NUT M8-1.25 BRASS
N/A View Replacement
518 P4003518
Replaced By P4002518
REAR SLIDE PLATE
N/A View Replacement
519 P4003519
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
520 P4003520
Replaced By P4002520
WIPER
N/A View Replacement
521 P4003521
Replaced By P4002521
WIPER SCREW
N/A View Replacement
522 P4003522
Replaced By P4002522
SLIDE PLATE
N/A View Replacement
523 P4003523
Replaced By P4002524V2
SLIDE PLATE 3 HOLES V2.01.09
N/A View Replacement
524 P4003524
Replaced By P4002524V2
SLIDE PLATE 3 HOLES V2.01.09
N/A View Replacement
524V2 P4003524V2
Replaced By P4002524V2
SLIDE PLATE 3 HOLES V2.01.09
N/A View Replacement
525 P4003525
Replaced By PB19M
HEX BOLT M8-1.25 X 24
N/A View Replacement
526 P4003526
Replaced By P4002526
WIPER
N/A View Replacement
527 P4003527
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement
528 P4003528
Replaced By P4002528
HANDLE
N/A View Replacement
529A P4003529A
Replaced By P4002529A
CROSS SLIDE HANDWHEEL HUB
N/A View Replacement
530A P4003530A
Replaced By P4002530A
SET SCREW
N/A View Replacement
531A P4003531A
Replaced By P4002531A
SPANNER NUT
N/A View Replacement
533 P4003533
Replaced By P4002533
INDICATOR PLATE
N/A View Replacement
534 P4003534
Replaced By PRIV003M
RIVET 2 X 4MM NAMEPLATE, STEEL
N/A View Replacement
535 P4003535
Replaced By P51102
THRUST BEARING 51102
N/A View Replacement
536 P4003536
Replaced By P4002536
BRACKET
N/A View Replacement
537 P4003537
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
539 P4003539
Replaced By P4002539
CROSS SLIDE LEADSCREW
N/A View Replacement
540 P4003540
Replaced By P4002540
GEAR 13T
N/A View Replacement
541 P4003541
Replaced By PCAP68M
CAP SCREW M6-1 X 8
N/A View Replacement
542 P4003542
Replaced By P4002542
CROSS SLIDE GRADUATED DIAL
N/A View Replacement
543 P4003543
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
544 P4003544
Replaced By P4002544
COMPRESSION SPRING 6 X 16MM
N/A View Replacement

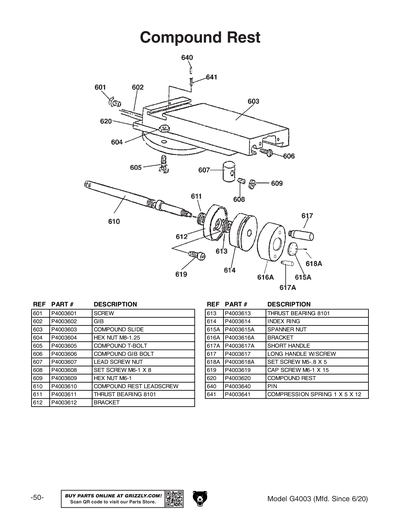

601 P4003601
Replaced By P4002601
GIB SCREW
N/A View Replacement
602 P4003602
Replaced By P4002602
GIB
N/A View Replacement
603 P4003603
Replaced By P4003G0603
COMPOUND REST
N/A View Replacement
604 P4003604
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
605 P4003605
Replaced By P4002605
COMPOUND SLIDE T-BOLT
N/A View Replacement
606 P4003606
Replaced By P4002606
COMPOUND GIB BOLT
N/A View Replacement
607 P4003607
Replaced By P4002607
LEADSCREW NUT
N/A View Replacement
608 P4003608
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
609 P4003609
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
610 P4003610
Replaced By P4002610
COMPOUND REST LEADSCREW
N/A View Replacement
611 P4003611
Replaced By P8101
THRUST BEARING 8101
N/A View Replacement
612 P4003612
Replaced By P4002612
BRACKET
N/A View Replacement
613 P4003613
Replaced By P8101
THRUST BEARING 8101
N/A View Replacement
614 P4003614
Replaced By P4002614
COMPOUND REST GRADUATED DIAL
N/A View Replacement
615A P4003615A
Replaced By P4002615A
SPANNER NUT
N/A View Replacement
616A P4003616A
Replaced By P4002616A
COMPOUND REST HANDWHEEL HUB
N/A View Replacement
617 P4003617
Replaced By P4002617
LONG HANDLE W/SCREW
N/A View Replacement
617A P4003617A
Replaced By P4002617A
SHORT HANDLE
N/A View Replacement
618A P4003618A
Replaced By PSS07M
SET SCREW M5-.8 X 5
N/A View Replacement
619 P4003619
Replaced By PCAP28M
CAP SCREW M6-1 X 15
N/A View Replacement
620 P4003620
Replaced By P4002620
COMPOUND REST
N/A View Replacement
621 P4003621
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
622 P4003622
Replaced By P4002544
COMPRESSION SPRING 6 X 16MM
N/A View Replacement
640 P4003640
Replaced By P4002640
PLUNGER
N/A View Replacement
641 P4003641
Replaced By P4002641
SPRING 1 X 3 X 12
N/A View Replacement

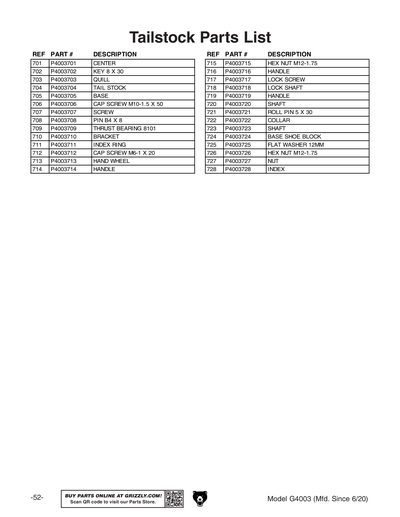

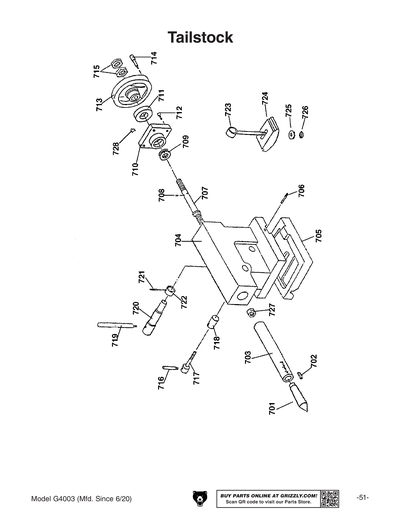

701 P4003701
Replaced By P4002701
CENTER
N/A View Replacement
702 P4003702
Replaced By P4002702
KEY 8 X 30
N/A View Replacement
703 P4003703
Replaced By P4002703
QUILL
N/A View Replacement
704 P4003704
Replaced By P4002704
TAIL STOCK
N/A View Replacement
705 P4003705
Replaced By P4002705
BASE
N/A View Replacement
706 P4003706
Replaced By PCAP143M
CAP SCREW M10-1.5 X 50
N/A View Replacement
707 P4003707
Replaced By P4002707
SCREW
N/A View Replacement
708 P4003708
Replaced By P4002708
PIN B4 X 8
N/A View Replacement
709 P4003709
Replaced By P8101
THRUST BEARING 8101
N/A View Replacement
710 P4003710
Replaced By P4002710
BRACKET
N/A View Replacement
711 P4003711
Replaced By P4002711
GRADUATED DIAL
N/A View Replacement
712 P4003712
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
713 P4003713
Replaced By P4002713
HAND WHEEL
N/A View Replacement
714 P4003714
Replaced By P4002714
HANDLE
N/A View Replacement
715 P4003715
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
716 P4003716
Replaced By P4002716
HANDLE
N/A View Replacement
717 P4003717
Replaced By P4002717
QUILL LOCK BOLT
N/A View Replacement
718 P4003718
Replaced By P4002718
LOCK SHAFT
N/A View Replacement
719 P4003719
Replaced By P4002719
HANDLE
N/A View Replacement
720 P4003720
Replaced By P4002720
SHAFT
N/A View Replacement
721 P4003721
Replaced By PRP05M
ROLL PIN 5 X 30
N/A View Replacement
722 P4003722
Replaced By P4002722
COLLAR
N/A View Replacement
723 P4003723
Replaced By P4002723
SHAFT
N/A View Replacement
724 P4003724
Replaced By P4002724
CLAMP SHOE
N/A View Replacement
725 P4003725
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
726 P4003726
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
727 P4003727
Replaced By P4002727
NUT
N/A View Replacement
728 P4003728
Replaced By P4002728
INDEX
N/A View Replacement
730 P4003730
Replaced By P4002730
*DISCD*HANDLE STOP
N/A View Replacement

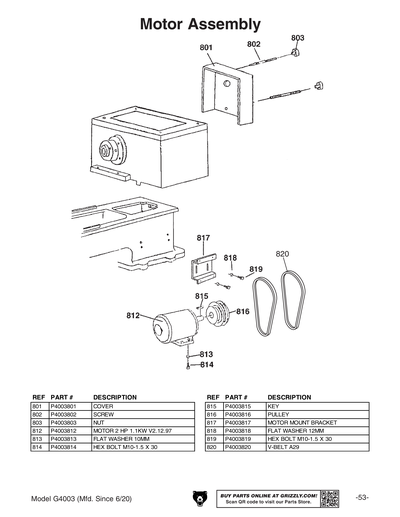

801 P4003801
Replaced By P4002801
COVER
N/A View Replacement
802 P4003802
Replaced By P4002802
SCREW
N/A View Replacement
803 P4003803
Replaced By P4002803
KNURLED KNOB M10-1.5
N/A View Replacement
812 P4003812
Replaced By P4003G0806
MOTOR 2HP 220V 1-PH
N/A View Replacement
813 P4003813
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
814 P4003814
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
815 P4003815
Replaced By P4002815
KEY 8 X 7 X 35
N/A View Replacement
816 P4003816
Replaced By P4002816
PULLEY
N/A View Replacement
817 P4003817
Replaced By P4002817
MOTOR MOUNT BRACKET
N/A View Replacement
818 P4003818
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
819 P4003819
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
820 P4003820
Replaced By PVA29
V-BELT A29
N/A View Replacement
901 P4003901
Replaced By P4002901
BRACKET
N/A View Replacement
902 P4003902
Replaced By PCAP25M
CAP SCREW M6-1 X 11
N/A View Replacement
903 P4003903
Replaced By P4002903
OIL CAP 6MM
N/A View Replacement
904 P4003904
Replaced By PRP34M
ROLL PIN 6 X 55
N/A View Replacement
905 P4003905
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
906 P4003906
Replaced By P4002906
COLLAR
N/A View Replacement
907 P4003907 SPINDLE ROD V1 $39.25
907V2 P4003907V2 SPINDLE ROD V2.12.14 $63.00
908 P4003908
Replaced By P4002908
KEY
N/A View Replacement
909 P4003909
Replaced By PRP39M
ROLL PIN 4 X 20
N/A View Replacement
910 P4003910
Replaced By P4002910
SPRING 7020
N/A View Replacement
911 P4003911
Replaced By P4002911
HANDLE
N/A View Replacement
912 P4003912
Replaced By P4002912
BRACKET
N/A View Replacement
913 P4003913
Replaced By PCAP27M
CAP SCREW M6-1 X 14
N/A View Replacement
914 P4003914
Replaced By PRP49M
ROLL PIN 5 X 25
N/A View Replacement
915 P4003915
Replaced By P4002915
BRACKET
N/A View Replacement
916 P4003916
Replaced By PR15M
EXT RETAINING RING 30MM
N/A View Replacement
917 P4003917
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
918 P4003918
Replaced By P4002918
BRACKET V1
N/A View Replacement
918V2 P4003918V2
Replaced By P4002918V2
CONNECTION BRACKET V2.12.14
N/A View Replacement
919-1 P4003919-1 FWD/REV SWITCH BOX ASSEMBLY GREEN $60.50
919A P4003919A
Replaced By P4002919
FWD/REV SWITCH ROUND TYPE V1
N/A View Replacement
919V2 P4003919V2
Replaced By P0750G0331
SPINDLE ON/OFF SWITCH
N/A View Replacement
933 P4003933
Replaced By P4002933
FUSE 2A
N/A View Replacement
945 P4003945
Replaced By P4002945
GEAR 36T
N/A View Replacement
946 P4003946
Replaced By PCAP110M
CAP SCREW M4-.7 X 6
N/A View Replacement
947 P4003947
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
948 P4003948
Replaced By P0750G0329
SPINDLE SWITCH ARM
N/A View Replacement
949 P4003949
Replaced By P4002949
SPINDLE SWITCH BOX
N/A View Replacement
950 P4003950
Replaced By PBHS28M
BUTTON HD CAP SCR M4-.7 X 45
N/A View Replacement
TRANS P4003TRANS
Replaced By P4002051
TRANSFORMER JBK5 100VA 110/400V-24/110V
N/A View Replacement
