Parts for G4003G 12" x 36" Gunsmithing Metal Lathe w/ Stand

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

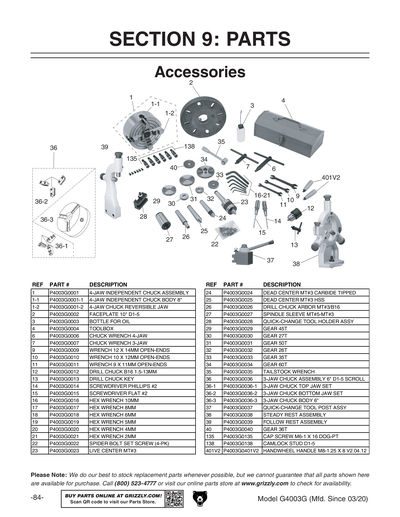

1
4-JAW INDEPENDENT CHUCK ASSEMBLY
1-1
4-JAW INDEPENDENT CHUCK BODY 8"
1-2
4-JAW CHUCK REVERSIBLE JAW 4-PC SET
2
FACEPLATE 10" D1-5
3
BOTTLE FOR OIL
4
TOOLBOX
5
TOOL POST WRENCH 11MM
6
CHUCK WRENCH 4-JAW
7
CHUCK WRENCH 3-JAW
9
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
10
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
11
WRENCH 9 X 11MM OPEN-ENDS
Price
N/A
12
DRILL CHUCK B16 1.5-13MM
13
DRL CHK KEY 5.89MM STD 12T SD-13.93MM
14
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
15
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
16
HEX WRENCH 10MM
Price
N/A
17
HEX WRENCH 8MM
Price
N/A
18
HEX WRENCH 6MM
Price
N/A
19
HEX WRENCH 5MM
Price
N/A
20
HEX WRENCH 4MM
Price
N/A
21
HEX WRENCH 2MM
Price
N/A
22
SPIDER BOLT SET SCREW (4 PAK) M10-1.5 X 30
Price
N/A
22V2
SPIDER BOLT SET SCREW (4 PAK) M10-1.5 X 30
23
LIVE CENTER MT#3
24
DEAD CENTER MT#3 CARBIDE TIPPED
25
DEAD CENTER MT#3 HSS
26
DRILL CHUCK ARBOR MT#3/B16
Price
N/A
27
SPINDLE SLEEVE MT#5-MT#3
28
QUICK-CHANGE TOOL HOLDER ASSY
29
GEAR 45T
30
GEAR 27T
31
GEAR 50T
32
GEAR 26T
33
GEAR 35T
33V2
GEAR 36T
Price
N/A
34
GEAR 60T
35
TAILSTOCK WRENCH
36
CHUCK 3-JAW 6" D1-5 ASSEMBLY
Price
N/A
36-1
3-JAW CHUCK TOP JAW SET
Price
N/A
36-2
3-JAW CHUCK BOTTOM JAW SET
Price
N/A
36-3
3-JAW CHUCK BODY 6"
37
QUICK-CHANGE TOOL POST ASSY

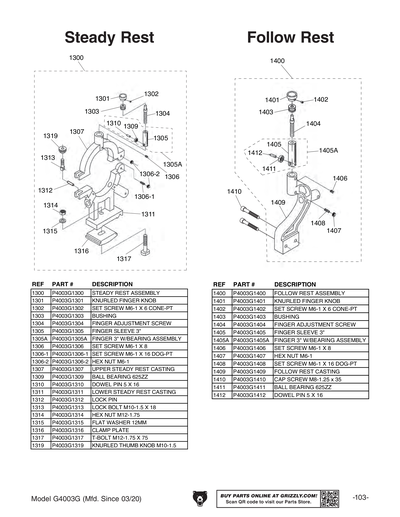

38
STEADY REST ASSEMBLY
39
FOLLOW REST ASSEMBLY
40
GEAR 36T

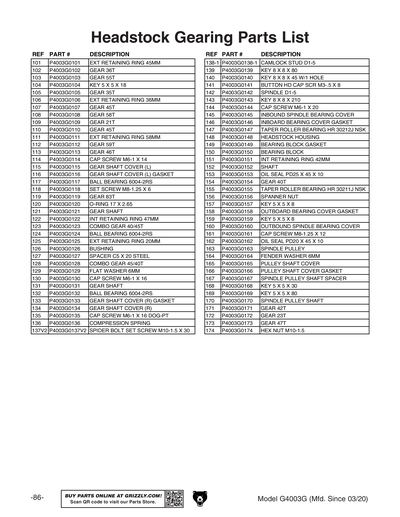

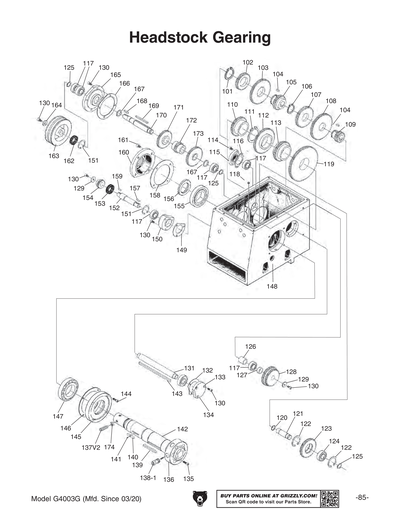

101
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
102
GEAR 36T
103
GEAR 55T
104
Now: PK14M
KEY 5 X 5 X 18
Price
N/A
105
GEAR 35T
106
Now: PR30M
EXT RETAINING RING 36MM
Price
N/A
107
GEAR 45T
108
GEAR 58T
109
GEAR 21T
110
GEAR 45T
111
Now: PR82M
EXT RETAINING RING 58MM
Price
N/A
112
GEAR 59T
113
GEAR 46T
114
CAP SCREW M6-1 X 14
Price
N/A
115
GEAR SHAFT COVER (L)
116
GEAR SHAFT COVER (L) GASKET
117
BALL BEARING 6004-2RS
Price
N/A
118
SET SCREW M8-1.25 X 6
Price
N/A
119
GEAR 83T
120
*DISCD* O-RING 17 X 2.65
Price
N/A
121
GEAR SHAFT
122
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
123
COMBO GEAR 40/45T
124
BALL BEARING 6004-2RS
Price
N/A
125
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
126
BUSHING
127
SPACER C5 X 20 STEEL
128
COMBO GEAR 45/40T
129
Now: PW03M
FLAT WASHER 6MM
Price
N/A
130
CAP SCREW M6-1 X 16
Price
N/A
131
GEAR SHAFT
132
BALL BEARING 6004-2RS
Price
N/A
133
GEAR SHAFT COVER (R) GASKET
134
GEAR SHAFT COVER (R)
135
CAP SCREW M6-1 X 16 DOG-PT
136
COMPRESSION SPRING
137
SPIDER BOLT M10-1.5 X 35
137V2
SPIDER BOLT SET SCREW M10-1.5 X 30
138
CAMLOCK STUD D1-5
138-1
SPINDLE CAMLOCK
139
KEY 8 X 8 X 80
Price
N/A
140
Now: PK43M
KEY 8 X 8 X 45
Price
N/A
141
BUTTON HD CAP SCR M3-.5 X 8
Price
N/A
142
SPINDLE D1-5
143
KEY 8 X 8 X 210
144
CAP SCREW M6-1 X 20
Price
N/A
145
INBOUND SPINDLE BEARING COVER
146
INBOARD BEARING COVER GASKET
147
TAPER ROLLER BEARING HR 30212J NSK
148
HEADSTOCK HOUSING
149
BEARING BLOCK GASKET
150
BEARING BLOCK
151
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
152
SHAFT
153
OIL SEAL PD25 X 45 X 10
154
GEAR 40T
Price
N/A
155
TAPER ROLLER BEARING HR 30211J NSK
156
SPANNER NUT
157
Now: PK94M
KEY 5 X 5 X 8
Price
N/A
158
OUTBOARD BEARING COVER GASKET
159
Now: PK94M
KEY 5 X 5 X 8
Price
N/A
160
OUTBOUND SPINDLE BEARING COVER
161
CAP SCREW M8-1.25 X 12
Price
N/A
162
OIL SEAL PD20 X 45 X 10
163
SPINDLE PULLEY
164
FENDER WASHER 6MM
Price
N/A
165
PULLEY SHAFT COVER
166
PULLEY SHAFT COVER GASKET
167
SPINDLE PULLEY SHAFT SPACER
168
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
169
Now: PK17M
KEY 5 X 5 X 80
Price
N/A
170
SPINDLE PULLEY SHAFT
171
GEAR 42T
172
GEAR 23T
173
GEAR 47T
174
Now: PN02M
HEX NUT M10-1.5
Price
N/A

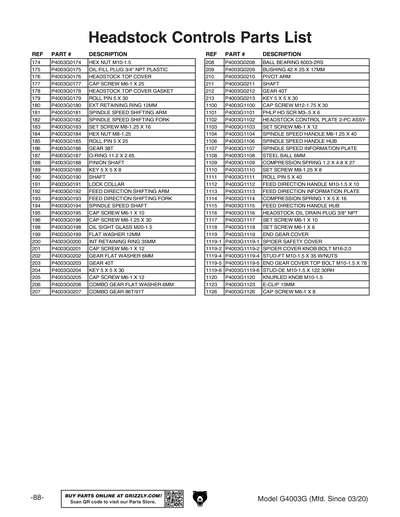

175
OIL FILL PLUG 3/4" NPT PLASTIC
176
HEADSTOCK TOP COVER
177
CAP SCREW M6-1 X 25
Price
N/A
178
HEADSTOCK TOP COVER GASKET
179
ROLL PIN 5 X 30
Price
N/A
180
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
181
SPINDLE SPEED SHIFTING ARM
182
SPINDLE SPEED SHIFTING FORK
183
SET SCREW M8-1.25 X 16
Price
N/A
184
Now: PN03M
HEX NUT M8-1.25
Price
N/A
185
ROLL PIN 5 X 25
Price
N/A
186
GEAR 38T
187
O-RING 11.2 X 2.65
188
PINION SHAFT
189
Now: PK94M
KEY 5 X 5 X 8
Price
N/A
190
SHAFT
191
LOCK COLLAR
192
FEED DIRECTION SHIFTING ARM
193
FEED DIRECTION SHIFTING FORK
194
SPINDLE SPEED SHAFT
195
CAP SCREW M6-1 X 10
Price
N/A
196
CAP SCREW M8-1.25 X 30
Price
N/A
198
*DISCD*OIL SIGHT GLASS (PUSH-IN)
Item is no longer available
Price
N/A
198V2
OIL SIGHT GLASS M20-1.5 V2.04.13
199
Now: PW06M
FLAT WASHER 12MM
Price
N/A
200
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
201
CAP SCREW M6-1 X 12
Price
N/A
202
Now: PW03M
FLAT WASHER 6MM
Price
N/A
203
GEAR 40T
204
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
205
CAP SCREW M6-1 X 12
Price
N/A
206
COMBO GEAR FLAT WASHER 6MM
207
COMBO GEAR 86T/91T
208
BALL BEARING 6003-2RS
Price
N/A
209
BUSHING 42 X 25 X 17MM
210
PIVOT ARM
211
SHAFT
212
GEAR 40T
212-1
BUSHING W/KEY WAY
213
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
214
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A

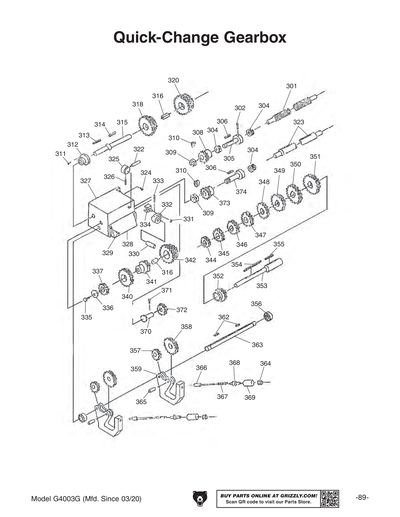

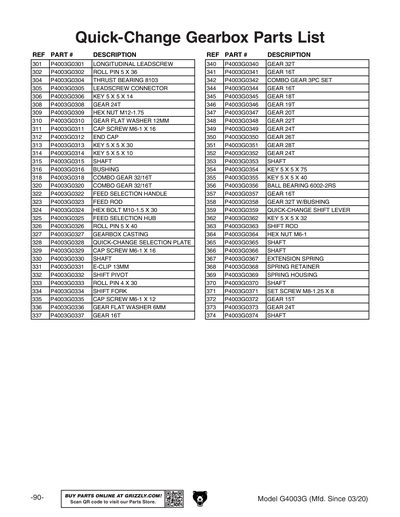

301
LONGITUDINAL LEADSCREW
302
ROLL PIN 5 X 36
Price
N/A
304
Now: P8103
THRUST BEARING 8103
Price
N/A
305
LEADSCREW CONNECTOR
306
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
308
GEAR 24T
309
Now: PN09M
HEX NUT M12-1.75
Price
N/A
310
GEAR FLAT WASHER 12MM
311
CAP SCREW M6-1 X 16
Price
N/A
312
END CAP
313
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
314
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
315
SHAFT
316
BUSHING
318
COMBO GEAR 32/16T W/KEYWAY
320
COMBO GEAR 32/16T
322
FEED SELECTION HANDLE
323

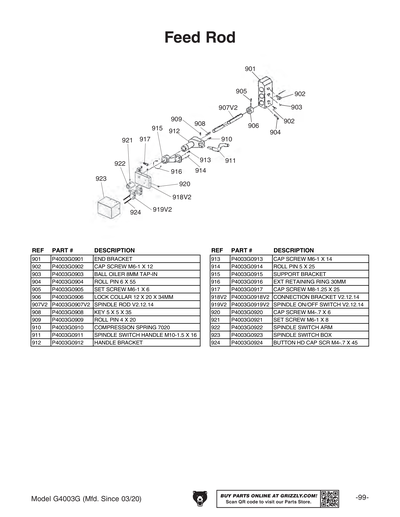

FEED ROD
Price
N/A
324
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
325
FEED SELECTION HUB
326
ROLL PIN 5 X 40
Price
N/A
327
GEARBOX CASTING
327A
GEARBOX ASSY
328
QUICK-CHANGE SELECTION PLATE
328-1
THREADED CHART
329
CAP SCREW M6-1 X 16
Price
N/A
330
SHAFT
331
E-CLIP 13MM
Price
N/A
332
SHIFT PIVOT
333
ROLL PIN 4 X 30
Price
N/A
334
SHIFT FORK
335
CAP SCREW M6-1 X 12
Price
N/A
336
FENDER WASHER 6MM
Price
N/A
337
GEAR 16T
340
COMBO GEAR 32/16T
Price
N/A
340A
COMBO GEAR 32/16T
341
COMBO GEAR 32/16T
Price
N/A
342
***USE P4002342***
342-1
GEAR SPACER SET (3PC)
342A
DUPLEX GEAR 32T/16T
Price
N/A
343
DUPLEX GEAR 32T/16T
Price
N/A
344
GEAR 16T
Price
N/A
345
GEAR 18T
346
GEAR 19T
Price
N/A
347
GEAR 20T
Price
N/A
348
GEAR 22T
Price
N/A
349
GEAR 24T
350
GEAR 26T
Price
N/A
351
GEAR 28T
Price
N/A
352
GEAR 24T
353
SHAFT
354
KEY 5 X 5 X 75
Price
N/A
355
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
356
BALL BEARING 6002-2RS
Price
N/A
357
GEAR 16T
358
GEAR 32T W/BUSHING
Price
N/A
359
QUICK-CHANGE SHIFT LEVER
362
KEY 5 X 5 X 32
Price
N/A
363
SHIFT ROD
364
Now: PN01M
HEX NUT M6-1
Price
N/A
365
SHAFT
366
SHAFT
367
EXTENSION SPRING
368
SPRING RETAINER
369
SPRING HOUSING
370
SHAFT
371
SET SCREW M8-1.25 X 8
Price
N/A
372
GEAR 15T
373
GEAR 24T
374
SHAFT

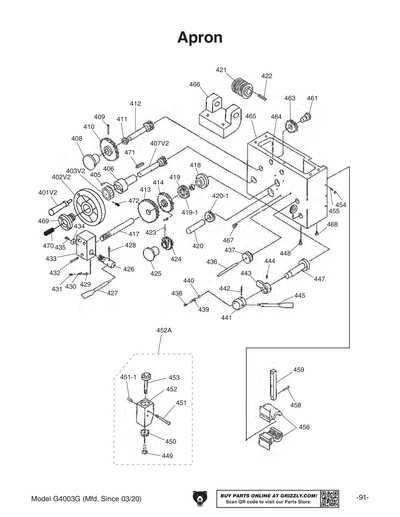

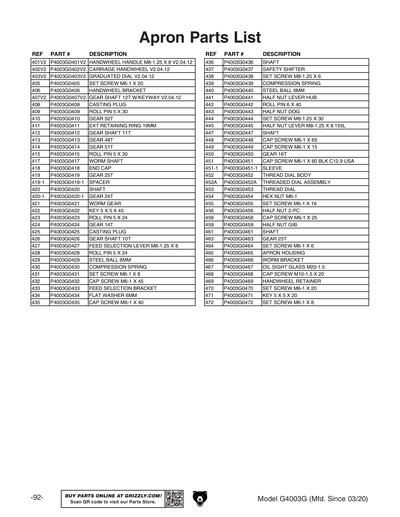

401
HANDLE V1
401V2
HANDWHEEL HANDLE M8-1.25 X 8 V2.04.12
402
*DISCD*HANDWHEEL V1
Item is no longer available
Price
N/A
402V2
CARRIAGE HANDWHEEL V2.04.12
403
GRADUATED DIAL V1
403V2
GRADUATED DIAL V2.04.12
404
ROLL PIN 5 X 40
Price
N/A
405
SET SCREW M6-1 X 20
Price
N/A
406
HANDWHEEL BRACKET
407
GEAR SHAFT V1
407V2
GEAR SHAFT 12T W/KEYWAY V2.04.12
408
CASTING PLUG
409
ROLL PIN 5 X 30
Price
N/A
410
GEAR 50T
Price
N/A
411
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
412
GEAR SHAFT 11T
Price
N/A
413
GEAR 48T
Price
N/A
414
GEAR 51T
Price
N/A
415
ROLL PIN 5 X 30
Price
N/A
417
WORM SHAFT
418
END CAP
419
GEAR 25T
419-1
SPACER
420
SHAFT
420-1
GEAR 24T
421
WORM GEAR
422
Now: PK33M
KEY 5 X 5 X 45
Price
N/A
423
ROLL PIN 5 X 24
Price
N/A
424
GEAR 14T
Price
N/A
425
CASTING PLUG
426
GEAR SHAFT 10T
427
FEED SELECTION LEVER M8-1.25 X 8
428
ROLL PIN 5 X 24
Price
N/A
429
STEEL BALL 6MM
Price
N/A
430
COMPRESSION SPRING
431
SET SCREW M6-1 X 8
Price
N/A
432
CAP SCREW M6-1 X 45
Price
N/A
433
FEED SELECTION BRACKET
434
Now: PW03M
FLAT WASHER 6MM
Price
N/A
435
CAP SCREW M6-1 X 40
Price
N/A
436
SHAFT
437
SAFETY SHIFTER
Price
N/A
438
SET SCREW M8-1.25 X 6
Price
N/A
439
COMPRESSION SPRING
440
STEEL BALL 6MM
Price
N/A
441
HALF NUT LEVER HUB
442
ROLL PIN 6 X 40
Price
N/A
443
HALF NUT DOG
444
SET SCREW M8-1.25 X 30
Price
N/A
445
HALF NUT LEVER M8-1.25 X 8 155L
447
SHAFT
448
CAP SCREW M6-1 X 65
Price
N/A
449
CAP SCREW M6-1 X 15
Price
N/A
450
GEAR 16T
Price
N/A
451
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
451-1
SLEEVE
452
THREAD DIAL BODY
452A
THREADED DIAL ASSEMBLY
453
THREAD DIAL
Price
N/A
454
Now: PN01M
HEX NUT M6-1
Price
N/A
455
SET SCREW M6-1 X 16
Price
N/A
456
HALF NUT 2-PC
Price
N/A
457
HALF NUT HOUSING
Price
N/A
458
CAP SCREW M6-1 X 25
Price
N/A
459
HALF NUT GIB
461
SHAFT
463
GEAR 25T
Price
N/A
464
SET SCREW M6-1 X 6
Price
N/A
465
APRON HOUSING
465A
COMPLETE APRON ASSEMBLY
466
WORM BRACKET
Price
N/A
467
*DISCD*OIL SIGHT GLASS (PUSH-IN)
Price
N/A
468
CAP SCREW M10-1.5 X 20
Price
N/A
469
HANDWHEEL RETAINER
470
SET SCREW M6-1 X 20
Price
N/A
471
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
472
SET SCREW M6-1 X 8
Price
N/A

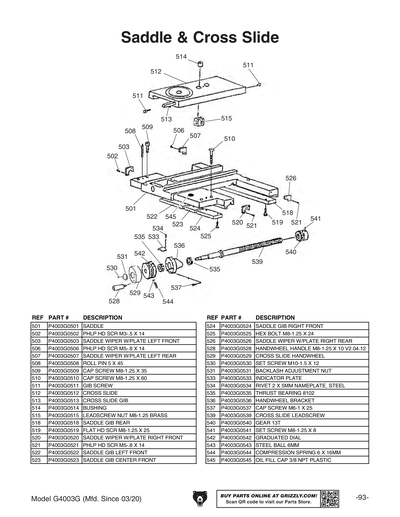

501
SADDLE
502
Now: PS59M
PHLP HD SCR M3-.5 X 14
Price
N/A
503
SADDLE WIPER W/PLATE LEFT FRONT
503-1
LEFT FRONT SADDLE WIPER W/O PLATE
504
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
505
*DISCD*SADDLE COVER REAR
Item is no longer available
Price
N/A
506
Now: PS57M
PHLP HD SCR M5-.8 X 14
Price
N/A
507
SADDLE WIPER W/PLATE LEFT REAR
507-1
LEFT REAR SADDLE WIPER W/O PLATE
508
ROLL PIN 5 X 45
Price
N/A
509
CAP SCREW M8-1.25 X 35
Price
N/A
510
CAP SCREW M8-1.25 X 60
Price
N/A
511
GIB SCREW
512
CROSS SLIDE
513
CROSS SLIDE GIB
514
BUSHING
515
LEADSCREW NUT M8-1.25 BRASS
Price
N/A
518
***USE P4002518***
518-1
SADDLE GIB REAR
519
FLAT HD SCR M8-1.25 X 25
Price
N/A
520
SADDLE WIPER W/PLATE RIGHT FRONT
520-1
SADDLE WIPER W/PLATE RIGHT FRONT
Price
N/A
521
Now: PS57M
PHLP HD SCR M5-.8 X 14
Price
N/A
522
SLIDE PLATE (LEFT FRONT)
523
SLIDE PLATE (3 HOLES) V2.01.15
Price
N/A
524
SLIDE PLATE (3 HOLES) V2.01.15
Price
N/A
524V2
SLIDE PLATE (3 HOLES) V2.01.15
525
Now: PB19M
HEX BOLT M8-1.25 X 24
Price
N/A
526
SADDLE WIPER W/PLATE RIGHT REAR
526-1
RIGHT REAR SADDLE WIPER W/O PLATE
528
HANDWHEEL HANDLE M8-1.25 X 8 V2.04.12
Price
N/A
529
CROSS SLIDE HANDWHEEL
530
SET SCREW M10-1.5 X 12
Price
N/A
531
BACKLASH ADJUSTMENT NUT
533
INDICATOR PLATE
534
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
535
Now: P8102
THRUST BEARING 8102
Price
N/A
536
HANDWHEEL BRACKET
537
CAP SCREW M6-1 X 25
Price
N/A
539
CROSS SLIDE LEADSCREW
540
GEAR 13T
Price
N/A
541
SET SCREW M8-1.25 X 8
Price
N/A
542
GRADUATED DIAL
543
STEEL BALL 6MM
Price
N/A
544
COMPRESSION SPRING 6 X 16MM
Price
N/A
545
OIL FILL CAP 3/8 NPT PLASTIC
601
GIB SCREW
Price
N/A
602
COMPOUND REST GIB
603
COMPOUND REST
604
Now: PN03M
HEX NUT M8-1.25
Price
N/A
605
COMPOUND REST MOUNTING BOLT
606
COMPOUND SLIDE SCREW
607
COMPOUND REST LEADSCREW NUT
608
SET SCREW M6-1 X 8
Price
N/A
609
Now: PN01M
HEX NUT M6-1
Price
N/A
610
COMPOUND REST LEADSCREW
611
Now: P8101
THRUST BEARING 8101
Price
N/A
612
HANDWHEEL BRACKET
613
Now: P8101
THRUST BEARING 8101
Price
N/A
614
GRADUATED DIAL
615
BACKLASH ADJUSTMENT NUT
616
COMPOUND REST HANDWHEEL
617
HANDLE LARGE M5-.8 X 10 50L
617A
HANDLE SMALL M5-.8 X 10 35L
618
SET SCREW M5-.8 X 5
Price
N/A
619
CAP SCREW M6-1 X 15
Price
N/A
620
STEEL BALL 6MM
Price
N/A
621
COMPRESSION SPRING 6 X 16MM
Price
N/A
640
PLUNGER
Price
N/A
641
COMPRESSION SPRING
642
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
643
Now: PW01M
FLAT WASHER 8MM
Price
N/A
644
SWIVEL SLIDE
Price
N/A
645
SET SCREW M6-1 X 16
Price
N/A
646
Now: PN01M
HEX NUT M6-1
Price
N/A
647
BALL OILER 8MM PRESS-IN
Price
N/A
648
SET SCREW M6-1 X 8
Price
N/A
649
TOOL POST BOLT M16-1.5 X 35
Price
N/A
650
QUICK CHANGE TOOL POST BLOCK
Price
N/A
651
TOOL POST BUSHING
Price
N/A
652
TOOL POST HANDLE HUB
Price
N/A
653
FLANGE NUT M16-1.5
Price
N/A
654
TOOL POST HANDLE M12-1.75 X 8
Price
N/A
655
Now: PN14M
HEX NUT M10-1
Price
N/A
656
WAVY WASHER 10MM
Price
N/A
657
KNURLED THUMB NUT M10-1
Price
N/A
658
SET SCREW M10-1 X 45
Price
N/A
659
SET SCREW M10-1.5 X 14 DOG-PT
Price
N/A
660
TOOL HOLDER BODY

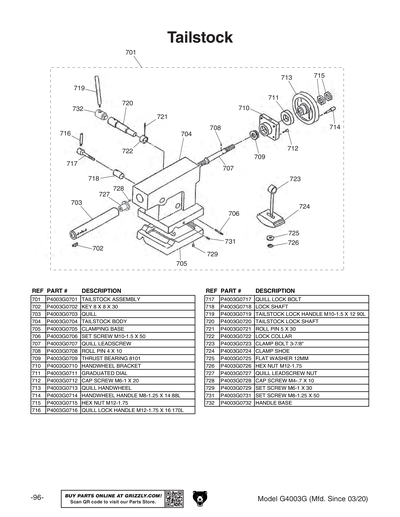

701
TAILSTOCK ASSEMBLY
702
KEY 8 X 8 X 30
Price
N/A
703
QUILL 40MM
704
TAILSTOCK BODY
705
CLAMPING BASE
706
SET SCREW M10-1.5 X 50
Price
N/A
707
QUILL LEADSCREW
708
ROLL PIN 4 X 10
Price
N/A
709
Now: P8101
THRUST BEARING 8101
Price
N/A
710
HANDWHEEL BRACKET
711
GRADUATED DIAL
Price
N/A
712
CAP SCREW M6-1 X 20
Price
N/A
713
QUILL HANDWHEEL
714
HANDWHEEL HANDLE M8-1.25 X 14 88L
715
Now: PN09M
HEX NUT M12-1.75
Price
N/A
716
QUILL LOCK HANDLE M12-1.75 X 16 170L
717
QUILL LOCK BOLT
Price
N/A
718
LOCK SHAFT
Price
N/A
719
TAILSTOCK LOCK HANDLE M10-1.5 X 12 90L
720
TAILSTOCK LOCK SHAFT
721
ROLL PIN 5 X 30
Price
N/A
722
LOCK COLLAR
723
CLAMP BOLT 3-7/8" V1
723V2
HEX BOLT M12-1.75 X 100
Price
N/A
724
CLAMP SHOE
Price
N/A
725
Now: PW06M
FLAT WASHER 12MM
Price
N/A
726
Now: PN09M
HEX NUT M12-1.75
Price
N/A
727
QUILL LEADSCREW NUT
728
CAP SCREW M4-.7 X 10
Price
N/A
729
SET SCREW M6-1 X 30
Price
N/A
731
SET SCREW M8-1.25 X 50
Price
N/A
732
HANDLE BASE
733
ALIGNMENT BLOCK

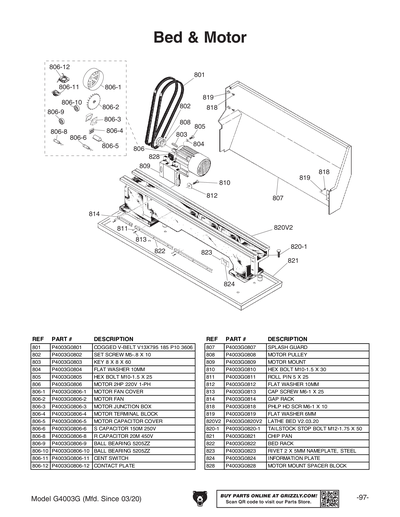

801
COGGED V-BELT V13X795 185 P10 3606
802
SET SCREW M5-.8 X 10
Price
N/A
803
KEY 8 X 8 X 60
804
Now: PW04M
FLAT WASHER 10MM
Price
N/A
805
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
806
MOTOR 2HP 220V 1-PH
806-1
MOTOR FAN COVER
806-10
BALL BEARING 6205ZZ
Price
N/A
806-11
CENT SWITCH
806-12
CONTACT PLATE
806-13
MOTOR CORD 12G 5W 24"
Price
N/A
806-2
MOTOR FAN
806-3
MOTOR JUNCTION BOX
806-4
MOTOR TERMINAL BLOCK
806-5
MOTOR CAPACITOR COVER
806-6
S CAPACITOR 150M 250V 1-5/8 X 3-3/16
806-7
MOTOR 2HP LABEL
806-8
Now: PC20D
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
806-9
BALL BEARING 6205ZZ
Price
N/A
807
SPLASH GUARD
808
MOTOR PULLEY
809
MOTOR MOUNT
810
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
811
ROLL PIN 5 X 25
Price
N/A
812
Now: PW04M
FLAT WASHER 10MM
Price
N/A
813
CAP SCREW M6-1 X 25
Price
N/A
814
GAP RACK
815
GAP INSERT
816
CAP SCREW M10-1.5 X 45
Price
N/A
817
THREADED TAPER PIN
818
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
819
Now: PW03M
FLAT WASHER 6MM
Price
N/A
820
LATHE BED
Price
N/A
820-1
TAILSTOCK STOP BOLT M12-1.75 X 50
820V2
LATHE BED V2.04.20
821
CHIP PAN
822
RACK 16-1/2" LONG 1PC
823
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
824
INFORMATION PLATE
825
Now: PN02M
HEX NUT M10-1.5
Price
N/A
826
STANDOFF-HEX DE
827
LATHE BED NUT
828
*DISCD*MOTOR MOUNT SPACER BLOCK
Item is no longer available
Price
N/A

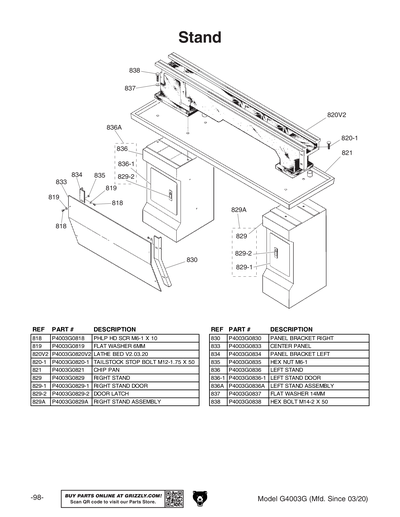

829
RIGHT STAND
829-1
RIGHT STAND DOOR
829-2
DOOR LATCH
829A
COMPLETE RIGHT STAND ASSY BOX 2
829V2-2
DOOR LATCH V2
830
PANEL BRACKET RIGHT
831
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
832
Now: PW02M
FLAT WASHER 5MM
Price
N/A
833
CENTER PANEL
834
PANEL BRACKET LEFT
835
Now: PN01M
HEX NUT M6-1
Price
N/A
836
LEFT STAND
836-1
LEFT STAND DOOR
836A
COMPLETE LEFT STAND ASSY BOX 3
837
Now: PW10M
FLAT WASHER 14MM
Price
N/A
838
HEX BOLT M14-2 X 50
Price
N/A
839
CONTROL BOX CORD
901
END BRACKET
902
CAP SCREW M6-1 X 12
Price
N/A
903
BALL OILER 6MM TAP-IN
904
ROLL PIN 6 X 55
Price
N/A
905
SET SCREW M6-1 X 6
Price
N/A
906
LOCK COLLAR 12 X 20 X 34MM
907
SPINDLE ROD V1
Price
N/A
907V2
SPINDLE ROD V2.12.14
908
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
909
ROLL PIN 4 X 20
Price
N/A
910
COMPRESSION SPRING 7020
911
SPINDLE SWITCH HANDLE M10-1.5 X 16
912
HANDLE BRACKET
913
CAP SCREW M6-1 X 14
Price
N/A
914
ROLL PIN 5 X 25
Price
N/A
915
SUPPORT BRACKET
916
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
917
CAP SCREW M8-1.25 X 25
Price
N/A
918
*DISCD*CONNECTION BRACKET V1
Item is no longer available
Price
N/A
918V2
CONNECTION BRACKET V2.12.14
919
SPINDLE ROTARY SWITCH 10A V1
923
SPINDLE SWITCH BOX

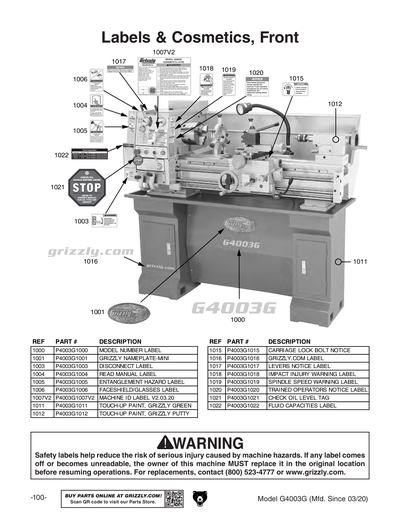

1000
MODEL NUMBER LABEL
1001
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A

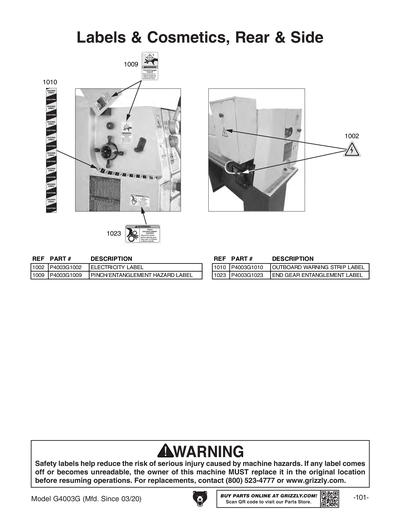

1002
ELECTRICITY 1.4W X 1.2H
Price
N/A
1003
***USE PLABEL-53C***
1004
READ MANUAL 1.5W X 2.5H
Price
N/A
1005
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
1006
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
1007
MACHINE ID LABEL V1
1007V2
MACHINE ID LABEL V2.03.20
1008
CHIP PAN
Price
N/A
1009
PINCH/ENTANGLEMENT HAZARD LABEL
1010
OUTBOARD WARNING STRIP LABEL
1011
N/S GRIZZLY GREEN G1023S
Price
N/A
1012
GREY PUTTY REF G0504
Price
N/A
1013
APRON FEED SELECT LABEL
1014
HALFNUT LEVER LABEL
1015
CARRIAGE LOCK BOLT NOTICE
1016
GRIZZLY.COM LABEL 9",GRAY
Price
N/A
1017
LEVERS NOTICE LABEL
Price
N/A
1018
IMPACT INJURY HAZARD LABEL
Price
N/A
1019
SPINDLE SPEED HAZARD LABEL
Price
N/A
1020
TRAINED OPERATORS NOTICE LABEL
Price
N/A
1021
CHECK OIL LEVEL TAG
1022
FLUID CAPACITY LABEL
1023
END GEAR ENTANGLEMENT LABEL
Price
N/A
1100
CAP SCREW M12-1.75 X 30
Price
N/A
1101
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
1102
HEADSTOCK CONTROL PLATE 2-PC ASSY
1103
SET SCREW M6-1 X 12
Price
N/A
1104
SPINDLE SPEED HANDLE M8-1.25 X 40
1105
SPINDLE SPEED HANDLE M8-1.25 X 40
Price
N/A
1106
SPINDLE SPEED HANDLE HUB
1107
ARROW PLATE 46MM
1108
STEEL BALL 6MM
Price
N/A
1109
COMPRESSION SPRING 1.2 X 4.8 X 27
1110
SET SCREW M8-1.25 X 8
Price
N/A
1111
ROLL PIN 5 X 40
Price
N/A
1112
***USE P0750G0238***
1113
ARROW PLATE LOWER - 38MM
1114
COMPRESSION SPRING 1 X 5 X 16
1115
FEED DIRECTION HANDLE HUB
1116
HEADSTOCK OIL DRAIN PLUG 3/8" NPT
1117
SET SCREW M6-1 X 10
Price
N/A
1118
SET SCREW M6-1 X 6
Price
N/A
1119
END GEAR COVER
1119-1
SPIDER SAFETY COVER
1119-2
SPIDER COVER KNOB BOLT M16-2.0
1119-3
NUT FOR COVER
1119-4
STUD-FT M10-1.5 X 35 W/NUTS
1119-5
END GEAR COVER TOP BOLT M10-1.5 X 78
1119-6
STUD-DE M10-1.5 X 122 30RH
1119-7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1119-8
END GEAR COVER THREAD CHART
1120
KNURLED KNOB M10-1.5
Price
N/A
1121
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1122
SPIDER COVER KNOB BOLT M16-2.0
Price
N/A
1123
E-CLIP 15MM
Price
N/A
1124
STUD-FT M10-1.5 X 35 W/NUTS
Price
N/A
1125
NUT FOR COVER
Price
N/A
1126
CAP SCREW M6-1 X 8
Price
N/A

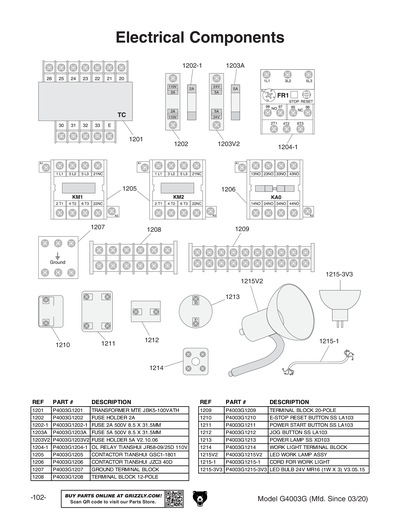

1200
ELECTRICAL BOX ASSY
1200-1
ELECTRICAL BOX CONTAINER ONLY
1201
TRANSFORMER JBK5 100VA 110/400V-24/110V
1202
FUSE HOLDER 2A
1202-1
FUSE 2A 500V 8.5 X 31.5MM
1203
CIRCUIT BREAKER 5A HUIL DZ451-63 C5 1P
1203A
FUSE 5A 500V 8.5 X 31.5MM
1203V2
FUSE HOLDER 5A V2.10.06
1204
OL RELAY TIANSHUI JRS4-09 25D 9-13A
1204-1
OL RELAY MOUNTING BLOCK
Price
N/A
1204-2
RAIL MOUNTING ADAPTER FOR JRS4-09 RELAY
1205
CONTACTOR TIANSHUI GSC1-1801
1206
CONTACTOR TIANSHUI JZC3 40D
1207
GROUND TERMINAL BLOCK
1208
TERMINAL BLOCK 12-POLE
1209
TERMINAL BLOCK 20-POLE
1210
EMERGENCY STOP SWITCH
Price
N/A
1211
POWER START BUTTON SS LA103
1212
JOG BUTTON HUI LA103 22MM BLK
Price
N/A
1213
POWER INDICATOR LIGHT HUI XD103 22MM GRN
Price
N/A
1214
WORK LIGHT TERMINAL BLOCK W/CORD
1215
HALOGEN WORK LIGHT ASSY
1215-1
WORK LIGHT TERMINAL BLOCK W/CORD
Price
N/A
1215-2
CONDUIT 1/2"DIA 56"LONG
1215-3
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
1215-3V2
LED BULB 24V MR16 (1W X 3) V3.05.15
Price
N/A
1215-3V3
LED BULB 24V MR16 (1W X 3) V3.05.15
1215V2
LED WORK LAMP ASSY.
1216
WORK LIGHT BASE PLATE
1300
STEADY REST ASSEMBLY
Price
N/A
1301
KNURLED FINGER KNOB
1302
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
1303
BUSHING
1304
FINGER ADJUSTMENT SCREW
1305
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1305-1
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1305A
FINGER 3" W/BEARING ASSEMBLY
1306
SET SCREW M6-1 X 8
Price
N/A
1306-1
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1306-2
Now: PN01M
HEX NUT M6-1
Price
N/A
1307
UPPER STEADY REST CASTING
1309
Now: G3848
Bearing - 16mm x 5mm
Price
N/A
1310
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1311
LOWER STEADY REST CASTING
1312
LOCK PIN
1313
LOCK BOLT M10-1.5 X 18
1314
Now: PN09M
HEX NUT M12-1.75
Price
N/A
1315
Now: PW06M
FLAT WASHER 12MM
Price
N/A
1316
CLAMP PLATE
1317
T-BOLT M12-1.75 X 75
Price
N/A
1318
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1319
KNURLED THUMB KNOB M10-1.5
1400
FOLLOW REST ASSEMBLY
Price
N/A
1401
KNURLED FINGER KNOB
Price
N/A
1402
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
1403
BUSHING
1404
FINGER ADJUSTMENT SCREW
1405
FINGER SLEEVE 3"
1405A
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1406
SET SCREW M6-1 X 8
Price
N/A
1407
Now: PN01M
HEX NUT M6-1
Price
N/A
1408
SET SCREW M6-1 X 20
Price
N/A
1409
FOLLOW REST CASTING
1410
CAP SCREW M8-1.25 X 35
Price
N/A
1411
Now: G3848
Bearing - 16mm x 5mm
Price
N/A
1412
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
2000
RIGHT STAND
Price
N/A
2001
LEFT STAND
Price
N/A
2002
CENTER PANEL
Price
N/A
2003
SCREW
2004
PANEL BRACKET RIGHT
Price
N/A
2005
PANEL BRACKET LEFT
Price
N/A
2006
DOOR LATCH
Price
N/A
2007
RIGHT STAND DOOR
Price
N/A
2008
LEFT STAND
Price
N/A
2009
NUT
2010
BOLT BAG
2011
LATCH RH
306-1
SET SCREW M6-1 X 20
Price
N/A
5000
ANTI-VIBRATION KIT
919-1
FWD/REV SWITCH BOX ASSEMBLY BEIGE
MANUAL
MANUAL FOR G4003G 09/07
MANV2
MANUAL G4003G MFD-04.12-12.14 V2.09.13
MANV3
MANUAL G4003G MFD-01.15-02.20 V3.03.17
MANV4
MANUAL G4003G MFD-03.20+ V4.03.22
P4003MANUAL
MANUAL G4002/G4003 MFD-01.00-05.11 V1.01
Price
N/A
