Parts for G4003G - 12" x 36" Gunsmithing Metal Lathe w/ Stand

Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G
Part Diagram for G4003G

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

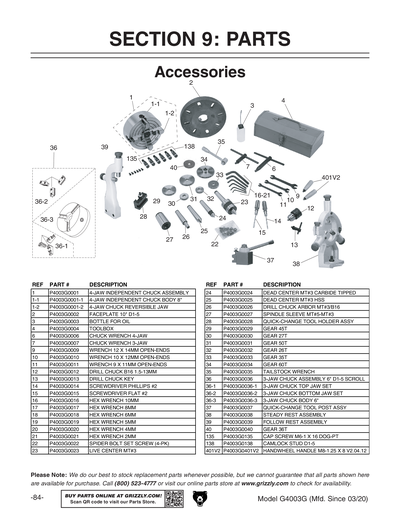

Ref #
Part #
Description
1
4-JAW INDEPENDENT CHUCK ASSEMBLY
Price
$601.65
1-1
4-JAW INDEPENDENT CHUCK BODY 8"
Price
$601.65
1-2
4-JAW CHUCK REVERSIBLE JAW 4-PC SET
Price
$182.95
2
FACEPLATE 10" D1-5
Price
$173.95
3
BOTTLE FOR OIL
Price
$9.00
4
TOOLBOX
Price
$71.60
5
TOOL POST WRENCH 11MM
Price
$24.60
6
CHUCK WRENCH 4-JAW
Price
$24.85
7
CHUCK WRENCH 3-JAW
Price
$23.75
9
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
10
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
11
WRENCH 9 X 11MM OPEN-ENDS
Price
N/A
12
DRILL CHUCK B16 1.5-13MM
Price
$47.15
13
DRL CHK KEY 5.89MM STD 12T SD-13.93MM
Price
$8.35
14
SCREWDRIVER PHILLIPS #2
Price
N/A
15
SCREWDRIVER FLAT #2
Price
N/A
16
HEX WRENCH 10MM
Price
N/A
17
HEX WRENCH 8MM
Price
N/A
18
HEX WRENCH 6MM
Price
N/A
19
HEX WRENCH 5MM
Price
N/A
20
HEX WRENCH 4MM
Price
N/A
21
HEX WRENCH 2MM
Price
N/A
22
SPIDER BOLT SET SCREW (4 PAK) M10-1.5 X 30
Price
N/A
22V2
SPIDER BOLT SET SCREW (4 PAK) M10-1.5 X 30
Price
$15.65
23
LIVE CENTER MT#3
Price
$98.15
24
DEAD CENTER MT#3 CARBIDE TIPPED
Price
$32.00
25
DEAD CENTER MT#3 HSS
Price
$29.15
26
DRILL CHUCK ARBOR MT#3/B16
Price
N/A
27
SPINDLE SLEEVE MT#5-MT#3
Price
$33.45
28

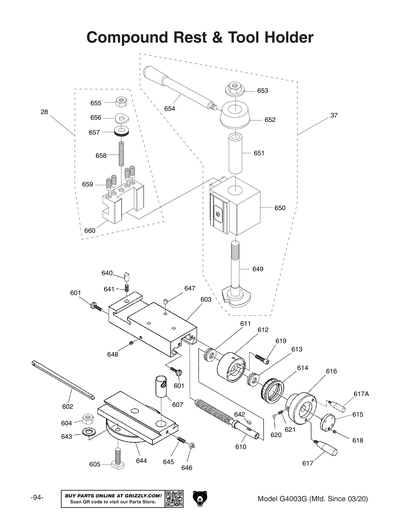

QUICK-CHANGE TOOL HOLDER ASSY
Price
$58.25
29
GEAR 45T
Price
$40.15
30
GEAR 27T
Price
$26.75
31
GEAR 50T
Price
$49.25
32
GEAR 26T
Price
$31.35
33
GEAR 35T
Price
$35.95
33V2
GEAR 36T
Price
N/A
34
GEAR 60T
Price
$55.75
35
TAILSTOCK WRENCH
Price
$29.15
36
CHUCK 3-JAW 6" D1-5 ASSEMBLY
Price
N/A
36-1
3-JAW CHUCK TOP JAW SET
Price
N/A
36-2
3-JAW CHUCK BOTTOM JAW SET
Price
$146.35
36-3
3-JAW CHUCK BODY 6"
Price
$334.25
37
QUICK-CHANGE TOOL POST ASSY
Price
$389.95
38

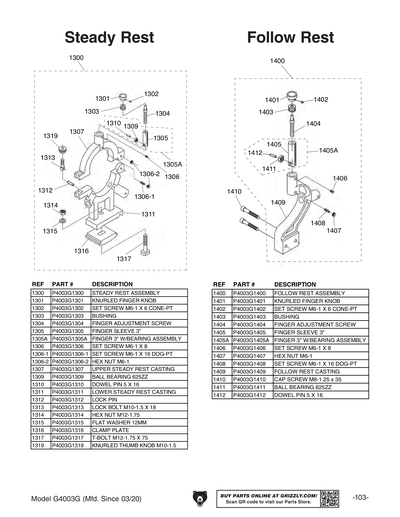

STEADY REST ASSEMBLY
Price
$211.70
39
FOLLOW REST ASSEMBLY
Price
$196.15
40
GEAR 36T
Price
$35.70

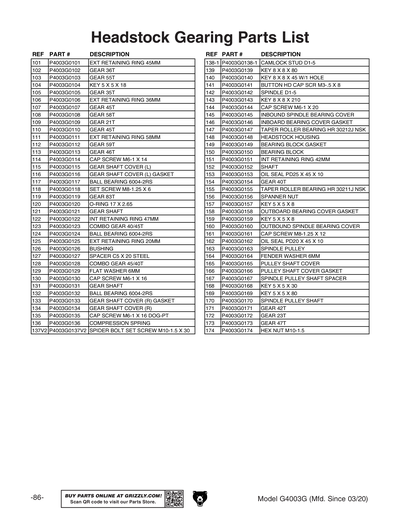

101
EXT RETAINING RING 45MM
Price
N/A
102
GEAR 36T
Price
$42.45
103
GEAR 55T
Price
$89.15
104
KEY 5 X 5 X 18
Price
N/A
105
GEAR 35T
Price
$78.00
106
EXT RETAINING RING 36MM
Price
N/A
107
GEAR 45T
Price
$42.45
108
GEAR 58T
Price
$63.25
109
GEAR 21T
Price
$69.40
110
GEAR 45T
Price
$98.10
111
EXT RETAINING RING 58MM
Price
N/A
112
GEAR 59T
Price
$93.45
113
GEAR 46T
Price
$93.45
114
CAP SCREW M6-1 X 14
Price
N/A
115
GEAR SHAFT COVER (L)
Price
$12.25
116
GEAR SHAFT COVER (L) GASKET
Price
$6.90
117
BALL BEARING 6004-2RS
Price
N/A
118
SET SCREW M8-1.25 X 6
Price
N/A
119
GEAR 83T
Price
$120.45
120
*DISCD* O-RING 17 X 2.65
Price
N/A
121
GEAR SHAFT
Price
$12.25
122
INT RETAINING RING 47MM
Price
N/A
123
COMBO GEAR 40/45T
Price
$72.25
124
BALL BEARING 6004-2RS
Price
N/A
125
EXT RETAINING RING 20MM
Price
N/A
126
BUSHING
Price
$9.00
127
SPACER C5 X 20 STEEL
Price
$6.50
128
COMBO GEAR 45/40T
Price
$84.50
129
FLAT WASHER 6MM
Price
N/A
130
CAP SCREW M6-1 X 16
Price
N/A
131
GEAR SHAFT
Price
$44.60
132
BALL BEARING 6004-2RS
Price
N/A
133
GEAR SHAFT COVER (R) GASKET
Price
$6.90
134
GEAR SHAFT COVER (R)
Price
$24.85
135
CAP SCREW M6-1 X 16 DOG-PT
Price
$2.60
136
COMPRESSION SPRING
Price
$2.25
137
SPIDER BOLT M10-1.5 X 35
Price
$6.90
137V2
SPIDER BOLT SET SCREW M10-1.5 X 30
Price
$6.90
138
CAMLOCK STUD D1-5
Price
$9.40
138-1
SPINDLE CAMLOCK
Price
$9.40
139
KEY 8 X 8 X 80
Price
N/A
140
KEY 8 X 8 X 45
Price
N/A
141
BUTTON HD CAP SCR M3-.5 X 8
Price
N/A
142
SPINDLE D1-5
Price
$1,149.75
143
KEY 8 X 8 X 210
Price
$3.25
144
CAP SCREW M6-1 X 20
Price
N/A
145
INBOUND SPINDLE BEARING COVER
Price
$48.20
146
INBOARD BEARING COVER GASKET
Price
$6.90
147
TAPER ROLLER BEARING HR 30212J NSK
Price
$155.25
148
HEADSTOCK HOUSING
Price
$902.45
149
BEARING BLOCK GASKET
Price
$6.90
150
BEARING BLOCK
Price
$27.35
151
INT RETAINING RING 42MM
Price
N/A
152
SHAFT
Price
$31.35
153
OIL SEAL PD25 X 45 X 10
Price
$8.95
154
GEAR 40T
Price
N/A
155
TAPER ROLLER BEARING HR 30211J NSK
Price
$100.95
156
SPANNER NUT
Price
$16.95
157
KEY 5 X 5 X 8
Price
N/A
158
OUTBOARD BEARING COVER GASKET
Price
$6.90
159
KEY 5 X 5 X 8
Price
N/A
160
OUTBOUND SPINDLE BEARING COVER
Price
$46.00
161
CAP SCREW M8-1.25 X 12
Price
N/A
162
OIL SEAL PD20 X 45 X 10
Price
$8.95
163
SPINDLE PULLEY
Price
$81.65
164
FENDER WASHER 6MM
Price
N/A
165
PULLEY SHAFT COVER
Price
$45.35
166
PULLEY SHAFT COVER GASKET
Price
$6.90
167
SPINDLE PULLEY SHAFT SPACER
Price
$2.20
168
KEY 5 X 5 X 30
Price
N/A
169
KEY 5 X 5 X 80
Price
N/A
170
SPINDLE PULLEY SHAFT
Price
$30.60
171
GEAR 42T
Price
$71.35
172
GEAR 23T
Price
$53.50
173
GEAR 47T
Price
$80.25
174
HEX NUT M10-1.5
Price
N/A
175
OIL FILL PLUG 3/4" NPT PLASTIC
Price
$5.10
176
HEADSTOCK TOP COVER
Price
$162.85
177
CAP SCREW M6-1 X 25
Price
N/A
178
HEADSTOCK TOP COVER GASKET
Price
$13.40
179
ROLL PIN 5 X 30
Price
N/A
180
EXT RETAINING RING 12MM
Price
N/A
181
SPINDLE SPEED SHIFTING ARM
Price
$15.15
182
SPINDLE SPEED SHIFTING FORK
Price
$12.25
183
SET SCREW M8-1.25 X 16
Price
N/A
184
HEX NUT M8-1.25
Price
N/A
185
ROLL PIN 5 X 25
Price
N/A
186
GEAR 38T
Price
$18.40
187
O-RING 11.2 X 2.65
Price
$2.60
188
PINION SHAFT
Price
$18.40
189
KEY 5 X 5 X 8
Price
N/A
190
SHAFT
Price
$13.70
191
LOCK COLLAR
Price
$9.40
192
FEED DIRECTION SHIFTING ARM
Price
$20.10
193
FEED DIRECTION SHIFTING FORK
Price
$12.25
194
SPINDLE SPEED SHAFT
Price
$24.15
195
CAP SCREW M6-1 X 10
Price
N/A
196
CAP SCREW M8-1.25 X 30
Price
N/A
198
*DISCD*OIL SIGHT GLASS (PUSH-IN)
Item is no longer available
Price
N/A
198V2
OIL SIGHT GLASS M20-1.5 V2.04.13
Price
$6.50
199
FLAT WASHER 12MM
Price
N/A
200
INT RETAINING RING 35MM
Price
N/A
201
CAP SCREW M6-1 X 12
Price
N/A
202
FLAT WASHER 6MM
Price
N/A
203
GEAR 40T
Price
$55.75
204
KEY 5 X 5 X 30
Price
N/A
205
CAP SCREW M6-1 X 12
Price
N/A
206
COMBO GEAR FLAT WASHER 6MM
Price
$2.60
207
COMBO GEAR 86T/91T
Price
$156.00
208
BALL BEARING 6003-2RS
Price
N/A
209
BUSHING 42 X 25 X 17MM
Price
$9.00
210
PIVOT ARM
Price
$48.20
211
SHAFT
Price
$23.75
212
GEAR 40T
Price
$32.20
212-1
BUSHING W/KEY WAY
Price
$9.00
213
KEY 5 X 5 X 30
Price
N/A
214
EXT RETAINING RING 35MM
Price
N/A

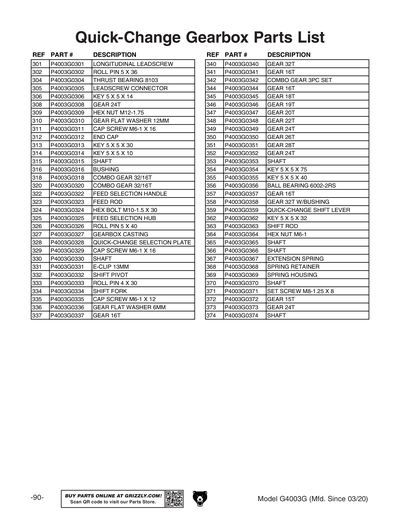

301
LONGITUDINAL LEADSCREW
Price
$325.35
302
ROLL PIN 5 X 36
Price
N/A
304
THRUST BEARING 8103
Price
N/A
305
LEADSCREW CONNECTOR
Price
$35.95
306
KEY 5 X 5 X 14
Price
N/A
308
GEAR 24T
Price
$18.40
309
HEX NUT M12-1.75
Price
N/A
310
GEAR FLAT WASHER 12MM
Price
$5.10
311
CAP SCREW M6-1 X 16
Price
N/A
312
END CAP
Price
$20.15
313
KEY 5 X 5 X 30
Price
N/A
314
KEY 5 X 5 X 10
Price
N/A
315
SHAFT
Price
$25.00
316
BUSHING
Price
$6.90
318
COMBO GEAR 32/16T
Price
$66.90
320
COMBO GEAR 32/16T
Price
$66.90
322
FEED SELECTION HANDLE
Price
$9.00
323

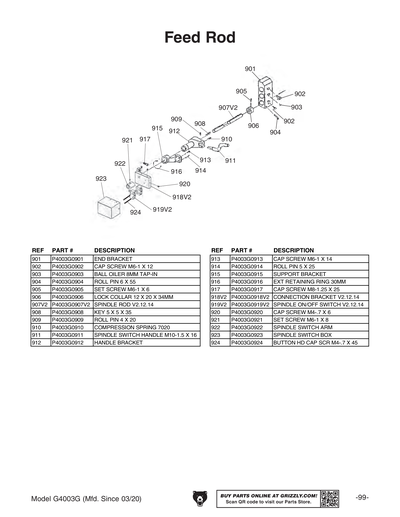

FEED ROD
Price
N/A
324
HEX BOLT M10-1.5 X 30
Price
N/A
325
FEED SELECTION HUB
Price
$12.25
326
ROLL PIN 5 X 40
Price
N/A
327
GEARBOX CASTING
Price
$361.20
327A
GEARBOX ASSY
Price
$1,024.95
328
QUICK-CHANGE SELECTION PLATE
Price
$66.90
328-1
THREADED CHART
Price
$17.25
329
CAP SCREW M6-1 X 16
Price
N/A
330
SHAFT
Price
$6.15
331
E-CLIP 13MM
Price
N/A
332
SHIFT PIVOT
Price
$12.25
333
ROLL PIN 4 X 30
Price
N/A
334
SHIFT FORK
Price
$11.65
335
CAP SCREW M6-1 X 12
Price
N/A
336
FENDER WASHER 6MM
Price
N/A
337
GEAR 16T
Price
$27.00
340
COMBO GEAR 32/16T
Price
N/A
340A
COMBO GEAR 32/16T
Price
$66.90
341
COMBO GEAR 32/16T
Price
N/A
342
***USE P4002342***
Price
$18.25
342-1
GEAR SPACER SET (3PC)
Price
$20.15
342A
DUPLEX GEAR 32T/16T
Price
N/A
343
DUPLEX GEAR 32T/16T
Price
N/A
344
GEAR 16T
Price
N/A
345
GEAR 18T
Price
$15.15
346
GEAR 19T
Price
N/A
347
GEAR 20T
Price
N/A
348
GEAR 22T
Price
N/A
349
GEAR 24T
Price
$18.40
350
GEAR 26T
Price
N/A
351
GEAR 28T
Price
N/A

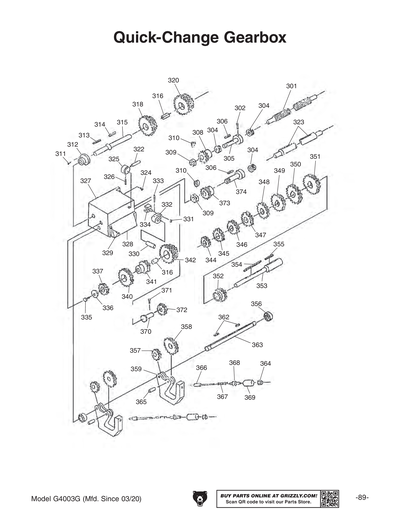

352
GEAR 24T
Price
$14.70
353
SHAFT
Price
$44.60
354
KEY 5 X 5 X 75
Price
N/A
355
KEY 5 X 5 X 40
Price
N/A
356
BALL BEARING 6002-2RS
Price
N/A
357
GEAR 16T
Price
$22.35
358
GEAR 32T W/BUSHING
Price
N/A
359
QUICK-CHANGE SHIFT LEVER
Price
$40.25
362
KEY 5 X 5 X 32
Price
N/A
363
SHIFT ROD
Price
$40.25
364
HEX NUT M6-1
Price
N/A
365
SHAFT
Price
$6.90
366
SHAFT
Price
$7.20
367
EXTENSION SPRING
Price
$2.60
368
SPRING RETAINER
Price
$9.00
369
SPRING HOUSING
Price
$9.00
370
SHAFT
Price
$7.20
371
SET SCREW M8-1.25 X 8
Price
N/A
372
GEAR 15T
Price
$22.35
373
GEAR 24T
Price
$18.40
374
SHAFT
Price
$28.75

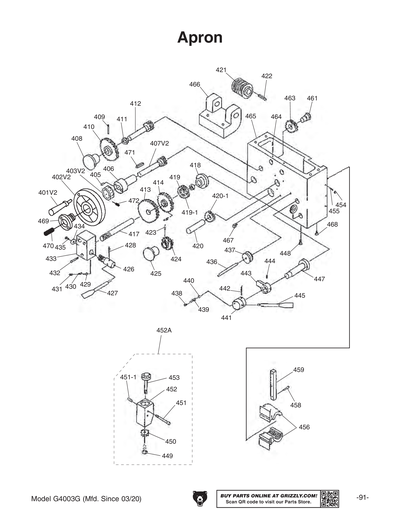

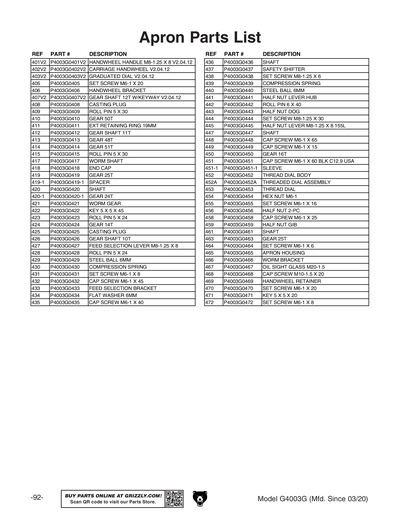

401
HANDLE V1
Price
$13.70
401V2
HANDWHEEL HANDLE M8-1.25 X 8 V2.04.12
Price
$13.70
402
*DISCD*HANDWHEEL V1
Item is no longer available
Price
N/A
402V2
CARRIAGE HANDWHEEL V2.04.12
Price
$62.60
403
GRADUATED DIAL V1
Price
$30.60
403V2
GRADUATED DIAL V2.04.12
Price
$40.25
404
ROLL PIN 5 X 40
Price
N/A
405
SET SCREW M6-1 X 20
Price
N/A
406
HANDWHEEL BRACKET
Price
$35.95
407
GEAR SHAFT V1
Price
$53.50
407V2
GEAR SHAFT 12T W/KEYWAY V2.04.12
Price
$51.45
408
CASTING PLUG
Price
$15.15
409
ROLL PIN 5 X 30
Price
N/A
410
GEAR 50T
Price
N/A
411
EXT RETAINING RING 19MM
Price
N/A
412
GEAR SHAFT 11T
Price
N/A
413
GEAR 48T
Price
N/A
414
GEAR 51T
Price
N/A
415
ROLL PIN 5 X 30
Price
N/A
417
WORM SHAFT
Price
$24.85
418
END CAP
Price
$11.65
419
GEAR 25T
Price
$27.35
419-1
SPACER
Price
$5.10
420
SHAFT
Price
$22.15
420-1
GEAR 24T
Price
$40.25
421
WORM GEAR
Price
$40.15
422
KEY 5 X 5 X 45
Price
N/A
423
ROLL PIN 5 X 24
Price
N/A
424
GEAR 14T
Price
N/A
425
CASTING PLUG
Price
$9.40
426
GEAR SHAFT 10T
Price
$71.60
427
FEED SELECTION LEVER M8-1.25 X 8
Price
$9.00
428
ROLL PIN 5 X 24
Price
N/A
429
STEEL BALL 6MM
Price
N/A
430
COMPRESSION SPRING
Price
$2.20
431
SET SCREW M6-1 X 8
Price
N/A
432
CAP SCREW M6-1 X 45
Price
N/A
433
FEED SELECTION BRACKET
Price
$45.35
434
FLAT WASHER 6MM
Price
N/A
435
CAP SCREW M6-1 X 40
Price
N/A
436
SHAFT
Price
$12.25
437
SAFETY SHIFTER
Price
N/A
438
SET SCREW M8-1.25 X 6
Price
N/A
439
COMPRESSION SPRING
Price
$2.20
440
STEEL BALL 6MM
Price
N/A
441
HALF NUT LEVER HUB
Price
$13.35
442
ROLL PIN 6 X 40
Price
N/A
443
HALF NUT DOG
Price
$6.15
444
SET SCREW M8-1.25 X 30
Price
N/A
445
HALF NUT LEVER M8-1.25 X 8 155L
Price
$11.20
447
SHAFT
Price
$21.25
448
CAP SCREW M6-1 X 65
Price
N/A
449
CAP SCREW M6-1 X 15
Price
N/A
450
GEAR 16T
Price
N/A
451
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
451-1
SLEEVE
Price
$2.25
452
THREAD DIAL BODY
Price
$39.60
452A
THREADED DIAL ASSEMBLY
Price
$111.45
453
THREAD DIAL
Price
N/A
454
HEX NUT M6-1
Price
N/A
455
SET SCREW M6-1 X 16
Price
N/A
456
HALF NUT 2-PC
Price
N/A
457
HALF NUT HOUSING
Price
N/A
458
CAP SCREW M6-1 X 25
Price
N/A
459
HALF NUT GIB
Price
$15.15
461
SHAFT
Price
$15.15
463
GEAR 25T
Price
N/A
464
SET SCREW M6-1 X 6
Price
N/A
465
APRON HOUSING
Price
$264.90
465A
COMPLETE APRON ASSEMBLY
Price
$891.25
466
WORM BRACKET
Price
N/A
467
*DISCD*OIL SIGHT GLASS (PUSH-IN)
Price
N/A
468
CAP SCREW M10-1.5 X 20
Price
N/A
469
HANDWHEEL RETAINER
Price
$4.50
470
SET SCREW M6-1 X 20
Price
N/A
471
KEY 5 X 5 X 20
Price
N/A
472
SET SCREW M6-1 X 8
Price
N/A
501
SADDLE
Price
$534.75
502
PHLP HD SCR M3-.5 X 14
Price
N/A
503
SADDLE WIPER W/PLATE LEFT FRONT
Price
$6.90
503-1
LEFT FRONT SADDLE WIPER W/O PLATE
Price
$5.10
504
PHLP HD SCR 8-32 X 3/8
Price
N/A
505
*DISCD*SADDLE COVER REAR
Item is no longer available
Price
N/A
506
PHLP HD SCR M5-.8 X 14
Price
N/A
507
SADDLE WIPER W/PLATE LEFT REAR
Price
$6.70
507-1
LEFT REAR SADDLE WIPER W/O PLATE
Price
$6.70
508
ROLL PIN 5 X 45
Price
N/A
509
CAP SCREW M8-1.25 X 35
Price
N/A
510
CAP SCREW M8-1.25 X 60
Price
N/A
511
GIB SCREW
Price
$6.90
512
CROSS SLIDE
Price
$209.50
513
CROSS SLIDE GIB
Price
$53.50
514
BUSHING
Price
$20.15
515
LEADSCREW NUT M8-1.25 BRASS
Price
N/A
518
***USE P4002518***
Price
$35.65
518-1
SADDLE GIB REAR
Price
$44.60
519
FLAT HD SCR M8-1.25 X 25
Price
N/A
520
SADDLE WIPER W/PLATE RIGHT FRONT
Price
$6.90
520-1
SADDLE WIPER W/PLATE RIGHT FRONT
Price
N/A
521
PHLP HD SCR M5-.8 X 14
Price
N/A
522
SLIDE PLATE (LEFT FRONT)
Price
$18.00
523
SLIDE PLATE (3 HOLES) V2.01.15
Price
N/A
524
SLIDE PLATE (3 HOLES) V2.01.15
Price
N/A
524V2
SLIDE PLATE (3 HOLES) V2.01.15
Price
$44.60
525
HEX BOLT M8-1.25 X 24
Price
N/A
526
SADDLE WIPER W/PLATE RIGHT REAR
Price
$6.90
526-1
RIGHT REAR SADDLE WIPER W/O PLATE
Price
$4.70
528
HANDWHEEL HANDLE M8-1.25 X 8 V2.04.12
Price
N/A
529
CROSS SLIDE HANDWHEEL
Price
$26.75
530
SET SCREW M10-1.5 X 12
Price
N/A
531
BACKLASH ADJUSTMENT NUT
Price
$6.90
533
INDICATOR PLATE
Price
$4.70
534
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
535
THRUST BEARING 8102
Price
N/A
536
HANDWHEEL BRACKET
Price
$27.70
537
CAP SCREW M6-1 X 25
Price
N/A
539
CROSS SLIDE LEADSCREW
Price
$71.30
540
GEAR 13T
Price
N/A
541
SET SCREW M8-1.25 X 8
Price
N/A
542
GRADUATED DIAL
Price
$40.15
543
STEEL BALL 6MM
Price
N/A
544
COMPRESSION SPRING 6 X 16MM
Price
N/A
545
OIL FILL CAP 3/8 NPT PLASTIC
Price
$1.90

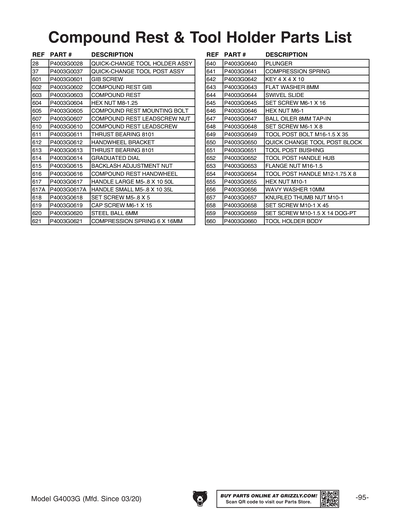

601
GIB SCREW
Price
N/A
602
COMPOUND REST GIB
Price
$53.50
603
COMPOUND REST
Price
$157.00
604
HEX NUT M8-1.25
Price
N/A
605
COMPOUND REST MOUNTING BOLT
Price
$2.25
606
COMPOUND SLIDE SCREW
Price
$6.70
607
COMPOUND REST LEADSCREW NUT
Price
$44.60
608
SET SCREW M6-1 X 8
Price
N/A
609
HEX NUT M6-1
Price
N/A
610
COMPOUND REST LEADSCREW
Price
$57.25
611
THRUST BEARING 8101
Price
N/A
612
HANDWHEEL BRACKET
Price
$29.00
613
THRUST BEARING 8101
Price
N/A
614
GRADUATED DIAL
Price
$40.15
615
BACKLASH ADJUSTMENT NUT
Price
$4.70
616
COMPOUND REST HANDWHEEL
Price
$35.95
617
HANDLE LARGE M5-.8 X 10 50L
Price
$11.20
617A
HANDLE SMALL M5-.8 X 10 35L
Price
$8.95
618
SET SCREW M5-.8 X 5
Price
N/A
619
CAP SCREW M6-1 X 15
Price
N/A
620
STEEL BALL 6MM
Price
N/A
621
COMPRESSION SPRING 6 X 16MM
Price
N/A
640
PLUNGER
Price
N/A
641
COMPRESSION SPRING
Price
$2.25
642
KEY 4 X 4 X 10
Price
N/A
643
FLAT WASHER 8MM
Price
N/A
644
SWIVEL SLIDE
Price
N/A
645
SET SCREW M6-1 X 16
Price
N/A
646
HEX NUT M6-1
Price
N/A
647
BALL OILER 8MM PRESS-IN
Price
N/A
648
SET SCREW M6-1 X 8
Price
N/A
649
TOOL POST BOLT M16-1.5 X 35
Price
N/A
650
QUICK CHANGE TOOL POST BLOCK
Price
N/A
651
TOOL POST BUSHING
Price
N/A
652
TOOL POST HANDLE HUB
Price
N/A
653
FLANGE NUT M16-1.5
Price
N/A
654
TOOL POST HANDLE M12-1.75 X 8
Price
N/A
655
HEX NUT M10-1
Price
N/A
656
WAVY WASHER 10MM
Price
N/A
657
KNURLED THUMB NUT M10-1
Price
N/A
658
SET SCREW M10-1 X 45
Price
N/A
659
SET SCREW M10-1.5 X 14 DOG-PT
Price
N/A
660
TOOL HOLDER BODY
Price
$44.60
701
TAILSTOCK ASSEMBLY
Price
$846.70
702
KEY 8 X 8 X 30
Price
N/A
703
QUILL 40MM
Price
$92.90
704
TAILSTOCK BODY
Price
$240.85
705
CLAMPING BASE
Price
$111.45
706
SET SCREW M10-1.5 X 50
Price
N/A
707
QUILL LEADSCREW
Price
$62.60
708
ROLL PIN 4 X 10
Price
N/A
709
THRUST BEARING 8101
Price
N/A
710
HANDWHEEL BRACKET
Price
$21.25
711
GRADUATED DIAL
Price
N/A
712
CAP SCREW M6-1 X 20
Price
N/A
713
QUILL HANDWHEEL
Price
$47.15
714
HANDWHEEL HANDLE M8-1.25 X 14 88L
Price
$9.00
715
HEX NUT M12-1.75
Price
N/A
716
QUILL LOCK HANDLE M12-1.75 X 16 170L
Price
$6.15
717
QUILL LOCK BOLT
Price
N/A
718
LOCK SHAFT
Price
N/A
719
TAILSTOCK LOCK HANDLE M10-1.5 X 12 90L
Price
$24.85
720
TAILSTOCK LOCK SHAFT
Price
$17.90
721
ROLL PIN 5 X 30
Price
N/A
722
LOCK COLLAR
Price
$6.50
723
CLAMP BOLT 3-7/8" V1
Price
$17.90
723V2
HEX BOLT M12-1.75 X 100
Price
N/A
724
CLAMP SHOE
Price
N/A
725
FLAT WASHER 12MM
Price
N/A
726
HEX NUT M12-1.75
Price
N/A
727
QUILL LEADSCREW NUT
Price
$35.95
728
CAP SCREW M4-.7 X 10
Price
N/A
729
SET SCREW M6-1 X 30
Price
N/A
731
SET SCREW M8-1.25 X 50
Price
N/A
732
HANDLE BASE
Price
$9.00
733
ALIGNMENT BLOCK
Price
$4.70

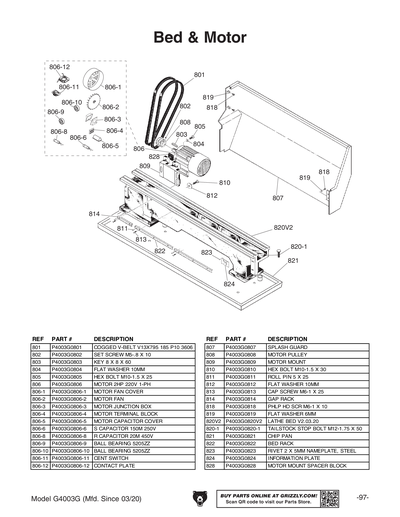

801
COGGED V-BELT V13X795 185 P10 3606
Price
$66.90
802
SET SCREW M5-.8 X 10
Price
N/A
803
KEY 8 X 8 X 60
Price
$5.20
804
FLAT WASHER 10MM
Price
N/A
805
HEX BOLT M10-1.5 X 25
Price
N/A
806
MOTOR 2HP 220V 1-PH
Price
$639.40
806-1
MOTOR FAN COVER
Price
$48.20
806-10
BALL BEARING 6205ZZ
Price
N/A
806-11
CENT SWITCH
Price
$29.15
806-12
CONTACT PLATE
Price
$35.70
806-13
MOTOR CORD 12G 5W 24"
Price
N/A
806-2
MOTOR FAN
Price
$60.40
806-3
MOTOR JUNCTION BOX
Price
$31.25
806-4
MOTOR TERMINAL BLOCK
Price
$37.95
806-5
MOTOR CAPACITOR COVER
Price
$31.35
806-6
S CAPACITOR 150M 250V 1-5/8 X 3-3/16
Price
$44.60
806-7
MOTOR 2HP LABEL
Price
$4.40
806-8
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
806-9
BALL BEARING 6205ZZ
Price
N/A
807
SPLASH GUARD
Price
$334.25
808
MOTOR PULLEY
Price
$87.00
809
MOTOR MOUNT
Price
$100.35
810
HEX BOLT M10-1.5 X 30
Price
N/A
811
ROLL PIN 5 X 25
Price
N/A
812
FLAT WASHER 10MM
Price
N/A
813
CAP SCREW M6-1 X 25
Price
N/A
814
GAP RACK
Price
$26.75
815
GAP INSERT
Price
$180.85
816
CAP SCREW M10-1.5 X 45
Price
N/A
817
THREADED TAPER PIN
Price
$5.10
818
PHLP HD SCR M6-1 X 10
Price
N/A
819
FLAT WASHER 6MM
Price
N/A
820
LATHE BED
Price
N/A
820-1
TAILSTOCK STOP BOLT M12-1.75 X 50
Price
$13.70
820V2
LATHE BED V2.04.20
Price
$3,097.15
821
CHIP PAN
Price
$311.95
822
RACK 16-1/2" LONG 1PC
Price
$89.15
823
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
824
INFORMATION PLATE
Price
$6.15
825
HEX NUT M10-1.5
Price
N/A
826
STANDOFF-HEX DE
Price
$5.10
827
LATHE BED NUT
Price
$3.25
828
*DISCD*MOTOR MOUNT SPACER BLOCK
Item is no longer available
Price
N/A
829

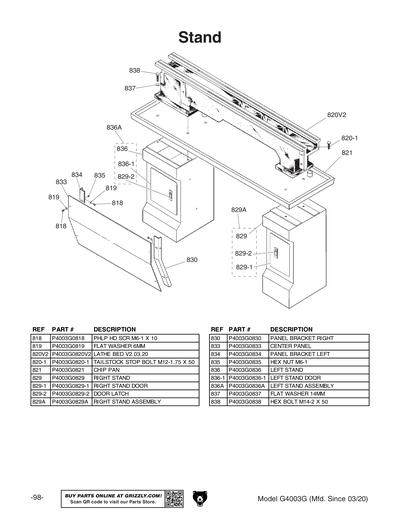

RIGHT STAND
Price
$1,053.40
829-1
RIGHT STAND DOOR
Price
$18.40
829-2
DOOR LATCH
Price
$23.65
829A
COMPLETE RIGHT STAND ASSY BOX 2
Price
$1,053.40
829V2-2
DOOR LATCH V2
Price
$20.15
830
PANEL BRACKET RIGHT
Price
$53.50
831
PHLP HD SCR M5-.8 X 8
Price
N/A
832
FLAT WASHER 5MM
Price
N/A
833
CENTER PANEL
Price
$109.20
834
PANEL BRACKET LEFT
Price
$53.50
835
HEX NUT M6-1
Price
N/A
836
LEFT STAND
Price
$1,173.40
836-1
LEFT STAND DOOR
Price
$60.40
836A
COMPLETE LEFT STAND ASSY BOX 3
Price
$1,173.40
837
FLAT WASHER 14MM
Price
N/A
838
HEX BOLT M14-2 X 50
Price
N/A
839
CONTROL BOX CORD
Price
$15.85
901
END BRACKET
Price
$93.65
902
CAP SCREW M6-1 X 12
Price
N/A
903
BALL OILER 6MM TAP-IN
Price
$2.60
904
ROLL PIN 6 X 55
Price
N/A
905
SET SCREW M6-1 X 6
Price
N/A
906
LOCK COLLAR 12 X 20 X 34MM
Price
$24.85
907
SPINDLE ROD V1
Price
N/A
907V2
SPINDLE ROD V2.12.14
Price
$118.15
908
KEY 5 X 5 X 35
Price
N/A
909
ROLL PIN 4 X 20
Price
N/A
910
COMPRESSION SPRING 7020
Price
$2.60
911
SPINDLE SWITCH HANDLE M10-1.5 X 16
Price
$15.85
912
HANDLE BRACKET
Price
$47.15
913
CAP SCREW M6-1 X 14
Price
N/A
914
ROLL PIN 5 X 25
Price
N/A
915
SUPPORT BRACKET
Price
$40.25
916
EXT RETAINING RING 30MM
Price
N/A
917
CAP SCREW M8-1.25 X 25
Price
N/A
918
*DISCD*CONNECTION BRACKET V1
Item is no longer available
Price
N/A
918V2
CONNECTION BRACKET V2.12.14
Price
$40.25
919
SPINDLE ROTARY SWITCH 10A V1
Price
$86.95
923
SPINDLE SWITCH BOX
Price
$18.00
1000

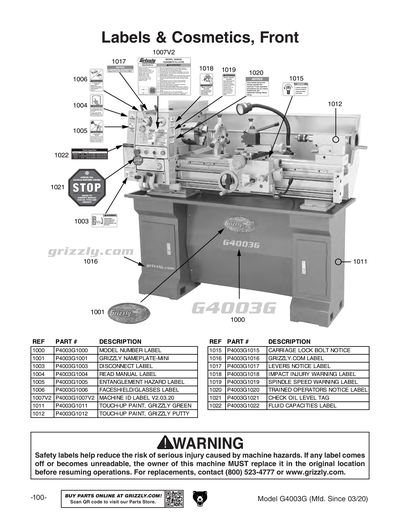

MODEL NUMBER LABEL
Price
$15.00
1001
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
1002
ELECTRICITY 1.4W X 1.2H
Price
N/A
1003
***USE PLABEL-53C***
Price
$4.68
1004
READ MANUAL 1.5W X 2.5H
Price
N/A
1005
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
1006
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
1007
MACHINE ID LABEL V1
Price
$16.40
1007V2
MACHINE ID LABEL V2.03.20
Price
$16.40
1008
CHIP PAN
Price
N/A
1009

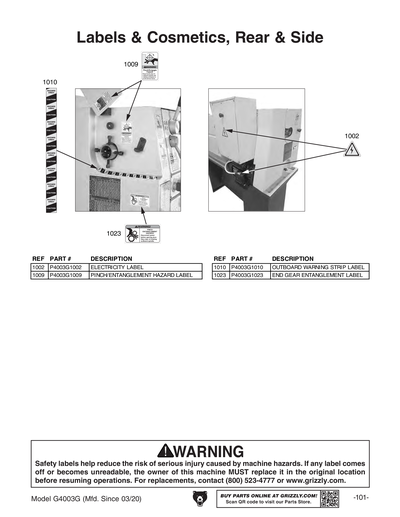

PINCH/ENTANGLEMENT HAZARD LABEL
Price
$5.65
1010
OUTBOARD WARNING STRIP LABEL
Price
$5.75
1011
N/S GRIZZLY GREEN G1023S
Price
N/A
1012
GREY PUTTY REF G0504
Price
N/A
1013
APRON FEED SELECT LABEL
Price
$7.20
1014
HALFNUT LEVER LABEL
Price
$3.60
1015
CARRIAGE LOCK BOLT NOTICE
Price
$6.50
1016
GRIZZLY.COM LABEL 9",GRAY
Price
N/A
1017
LEVERS NOTICE LABEL
Price
N/A
1018
IMPACT INJURY HAZARD LABEL
Price
N/A
1019
SPINDLE SPEED HAZARD LABEL
Price
N/A
1020
TRAINED OPERATORS NOTICE LABEL
Price
N/A
1021
CHECK OIL LEVEL TAG
Price
$9.00
1022
FLUID CAPACITY LABEL
Price
$8.10
1023
END GEAR ENTANGLEMENT LABEL
Price
N/A
1100
CAP SCREW M12-1.75 X 30
Price
N/A
1101
PHLP HD SCR M3-.5 X 6
Price
N/A
1102

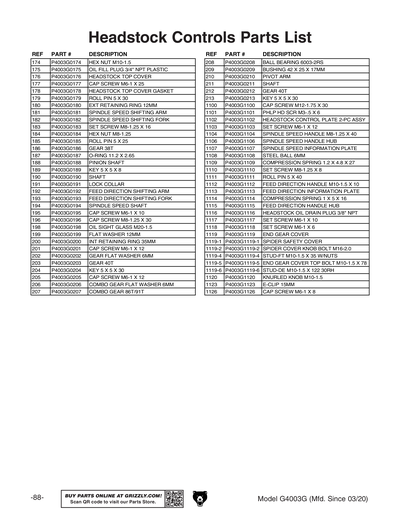

HEADSTOCK CONTROL PLATE 2-PC ASSY
Price
$40.15
1103
SET SCREW M6-1 X 12
Price
N/A
1104
SPINDLE SPEED HANDLE M8-1.25 X 40
Price
$7.15
1105
SPINDLE SPEED HANDLE M8-1.25 X 40
Price
N/A
1106
SPINDLE SPEED HANDLE HUB
Price
$27.35
1107
ARROW PLATE 46MM
Price
$5.00
1108
STEEL BALL 6MM
Price
N/A
1109
COMPRESSION SPRING 1.2 X 4.8 X 27
Price
$2.60
1110
SET SCREW M8-1.25 X 8
Price
N/A
1111
ROLL PIN 5 X 40
Price
N/A
1112
***USE P0750G0238***
Price
$7.15
1113
ARROW PLATE LOWER - 38MM
Price
$6.70
1114
COMPRESSION SPRING 1 X 5 X 16
Price
$2.20
1115
FEED DIRECTION HANDLE HUB
Price
$31.25
1116
HEADSTOCK OIL DRAIN PLUG 3/8" NPT
Price
$3.25
1117
SET SCREW M6-1 X 10
Price
N/A
1118
SET SCREW M6-1 X 6
Price
N/A
1119
END GEAR COVER
Price
$467.95
1119-1
SPIDER SAFETY COVER
Price
$71.35
1119-2
SPIDER COVER KNOB BOLT M16-2.0
Price
$3.65
1119-3
NUT FOR COVER
Price
$2.20
1119-4
STUD-FT M10-1.5 X 35 W/NUTS
Price
$8.95
1119-5
END GEAR COVER TOP BOLT M10-1.5 X 78
Price
$8.95
1119-6
STUD-DE M10-1.5 X 122 30RH
Price
$6.50
1119-7
HEX NUT M8-1.25
Price
N/A
1119-8
END GEAR COVER THREAD CHART
Price
$17.65
1120
KNURLED KNOB M10-1.5
Price
N/A
1121
HEX NUT M8-1.25
Price
N/A
1122
SPIDER COVER KNOB BOLT M16-2.0
Price
N/A
1123
E-CLIP 15MM
Price
N/A
1124
STUD-FT M10-1.5 X 35 W/NUTS
Price
N/A
1125
NUT FOR COVER
Price
N/A
1126
CAP SCREW M6-1 X 8
Price
N/A
1200

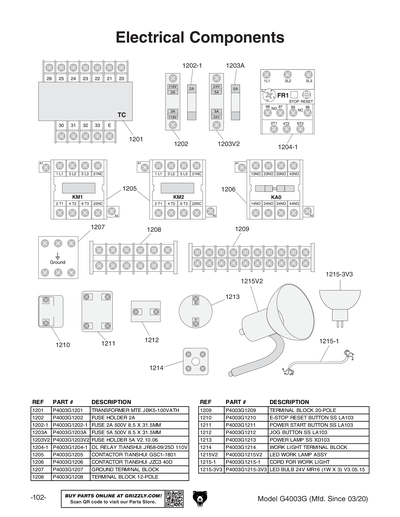

ELECTRICAL BOX ASSY
Price
$962.55
1200-1
ELECTRICAL BOX CONTAINER ONLY
Price
$178.25
1201
TRANSFORMER JBK5 100VA 110/400V-24/110V
Price
$249.60
1202
FUSE HOLDER 2A
Price
$9.00
1202-1
FUSE 2A 500V 8.5 X 31.5MM
Price
$5.85
1203
CIRCUIT BREAKER 5A HUIL DZ451-63 C5 1P
Price
$27.35
1203A
FUSE 5A 500V 8.5 X 31.5MM
Price
$11.65
1203V2
FUSE HOLDER 5A V2.10.06
Price
$6.90
1204
OL RELAY TIANSHUI JRS4-09 25D 9-13A
Price
$138.40
1204-1
OL RELAY MOUNTING BLOCK
Price
N/A
1204-2
RAIL MOUNTING ADAPTER FOR JRS4-09 RELAY
Price
$18.00
1205
CONTACTOR TIANSHUI GSC1-1801
Price
$122.60
1206
CONTACTOR TIANSHUI JZC3 40D
Price
$64.20
1207
GROUND TERMINAL BLOCK
Price
$13.40
1208
TERMINAL BLOCK 12-POLE
Price
$44.60
1209
TERMINAL BLOCK 20-POLE
Price
$44.60
1210
EMERGENCY STOP SWITCH
Price
N/A
1211
POWER START BUTTON SS LA103
Price
$42.45
1212
JOG BUTTON HUI LA103 22MM BLK
Price
N/A
1213
POWER INDICATOR LIGHT HUI XD103 22MM GRN
Price
N/A
1214
WORK LIGHT TERMINAL BLOCK W/CORD
Price
$27.00
1215
HALOGEN WORK LIGHT ASSY
Price
$78.00
1215-1
WORK LIGHT TERMINAL BLOCK W/CORD
Price
N/A
1215-2
CONDUIT 1/2"DIA 56"LONG
Price
$31.25
1215-3
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
1215-3V2
LED BULB 24V MR16 (1W X 3) V3.05.15
Price
N/A
1215-3V3
LED BULB 24V MR16 (1W X 3) V3.05.15
Price
$22.35
1215V2
LED WORK LAMP ASSY.
Price
$102.50
1216
WORK LIGHT BASE PLATE
Price
$31.35
1300
STEADY REST ASSEMBLY
Price
N/A
1301
KNURLED FINGER KNOB
Price
$6.50
1302
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
1303
BUSHING
Price
$6.15
1304
FINGER ADJUSTMENT SCREW
Price
$15.50
1305
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1305-1
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1305A
FINGER 3" W/BEARING ASSEMBLY
Price
$31.35
1306
SET SCREW M6-1 X 8
Price
N/A
1306-1
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1306-2
HEX NUT M6-1
Price
N/A
1307
UPPER STEADY REST CASTING
Price
$48.20
1309
Bearing - 16mm x 5mm
Price
N/A
1310
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1311
LOWER STEADY REST CASTING
Price
$80.25
1312
LOCK PIN
Price
$3.25
1313
LOCK BOLT M10-1.5 X 18
Price
$5.10
1314
HEX NUT M12-1.75
Price
N/A
1315
FLAT WASHER 12MM
Price
N/A
1316
CLAMP PLATE
Price
$31.35
1317
T-BOLT M12-1.75 X 75
Price
N/A
1318
FLAT WASHER 8MM
Price
N/A
1319
KNURLED THUMB KNOB M10-1.5
Price
$5.00
1400
FOLLOW REST ASSEMBLY
Price
N/A
1401
KNURLED FINGER KNOB
Price
N/A
1402
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
1403
BUSHING
Price
$6.15
1404
FINGER ADJUSTMENT SCREW
Price
$14.75
1405
FINGER SLEEVE 3"
Price
$14.40
1405A
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1406
SET SCREW M6-1 X 8
Price
N/A
1407
HEX NUT M6-1
Price
N/A
1408
SET SCREW M6-1 X 20
Price
N/A
1409
FOLLOW REST CASTING
Price
$60.40
1410
CAP SCREW M8-1.25 X 35
Price
N/A
1411
Bearing - 16mm x 5mm
Price
N/A
1412
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
2000
RIGHT STAND
Price
N/A
2001
LEFT STAND
Price
N/A
2002
CENTER PANEL
Price
N/A
2003
SCREW
Price
$2.20
2004
PANEL BRACKET RIGHT
Price
N/A
2005
PANEL BRACKET LEFT
Price
N/A
2006
DOOR LATCH
Price
N/A
2007
RIGHT STAND DOOR
Price
N/A
2008
LEFT STAND
Price
N/A
2009
NUT
Price
$2.20
2010
BOLT BAG
Price
$9.40
2011
LATCH RH
Price
$18.40
306-1
SET SCREW M6-1 X 20
Price
N/A
5000
ANTI-VIBRATION KIT
Price
$80.45
919-1
FWD/REV SWITCH BOX ASSEMBLY BEIGE
Price
$129.40
MANUAL
MANUAL FOR G4003G 09/07
Price
$15.00
MANV2
MANUAL G4003G MFD-04.12-12.14 V2.09.13
Price
$15.00
MANV3
MANUAL G4003G MFD-01.15-02.20 V3.03.17
Price
$15.75
MANV4
MANUAL G4003G MFD-03.20+ V4.03.22
Price
$22.65
P4003MANUAL
MANUAL G4002/G4003 MFD-01.00-05.11 V1.01
Price
N/A
