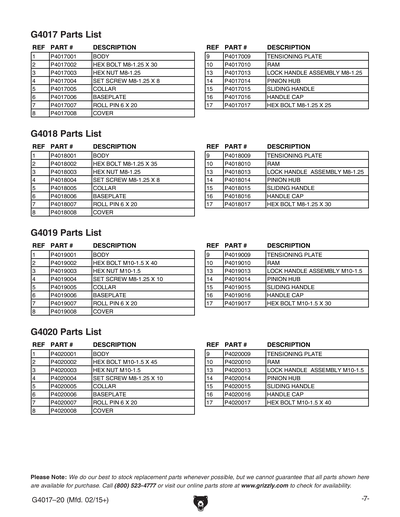

Parts for G4020 Arbor Press - 3 Ton

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BODY
2
HEX BOLT M10-1.5 X 45
Price
N/A
3
Now: PN02M
HEX NUT M10-1.5
Price
N/A
4
SET SCREW M8-1.25 X 8
Price
N/A
5
COLLAR
6
*DISCD*BASEPLATE
7
ROLL PIN 6 X 20
Price
N/A
8
COVER
9
TENSIONING PLATE
Item is no longer available
Price
N/A
10
RAM
11
LOCK HANDLE ASSEMBLY M10-1.5
Price
N/A
12
LOCK HANDLE ASSEMBLY M10-1.5
Price
N/A
13
LOCK HANDLE ASSEMBLY M10-1.5
Price
N/A
14
PINION HUB
14A
GEAR V2.08.06
15
SLIDING HANDLE
16
HANDLE CAP
17
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
37
BOLT
Item is no longer available
Price
N/A
MAN
MANUAL G4017-20 MFD-06.15 V1.06.15
Price
N/A
