Parts for G4026 - Collet Closer for G4002 and G4003

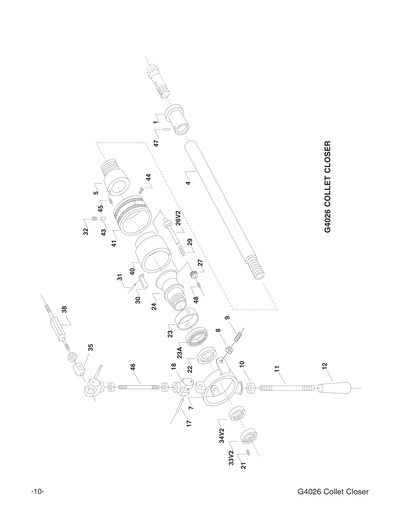

Part Diagram for G4026
Part Diagram for G4026
Part Diagram for G4026
Part Diagram for G4026

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

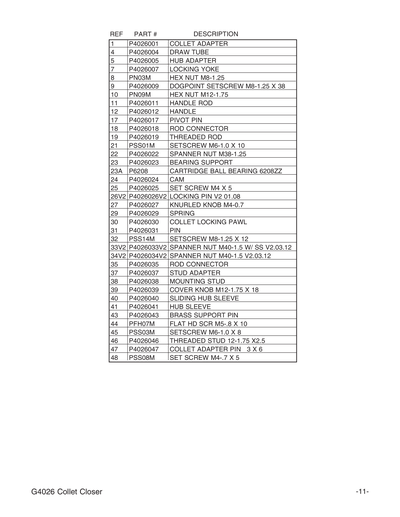

Ref #
Part #
Description
1
COLLET ADAPTER
Price
$224.60
4
DRAW TUBE
Price
$84.85
5
HUB ADAPTER
Price
$173.95
7
LOCK YOKE
Price
$98.10
8
P4026008
Now: PN03
HEX NUT 3/4-16
Price
N/A
9
DOG PT SET SCR M8-1.25 X 38
Price
$2.25
10
P4026010
Now: PN09
HEX NUT 5/8-18
Price
N/A
11
HANDLE ROD
Price
$6.90
12
HANDLE
Price
$4.70
17
PIVOT PIN
Price
$2.25
18
ROD CONNECTOR
Price
$31.25
19
THREADED ROD
Price
$14.40
21
SET SCREW M6-1 X 10
Price
N/A
22
SPANNER NUT M38-1.25
Price
$13.70
23
BEARING SUPPORT
Price
$49.25
23A
BALL BEARING 6208ZZ
Price
N/A
24
CAM
Price
$111.45
25
HUB SLEEVE
Price
N/A
26
INDEX PIN
Price
$3.65
2648
SET SCREW M4-.7 X 5
Price
N/A
26V2
LOCKING PIN V2.01.08
Price
$7.20
27
KNURLED KNOB M4-0.7
Price
$4.70
28
HEX NUT M4-.7
Price
N/A
29
SPRING .5 X 4 X 12
Price
$1.90
30
COLLET LOCKING PAWL
Price
$4.70
31
PIN
Price
$1.90
32
SET SCREW M8-1.25 X 12
Price
N/A
33
SPANNER NUT M30-1.25 W/ SET SCREW
Price
$9.00
33V2
SPANNER NUT M40-1.5 W/SET SCREW V2.03.12
Price
$9.00
34
SPANNER NUT M30-1.25
Price
$9.00
34V2
SPANNER NUT M40-1.5 V2.03.12
Price
$9.00
35
ROD CONNECTOR
Price
$11.50
37
*DISCD*STUD ADAPTER
Item is no longer available
Price
N/A
38
STANDOFF-HEX DE V1
Price
$18.00
38V2
STANDOFF-HEX DE W/O CONNECTOR V2.08.09
Price
$18.00
39
COVER KNOB M12-1.75 X18
Price
$14.40
40
SLIDING HUB SLEEVE
Price
$156.00
41
HUB SLEEVE
Price
$84.85
43
SUPPORT PIN BRASS
Price
$2.60
44
FLAT HD SCR M5-.8 X 10
Price
N/A
45
SET SCREW M6-1 X 8
Price
N/A
46
THREADED STUD 12-1.75 X2.5
Price
$4.50
47
COLLET ADAPTOR PIN 3 X 6
Price
$1.90
48
*DISCD*COLLET 5-C OPTIONAL
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G4026 05/03
Price
$22.65
