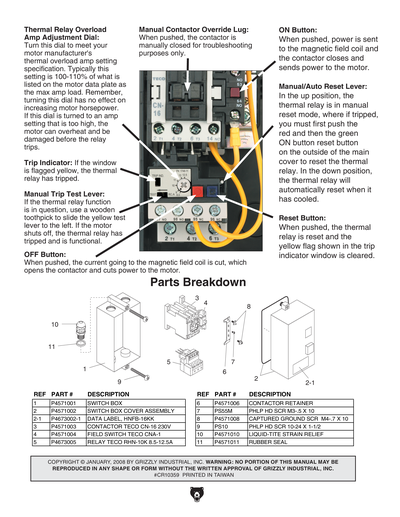

Parts for G4673 - Magnetic Switch, 3-Phase, 220V Only, 3 HP

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P4673001
Replaced By P4571001
*DISCD*SWITCH BOX
N/A View Replacement
2 P4673002
Replaced By P4571002
*DISCD*SWITCH BOX COVER ASSEMBLY
N/A View Replacement
2-1 P4673002-1
*DISCD*DATA LABEL HNFB-16KK
Item is no longer available
N/A
2-2 P4673002-2
Replaced By P4571002-2
*DISCD*STOP BUTTON ASSY RED
N/A View Replacement
2-3 P4673002-3
Replaced By P4571002-3
*DISCD*BUTTON
N/A View Replacement
3 P4673003
Replaced By P4571003
*DISCD*CONTACTOR TECO CN-16 230V V1
N/A View Replacement
4 P4673004
Replaced By P4571004
FIELD SWITCH TECO CNA-111S
N/A View Replacement
5 P4673005
RELAY RHN-10K 8.5-12.5A TECO
N/A
6 P4673006
Replaced By P4571006
*DISCD*CONTACTOR RETAINER ASSY
N/A View Replacement
7 P4673007
Replaced By PS55M
PHLP HD SCR M3-.5 X 10
N/A View Replacement
8 P4673008
Replaced By P4571006
*DISCD*CONTACTOR RETAINER ASSY
N/A View Replacement
9 P4673009
Replaced By PS10
PHLP HD SCR 10-24 X 1-1/2
N/A View Replacement
10 P4673010
Replaced By P4571010
*DISCD*LIQUID-TITE STRAIN RELIEF W/ RUBB
N/A View Replacement
11 P4673011
Replaced By P4571010
*DISCD*LIQUID-TITE STRAIN RELIEF W/ RUBB
N/A View Replacement
MAN P4673MAN
MANUAL FOR G4673 01/08
N/A
PART P4673PART
MISCELLANEOUS G4673 PARTS
N/A
