Parts for G4815 20" Spiral Cutterhead Jointer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

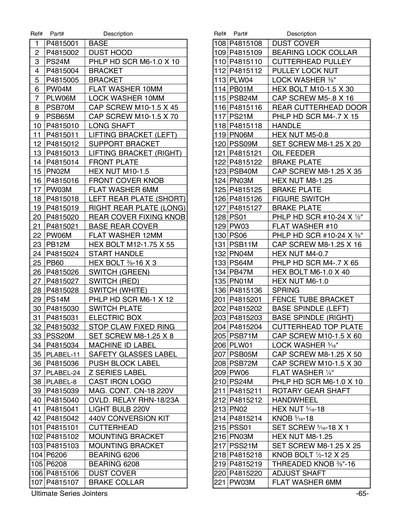

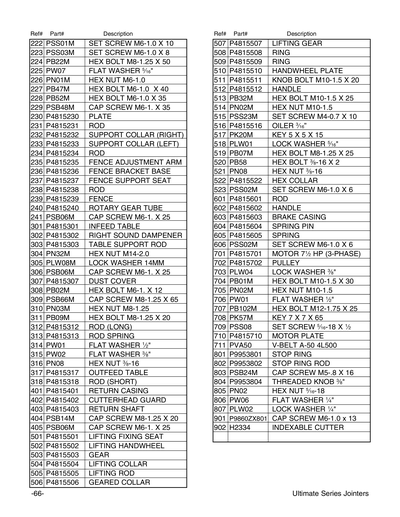

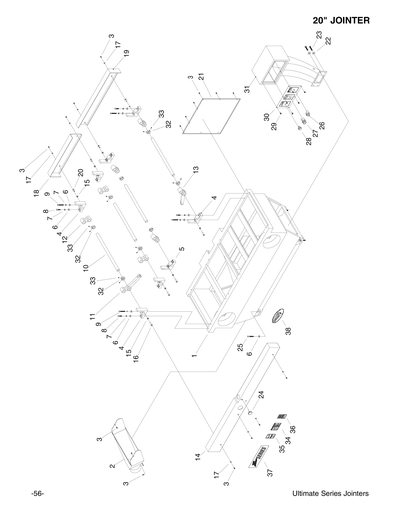

1
BASE
Item is no longer available
Price
N/A
2
DUST HOOD
Item is no longer available
Price
N/A
3
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
4
BRACKET
Item is no longer available
Price
N/A
5
*DISCD*BRACKET
Item is no longer available
Price
N/A
6
Now: PW04M
FLAT WASHER 10MM
Price
N/A
7
LOCK WASHER 10MM
Price
N/A
8
CAP SCREW M10-1.5 X 45
Price
N/A
9
CAP SCREW M10-1.5 X 70
Price
N/A
10
SPINDLE
Item is no longer available
Price
N/A
11
LIFTING BRACKET LEFT
Item is no longer available
Price
N/A
12
SUPPORT BRACKET
Item is no longer available
Price
N/A
13
LIFTING BRACKET RIGHT
Item is no longer available
Price
N/A
14
FRONT PLATE
Item is no longer available
Price
N/A
15
Now: PN02M
HEX NUT M10-1.5
Price
N/A
16
FRONT COVER KNOB 10 X 35MM
Item is no longer available
Price
N/A
17
Now: PW03M
FLAT WASHER 6MM
Price
N/A
18
PLATE REAR LEFT SHORT
Item is no longer available
Price
N/A
19
PLATE RIGHT REAR LONG
Item is no longer available
Price
N/A
20
REAR COVER FIXING KNOB 10 X 30MM
Item is no longer available
Price
N/A
21
BASE REAR COVER 1.6X508X555MM
Item is no longer available
Price
N/A
22
Now: PW06M
FLAT WASHER 12MM
Price
N/A
23
Now: PB12M
HEX BOLT M12-1.75 X 55
Price
N/A
24
START HANDLE M8X30MM
Item is no longer available
Price
N/A
25
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
26
GREEN SWITCH
Item is no longer available
Price
N/A
27
RED SWITCH
Item is no longer available
Price
N/A
28
WHITE SWITCH
Item is no longer available
Price
N/A
29
Now: PS39M
PHLP HD SCR M8-1.25 X 10
Price
N/A
30
SWITCH PLATE
Item is no longer available
Price
N/A
31
ELECTRIC BOX
Item is no longer available
Price
N/A
32
STOP CLAW FIXED RING
Item is no longer available
Price
N/A
33
SET SCREW M8-1.25 X 8
Price
N/A
34
MACHINE ID LABEL
Item is no longer available
Price
N/A
35
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
36
PUSH BLOCK LABEL
Item is no longer available
Price
N/A
37
Z SERIES INDUSTRIAL JOINTER 10.6W X 3.2H
Price
N/A
38
GRIZZLY LOGO 8.3W X 4.3H
Price
N/A
39
MAGNETIC CONTACTOR CN-18 220V
Item is no longer available
Price
N/A
40
*DISCD*OL RELAY RHN-18/23A TAIAN 220V V1
Item is no longer available
Price
N/A
40A
OL RELAY TECO RHN-10/24A 220V V2.07.08
41
LIGHT BULB 220V
Item is no longer available
Price
N/A
42
*DISCD*CONVERSION KIT 440V
Item is no longer available
Price
N/A

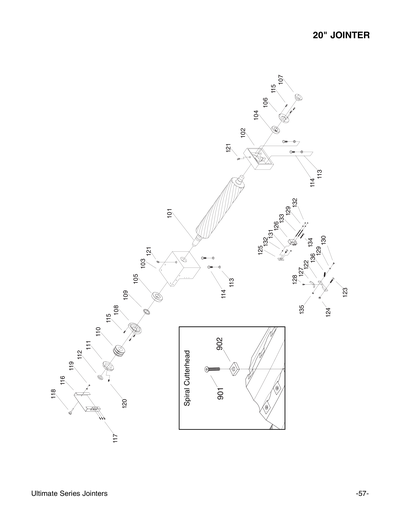

101
CUTTERHEAD
102
MOUNTING BRACKET
Item is no longer available
Price
N/A
103
MOUNTING BRACKET
Item is no longer available
Price
N/A
104
BALL BEARING 6206ZZ
Price
N/A
105
BALL BEARING 6208ZZ
Price
N/A
106
DUST COVER
Item is no longer available
Price
N/A
107
BRAKE COLLAR
Item is no longer available
Price
N/A
108
DUST COVER
Item is no longer available
Price
N/A
109
BEARING LOCK COLLAR D20X20-16
Item is no longer available
Price
N/A
110
CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
111
CUTTERHEAD STOP PLATE
Item is no longer available
Price
N/A
112
PULLEY HANDLE D25-16
Item is no longer available
Price
N/A
113
Now: PLW04
LOCK WASHER 3/8
Price
N/A
114
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
115
CAP SCREW M5-.8 X 16
Price
N/A
116
REAR CUTTERHEAD DOOR
Item is no longer available
Price
N/A
117
Now: PS21M
PHLP HD SCR M4-.7 X 15
Price
N/A
118
HANDLE M5 X 35MM
Item is no longer available
Price
N/A
119
Now: PN06M
HEX NUT M5-.8
Price
N/A
120
SET SCREW M8-1.25 X 20
Price
N/A
121
OIL FEEDER
Item is no longer available
Price
N/A
122
BRAKE PLATE
Item is no longer available
Price
N/A
123
CAP SCREW M8-1.25 X 35
Price
N/A
124
Now: PN03M
HEX NUT M8-1.25
Price
N/A
125
BRAKE PLATE
Item is no longer available
Price
N/A
126
FIGURE WATCH
Item is no longer available
Price
N/A
127
BRAKE PLATE
128
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
129
Now: PW03
FLAT WASHER #10
Price
N/A
130
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
131
CAP SCREW M8-1.25 X 16
Price
N/A
132
Now: PN04M
HEX NUT M4-.7
Price
N/A
133
Now: PS64M
PHLP HD SCR M4-.7 X 65
Price
N/A
134
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
135
Now: PN01M
HEX NUT M6-1
Price
N/A
136
SPRING 3X27.5X115MM
Item is no longer available
Price
N/A

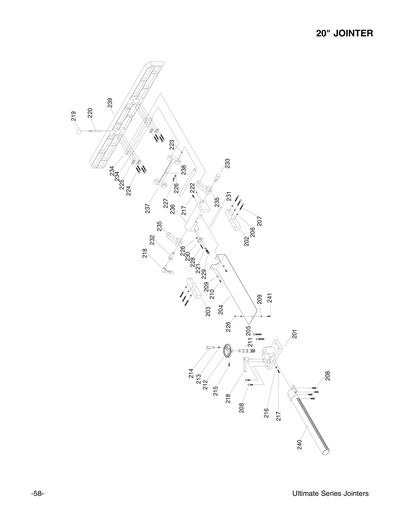

201
FENCE TUBE BRACKET
Item is no longer available
Price
N/A
202
BASE SPINDLE LEFT
Item is no longer available
Price
N/A
203
BASE SPINDLE RIGHT
Item is no longer available
Price
N/A
204
CUTTERHEAD TOP PLATE
Item is no longer available
Price
N/A
205
CAP SCREW M10-1.5 X 60
Price
N/A
206
Now: PLW01
LOCK WASHER 5/16
Price
N/A
207
CAP SCREW M8-1.25 X 50
Price
N/A
208
CAP SCREW M10-1.5 X 30
Price
N/A
209
Now: PW06
FLAT WASHER 1/4
Price
N/A
210
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
211
ROTARY GEAR SHAFT
Item is no longer available
Price
N/A
212
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
213
Now: PN02
HEX NUT 5/16-18
Price
N/A
214
*DISCD*KNOB 5/16-18
Item is no longer available
Price
N/A
215
Now: PSS01
SET SCREW 5/16-18 X 1
Price
N/A
216
Now: PN03M
HEX NUT M8-1.25
Price
N/A
217
SET SCREW M8-1.25 X 25
Price
N/A
218
ADJUSTABLE HANDLE 1/2"-12 X 45MM
Item is no longer available
Price
N/A
219
THREADED KNOB 3/8"-16X30
Item is no longer available
Price
N/A
220
ADJUSTABLE SHAFT
Item is no longer available
Price
N/A
221
Now: PW03M
FLAT WASHER 6MM
Price
N/A
222
SET SCREW M6-1 X 10
Price
N/A
223
SET SCREW M6-1 X 8
Price
N/A
224
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
225
Now: PW07
FLAT WASHER 5/16
Price
N/A
226
Now: PN01M
HEX NUT M6-1
Price
N/A
227
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
228
Now: PB52M
HEX BOLT M6-1 X 35
Price
N/A
229
CAP SCREW M6-1 X 35
Price
N/A
230
PLATE
Item is no longer available
Price
N/A
231
ROD
Item is no longer available
Price
N/A
232
ADJUSTABLE HANDLE W/COLLAR
Price
N/A
233
LEFT SUPPORT COLLAR
Item is no longer available
Price
N/A
234
ROD
Item is no longer available
Price
N/A
235
FENCE ADJUSTMENT ARM
Item is no longer available
Price
N/A
236
FENCE BRACKET BASE
Item is no longer available
Price
N/A
237
FENCE SUPPORT SEAT
Item is no longer available
Price
N/A
238
ROD
Item is no longer available
Price
N/A
239
FENCE
Item is no longer available
Price
N/A
240
ROTARY GEAR TUBE
Item is no longer available
Price
N/A
241
CAP SCREW M6-1 X 25
Price
N/A
242
ADJUSTABLE HANDLE W/COLLAR
Item is no longer available
Price
N/A

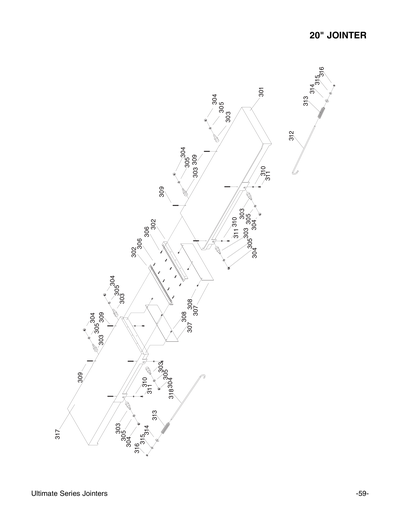

301
INFEED TABLE
Item is no longer available
Price
N/A
302
SOUND DAMPENER RIGHT
Item is no longer available
Price
N/A
303
TABLE SUPPORT ROD
Item is no longer available
Price
N/A
304
Now: PN32M
HEX NUT M14-2
Price
N/A
305
LOCK WASHER 14MM
Price
N/A
306
CAP SCREW M6-1 X 25
Price
N/A
307
DUST COVER
Item is no longer available
Price
N/A
308
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
309
CAP SCREW M8-1.25 X 65
Price
N/A
310
Now: PN03M
HEX NUT M8-1.25
Price
N/A
311
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
312
ROD LONG
Item is no longer available
Price
N/A
313
ROD SPRING 4.2 X 26 X 129MM
Item is no longer available
Price
N/A
314
Now: PW01
FLAT WASHER 1/2
Price
N/A
315
Now: PW02
FLAT WASHER 3/8
Price
N/A
316
Now: PN08
HEX NUT 3/8-16
Price
N/A
317
OUTFEED TABLE
Item is no longer available
Price
N/A
318
ROD SHORT
Item is no longer available
Price
N/A

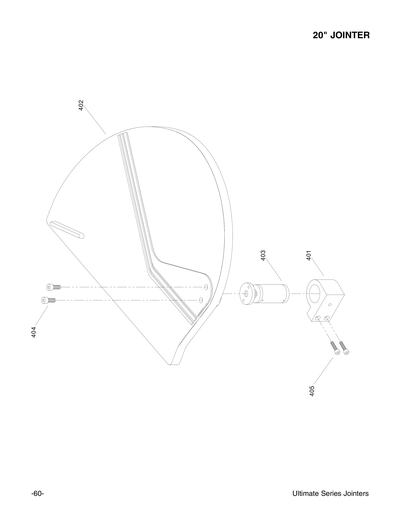

401
*DISCD*RETURN CASING V1.02.03
Item is no longer available
Price
N/A
401A
RETURN CASING V2.07.07
402
CUTTERHEAD GUARD V1.02.03
402A
CUTTERHEAD GUARD V2.07.07
Item is no longer available
Price
N/A
403
RETURN SHAFT
404
CAP SCREW M8-1.25 X 20
Price
N/A
405
CAP SCREW M6-1 X 25
Price
N/A
501
LIFTING FIXING SEAT
Item is no longer available
Price
N/A
502
*DISCD*LIFTING HANDWHEEL
Item is no longer available
Price
N/A
503
GEAR
Item is no longer available
Price
N/A
504
LIFTING COLLAR M25-1.5
Item is no longer available
Price
N/A
505
LIFTING ROD
Item is no longer available
Price
N/A
506
GEARED COLLAR
Item is no longer available
Price
N/A
507
LIFTING GEAR
Item is no longer available
Price
N/A
508
RING D40
Item is no longer available
Price
N/A
509
RING D22
Item is no longer available
Price
N/A
510
*DISCD*HANDWHEEL PLATE
Item is no longer available
Price
N/A
511
*DISCD*KNOB BOLT M10-1.5 X 20
Item is no longer available
Price
N/A
512
*DISCD*HANDLE
Item is no longer available
Price
N/A
513
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
514
Now: PN02M
HEX NUT M10-1.5
Price
N/A
515
SET SCREW M6-1 X 12
Price
N/A
516
OILER 3/16"
Item is no longer available
Price
N/A
517
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
518
Now: PLW01
LOCK WASHER 5/16
Price
N/A
519
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
520
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
521
Now: PN08
HEX NUT 3/8-16
Price
N/A
522
HEX COLLAR M25-1.5
Item is no longer available
Price
N/A
523
SET SCREW M6-1 X 6
Price
N/A

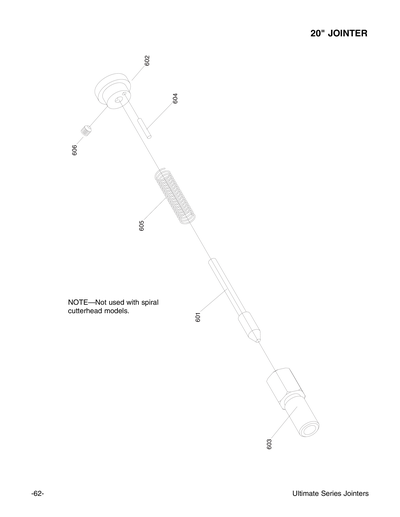

601
BRAKE CASING
Item is no longer available
Price
N/A
602
HANDLE
Item is no longer available
Price
N/A
603
LOCK ROD
Item is no longer available
Price
N/A
604
SET SCREW M6-1 X 6
Price
N/A
605
SPRING .8X1X47MM
Item is no longer available
Price
N/A
606
SPRING PIN M6-1X6MM
Item is no longer available
Price
N/A
701

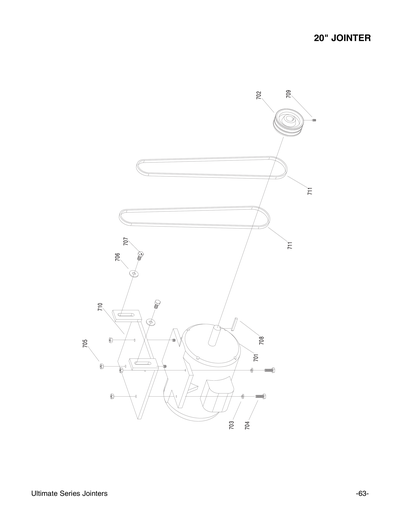

MOTOR 7.5HP 220V 3-PH
Item is no longer available
Price
N/A
702
PULLEY
Item is no longer available
Price
N/A
703
Now: PLW04
LOCK WASHER 3/8
Price
N/A
704
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
705
Now: PN02M
HEX NUT M10-1.5
Price
N/A
706
Now: PW01
FLAT WASHER 1/2
Price
N/A
707
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
708
Now: PK57M
KEY 7 X 7 X 65
Price
N/A
709
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
710
MOTOR PLATE
Item is no longer available
Price
N/A
711
Now: PVA50
V-BELT A50
Price
N/A

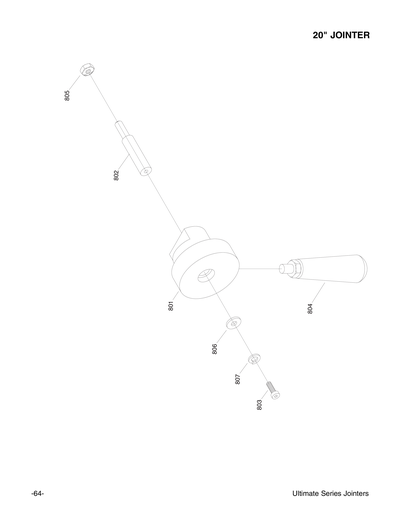

801
HANDLE HUB
Price
N/A
802
SHAFT
Price
N/A
803
CAP SCREW M5-.8 X 16
Price
N/A
804
HANDLE
Price
N/A
805
Now: PN02
HEX NUT 5/16-18
Price
N/A
806
Now: PW06
FLAT WASHER 1/4
Price
N/A
807
Now: PLW02
LOCK WASHER 1/4
Price
N/A
901
FLAT HD TORX SCR T20 M6-1 X 16
Price
N/A
902
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
903
*DISCD*CONVERSION KIT 440V
Price
N/A
MANUAL
MANUAL FOR G9860 V1.10.08
Price
N/A
