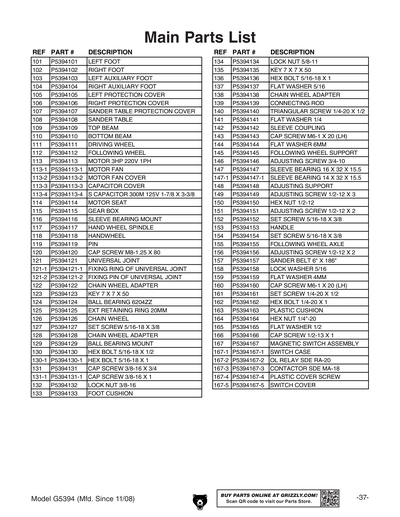

Parts for G5394 - 6" x 186" Stroke Sander

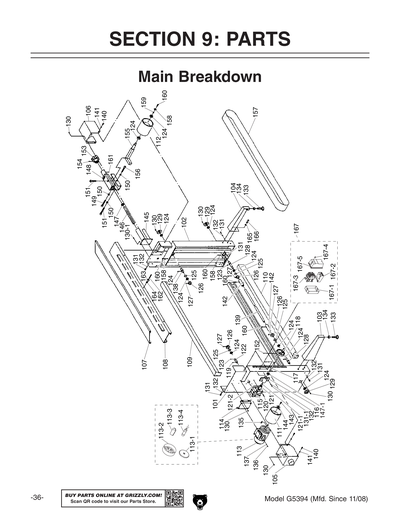

Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394
Part Diagram for G5394

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
101
FOOT LEFT
Price
$196.85
102
FOOT RIGHT
Price
$203.20
103
AUX FOOT LEFT
Price
$45.65
104
AUXILIARY FOOT RIGHT
Price
$45.65
105
PROTECTION COVER LEFT
Price
$45.35
106
PROTECTION COVER RIGHT
Price
$46.55
107
SANDER TABLE PROTECTION COVER
Price
$219.20
108
SANDER TABLE
Price
$266.60
109
TOP BEAM
Price
$153.40
110
BOTTOM BEAM
Price
$87.30
111
DRIVING WHEEL
Price
$152.50
112
FOLLOWING WHEEL
Price
$139.20
113
MOTOR 3HP 220V 1-PH
Price
$445.00
113-1
MOTOR FAN
Price
$7.00
113-2
MOTOR FAN COVER
Price
$11.50
113-3
CAPACITOR COVER
Price
$7.60
113-4
S CAPACITOR 300M 125V 1-7/8 X 3-3/8
Price
N/A
114
MOTOR SEAT
Price
$45.65
115
GEAR BOX
Price
$128.35
116
SLEEVE BEARING MOUNT
Price
$49.25
117
HAND WHEEL SPINDLE
Price
$10.90
118
HANDWHEEL
Price
$23.90
119
PIN
Price
$20.30
120
CAP SCREW M8-1.25 X 80
Price
N/A
121
UNIVERSAL JOINT
Price
$115.95
121-1
FIXING RING OF UNIVERSAL JOINT
Price
$2.20
121-2
FIXING PIN OF UNIVERSAL JOINT
Price
$2.45
122
CHAIN WHEEL ADAPTER
Price
$1.60
123
KEY 7 X 7 X 50
Price
N/A
124
BALL BEARING 6204ZZ
Price
N/A
125
EXT RETAINING RING 20MM
Price
N/A
126
CHAIN WHEEL
Price
$58.00
127
SET SCREW 5/16-18 X 3/8
Price
N/A
128
CHAIN WHEEL ADAPTER
Price
$21.50
129
BALL BEARING MOUNT
Price
$11.50
130
P5394130
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
130-1
HEX BOLT 5/16-18 X 1
Price
N/A
131
CAP SCREW 3/8-16 X 3/4
Price
N/A
131-1
CAP SCREW 3/8-16 X 1
Price
N/A
132
LOCK NUT 3/8-16
Price
N/A
133
FOOT CUSHION
Price
$24.70
134
LOCK NUT 5/8-11
Price
N/A
135
KEY 7 X 7 X 50
Price
N/A
136
P5394136
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
137
P5394137
Now: PW07
FLAT WASHER 5/16
Price
N/A
138
CHAIN WHEEL ADAPTER
Price
$14.50
139
CONNECTING ROD
Price
$64.95
140
TRIANGULAR SCREW 1/4-20 X 1/2
Price
$9.10
141
P5394141
Now: PW06
FLAT WASHER 1/4
Price
N/A
142
SLEEVE COUPLING
Price
$20.30
143
CAP SCREW M6-1 X 20 LH
Price
N/A
144
FLAT WASHER 6MM
Price
N/A
145
FOLLOWING WHEEL SUPPORT
Price
$65.90
146
ADJUSTING SCREW 3/4-10
Price
$18.75
147
SLEEVE BEARING 16 X 32 X 15.5
Price
$15.60
147-1
SLEEVE BEARING 14 X 32 X 15.5
Price
$16.50
148
ADJUSTING SUPPORT
Price
$78.25
149
ADJUSTING SCREW 1/2-12 X 3
Price
$3.65
150
LOCK NUT 1/2-13
Price
N/A
151
ADJUSTING SCREW 1/2-12 X 2
Price
$2.20
152
SET SCREW 5/16-18 X 3/8
Price
N/A
153
HANDLE
Price
$34.95
154
SET SCREW 5/16-18 X 3/8
Price
N/A
155
FOLLOWING WHEEL AXLE
Price
$31.40
156
ADJUSTMENT SCREW 1/2-12 X 3
Price
$1.60
157
SANDER BELT 6 X 186"
Price
$28.45
158
LOCK WASHER 5/16
Price
N/A
159
FLAT WASHER 4MM
Price
N/A
160
CAP SCREW M6-1 X 20
Price
N/A
161
SET SCREW 1/4-20 X 1/2
Price
N/A
162
P5394162
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
163
PLASTIC CUSHION
Price
$6.40
164
P5394164
Now: PN05
HEX NUT 1/4-20
Price
N/A
165
P5394165
Now: PW01
FLAT WASHER 1/2
Price
N/A
166
CAP SCREW 1/2-13 X 1
Price
N/A
167
MAG SWITCH ASSY
Price
$125.90
167-1
COVER SCREW 11/32-16 X 3/4 PLASTIC
Price
N/A
167-2
OL RELAY SDE RA-20 12-18A
Price
$52.45
167-3
CONTACTOR SDE MA-18
Price
$70.10
167-4
PLASTIC COVER SCREW
Price
$1.60
167-5
SWITCH COVER
Price
$21.55

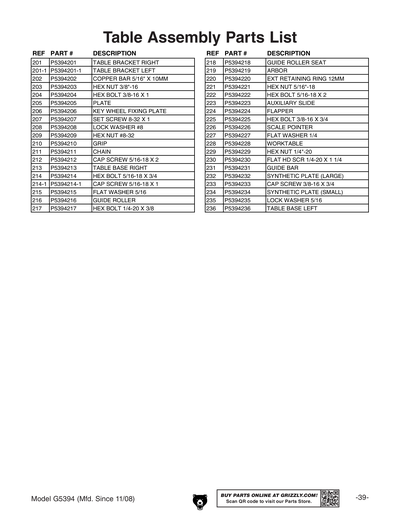

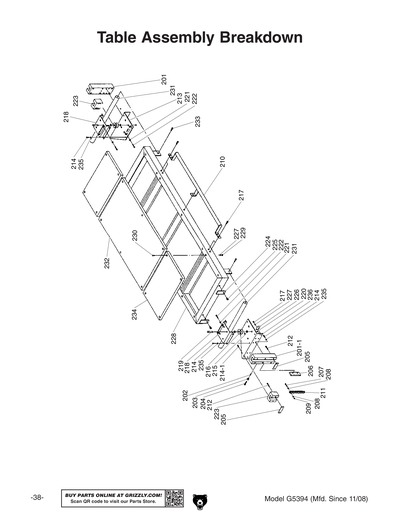

201
TABLE BRACKET RIGHT
Price
$59.80
201-1
TABLE BRACKET LEFT
Price
$59.80
202
COPPER BAR 5/16" X 10MM
Price
$13.60
203
P5394203
Now: PN08
HEX NUT 3/8-16
Price
N/A
204
P5394204
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
205
PLATE
Price
$10.90
206
KEY WHEEL FIXING PLATE
Price
$7.00
207
SET SCREW 8-32 X 1
Price
$1.60
208
LOCK WASHER #8
Price
N/A
209
HEX NUT 5/32-32
Price
N/A
210
GRIP
Price
$28.75
211
CHAIN
Price
$65.85
212
CAP SCREW 5/16-18 X 2
Price
N/A
213
TABLE BASE RIGHT
Price
$68.60
214
P5394214
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
214-1
CAP SCREW 5/16-18 X 1
Price
N/A
215
P5394215
Now: PW07
FLAT WASHER 5/16
Price
N/A
216
GUIDE ROLLER
Price
$13.05
217
P5394217
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
218
GUIDE ROLLER SEAT
Price
$28.45
219
ARBOR
Price
$5.25
220
EXT RETAINING RING 12MM
Price
N/A
221
P5394221
Now: PN02
HEX NUT 5/16-18
Price
N/A
222
P5394222
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
223
AUXILIARY SLIDE
Price
$49.55
224
FLAPPER
Price
$9.10
225
P5394225
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
226
SCALE POINTER
Price
$5.50
227
P5394227
Now: PW06
FLAT WASHER 1/4
Price
N/A
228
WORKTABLE
Price
$633.40
229
P5394229
Now: PN05
HEX NUT 1/4-20
Price
N/A
230
FLAT HD SCR 1/4-20 X 1-1/4
Price
N/A
231
GUIDE BAR
Price
$81.55
232
LARGE SYNTHETIC PLATE
Price
$36.90
233
CAP SCREW 3/8-16 X 3/4
Price
N/A
234
SMALL SYNTHETIC PLATE
Price
$24.50
235
LOCK WASHER 5/16
Price
N/A
236
TABLE BASE LEFT
Price
$68.60
300
*DISCD*PRESSING PLATE ASSY
Item is no longer available
Price
N/A

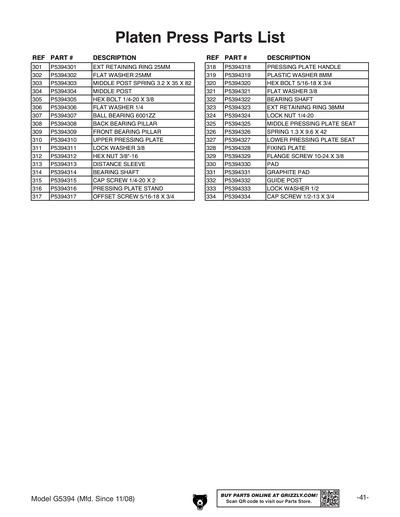

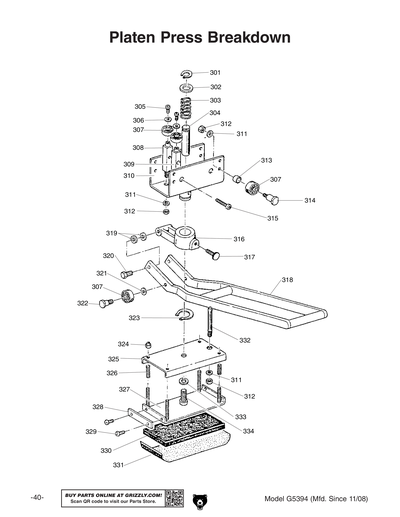

301
EXT RETAINING RING 25MM
Price
N/A
302
FLAT WASHER 25MM
Price
N/A
303
POST SPRING MIDDLE 3.2 X 35 X 82
Price
$7.00
304
POST MIDDLE
Price
$8.50
304A
COMPLETE SWITCH ASSY
Price
$136.80
305
P5394305
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
306
P5394306
Now: PW06
FLAT WASHER 1/4
Price
N/A
307
BALL BEARING 6001ZZ
Price
N/A
308
BACK BEARING PILLAR
Price
$4.85
309
FRONT BEARING PILLAR
Price
$4.85
310
UPPER PRESSING PLATE
Price
$17.25
311
LOCK WASHER 3/8
Price
N/A
312
P5394312
Now: PN08
HEX NUT 3/8-16
Price
N/A
313
DISTANCE SLEEVE
Price
$3.05
314
BEARING SHAFT
Price
$5.15
315
CAP SCREW 1/4-20 X 2
Price
N/A
316
PRESSING PLATE STAND
Price
$31.15
317
OFFSET SCREW 5/16-18 X 3/4
Price
$1.60
318
PRESSING PLATE HANDLE
Price
$36.90
319
PLASTIC WASHER 8MM
Price
$2.45
320
P5394320
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
321
P5394321
Now: PW02
FLAT WASHER 3/8
Price
N/A
322
BEARING SHAFT
Price
$7.90
323
EXT RETAINING RING 38MM
Price
N/A
324
LOCK NUT 1/4-20
Price
N/A
325
PRESSING PLATE SEAT MIDDLE
Price
$15.80
326
COMPRESSION SPRING
Price
N/A
327
PRESSING PLATE SEAT LOWER
Price
$18.15
328
FIXING PLATE
Price
$1.60
329
FLANGE SCREW 10-24 X 3/8
Price
N/A
330
PLATEN FOAM PAD
Price
N/A
331
GRAPHITE PAD 6" X 12"
Price
$16.05
332
GUIDE POST
Price
$8.80
333
LOCK WASHER 1/2
Price
N/A
334
CAP SCREW 1/2-13 X 3/4
Price
$1.60
335
*DISCD*HEXHEAD NUT
Item is no longer available
Price
N/A
336
*DISCD*PLASTIC PLATE
Item is no longer available
Price
N/A
337
*DISCD*ROUND HEAD CROSS SCREW
Item is no longer available
Price
N/A
338
*DISCD*GRIP
Item is no longer available
Price
N/A
339
*DISCD*HEXHEAD SCREW
Item is no longer available
Price
N/A
340
6" x 186" A/O Sanding Belt 60-J Grit
Price
N/A
341
*DISCD*SMALL WASHER
Item is no longer available
Price
N/A
342
*DISCD*PLASTIC CUSHION
Item is no longer available
Price
N/A
343
*DISCD*ROUND HEAD CROSS SCREW
Item is no longer available
Price
N/A
344
*DISCD*DRIVEN WHEEL STAND
Item is no longer available
Price
N/A
345
*DISCD*HEXHEAD SCREW
Item is no longer available
Price
N/A
346
*DISCD*ANGLE THREAD
Item is no longer available
Price
N/A
347
*DISCD*ROUND HEAD SIX-POINT SCREW
Item is no longer available
Price
N/A
348
*DISCD*HEXHEAD NUT
Item is no longer available
Price
N/A
349
*DISCD*ROUND HEAD SIX-POINT SCREW
Item is no longer available
Price
N/A
350
*DISCD*ADJUSTING FOUNDATION
Item is no longer available
Price
N/A
351
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
352
*DISCD*FAN COVER
Item is no longer available
Price
N/A
353
*DISCD*PRESSING PLATE ASSY
Item is no longer available
Price
N/A
358A
*DISCD*COMPLETE IDLER WHEEL ASSY
Price
$122.20
359
FOOT LEFT
Price
N/A
360
FOOT LEFT
Price
N/A
416
*DISCD*PRESSING PLATE STAND
Item is no longer available
Price
N/A
417
PLUM SCREW 5/16-18 X 45
Price
N/A
418
*DISCD*PRESSING PLATE HANDLE
Item is no longer available
Price
N/A
419
*DISCD*PLASTIC WASHER
Item is no longer available
Price
N/A
420
P5394420
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
421
*DISCD*WASHER
Item is no longer available
Price
N/A
422
*DISCD*BEARING SHAFT
Item is no longer available
Price
N/A
423
EXT RETAINING RING 25MM
Price
N/A
424
LOCK NUT 1/4-20
Price
N/A
425
*DISCD*MIDDLE PRESSING PLATE SEAT
Item is no longer available
Price
N/A
426
*DISCD*SPRING
Item is no longer available
Price
N/A
427
*DISCD*LOWER PRESSING PLATE
Item is no longer available
Price
N/A
428
*DISCD*FIXING PLATE
Item is no longer available
Price
N/A
429
*DISCD*ROUND HEAD CROSS SCREW
Item is no longer available
Price
N/A
430
*DISCD*SPONGE
Item is no longer available
Price
N/A
431
*DISCD*LEAD INK PAPER
Item is no longer available
Price
N/A
432
*DISCD*GUIDE POST
Item is no longer available
Price
N/A
433
LOCK WASHER 1/2
Price
N/A
434
*DISCD*ROUND HEAD SIX-POINT SCREW
Item is no longer available
Price
N/A

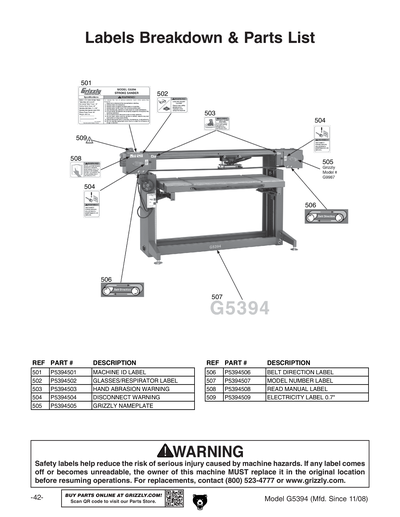

501
MACHINE ID LABEL
Price
$16.40
502
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
503
HAND ABRASION WARNING
Price
$1.60
504
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
505
Nameplate - Mini
Price
N/A
506
RESPIRATOR 2.8W X 1.5H
Price
N/A
507
MODEL NUMBER LABEL
Price
$4.40
508
READ MANUAL 2.8W X 1.5H
Price
N/A
509
ELECTRICITY 0.7W X 0.6H
Price
N/A
MANUAL
MANUAL FOR G5394 11/08
Price
$11.50
