Parts for G5772 - 52" Sheet Metal Shear

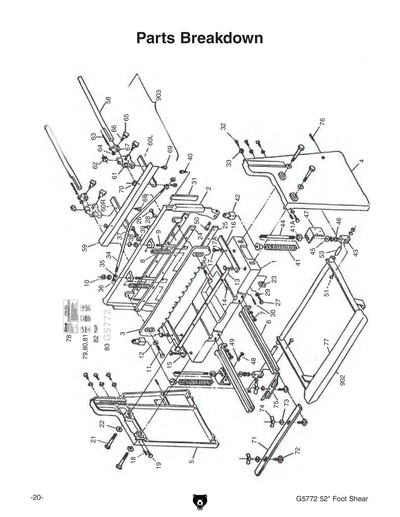

Part Diagram for G5772
Part Diagram for G5772
Part Diagram for G5772
Part Diagram for G5772

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

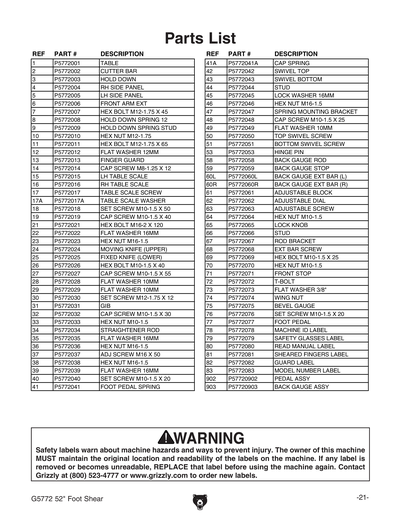

Ref #
Part #
Description
1
*DISCD*TABLE
Item is no longer available
Price
N/A
2
*DISCD*CUTTER BAR
Item is no longer available
Price
N/A
3
*DISCD*HOLD DOWN
Item is no longer available
Price
N/A
4
*DISCD*PANEL SIDE RH
Price
$218.25
5
*DISCD*SIDE PANEL LH
Item is no longer available
Price
N/A
6
*DISCD*FRONT ARM EXT
Item is no longer available
Price
N/A
7
HEX BOLT M12-1.75 X 45
Price
N/A
8
*DISCD*HOLD DOWN SPRING 12
Item is no longer available
Price
N/A
9
*DISCD*STUD-DE M12-1.75 X 240 30/50
Price
$3.45
10
ACORN NUT M12-1.75
Price
N/A
11
HEX BOLT M12-1.75 X 65
Price
N/A
12
FLAT WASHER 12MM
Price
N/A
13
*DISCD*FINGER GUARD 12
Item is no longer available
Price
N/A
14
PHLP HD SCR M8-1.25 X 12
Price
N/A
15
*DISCD*SCALE LH TABLE
Item is no longer available
Price
N/A
16
*DISCD*SCALE RH TABLE
Item is no longer available
Price
N/A
17
*DISCD*TABLE SCALE SCREW
Item is no longer available
Price
N/A
17A
*DISCD*TABLE SCALE WASHER
Item is no longer available
Price
N/A
18
SET SCREW M10-1.5 X 50
Price
N/A
19
CAP SCREW M10-1.5 X 40
Price
N/A
20
*DISCD*TABLE LOCK SCREW WASHER
Item is no longer available
Price
N/A
21
HEX BOLT M16-2 X 120
Price
N/A
22
FLAT WASHER 16MM
Price
N/A
23
HEX NUT M16-1.5
Price
N/A
24
*DISCD*KNIFE UPPER 9 HOLES
Item is no longer available
Price
N/A
25
*DISCD*KNIFE LOWER 8 HOLES
Item is no longer available
Price
N/A
26
HEX BOLT M10-1.5 X 40
Price
N/A
27
CAP SCREW M10-1.5 X 55
Price
N/A
28
FLAT WASHER 10MM
Price
N/A
29
FLAT WASHER 10MM
Price
N/A
30
SET SCREW M12-1.75 X 12
Price
N/A
31
*DISCD*C BAR SHIM
Price
$12.95
32
CAP SCREW M10-1.5 X 30
Price
N/A
33
HEX NUT M10-1.5
Price
N/A
34
*DISCD*C BAR STRAIGHTENER ROD
Price
$21.60
35
FLAT WASHER 16MM
Price
N/A
36
HEX NUT M16-1.5
Price
N/A
37
*DISCD*ADJUST SCREW STRAIGHTENER ROD M16
Item is no longer available
Price
N/A
38
HEX NUT M16-1.5
Price
N/A
39
FLAT WASHER 16MM
Price
N/A
40
SET SCREW M10-1.5 X 20
Price
N/A
41
*DISCD*FOOT PEDAL SPRING
Price
$75.35
41A
*DISCD*CAP SPRING
Item is no longer available
Price
N/A
42
*DISCD*SWIVEL TOP
Item is no longer available
Price
N/A
43
*DISCD*SWIVEL BOTTOM
Price
$20.15
44
*DISCD*STUD-UDE M16-2 X 321 50RH / 76RH
Item is no longer available
Price
N/A
45
LOCK WASHER 16MM
Price
N/A
46
HEX NUT M16-1.5
Price
N/A
47
*DISCD*SPRING MOUNTING BRACKET
Item is no longer available
Price
N/A
48
CAP SCREW M10-1.5 X 25
Price
N/A
49
FLAT WASHER 10MM
Price
N/A
50
*DISCD*TOP SWIVEL SCREW
Item is no longer available
Price
N/A
51
*DISCD*BOTTOM SWIVEL SCREW
Item is no longer available
Price
N/A
52
*DISCD*BOTTOM SWIVEL SCREW
Price
N/A
53
*DISCD*HINGE PIN
Item is no longer available
Price
N/A
54
*DISCD*HINGE PIN
Price
N/A
55
*DISCD*BACK GAUGE
Item is no longer available
Price
N/A
56
*DISCD*BACK GAUGE STOP
Item is no longer available
Price
N/A
57
*DISCD*RIGHT BACK GAUGE EXT BAR
Item is no longer available
Price
N/A
58
*DISCD*ROD BACK GAUGE
Item is no longer available
Price
N/A
59
*DISCD*BACK GAUGE STOP
Price
$44.60
60
*DISCD*ADJ DIAL BACK GAUGE
Item is no longer available
Price
N/A
60L
*DISCD*EXT BAR BACK GAUGE L
Item is no longer available
Price
N/A
60R
*DISCD*EXT BAR BACK GAUGE R
Item is no longer available
Price
N/A
61
*DISCD*BACK GAUGE ADJ BLOCK
Price
$14.75
62
*DISCD*BACK GAUGE ADJ DIAL
Price
$9.35
63
*DISCD*ADJUST SCREW BACK GAUGE
Price
$2.90
64
HEX NUT M10-1.5
Price
N/A
65
*DISCD*LOCK KNOB
Price
$10.35
66
*DISCD*KNOB
Price
$4.05
67
*DISCD*ADJ BRACKET
Price
$5.05
68
*DISCD*EXT BAR SCREW
Price
$4.35
69
HEX BOLT M10-1.5 X 25
Price
N/A
70
HEX NUT M10-1.5
Price
N/A
71
*DISCD*FRONT MATERIAL STOP
Item is no longer available
Price
N/A
72
*DISCD*T-BOLT
Item is no longer available
Price
N/A
73
P5772073
Now: PW02
FLAT WASHER 3/8
Price
N/A
74
*DISCD*T NUT WING NUT M10
Price
$1.49
75
*DISCD*BEVEL GAUGE
Item is no longer available
Price
N/A
76
SET SCREW M10-1.5 X 20
Price
N/A
77
*DISCD*FOOT PEDAL
Item is no longer available
Price
N/A
77-1
*DISCD*FOOT PEDAL ASSEMBLY
Price
N/A
78
MACHINE ID LABEL
Price
$16.40
79
*DISCD*SAFETY GLASSES LABEL
Price
$1.00
80
*DISCD*READ MANUAL LABEL
Price
$1.00
81
SHEAR AMPUTATION 1.5W X 2.5H
Price
N/A
82
*DISCD*GUARD LABEL
Price
$1.00
83
*DISCD*MODEL NUMBER LABEL
Price
$18.98
84
*DISCD*CROSS BRACE ROD
Price
$20.70
902
*DISCD*FOOT PEDAL ASSEMBLY
Item is no longer available
Price
N/A
903
*DISCD*BACK GAUGE ASSY
Item is no longer available
Price
N/A
