Parts for G5912Z - 5 HP Professional Spindle Shaper - Z Series

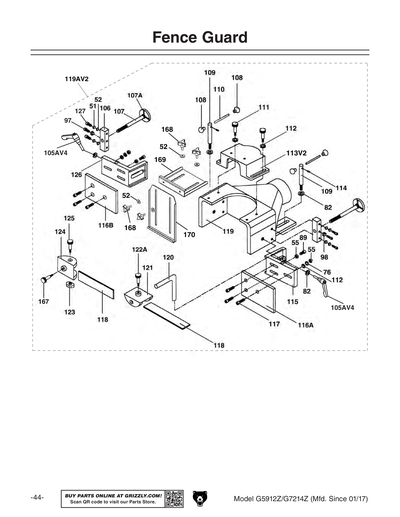

Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z
Part Diagram for G5912Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

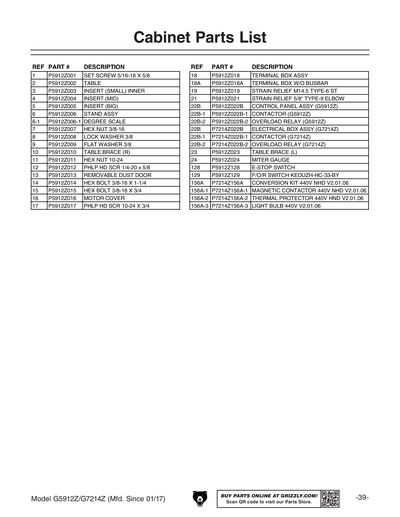

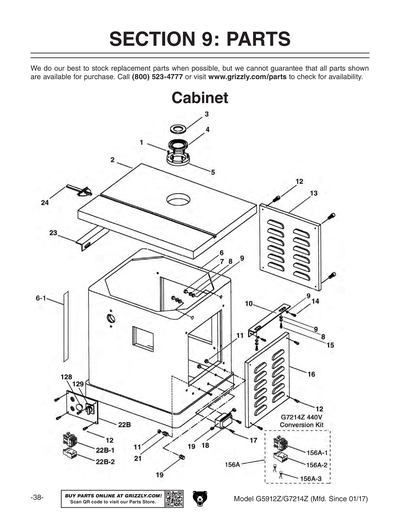

1
SET SCREW 5/16-18 X 5/8
Price
N/A
2
TABLE
Price
$1,027.60
2B
ELECTRICAL BOX ASSY V2.03.06
Price
$343.25
3
SMALL INNER
Price
$54.35
4
MID-SIZED INSERT
Price
$55.20
5
LARGE INSERT
Price
$117.95
6
STAND ASSY
Price
$1,174.90
6-1
DEGREE SCALE
Price
$6.75
7
HEX NUT 3/8-16
Price
N/A
8
LOCK WASHER 3/8
Price
N/A
9
FLAT WASHER 3/8
Price
N/A
10
RIGHT TABLE BRACE
Price
$40.20
11
HEX NUT 10-24
Price
N/A
12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
13
REMOVABLE DUST DOOR
Price
$105.40
14
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
15
HEX BOLT 3/8-16 X 3/4
Price
N/A
16
MOTOR COVER
Price
$114.15
17
PHLP HD SCR 10-24 X 3/4
Price
N/A
18
TERMINAL BOX ASSY
Price
$28.10
18A
TERMINAL BOX W/O BUSBAR
Price
$28.10
19
STRAIN RELIEF M14.5 TYPE-6 ST
Price
$3.40
20
CORD ELECTRIC
Price
$23.90
21
STRAIN RELIEF 5/8" TYPE-9 ELBOW
Price
$4.70
22
*DISCD*ELECTRICAL BOX ASSY V1.10.98
Item is no longer available
Price
N/A
22-1
CONTACTOR
Price
N/A
22-1A
ON SWITCH ROUND V2.03.06
Price
N/A
22-1B
CONTACTOR
Price
N/A
22-2
*DISCD*THERMAL TYPE TH-20 24/36A
Item is no longer available
Price
N/A
22-2A
OFF SWITCH ROUND V2.03.06
Price
N/A
22-3
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
22-5V2
F/O/R SWITCH KEDU ZH-HC-31-BY V2.03.06
Price
$79.15
22A
CONTROL PANEL ASSY V2.03.06
Price
N/A
22A-1
CONTACTOR
Price
N/A
22A-2
OL RELAY NHD TH-60 24-36A V2.01.06
Price
$73.10
22A-7
RED AND GREEN 220V LIGHT BULB 2PC
Price
N/A
22B
CONTROL PANEL ASSY V2.03.06
Price
$622.45
22B-1
CONTACTOR
Price
$150.05
22B-2
OL RELAY
Price
$73.10
23
LEFT TABLE BRACE
Price
$40.20
24
Cast-Iron Miter Gauge
Price
N/A
28
LOCK BOLT 5/8-11
Price
$28.70

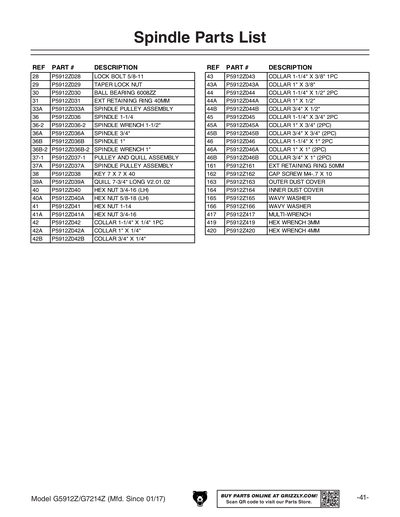

29
TAPER LOCK NUT
Price
$11.50
30
BALL BEARING 6008ZZ
Price
N/A
31
EXT RETAINING RING 40MM
Price
N/A
32
INT RETAINING RING 80MM
Price
N/A
33
SPINDLE PULLEY ASSEMBLY
Price
N/A
33A
SPINDLE PULLEY ASSEMBLY
Price
$708.65
34
*DISCD*STAR WASHER 30MM
Item is no longer available
Price
N/A
35
*DISCD*SPANNER NUT
Item is no longer available
Price
N/A

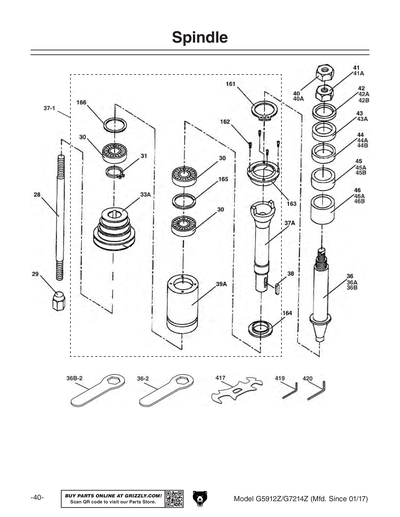

36
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
36-1
SPINDLE ASSEMBLY 1-1/4"
Price
$423.05
36-2
MULTI-WRENCH
Price
N/A
36A
SPINDLE 3/4" ASSY
Price
N/A
36A-1
SPINDLE 3/4" ASSY
Price
$331.90
36B
SPINDLE 1" ASSY
Price
N/A
36B-1
SPINDLE 1" ASSY
Price
$432.05
36B-2
MULTI-WRENCH
Price
N/A
37
PULLEY AND QUILL ASSEMBLY
Price
N/A
37-1
PULLEY AND QUILL ASSEMBLY
Price
$1,575.90
37A
SPINDLE PULLEY ASSEMBLY
Price
N/A
38
KEY 7 X 7 X 40
Price
N/A
39
*DISCD*QUILL 7-3/4" LONG V1.08.98
Item is no longer available
Price
N/A
39-1
PULLEY AND QUILL ASSEMBLY
Price
N/A
39A
QUILL 7-3/4" LONG V2.01.02
Price
$494.10
40
HEX NUT 3/4-16 LH
Price
N/A
41
HEX NUT 1-14
Price
N/A
42
***USE P5912Z036-1***
Price
$16.70
42A
COLLAR 1" X 1/4"
Price
$8.65
42B
COLLAR 3/4" X 1/4"
Price
$14.95
43
COLLAR 1-1/4" X 3/8" 1PC
Price
$17.85
43A
COLLAR 1" X 3/8"
Price
$8.65
43B
SPINDLE 3/4" ASSY
Price
N/A
44
COLLAR 1-1/4" X 1/2" (2PC)
Price
$20.15
44A
COLLAR 1" X 1/2"
Price
$8.65
44B
COLLAR 3/4" X 1/2"
Price
$14.95
45
COLLAR 1-1/4" X 3/4" (2PC)
Price
$37.70
45A
COLLAR 1" X 3/4" 2PC
Price
$16.10
45B
SPINDLE 3/4" ASSY
Price
N/A
46
COLLAR 1-1/4" X 1" 2PC
Price
$53.50
46A
COLLAR 1" X 1" 2PC
Price
$16.10
46B
COLLAR 3/4" X 1" 2PC
Price
$17.25
50
HEX BOLT 1/4-20 X 5/8
Price
N/A
51
LOCK WASHER 1/4
Price
N/A
52
FLAT WASHER 1/4
Price
N/A
53
LOCK KNOB
Price
$24.30
54
BAR LOCK
Price
$25.70
55
HEX NUT 5/16-18
Price
N/A
56
HEX BOLT 5/16-18 X 1
Price
N/A
57
SCREW LOCK
Price
$13.30
58
WASHER GEAR
Price
$22.70
59
GEAR
Price
$68.60
60
COLLAR
Price
$23.90
61
KEY 4 X 4 X 16
Price
N/A
62
BASE GEAR SHAFT
Price
$39.85
63
SHAFT GEAR
Price
$78.85
64
BASE SPINDLE
Price
$540.10
65
FLAT WASHER 1/2
Price
N/A
66
LOCK NUT 1/2"-12
Price
$5.15
67
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
68
SCREW 3/8-16 X 1-1/4
Price
$3.65
69
COLLAR
Price
$22.50
70
V-BELT A30
Price
N/A
71
V-BELT A28
Price
N/A
72
KEY 7 X 7 X 50
Price
N/A
73
MOTOR PULLEY
Price
$247.55
74
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
75
FLAT WASHER 5/16
Price
N/A
76
LOCK WASHER 5/16
Price
N/A
77
CAP SCREW 5/16-18 X 1
Price
N/A
78
COMPRESSION SPRING 3.4 X 20.3
Price
$23.30
79
*DISCD*KEY 3/8 X 3/4 X 1
Price
$7.20
80

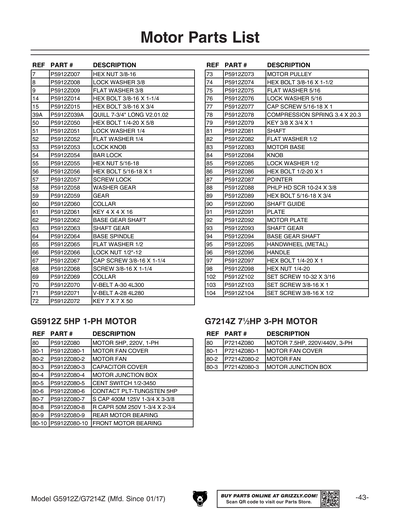

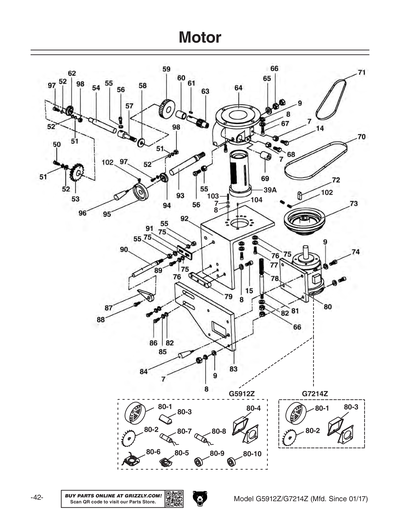

MOTOR 5HP 220V 1-PH
Price
N/A
80-1
MOTOR FAN COVER
Price
$21.75
80-10
FRONT MOTOR BEARING
Price
$19.10
80-2
MOTOR FAN
Price
$35.00
80-3
CAPACITOR COVER
Price
$10.65
80-4
MOTOR JUNCTION BOX
Price
$13.60
80-5
CENT SWITCH 1/2-3450
Price
N/A
80-6
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
80-7
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
80-8
R CAPACITOR 50M 250V 1-3/4 X 2-3/4
Price
N/A
80-9
REAR MOTOR BEARING
Price
$18.70
81
SHAFT
Price
$36.55
82
FLAT WASHER 1/2
Price
N/A
83
MOTOR BASE
Price
$254.45
84
KNOB
Price
$4.30
85
LOCK WASHER 1/2
Price
N/A
86
HEX BOLT 1/2-20 X 1
Price
N/A
87
POINTER
Price
$5.85
88
PHLP HD SCR 10-24 X 3/8
Price
N/A
89
HEX BOLT 5/16-18 X 3/4
Price
N/A
90
SHAFT GUIDE
Price
$21.75
91
PLATE
Price
$56.60
92
MOTOR PLATE
Price
$162.45
93
SHAFT GEAR
Price
$68.60
94
BASE GEAR SHAFT
Price
$31.15
95
METAL HANDWHEEL
Price
$131.85
96
HANDLE
Price
$31.25
97
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
98
HEX NUT 1/4-20
Price
N/A
102
SET SCREW 10-32 X 3/16
Price
N/A
103
SET SCREW 3/8-16 X 1
Price
N/A
104
SET SCREW 3/8-16 X 1/2
Price
N/A
105
*DISCD*RATCHET LOCK HANDLE PLASTIC V1
Item is no longer available
Price
N/A
105A
ADJ HANDLE 1/2" - 12
Price
N/A
105AV3
ADJ HANDLE 1/2" - 12
Price
N/A
105AV4
ADJ HANDLE 1/2" - 12
Price
$43.80

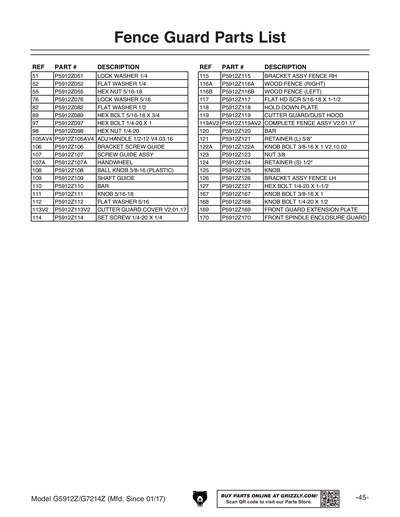

106
BRACKET SCREW GUIDE
Price
$24.85
107
SCREW GUIDE ASSY
Price
$42.15
107-1
SCREW GUIDE ROD
Price
$6.70
107A
HANDWHEEL
Price
$13.55
108
BALL KNOB 3/8-16 (PLASTIC)
Price
$3.40
109
SHAFT GUIDE
Price
$53.85
110
BAR
Price
$10.35
111
KNOB 5/16-18 V1
Price
$21.40
112
FLAT WASHER 5/16
Price
N/A
113
CUTTER GUARD COVER V2.01.17
Price
N/A
113V2
CUTTER GUARD COVER V2.01.17
Price
$106.00
114
SET SCREW 1/4-20 X 1/4
Price
N/A
115
BRACKET ASSY FENCE RH
Price
$111.25
116
FENCE WOODEN ASSEMBLY 2PC
Price
$89.15
116A
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
116B
FENCE WOODEN ASSEMBLY 2PC
Price
N/A
117
FLAT HD SCR 5/16-18 X 1-1/2
Price
N/A
118
HOLD DOWN PLATE
Price
$26.80
119
GUARD/DUST HOOD
Price
$337.25
119A
COMPLETE FENCE ASSY V1
Price
$1,424.15
119AV2
COMPLETE FENCE ASSY V2.01.17
Price
$1,305.35
120
BAR
Price
$35.00
121
RETAINER L 5/8"
Price
$56.05
122
HANDLE LOCK V1.08.98
Price
$9.70
122A
KNOB BOLT 3/8-16 X 1 V2.10.02
Price
$10.10
123
NUT 3/8
Price
$15.70
124
RETAINER S 1/2"
Price
$56.05
125
KNOB
Price
$22.60
126
BRACKET ASSY FENCE LH
Price
$108.45
127
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
128
E-STOP BUTTON 230V 6A V2.03.06
Price
N/A
129
F/O/R SWITCH KEDU ZH-HC-433-BY V2.03.06
Price
N/A
161
EXT RETAINING RING 50MM
Price
N/A
162
CAP SCREW M4-.7 X 10
Price
N/A
163
OUTER DUST COVER
Price
$43.30
164
INNER DUST COVER
Price
$28.20
165
WAVY WASHER
Price
$22.45
166
WAVY WASHER
Price
$17.55
167
KNOB BOLT 3/8-16 X 1
Price
$12.35
168
KNOB BOLT 1/4-20 X 1/2
Price
$9.35
169
FRONT GUARD EXTENSION PLATE
Price
$46.85
170
FRONT SPINDLE ENCLOSURE GUARD
Price
$42.70
223
ADJ HANDLE 1/2" - 12
Price
N/A
250
KNOB BOLT 3/8"
Price
N/A
319
HOOD
Price
$365.90

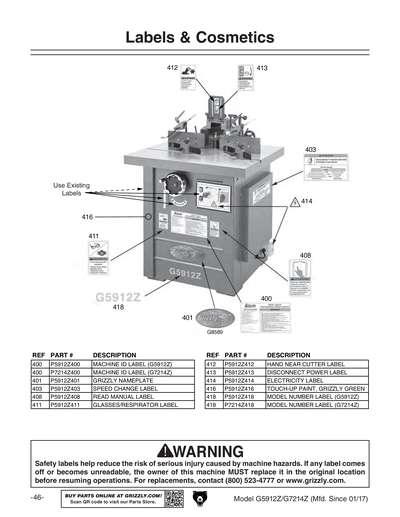

400
MACHINE ID LABEL
Price
$16.40
401
Nameplate - Large
Price
N/A
402
*DISCD*PULLEY LABEL
Price
N/A
403
SPEED CHANGE LABEL
Price
$7.85
404
BOLT BAG FOR CENTER SECTION
Price
$294.95
405
BOLT BAG FOR BRACKET SCREW GUIDE SECTION
Price
$61.60
406
MOVABLE FENCE ASSY L & R
Price
$153.40
407
HOLD DOWN ASSY
Price
$222.85
408
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
409
SCALE LABEL
Price
$2.10
410
ROTATION DIRECTION LABEL
Price
$9.95
411
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
412
HAND NEAR CUTTER LABEL
Price
$2.65
413
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
Price
N/A
414
ELECTRICITY 1.4W X 1.2H
Price
N/A
415
LARGE ELECTRICITY LABEL
Price
$24.15
416
N/S GRIZZLY GREEN G1023S
Price
N/A
417
MULTI-WRENCH
Price
$46.80
418
MODEL NUMBER LABEL
Price
$18.40
419
HEX WRENCH 3MM
Price
N/A
420
HEX WRENCH 4MM
Price
N/A
MANUAL
***USE P5912ZMANUAL***
Price
N/A
MANV2
MANUAL G5912Z/G7214Z MFD-12.06-02.13 V2
Price
$11.50
MANV3
MANUAL G5912Z/G7214Z MFD-03.13-12.16 V3
Price
$11.75
MANV4
MANUAL G5912Z/G7214Z MFD-01.17+ V4
Price
$12.50
SAMPLE
SAMPLE SPINDLES
Price
$253.90
