Parts for G5954 - 5 HP Industrial Dust Collector

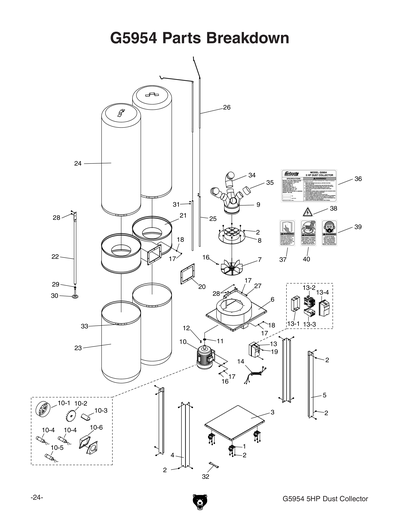

Part Diagram for G5954
Part Diagram for G5954
Part Diagram for G5954
Part Diagram for G5954

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

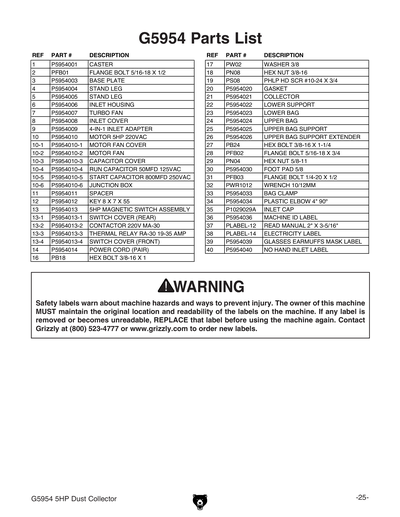

Ref #
Part #
Description
1
Price
$10.90
2
P5954002
Now: PB50
HEX BOLT 5/16-18 X 7/16
Price
N/A
3
Price
$105.80
4
STAND LEG
Item is no longer available
Price
N/A
5
Price
$48.30
6
Price
$457.40
7
Price
$247.45
8
Price
$85.50
9
Price
$94.20
10
Price
$878.20
10-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
10-2
Price
$13.80
10-3
Price
$6.05
10-4
R CAPACITOR 50M 250V 2-1/2 X 1-1/2
Price
$29.30
10-5
S CAPACITOR 800M 250V 1-3/4 X 3-3/4
Price
$41.70
10-6
Price
$14.70
11
Price
$5.20
12
Price
$1.60
13
MAGNETIC SWITCH ASSY 5HP
Price
$157.50
13-1
REAR SWITCH COVER
Item is no longer available
Price
N/A
13-2
CONTACTOR 220V MA-30 SHERN DIAN
Price
$72.45
13-3
THERMAL RELAY RA-30 19-35 AMP SHERN DIAN
Item is no longer available
Price
N/A
13-4
Price
$16.95
14
Price
$75.85
15
P5954015
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
16
P5954016
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
17
P5954017
Now: PW02
FLAT WASHER 3/8
Price
N/A
18
P5954018
Now: PN08
HEX NUT 3/8-16
Price
N/A
19
P5954019
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
20
Price
$5.15
21
Price
$442.90
22
*DISCD*SUPPORT LOWER
Item is no longer available
Price
N/A
23
Lower Bag 39" x 56"
Price
N/A
24
24" X 70" 2.5-Micron Polyester Filter Bag
Price
N/A
25
Price
$22.45
26
UPPER BAG SUPPORT EXTENDER
Price
$21.75
27
P5954027
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
28
P5954028
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
29
P5954029
Now: PN04
HEX NUT 5/8-11
Price
N/A
30
Price
$23.50
31
P5954031
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
32
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
33
BAG CLAMP
Price
N/A
34
Price
$10.65
35
INLET CAP 4"
Price
N/A
36
Price
$16.40
37
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
38
ELECTRICITY 1.4W X 1.2H
Price
N/A
39
GLASSES EARMUFFS MASK LABEL
Price
$4.25
40
Price
$4.25
MANUAL
MANUAL FOR THE G5954 05/06
Price
$11.50
