Parts for G5955 - Heavy-Duty Hanging Air Filter

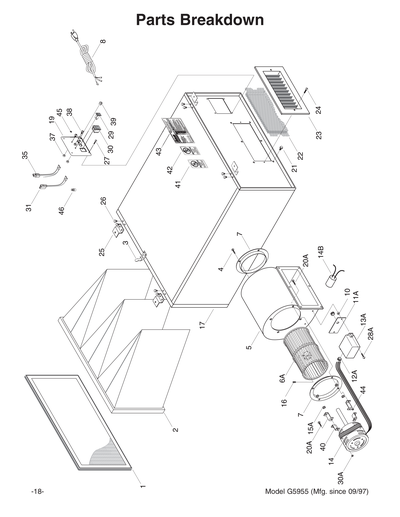

Part Diagram for G5955

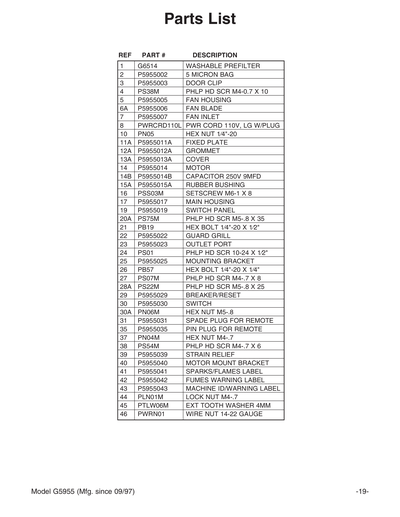

Part Diagram for G5955
Part Diagram for G5955
Part Diagram for G5955

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
PRIMARY FILTER 23-1/4 X 11-1/4 X 1/2
Price
$60.15
2
Price
$70.05
3
Price
$3.95
4
PHLP HD SCR M4-.7 X 10
Price
N/A
5
Price
$82.45
6
Price
$31.65
6A
Price
$33.25
7
Price
$3.45
8
POWER CORD 16G X 3W 73"L
Price
N/A
9
ELECTRIC CONDENSER COVER
Item is no longer available
Price
N/A
10
HEX NUT M6-1
Price
N/A
10A
HEX NUT 1/4-20
Price
N/A
11
FLAT WASHER 4MM
Price
N/A
11A
FIXED PLATE
Item is no longer available
Price
N/A
12
Price
$2.30
12A
GROMMET
Item is no longer available
Price
N/A
13
CONDENSER FIXED PLATE
Item is no longer available
Price
N/A
13A
Price
$3.45
14
*DISCD*MOTOR FOR ASSEMBLY V1
Item is no longer available
Price
N/A
14A
MOTOR 1/6HP 120V 1-PH V2.01.05
Price
$76.90
14B
R CAPACITOR 9M 250V 1 X 1-1/2
Price
$20.85
15
Price
$1.49
15A
Price
$1.49
16
SET SCREW M6-1 X 8
Price
N/A
16A
SET SCREW M6-1 X 8
Price
N/A
17
MAIN HOUSING
Item is no longer available
Price
N/A
18
Price
$75.35
19
Price
$4.30
20
*DISCD*FLANGE SCREW M4-.7 X 20
Item is no longer available
Price
N/A
20A
PHLP HD SCR M5-.8 X 35
Price
N/A
20B
RND HD SCR M4-.7 X 15
Item is no longer available
Price
N/A
21
P5955021
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
22
Price
$4.60
23
Price
$6.65
24
P5955024
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
25
Price
$1.90
26
P5955026
Now: PB57
HEX BOLT 1/4-20 X 1/4
Price
N/A
27
PHLP HD SCR M4-.7 X 8
Price
N/A
28
POWER LINE CORD
Item is no longer available
Price
N/A
28A
PHLP HD SCR M5-.8 X 25
Price
N/A
29
CIRCUIT BREAKER 3A ZING EAR ZE-800
Price
$5.50
30
ON/OFF SWITCH 16A 250V~T120
Price
$5.35
30A
HEX NUT M5-.8
Price
N/A
31
Price
$2.30
32
POWER INPUT REMOTE SOCKET
Item is no longer available
Price
N/A
33
POWER OUTPUT REMOTE SOCKET
Item is no longer available
Price
N/A
34
REMOTE IC BOX
Item is no longer available
Price
N/A
35
Price
$3.45
36
CONTACTING CORD
Item is no longer available
Price
N/A
37
HEX NUT M4-.7
Price
N/A
38
PHLP HD SCR M4-.7 X 8
Price
N/A
39
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
40
Price
$1.49
41
EXPLOSION HAZARD LABEL
Item is no longer available
Price
N/A
42
RESPIRATOR 3.8W X 2H
Price
N/A
43
MACHINE ID/WARNING LABEL V1
Item is no longer available
Price
N/A
43V2
MACHINE ID LABEL CSA V2.09.11
Item is no longer available
Price
N/A
44
LOCK NUT M4-.7
Price
N/A
45
EXT TOOTH WASHER 4MM
Price
N/A
46
WIRE NUT 14-22 AWG
Price
N/A
47
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
14A
MOTOR 1/6HP 120V 1-PH V2.01.05
Price
N/A
MANUAL
MANUAL FOR THE G5955 01/04
Item is no longer available
Price
N/A
MANV1
MANUAL G5955 MFG-11.03 V1.01.04
Item is no longer available
Price
N/A
MANV2
MANUAL G5955 MFG-09.11 V2.12.11
Price
$11.50
